Planar Systems PCT2235 22" 16:9 Multi-Touch LCD Monitor(Planar Systems Pct2235 22 16 9 Multi Touch Lcd Monitor 1)

Planar Systems PCT2235 22" 16:9 Multi-Touch LCD Monitor(Planar Systems Pct2235 22 16 9 Multi Touch Lcd Monitor 1) - Image 2

Planar Systems PCT2235 22" 16:9 Multi-Touch LCD Monitor(Planar Systems Pct2235 22 16 9 Multi Touch Lcd Monitor 1) - Image 3

Planar Systems PCT2235 22" 16:9 Multi-Touch LCD Monitor(Planar Systems Pct2235 22 16 9 Multi Touch Lcd Monitor 1) - Image 4

Planar Systems PCT2235 22" 16:9 Multi-Touch LCD Monitor(Planar Systems Pct2235 22 16 9 Multi Touch Lcd Monitor 1) - Image 5

Planar Systems PCT2235 22" 16:9 Multi-Touch LCD Monitor(Planar Systems Pct2235 22 16 9 Multi Touch Lcd Monitor 1) - Image 6

Planar Systems PCT2235 22″ 16:9 Multi-Touch LCD Monitor(Planar Systems Pct2235 22 16 9 Multi Touch Lcd Monitor 1)

Original price was: $346.00.Current price is: $99.99.

SKU: DGFUB 6897755652181 Categories: Computer & Presentation, Computer Products Tags: Computer Monitors, Computers, Monitors & Displays, Planar Systems PCT2235

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Planar Systems PCT2235 Overview

1Description
2Multi-Touch Technology
3Blue Light Reduction
4Planar Helium Stand
5Multiple Video Inputs

10 Factors to Consider When Selecting A Monitor for Video Editing

By Photo’s

Steven Esposito

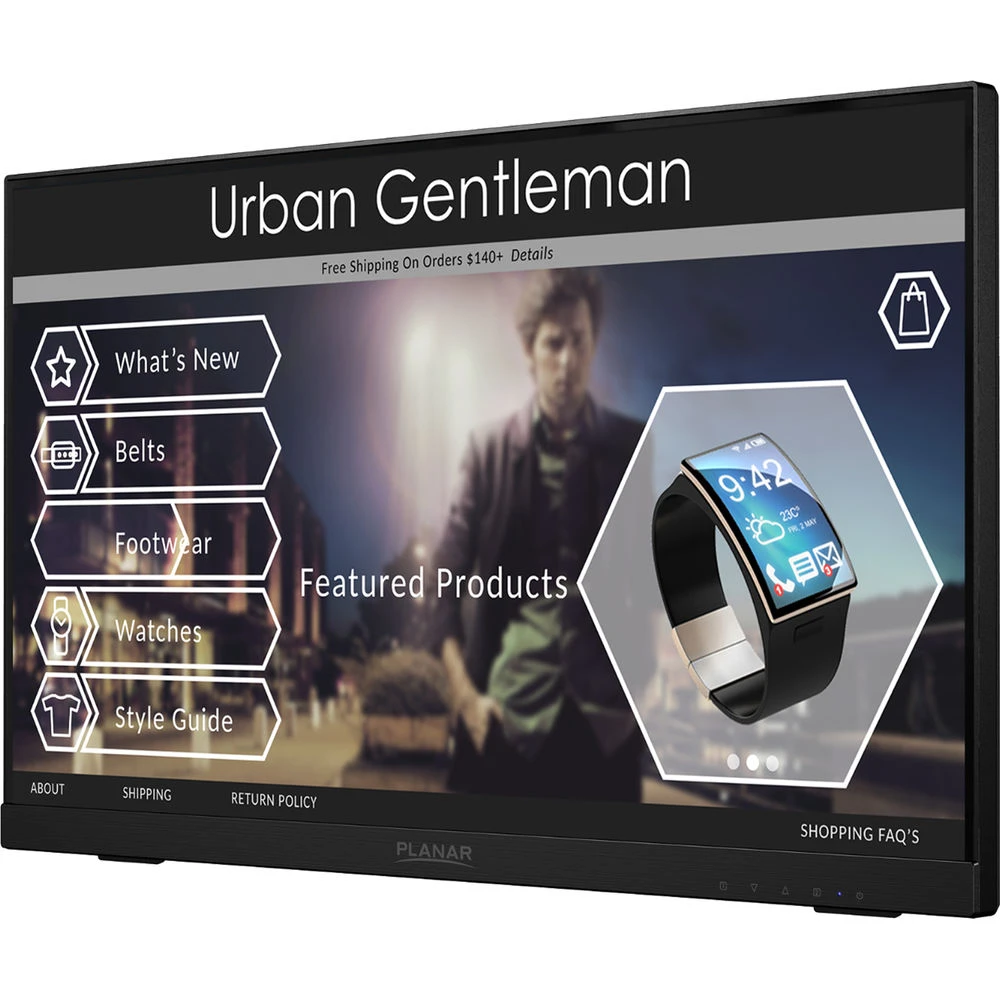

With a projected capacitive touchscreen display, the PCT2235 22″ 16:9 Multi-Touch LCD Monitor from Planar Systems allows users to interact with their content using up to 10 simultaneous touch points for a more immersive multimedia experience.

In addition to enhanced interactivity, this display also features reduced blue light emissions designed to reduce the strain placed on the eyes during extended viewing sessions. Installation is simple as the PCT2235 can be mounted to the wall using a VESA compatible mount or attached to the stand and tilted from 15 to 70°.

This Planar Systems touchscreen monitor is simple to set up as it comes equipped with VGA, HDMI, and DisplayPort inputs. Once configured viewers can take advantage of a Full HD 1920 x 1080 resolution screen accompanied by a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and 178° horizontal and vertical viewing angles, making it easy to see the display from virtually any angle.

Multi-Touch Technology

The Planar PCT2235 21.5″ Full HD monitor with multi-touch interactivity features projected capacitive touch technology, which registers up to 10 simultaneous touch points. The monitor is extremely fast and accurate for the office worker when scanning through emails, or for the graphic designer when swiping through various design alternatives or resizing photos.

Blue Light Reduction

Blue light has a short wavelength and produces a higher amount of energy. Studies have shown that prolonged exposure to blue light could damage your eyes. The Planar PCT2235 incorporates blue light reduction presets. Varying blue light levels, depending on the activity, enhances visual comfort when viewing the screen for extended periods of time.

Planar Helium Stand

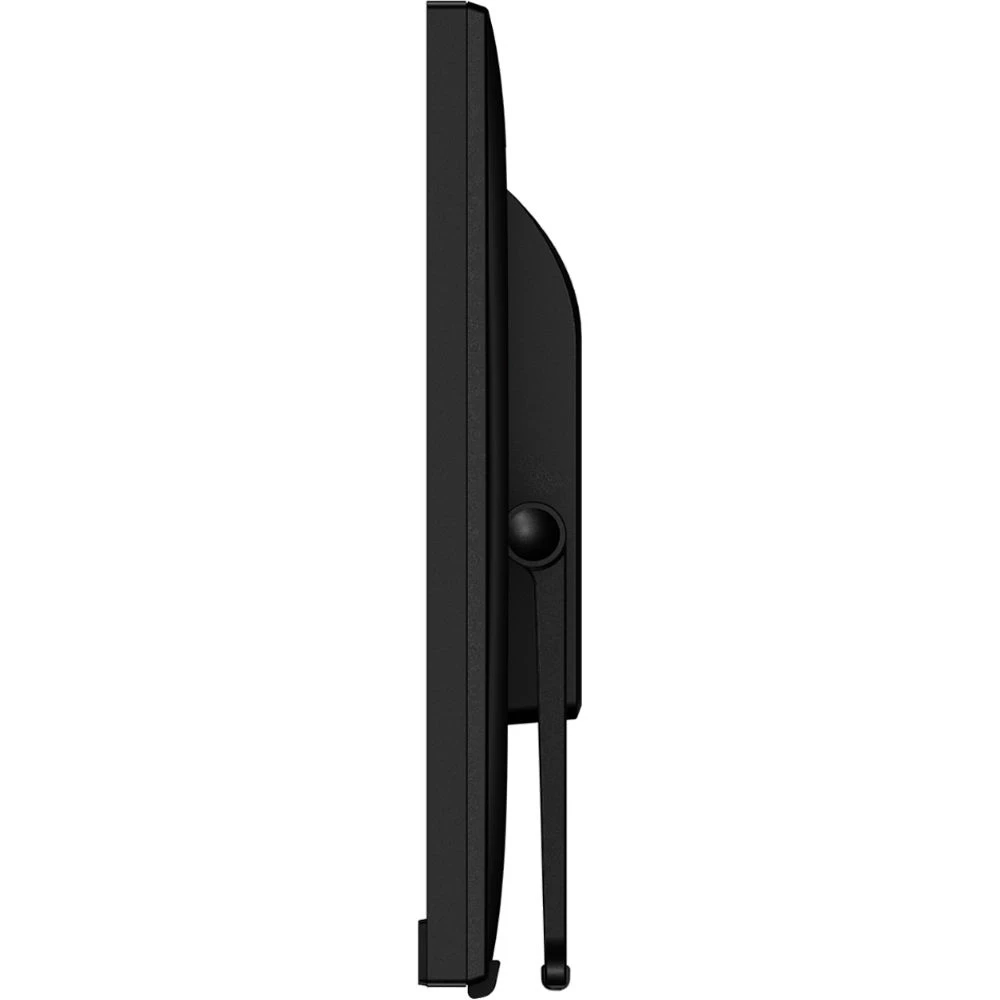

The Planar Helium Stand can be easily tilted from 15 to 70° – quickly moving the user from passive viewing to full touch screen interaction. For the mobile worker desiring to dock their tablet to a larger display when manipulating spreadsheets, or for the college student scrolling through social media updates, the versatile stand accommodates all usage scenarios. For added flexibility, the stand can be collapsed into the back of the monitor and laid flat for tabletop usage, for example, in a museum environment to further explain an exhibit.

Multiple Video Inputs

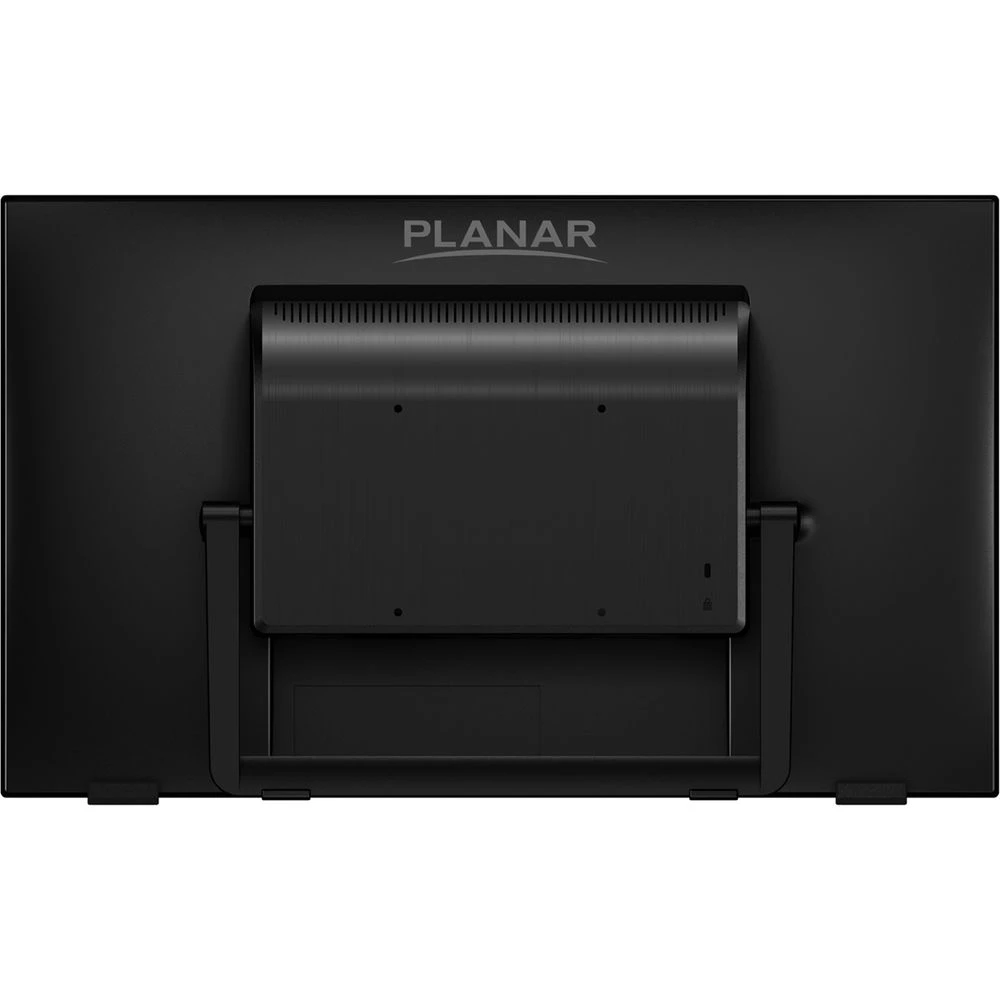

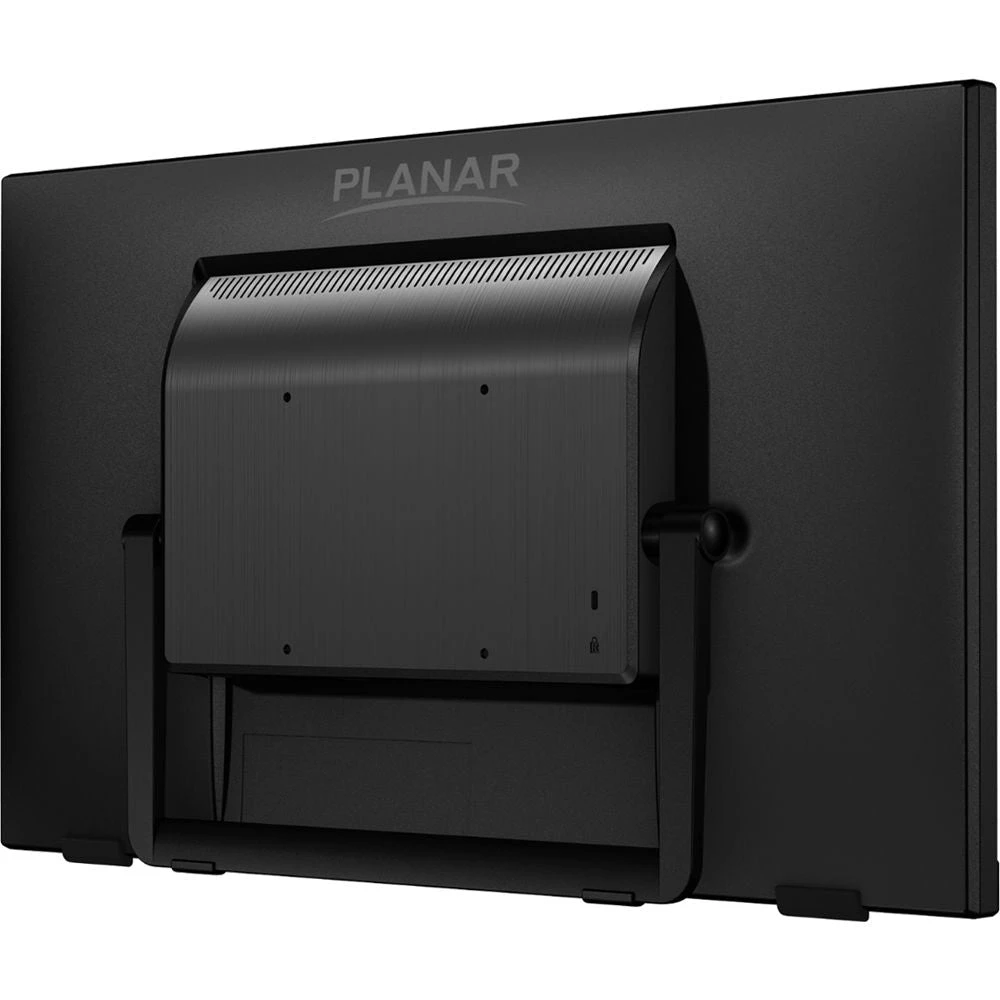

For more integration flexibility, the Planar PCT2235 multi-touch monitor boasts multiple video inputs – DisplayPort, HDMI, and VGA – and integrated speakers. Additionally, the VESA-compatible hole pattern on the back of the monitor makes it easy to attach to other mounting option, such as a Planar single-arm clamp stand or a height-adjust desk stand.

UPC: 810689003120

In the Box

Planar Systems PCT2235 22″ 16:9 Multi-Touch LCD Monitor
Power Cord
VGA Cable
DisplayPort Cable
Audio-In Cable
USB Cable

User Guide

1.1 MB

Table of Contents

Description
Multi-Touch Technology
Blue Light Reduction
Planar Helium Stand
Multiple Video Inputs

Planar Systems PCT2235 Specs

Display

Size	21.5″
Screen Area	18.77 x 10.56″ / 47.68 x 26.82 cm
Panel Type	LCD
Touchscreen	Yes
Resolution	1920 x 1080
Aspect Ratio	16:9
Pixels Per Inch (ppi)	102 ppi
Maximum Brightness	250 cd/m²
Contrast Ratio	1000:1
Refresh Rate	60 Hz
Variable Refresh Technology	None
Bit Depth / Color Support	6-Bit+FRC (16.7 Million Colors)
HDR Compatibility	None
Response Time	14 ms
Viewing Angle (H x V)	178 x 178°
Dot Pitch	0.24825 x 0.24825 mm

Inputs / Outputs

Inputs/Outputs	1 x USB-B 1 x DisplayPort Input 1 x HDMI Input 1 x VGA Input 1 x 1/8″ / 3.5 mm Input
HDCP Support	Yes
Built-In Speakers	Yes, 2 x 2 W
Media Card Reader	None
Multi-Input Support (PIP/PBP)	None

Power

Power Consumption	27 W (Typical) 0.5 W (Standby)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal
USB Power Delivery	None

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 90% (Non-Condensing)
Certifications	FCC-B, RoHS, UL, cUL *as per Manufacturer

Physical

Height Adjustment	None
Rotation Adjustment	None
Swivel Adjustment	None
Tilt Adjustment	Yes
Max Arm Extension Length	None
Mounting-Hole Pattern	100 x 100 mm
Lock Slot	Yes, Kensington
Dimensions (W x H x D)	19.3 x 11.8 x 1.9″ / 490.3 x 299.4 x 47.8 mm
Weight	7.9 lb / 3.6 kg

Packaging Info

Package Weight	10.6 lb
Box Dimensions (LxWxH)	21.6 x 14.5 x 4.4″

Planar Systems PCT2235 Reviews

Planar’s PCT2235s: Reach Out & Touch!

By Gregory

Rated 5 out of 5

Date: 2022-12-14

I’ve had touch screens for 10 years. They work, but they never gave me the results that I have with my new Planar 2235s! I use them with Hauptwerk 7, the superstar of virtual pipe organ programs, that depend on the kind of image clarity and control sensitivity found in this product. I’m a former New Yorker, familiar with . I was thrilled to see their online merchandizing that was also ‘best price’ for this ‘best product’. Planar and : a perfect combination!

Excellent experience!

By John

Rated 5 out of 5

Date: 2022-05-15

Good price! Super fast shipping! Easy ordering process l!

Sim Six Pack

By Stephen

Rated 4 out of 5

Date: 2021-11-17

Will be used for flight Sim Six Pack when I get additional components which include Knobster and new X-Plane11 Cessna 337 or for the military folks Vietnam war O-2. Cant wait to get it functional! Would not let me upload photo…

Multitouch Planar (thumbsup)

By Mark

Rated 5 out of 5

Date: 2018-12-30

Hello, I purchased my monitor as I�m using it for a mixer that is multitouch friendly it works really well with the unit (SoundCraft UI24R) direct HDMI and usb & I was ready to go. It is a perfect match for this mixer, if it�s racked in an �SKB Studio Flyer� rolling case! This Planar Monitor model is able to be locked down and travel w/as one, (a whole Mixer w/ multitouch monitor).

Plug n play works with Android nVidia Shield and Windows

By Gregory

Rated 4 out of 5

Date: 2018-10-17

Quality build, nice touchscreen, looks good, what’s not to like? Would be nice to have another port. But I hope they don’t change anything. Price was a bit higher than I’d like but tough to complain too much.

UI24R

By Sebastian

Rated 5 out of 5

Date: 2022-12-13

I purchased it for my Sound craft UI24R and it perfectly fit. always do a good job.

Best little touchscreen

By Debbie

Rated 5 out of 5

Date: 2022-06-09

The uses for these screens are many and we put them to work at countless trade shows and trainings. With their compact size and small footprint, they easily fit where space is an issue. In addition, the quality of the monitors makes it a great choice when doing hands-on training with customers.
