Pixii Max Digital Rangefinder Camera (128GB, Space Gray)(Pixii Max Digital Rangefinder Camera 128gb Space Gray)

A Full-Frame Digital Rangefinder

The
Pixii Max is the young digital rangefinder company’s first foray into the full-frame camera space, with a 24.5MP BSI CMOS sensor in the same compact, machined-aluminum body as its APS-C cousin. Along with the company’s recently developed 64-bit processor, 128GB of internal memory for storage, and the Leica M lens mount, the Pixii Max delivers state-of-the-art digital imaging in a time-honored, analog shooting process.

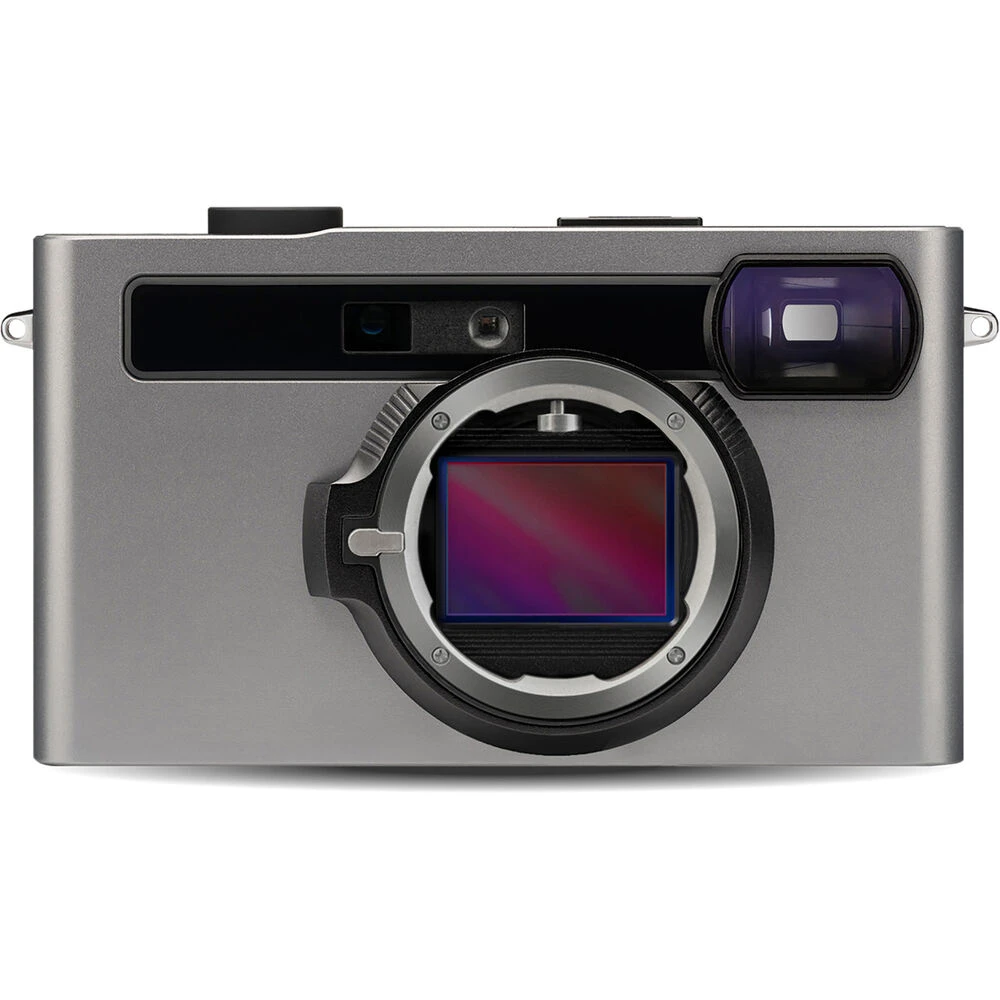

The new, full-frame 24.5MP BSI CMOS sensor is the star of the new camera, which, along with its 64-bit processor released in 2023, provides sharp results with little noise and even more dynamic range. Its 24 x 36mm size mirrors the standard size of a single frame of 35mm film and helps maximize the light-gathering capacity of its diodes to provide the fullest expression of the classic M-mount lenses paired with it. The Pixii sensor design also allows the camera to produce native DNG RAW images in both color and monochrome.

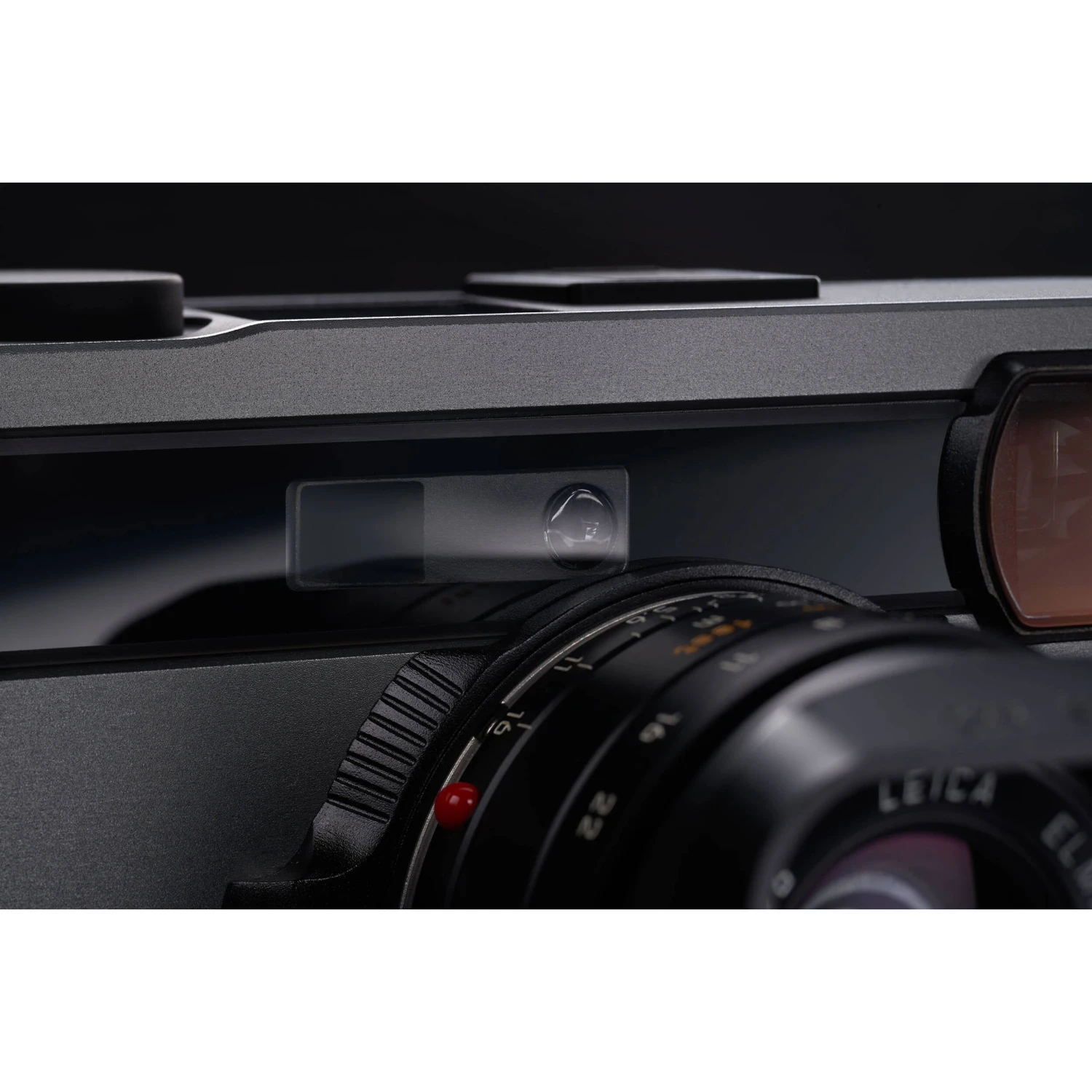

An essential component of the rangefinder experience, the Pixii Max’s upgraded optical viewfinder now sports a 28mm, wide-angle field of view, with backlit LED frame lines for standard prime lenses with 35mm, 50mm, and 75mm focal lengths. Constructed with high-index optical glass featuring multicoated, antireflective surfaces, the 0.67-magnification viewfinder displays real-time controls and indicators inside the OVF for a convenient and immersive shooting experience.

Like all rangefinder cameras, the Pixii Max is a manual focus experience. The focus rings on M-mount rangefinder lenses control a small lever inside the camera to collapse images from two viewfinder windows into a single image linked to the camera’s distance setting. This resolutely analog focusing experience produces more accurate results, especially at shorter focal lengths and in low-light situations. This also means that the lens’s aperture setting must be controlled on the lens itself and not through the camera.

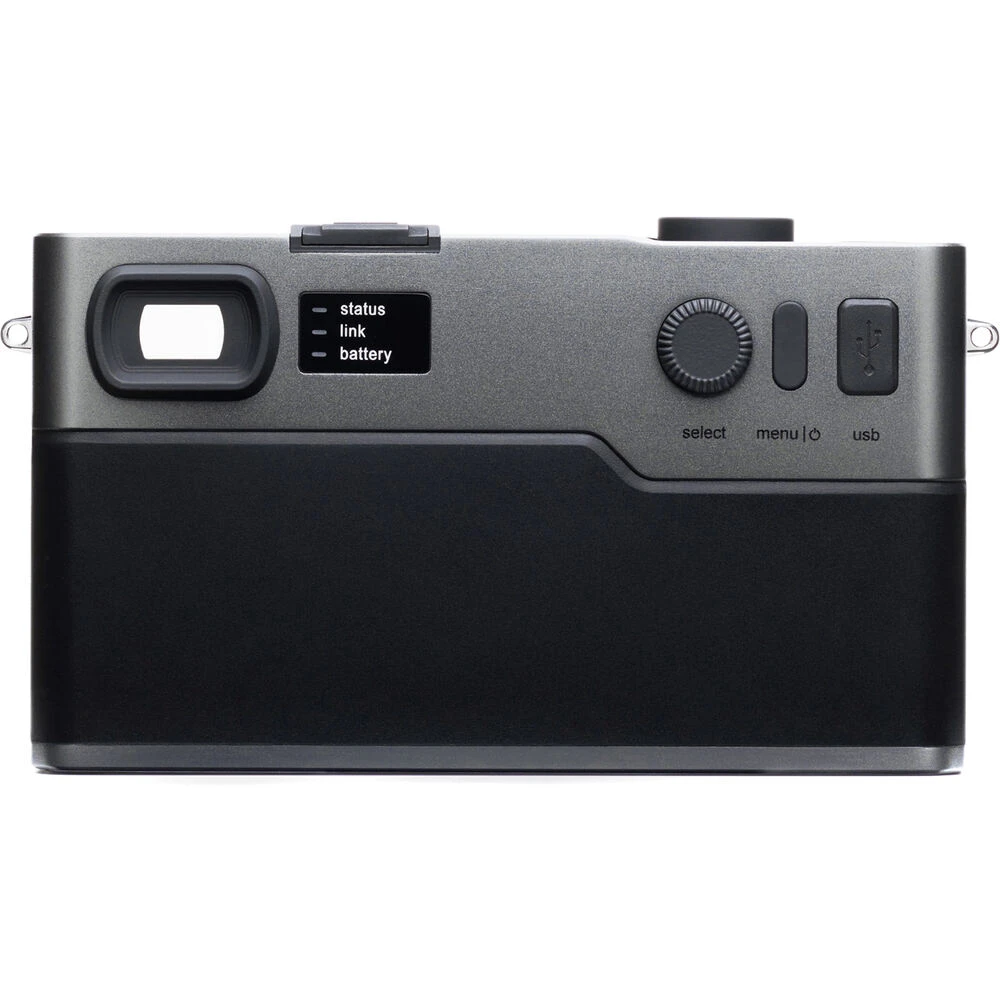

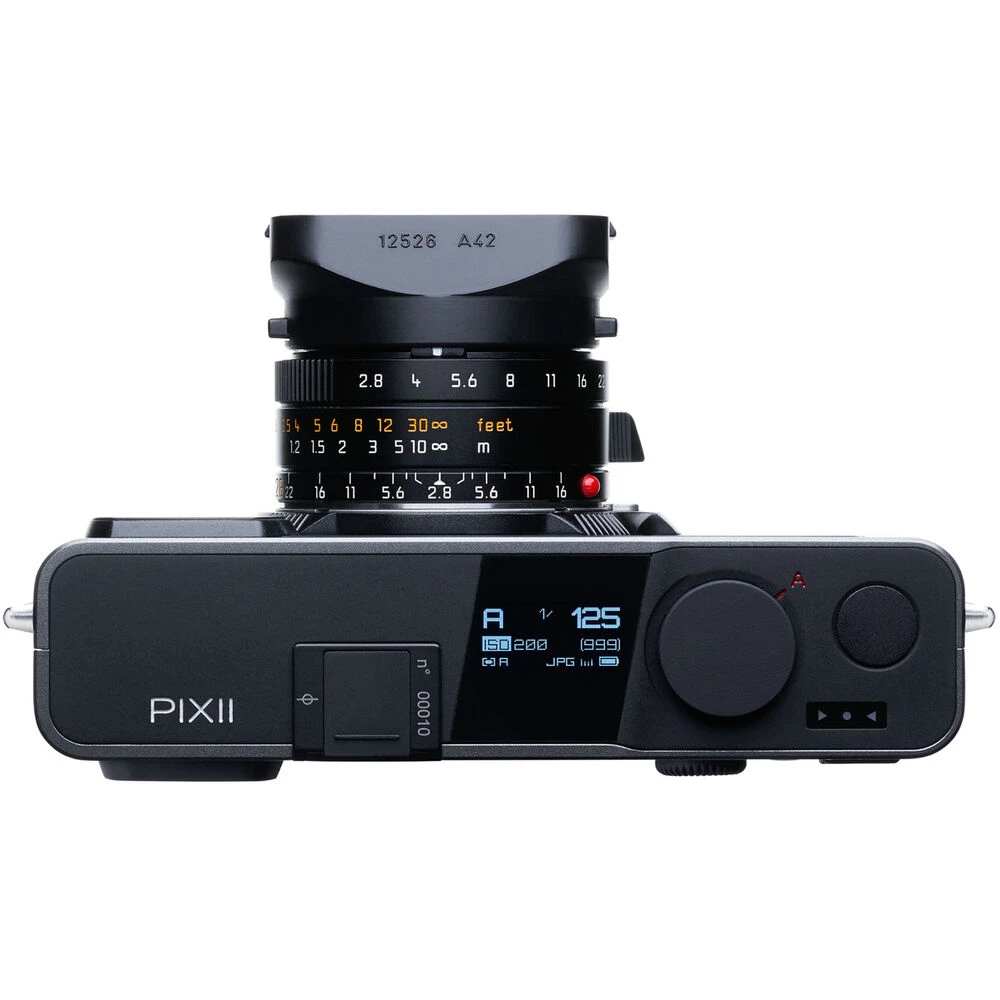

Adding just an ounce of weight to the same dimensions of the Pixii+, the 1.1 lb Pixii Max features the same machined-aluminum build and minimalist design as its forerunner. The camera does not have a rear screen, however, the top OLED screen displays the camera’s current settings, including the shutter speed controlled by the camera’s lone dial, plus access to the settings menu. The menu and current settings are also accessible in the optical viewfinder. The camera features a cold shoe for mounting accessories, a 1/4″-20 tripod mounting socket on the bottom, a USB-C port for both power and data transfer, and lugs for threading a carrying strap.

The camera features both Wi-Fi and Bluetooth connectivity for the Pixii App, allowing you to control the camera, preview images while shooting, and transfer and store images saved to the camera’s internal memory. In addition to this camera-app integration, Pixii offers an upgrade path for both software and hardware, allowing you to preserve your investments by reaping the company’s future advancements and innovations.

Pixii Max Specs

Lens Mount	Leica M
Sensor Resolution	Effective: 24.5 Megapixel (6064 x 4040)
Image Sensor	Full-Frame BSI CMOS
ISO Sensitivity Range	160 to 12,800
Internal Recording Modes	No
External Recording Modes	No
Power I/O	1x USB-C Input/Output
Other I/O	1x USB-C Data Output (Shared with Power Input)
Wireless	Wi-Fi 5 (802.11ac)
Battery Type	1x NP-FW50 Rechargeable Lithium-Ion, 7.2 VDC, 1080 mAh

Lens Mount	Leica M
Sensor Resolution	Effective: 24.5 Megapixel (6064 x 4040)
Image Sensor	Full-Frame BSI CMOS
Sensor Crop (35mm Equivalent)	Crop Factor: 1x
Built-In ND Filter	No
Capture Type	Still Only

Shutter Type	Electronic Rolling Shutter
Shutter Speed	Electronic Shutter 1/32000 to 2 Seconds
ISO Sensitivity Range	160 to 12,800
Metering Method	Average, Center-Weighted Average, Spot
Exposure Modes	Auto, Manual
White Balance	Presets: Cloudy, Daylight, Fluorescent, Incandescent, Shade

Aspect Ratio	3:2
Image File Format	DNG, JPEG
Bit Depth	14-Bit
Internal Recording Modes	No
External Recording Modes	No
Recording Limit	No
IP Streaming	No

Internal Memory	128 GB
Power I/O	1x USB-C Input/Output
Other I/O	1x USB-C Data Output (Shared with Power Input)
Wireless	Wi-Fi 5 (802.11ac)
Mobile App Compatible	Yes: Android & iOS App Name: Pixii App Functionality: Access Stored Files, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)	GPS *Via Connected Smartphone

Secondary Display

Top: OLED Status Display

Type	Optical
Coverage	100%
Magnification	Approx. 0.67x

Focus Type	Manual Focus Only
Focus Mode	Manual Focus

Built-In Flash/Light

No

Battery Type	1x NP-FW50 Rechargeable Lithium-Ion, 7.2 VDC, 1080 mAh
PoE Support	Yes
Shoe Mount	1x Cold Shoe
Tripod Mounting Thread	1x 1/4″-20 Female (Bottom)
Material of Construction	Aluminum
Dimensions (W x H x D)	5.4 x 3.1 x 1.3″ / 138 x 79 x 33 mm
Weight	1.1 lb / 480 g (With Battery)

Package Weight	2.39 lb
Box Dimensions (LxWxH)	10 x 6.8 x 4″
