Pengo Technology 4K HDMI To USB 3.0 Video Grabber (Titanium Gray)(Pengo Technology 4k Hdmi To Usb 3 0 Video Grabber Titanium Gray)

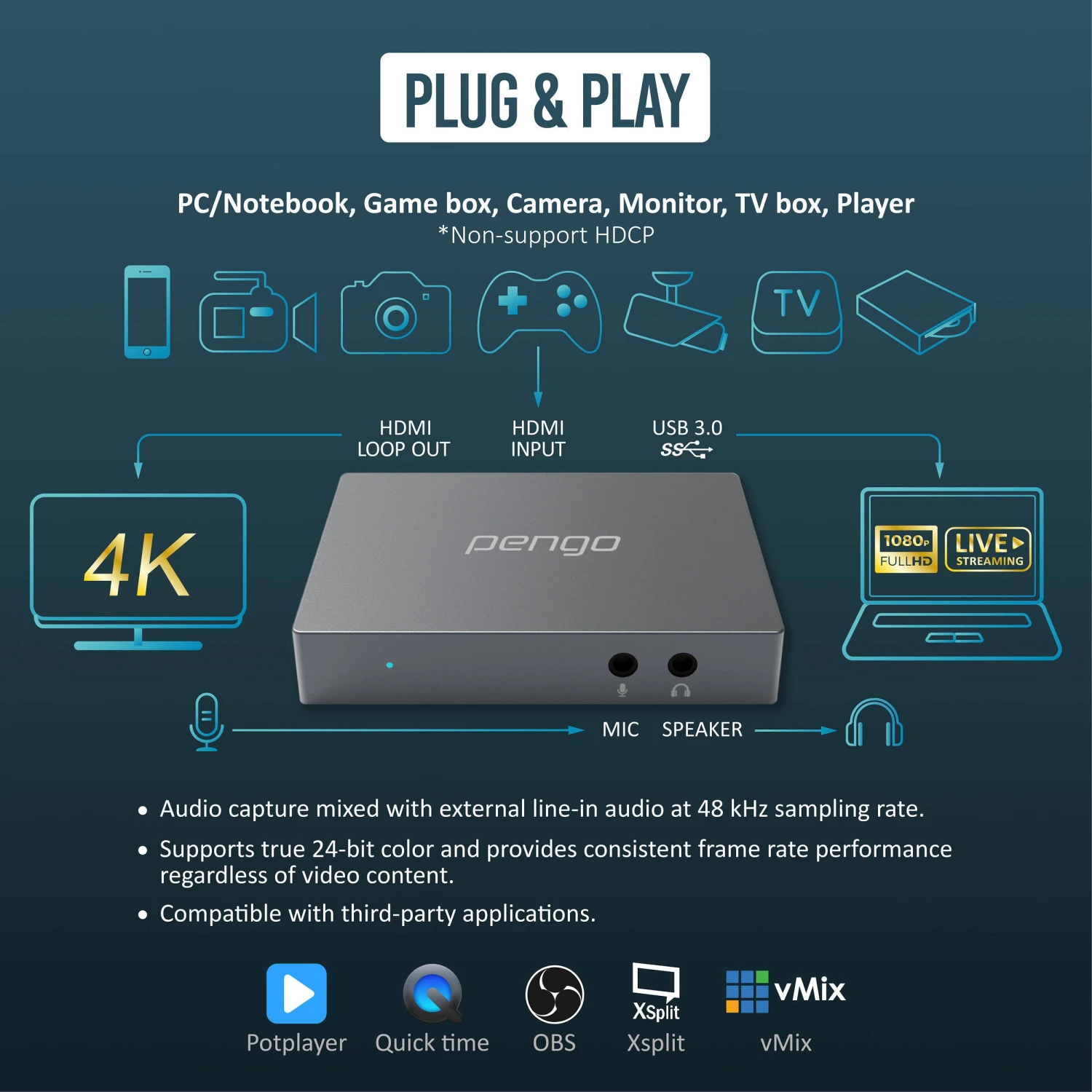

4K HDMI Capture from Game Console/Camera1080p USB Output to Mac/PC for Streaming4K HDMI Loop-Through to Local TV/MonitorMic and Headphone Ports

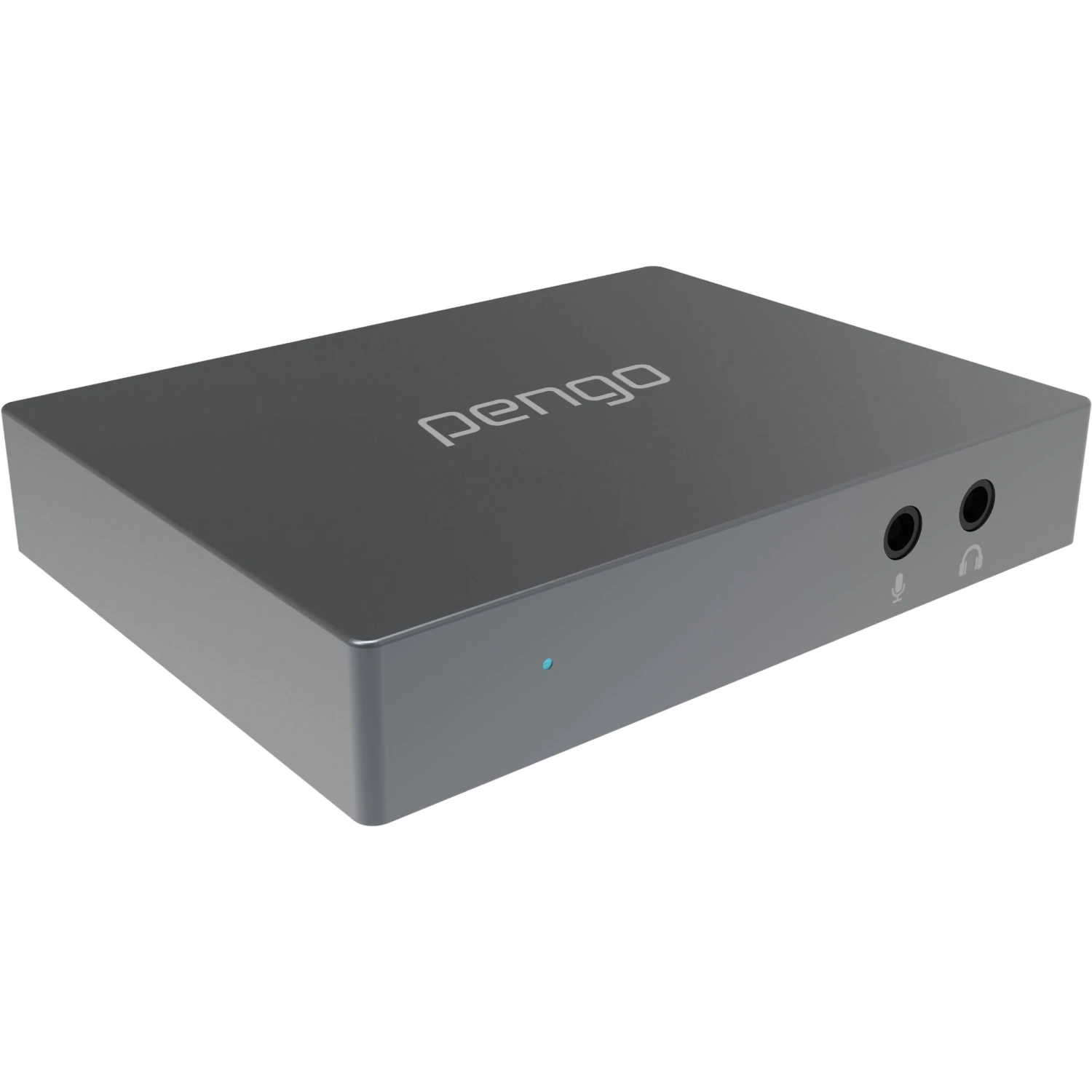

The Pengo Technology 4K HDMI to USB 3.0 Video Grabber , in titanium gray, allows you to capture up to UHD 4K60 video resolution from game consoles, cameras, and other devices via an HDMI input port, and to send the video to a Mac or Windows computer in up to 1080p60 resolution over a USB port for live streaming. At the same time, the video can be output to a TV or other display over an HDMI loop-through port in UHD 4K60.

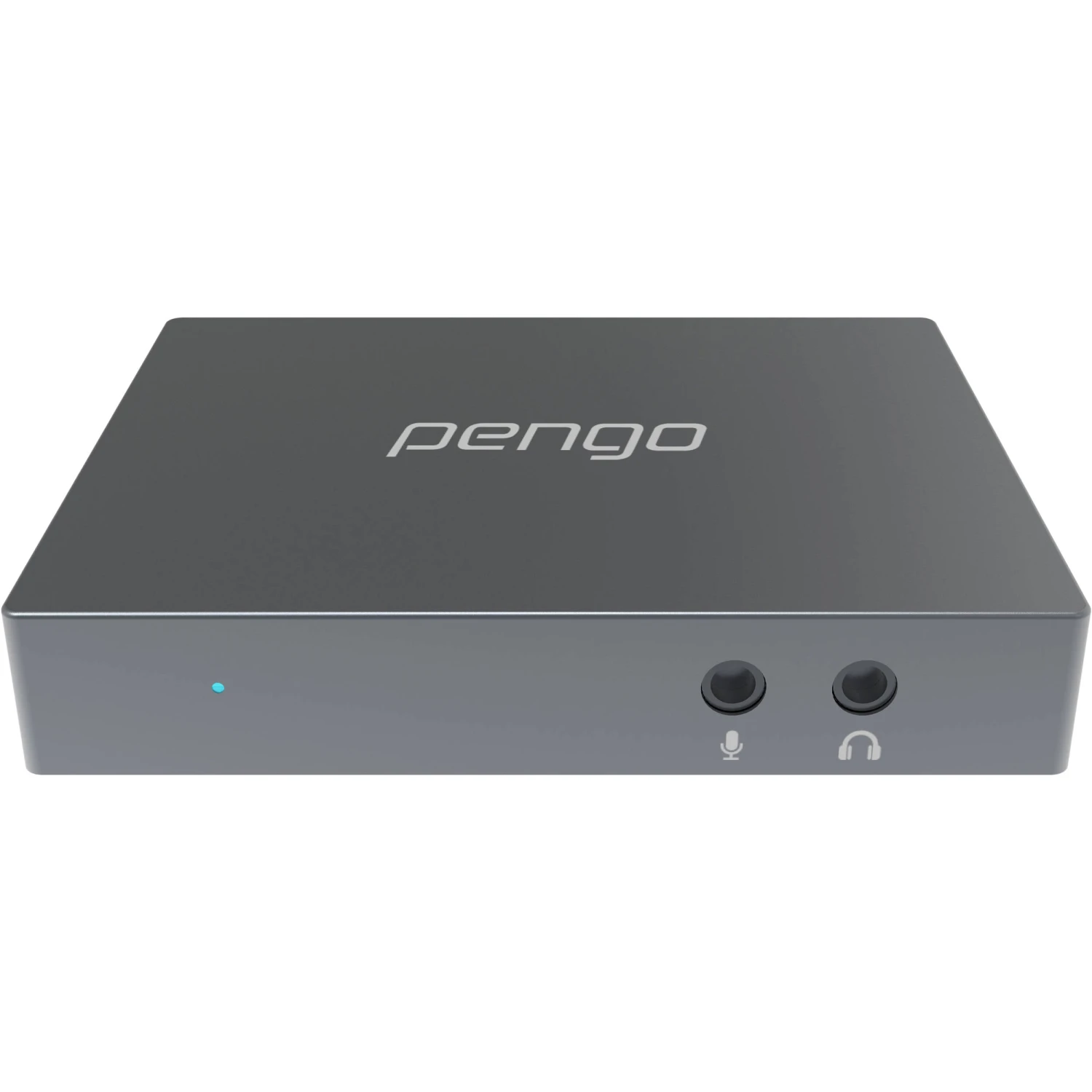

The grabber supports embedded audio on input and output, including the loop-through output. It also features a mic input port and a headphone jack, allowing for a complete streaming workflow.

Note: Signals with video sampling lower than 4:4:4 may not be fully compatible. Interlaced formats, such as 1080i60, are not supported, and HDCP digital copy protection is not supported. Please make sure your device is compatible. Key Features

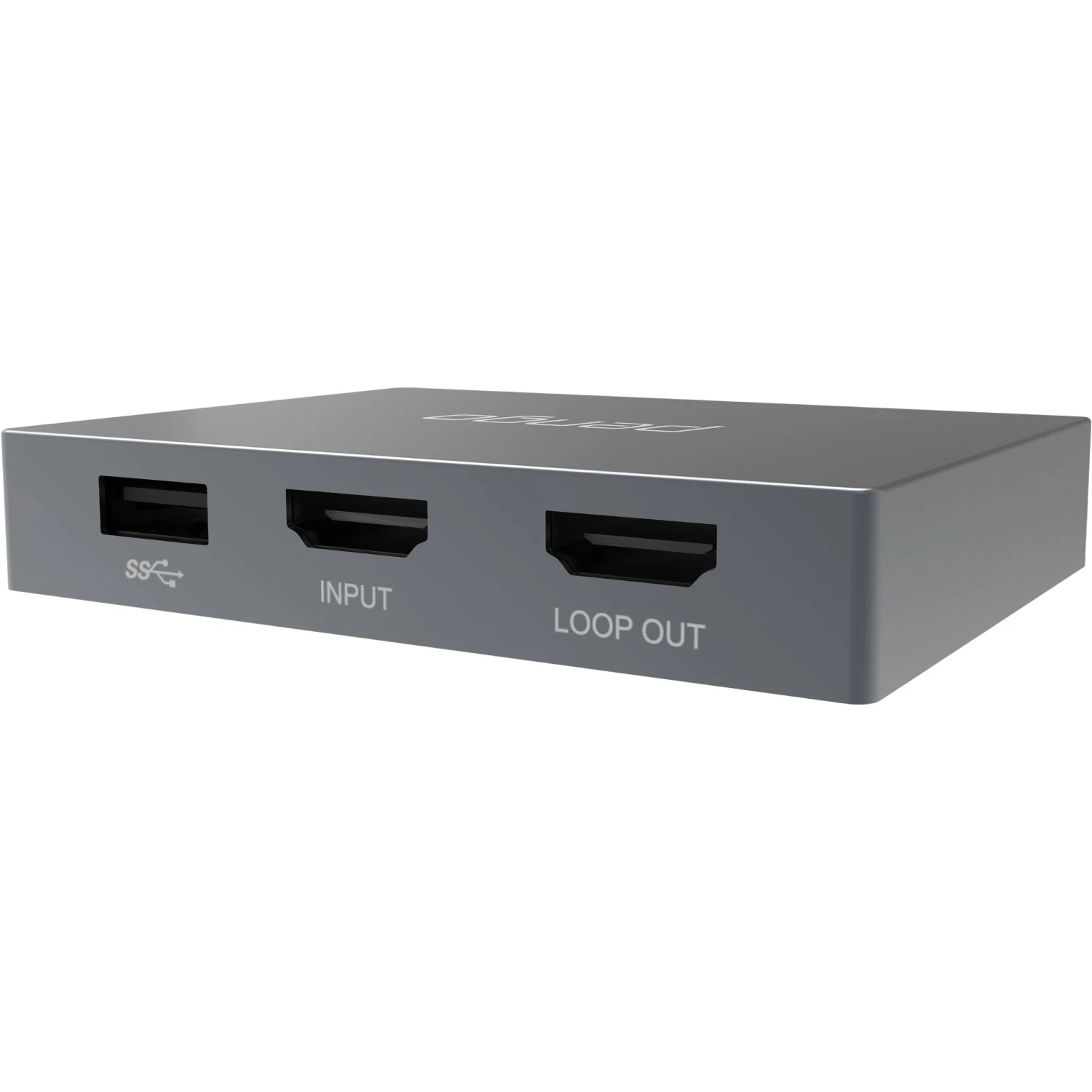

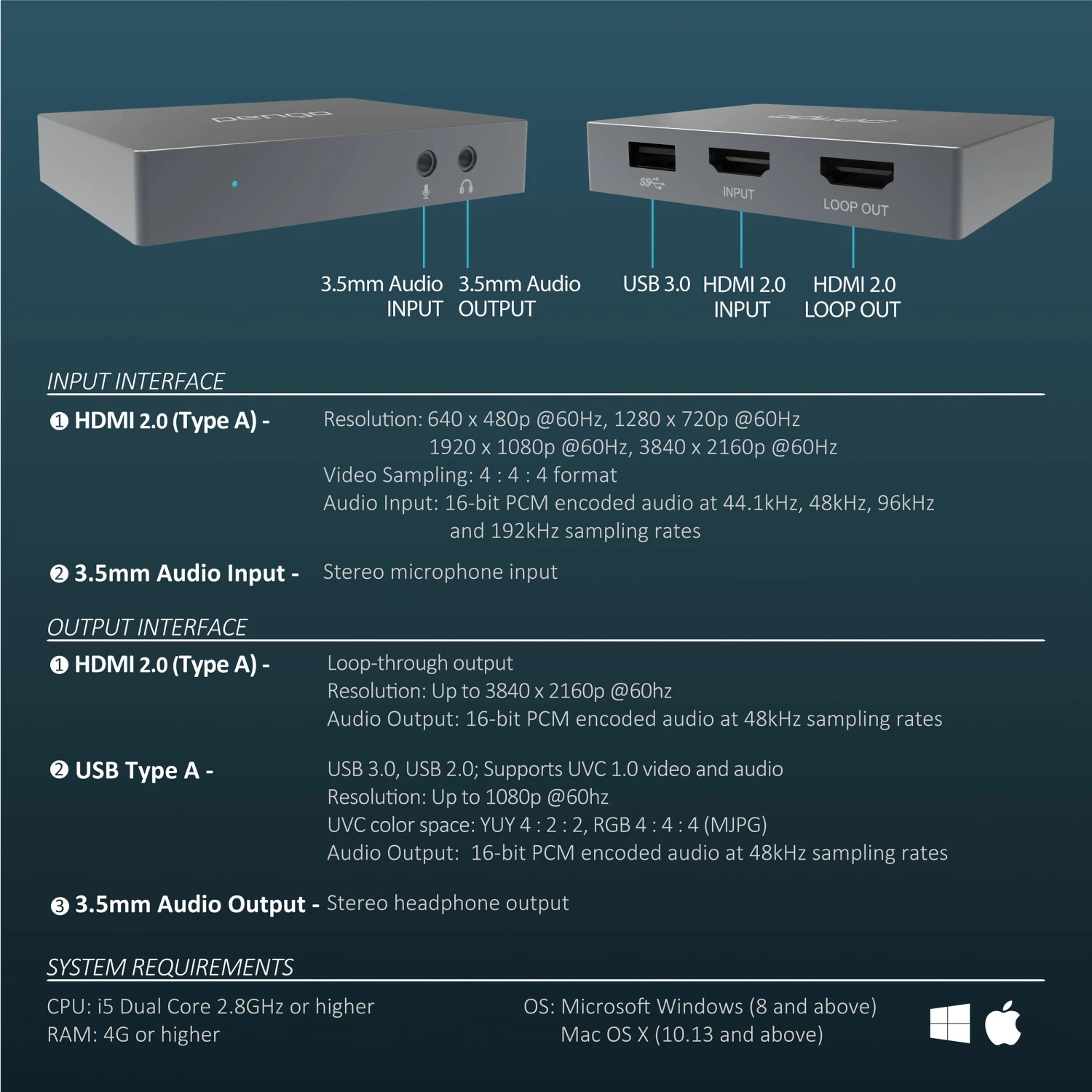

• Capture up to UHD 4K60 resolution video from game consoles, cameras, and other devices via an HDMI 2.0 Type-A input port

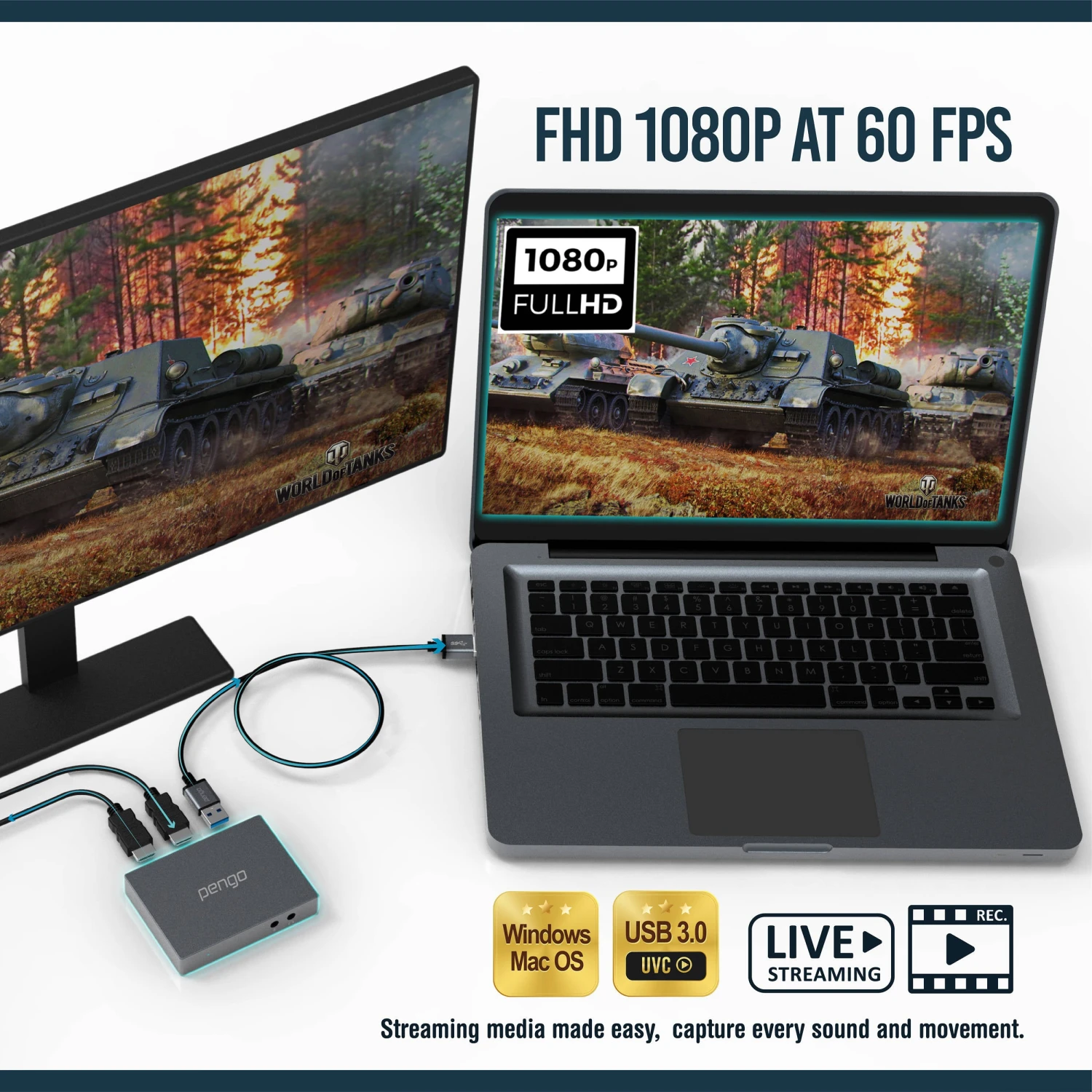

• Send the captured video to a Mac or Windows desktop or laptop in up to 1080p60 resolution over a USB 3.0 output for live streaming

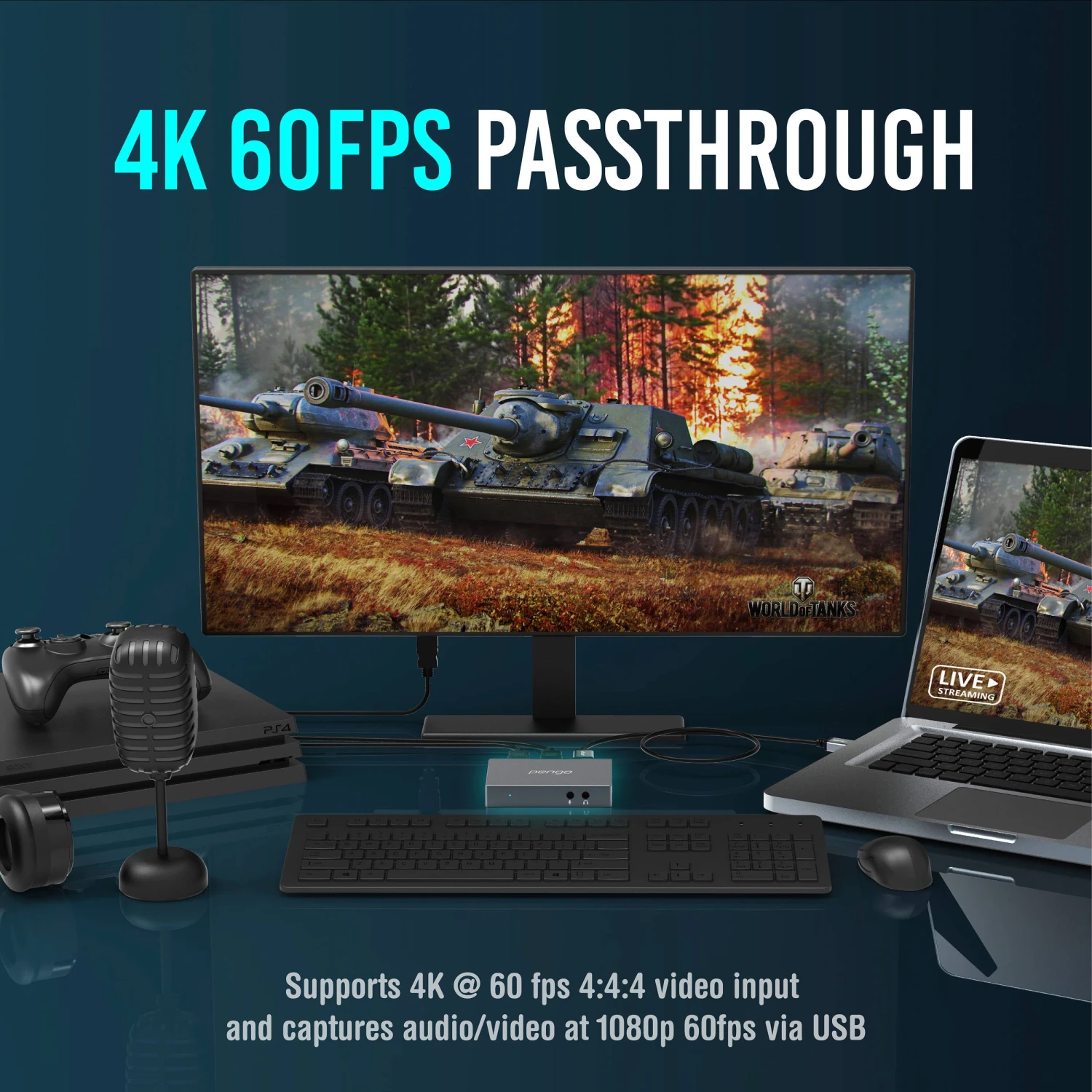

• HDMI loop-through output to a local display in up to UHD 4K60
• Embedded audio supported over HDMI, HDMI loop-through, and USB ports
• 3.5mm mic input
• 3.5mm headphone output
• 4:4:4 HDMI video sampling
• YUY2 (4:2:2), RGB 4:4:4 (MJPG) color space

USB Output Resolutions

• 1920 x 1080p at 24/25/30/50/60 fps
• 1280 x 720p at 30/50/60 fps
• 640 x 480p at 60 fps

HDMI Pass-Through Resolutions

• 3840 x 2160 at 24/25/30/50/60 fps
• 1920 x 1080p at 24/25/30/50/60 fps
• 1280 x 720p at 30/50/60 fps
• 640 x 480p at 60 fps

Audio Features

• 16-bit PCM encoded audio input at 44.1, 48, 96, and 192 kHz sampling rates
• 16-bit PCM encoded audio output at 48 kHz sampling rates

System Requirements

• i5 dual core 2.8 GHz or higher
• 4GB RAM or higher
• Microsoft Windows 8 and above; macOS 10.13 and above

Environment

• Operating Temperature: 32 to 113°F
• Storage Temperature: -4 to 140°F
• Operating Humidity: 20 to 90%

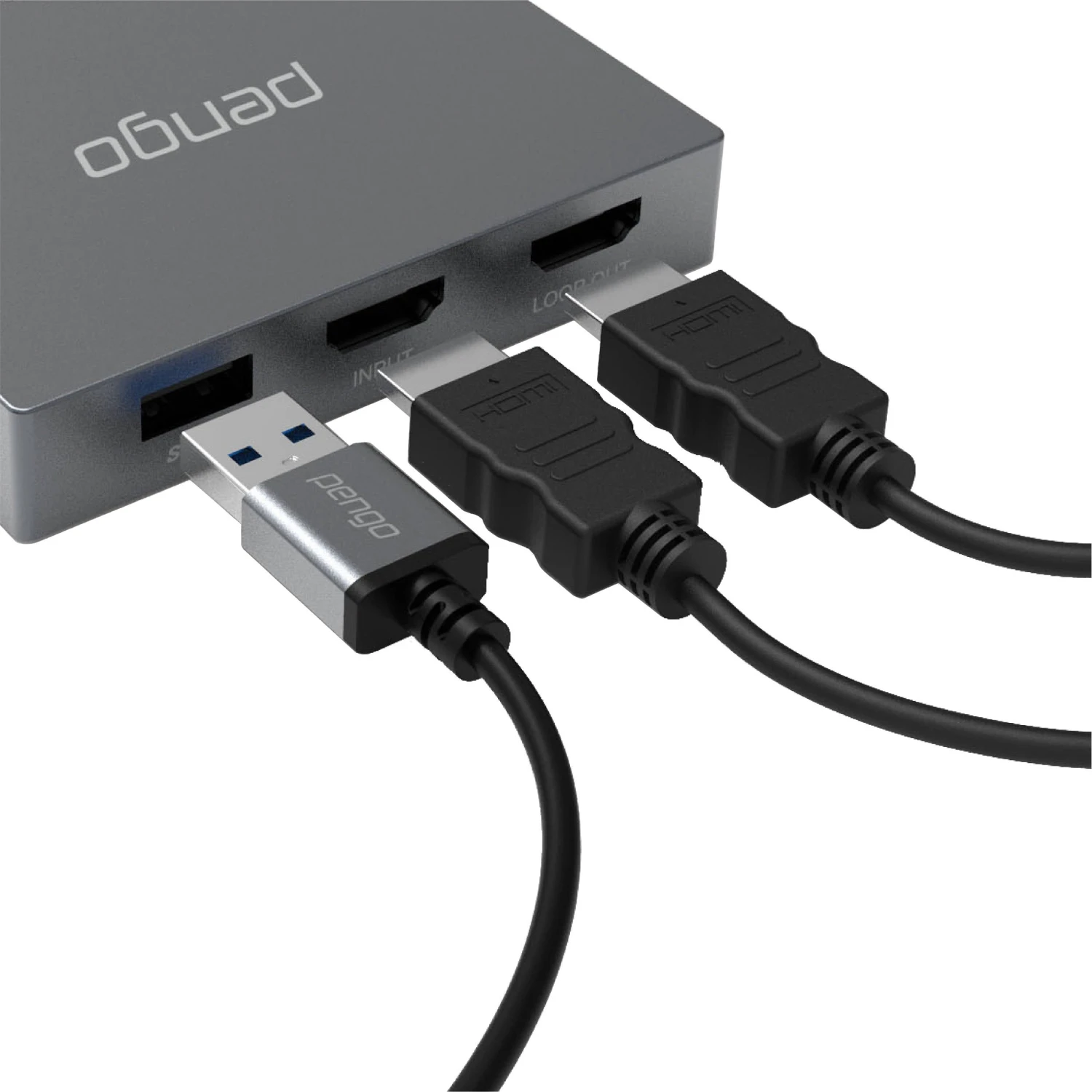

Host Connection

USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

Video Input Connectors	1 x HDMI
Input Video Format	HDMI (4:4:4 RGB, YUV) DCI 2K: 24/25/30/50/60 fps 1080p: 24/25/30/50/60 fps 720p: 30/50/60 fps 480p: 60 fps
Audio Input Connectors	1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone
Input Audio Format	Analog: 44.1 kHz / 16-Bit Analog: 48 kHz / 16-Bit Analog: 96 kHz / 16-Bit Analog: 192 kHz / 16-Bit
Embedded Audio Input	HDMI

Video Output Connectors	1 x HDMI (Loop Output)
Output Video Format	HDMI (4:4:4 RGB, YUV) DCI 2K: 24/25/30/50/60 fps 1080p: 30/50/60 fps 720p: 30/50/60 fps 480p: 60 fps USB Type-A (4:4:4 YUV) 1080p: 24/25/30/50/60 fps 720p: 30/50/60 fps 480p: 60 fps
Audio Output Connectors	1 x 1/8″ / 3.5 mm TRS Stereo
Output Audio Format	Analog: 48 kHz / 16-Bit
Embedded Audio Output	None

OS Compatibility

Windows 8.1 Windows 10 Linux 2.6.38 or Later macOS 10.13 or Later

Power Connector

None

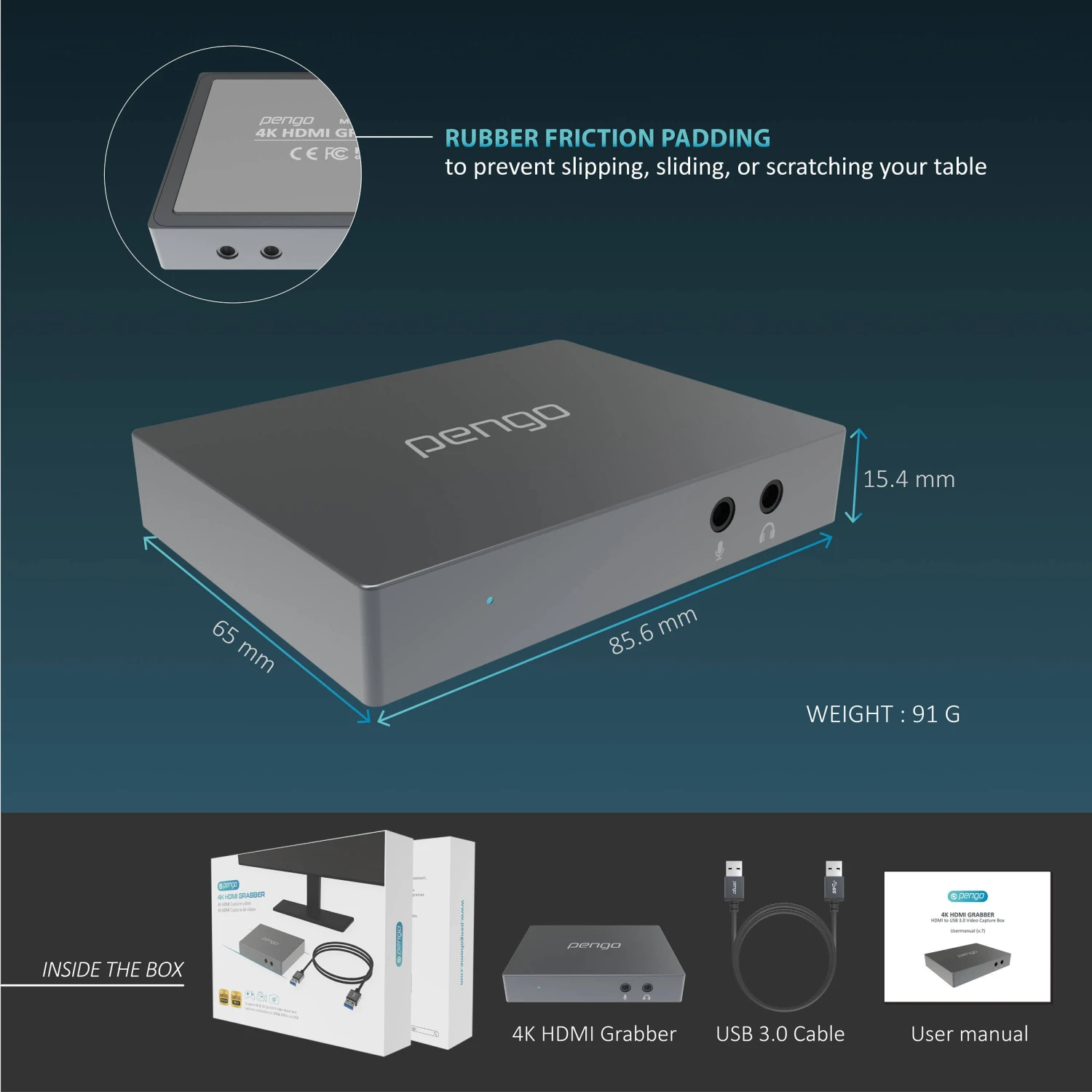

Dimensions	3.37 x 2.56 x 0.6″ / 85.6 x 65 x 15.2 mm
Weight	3.21 oz / 91 g
Warranty Length	Limited 18-Month Warranty

Package Weight	0.47 lb
Box Dimensions (LxWxH)	6 x 4.9 x 1.2″
