Pearstone CAT7-S14GR Overview
- 1Description
- 2Gold-Plated Connectors
- 310 Gigabit Ethernet Compatibility
- 4Isolated Twisted-Pair Construction
- 5Molded Snagless Boot
- 6Double Shielding

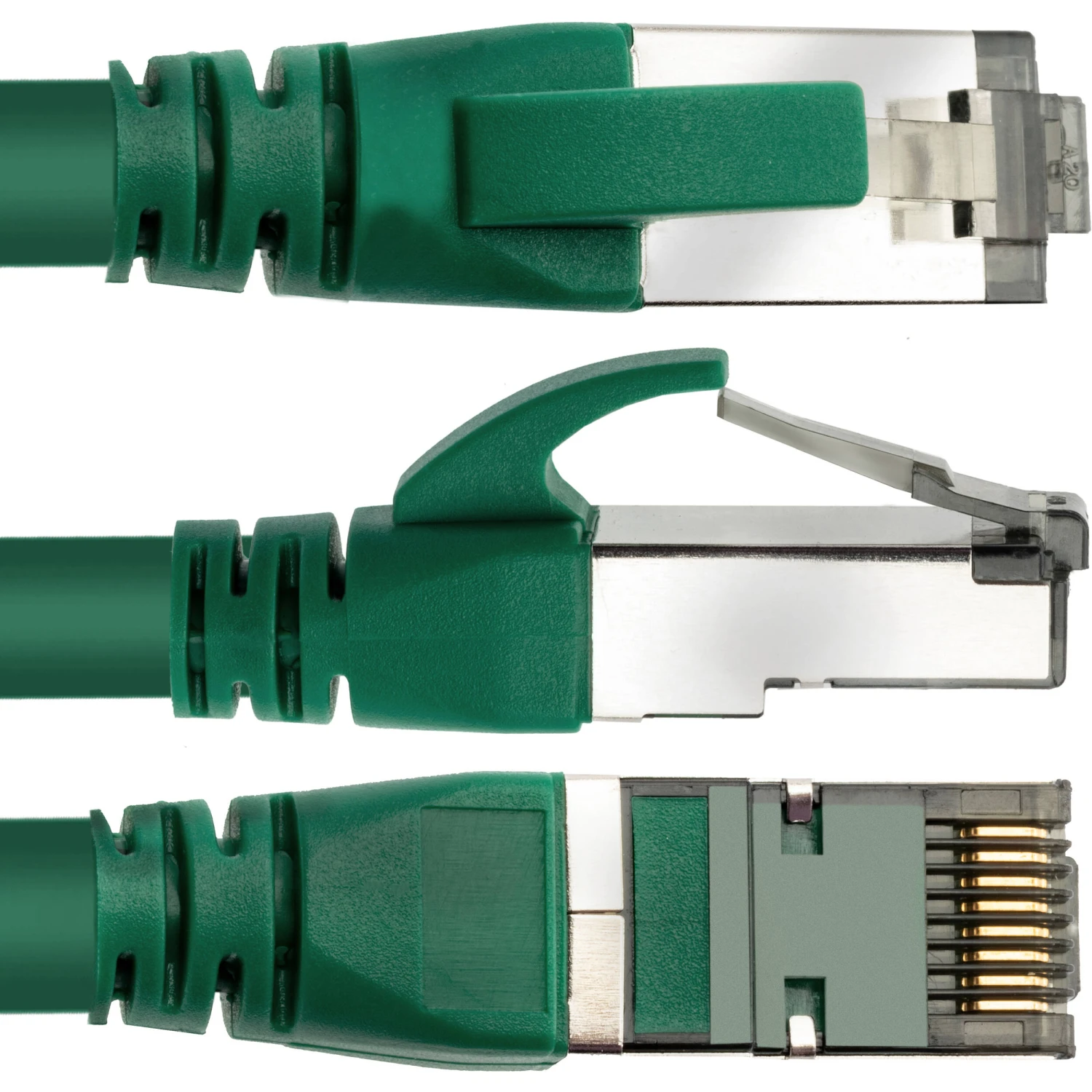

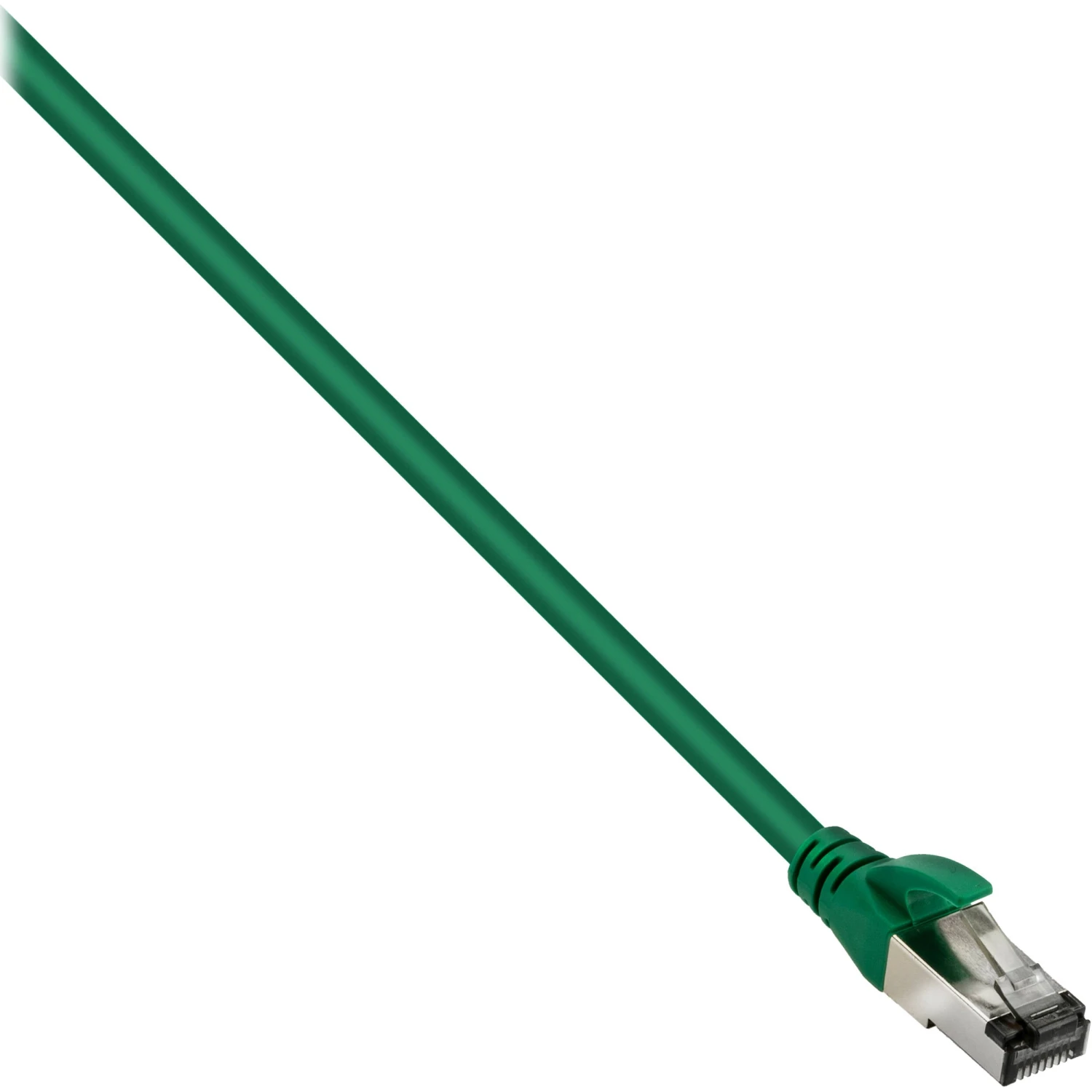

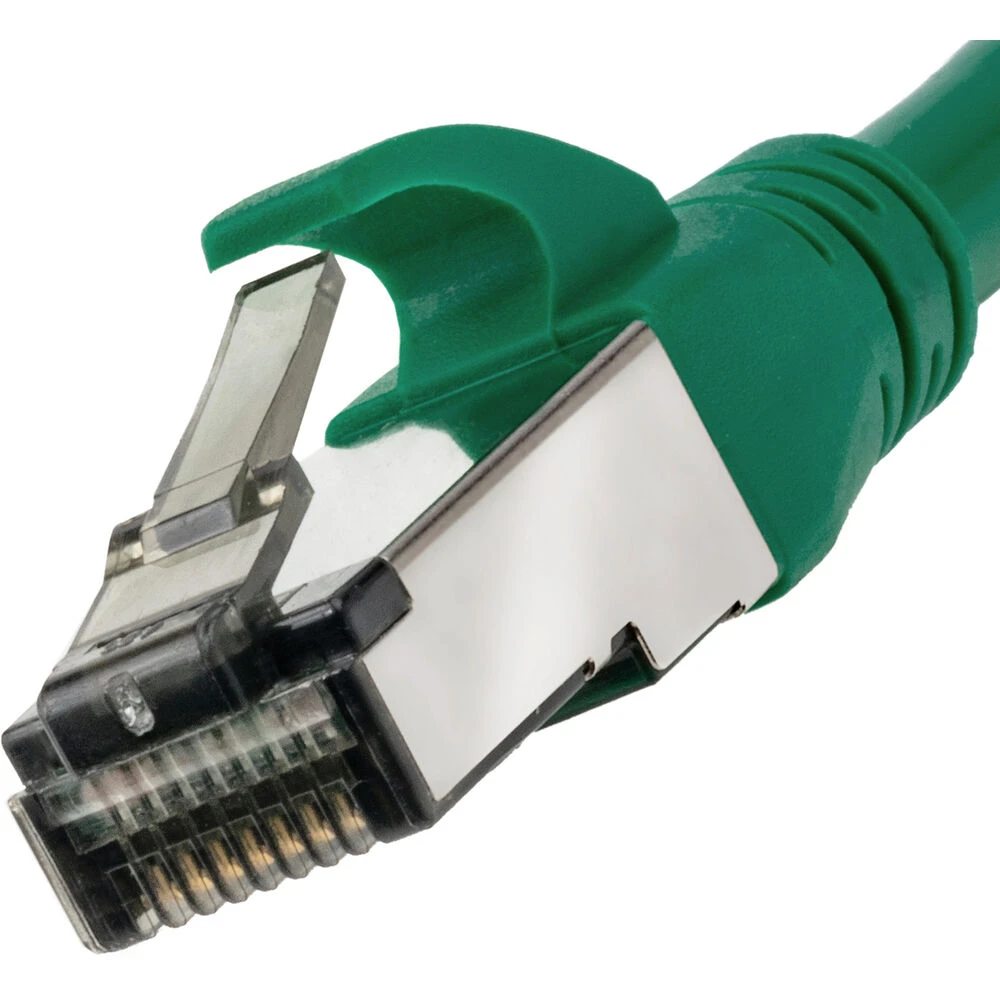

Expand your office, business, or network with fast and reliable links with the 14′ Pearstone Cat 7 Double-Shielded Ethernet Patch Cable. Available with a green PVC jacket for easy identification, this slim yet durable commercial-grade cable features a 600 MHz transmission speed that supports 10 Gigabit Ethernet networks. Additionally, each twisted pair of bare copper conductors is shielded with an aluminum-mylar wrap while all four pairs are covered by an aluminum braid, which helps to minimize crosstalk while protecting your data transmissions against electromagnetic interference from nearby devices and electrical equipment. The gold-plated RJ45 connectors provide high conductivity and resist corrosion while the molded snagless boot design helps to prevent them from getting caught on other cables, even in dense installations.
- Description
- Gold-Plated Connectors
- 10 Gigabit Ethernet Compatibility
- Isolated Twisted-Pair Construction
- Molded Snagless Boot
- Double Shielding
Pearstone CAT7-S14GR Specs
| Cable Length | 14′ / 4.3 m |
| Ethernet Standards | Cat 7 |
| Connector 1 | RJ45 Male |
| Connector 2 | RJ45 Male |
| Compatibility | 10GbE |
| Bandwidth Rating | 600 MHz |
| Conductor DC Resistance | 15.2 Ohms/ft (Up to 328.1′ / 100 m) |
| Capacitance | 5600 pF/ft |
| Impedance | 100 Ohms |
| Shielding | Aluminum-Mylar Wrap Aluminum Braid |
| Cable Configuration | Stranded |
| Pin Assignment | T568B |
| Boot Type | Snagless |
| Outer Diameter | 0.2″ / 6 mm |
| Wire Gauge | 26 AWG |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Conductor | Bare Copper |
| Contact Plating | Gold |
| Insulation | FMPE |
| Certifications | CE, REACH, RoHS, UL *as per Manufacturer |
| Package Weight | 0.375 lb |
| Box Dimensions (LxWxH) | 7.1 x 7.05 x 1.5″ |
