For Mounting CCTV Cameras
Mounts on Solid Surfaces & Ceiling Rails
1/4″-20 Thread with Lock-Ring
Variable Shaft Length
Tilts Cameras up to 190°
360° Camera Rotation

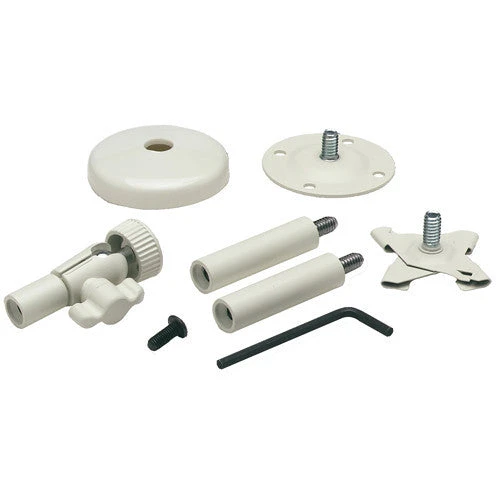

The cream Deluxe Micro Mount from Panavise is a customizable mounting kit that offers 12 options for mounting CCTV cameras. A 2″ round base with four holes on a bolt circle for solid surface mounting is included, along with a T-bar clip for drop ceiling rails. Two aluminum shafts allow you to vary the mount’s length, making it possible to have a mount that is between 2-6″ long. Camera positioning is simple thanks to the mount’s ability to tilt up to 190° and rotate 360°, while a lock-ring securely holds the camera in place. In addition, the mount features a 1/4″-20 thread, making it compatible with most cameras.

Adjustable length from 2-6″

Quick and easy positioning of the camera

1/4″-20 thread with lock-ring for secure attachment of the camera

190° tilt, 360° turn, and 360° rotation

Knob and tamper-resistant set-screw adjusting options included

2″ round base with four 0.188″ holes on 1.6″ bolt circle for attachment to a solid surface

T-bar clip for mounting on drop ceiling rails

UPC: 729315845228

Mounting Options	Solid surfaces, ceiling
Thread	1/4″-20
Adjustments	Tilt: Up to 190° Turn/Rotate: 360°
Base	Diameter: 2″ (50.8 mm) Mounting Holes: 4 x 0.188″ (4.8 mm) Bolt Circle: 1.6″ (40.6 mm)
Shaft Length	2 x 2″ (50.8 mm)
Shaft Diameter	0.5″ (12.7 mm)

Packaging Info
Package Weight	0.35 lb
Box Dimensions (LxWxH)	4.2 x 3.2 x 2.3″

In the Box

PANAVISE Deluxe Micro Mount (Cream)

Limited Lifetime Warranty
