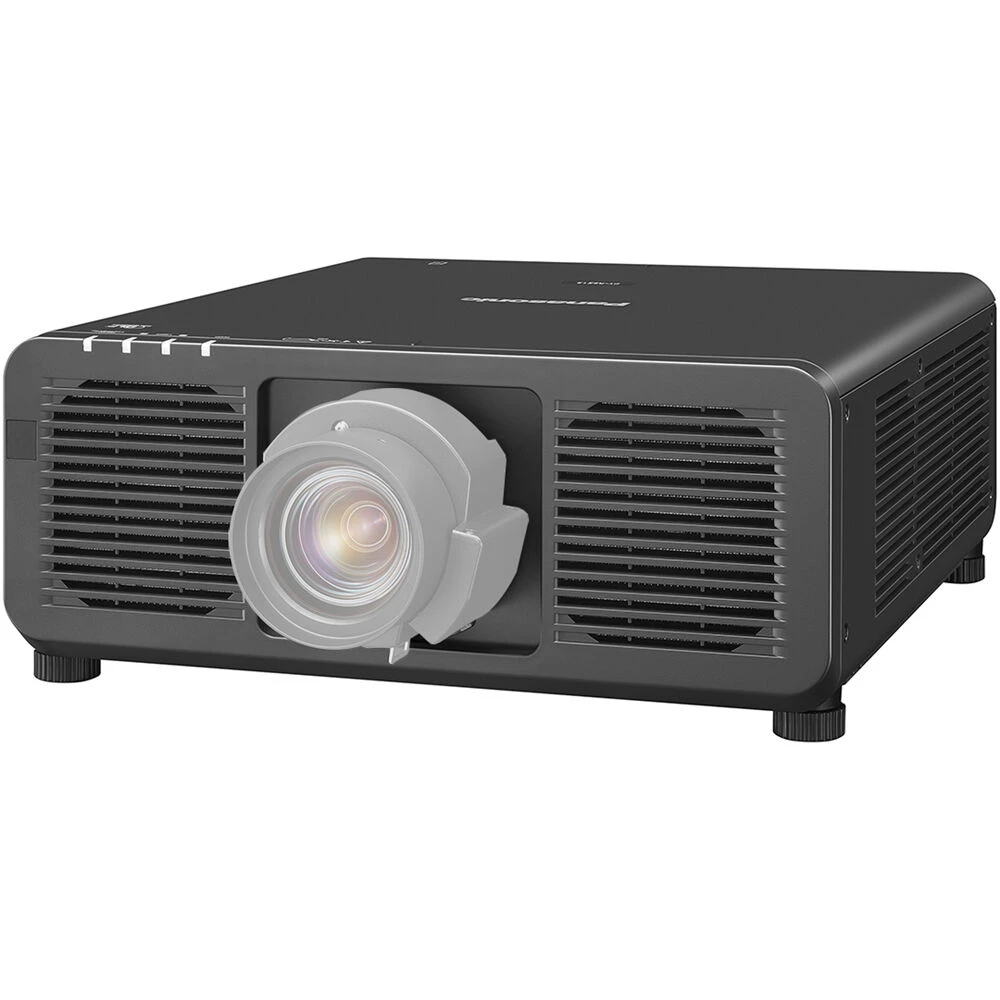

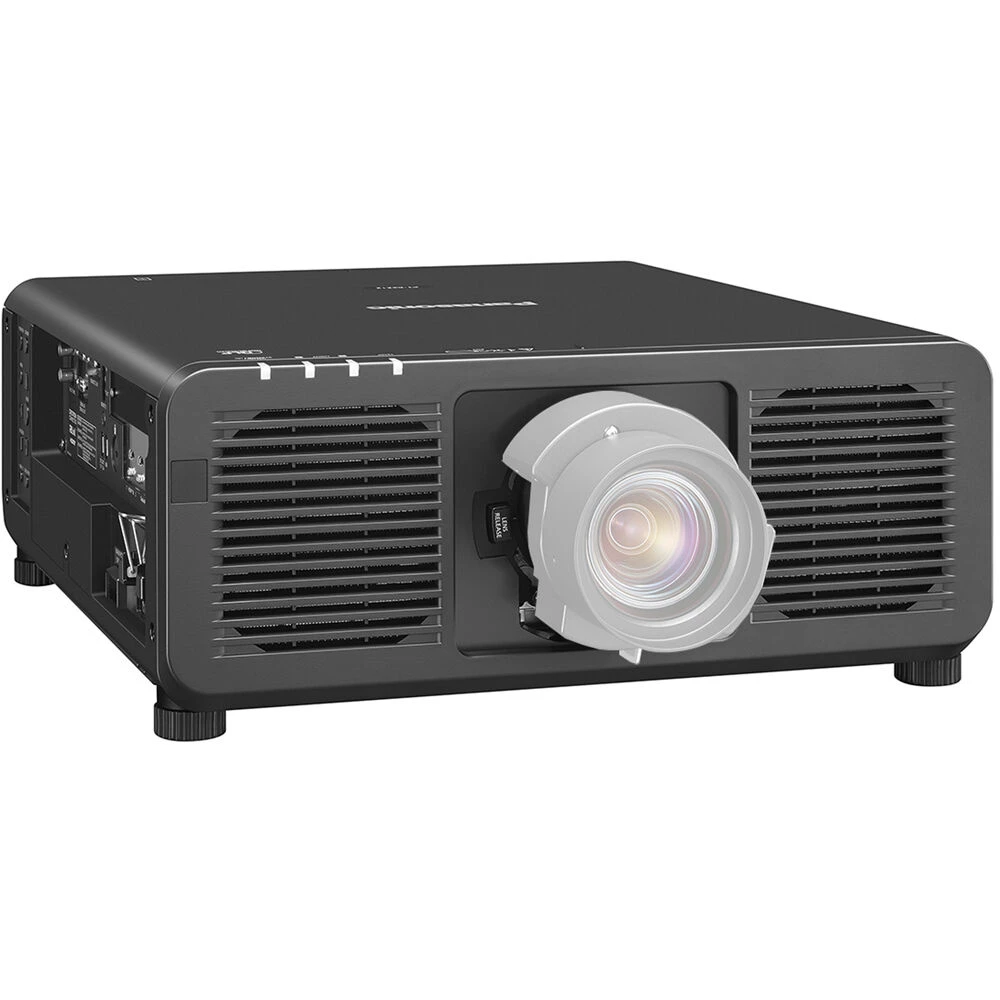

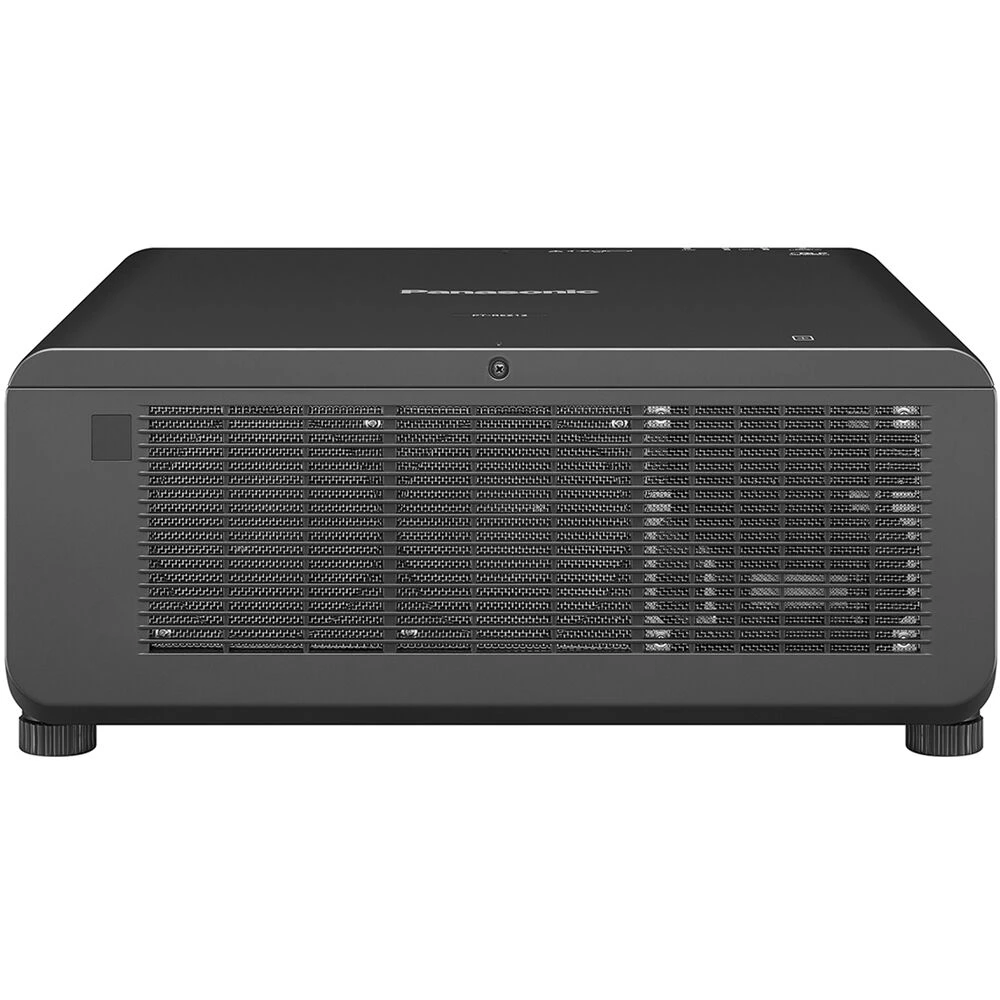

Panasonic PT-REZ80L 8000-Lumen WUXGA DLP Laser Projector (No Lens, Black, TAA Compliant)(Panasonic Pt Rez80l 8000 Lumen Wuxga Dlp Laser Projector No Lens Black Taa Compliant)

High-Contrast and Diverse Content Support

New scene-recognition circuitry and a higher 25,000:1 contrast ratio improve Dynamic Contrast dramatically. Rich Color Enhancer revitalizes color expression to reproduce artwork accurately. Black-level adjustment evolves to enable seamless blending on curved screens, while Gradation Smoother easily corrects color banding. Content with a 21:9 aspect ratio is also supported.

Gradation Smoother and Detail Clarity Processor resolve imperfections for an overwhelmingly realistic experience. Panasonic�s black-level adjustment can eliminate distracting black-level bumps that can sometimes appear in blends outside of the image display area after geometric adjustment is applied. By unlinking black-level adjustment from geometric adjustment, black-level settings can be applied to the entire blend, including the image overlaps outside the image display area, for a completely seamless multi-screen image.

Supports Widescreen Input Signals

Single-chip DLP projectors are a popular way to unite on-site and remote teams in hybrid conferencing spaces. The latest video-conferencing software layouts can output a 21:9 signal to an REZ80 projector so that the faces of remote participants appear along the bottom of the screen at eye level with those seated in the room. This promotes natural and fluent communication between members of the group. In addition, with more games, films, documentaries, and other immersive content being produced with a 21:9 aspect ratio, it makes sense to invest in a projector that can deliver a cinematic experience.

Maintenance-Free Operation

The REZ80 features an optical engine and laser light source module compliant with the IP5X Dust Protected (IEC 60529) standard and a refined liquid cooling system that enable up to 20,000 hours of maintenance-free projection. Backup Input switches to a secondary signal to prevent interruptions if the primary is disrupted.

Wide Scalability with Intel SDM-Ready Slot

An Intel SDM-ready slot integrates optional proprietary or third-party function boards. These reduce installation complexity and make it easier to adapt, scale, and expand your projector�s connectivity to suit different applications and event-site infrastructure. The projector works with Panasonic�s DIGITAL LINK Terminal Board (TY-SB01DL), 12G-SDI Terminal Board (TY-SB01QS), 12G-SDI Optical Function Board (TY-SB01FB), and Wireless Presentation System PressIT Receiver Board (TY-SB01WP) as well as selected third-party PC boards, terminal boards, and AVoIP boards.

Installation and Integrator Friendly

Lightweight, easy to handle, and more compact than previous models, the REZ80 smooths out workflow hassle with a flexible design to fit confined installation spaces. It suits new lenses with powered periphery focus and a wider shift range. Intel SDM-ready slot expands connectivity, while a new sensor enables projection angle display via GUI. Preactivated upgrade kits for Geo Pro and improved black level adjustment save time when mapping on curved screens.

The REZ80 is near the peak of 1-Chip DLP projector evolution with intuitive features that make life easy for integrators and operators, especially at events where setup time is limited. You can use Remote Preview Lite to check content before projection, import custom test patterns, prep for setup without AC power using NFC function, and control and adjust up to 64 projectors from your smartphone.

Additional Features

• TAA compliant
• LAN control support for Art-Net DMX, PJLink, Crestron Connected V2, Crestron XiO Cloud, Extron XTP, and IPv6
• 1 x USB-A for DC 5V 2A power supply
• 1 x USB-A for optional AJ-WM50 Series wireless module or transfer from USB memory devices
• Full 360° installation capable
• Quick on and off with laser light source
• Multi-screen support system
• DICOM simulation mode
• Waveform monitor function
• Power management system

Panasonic REZ80LBUG Specs

Display System	1-Chip 0.80″ DLP
Native Resolution	1920 x 1200
Maximum Brightness	8000 Lumens (ISO)
HDR Support	Yes
Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x BNC Control, Data Input 1x BNC Control, Data Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x RJ45 (Ethernet) Control, Data, LAN Input 1x USB-A Control, Data, LAN Input
Light Source	Laser Phosphor

Display System	1-Chip 0.80″ DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness	8000 Lumens (ISO)
Aspect Ratio	Native: 16:10
Dynamic Contrast Ratio	25,000:1

Includes Lens

No

Keystone Correction	Vertical: ± 40° Horizontal: ± 40°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x BNC Control, Data Input 1x BNC Control, Data Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x RJ45 (Ethernet) Control, Data, LAN Input 1x USB-A Control, Data, LAN Input
HDCP Support	Yes, Version 2.3
Media/Memory Card Slot	No
Number of Expansion Slots	1

Mobile App Compatible	Yes: Android & iOS
Wireless LAN / Wi-Fi	No, Optional Adapter Available
Bluetooth	No

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise	Medium Brightness: 36 dB
Security	Cable Lock Slot Password Protection Security Bar
Supported Languages	English French German Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 730 W Low Brightness: 440 W
Certifications	TAA
Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Dimensions (W x H x D)	19.6 x 8.3 x 21.2″ / 498.0 x 212.0 x 538.0 mm (With feet at shortest position)
Weight	59.5 lb / 27 kg
