Panasonic PT-REQ10L 10,000-Lumen WUXGA Laser DLP Projector (No Lens, Black)(Panasonic Pt Req10l 10 000 Lumen Wuxga Laser Dlp Projector No Lens Black)

Panasonic PT-REQ10L 10,000-Lumen WUXGA Laser DLP Projector (No Lens, Black)(Panasonic Pt Req10l 10 000 Lumen Wuxga Laser Dlp Projector No Lens Black)

Original price was: $340.00.Current price is: $95.99.

SKU: DGFUB 6995370115157 Categories: Audio Visual Presentation, Computer & Presentation, Projectors Tags: All Projectors, Audio Visual Presentation, Panasonic REQ10L, Projectors

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Panasonic REQ10L Overview

1Description
2Quad Pixel Drive
3Gradation Smoother
4Evolved Dynamic Contrast
5Detail Clarity Processor 4
6Multi-Screen Black Level Adjustment
721:9 Widescreen
8Test Patterns and Calibration
9Smart Projector Control App
10NFC Projector Prep:
11Remote Control Screen Adjustment
12Pre-Activated Upgrade Kits
13Fast Angle Correction
14Remote Preview LITE
15Input Insurance
16Failover Circuitry

By Photo’s

John Foldi

When equipped with a supported lens (not included), the black, Quad Pixel Drive-powered Panasonic PT-REQ10L 10,000-Lumen WUXGA Laser DLP Projector offers a 1920 x 1200 resolution, but is capable of accepting content up to 4K for large venues with an incredibly bright 10,000 lumens. Even fast-motion video is supported with 240 Hz refresh on up to 2K resolution footage and a low 6 ms latency. Many features are offered for remote and customized setup and management, even with the projector powered off. The PT-REQ10L is also extremely reliable, with a IP5X dust-resistant design and water-cooled multi-laser light that do not require filters and offer nearly maintenance-free operation for up to 20,000 hours.

Quad Pixel Drive

In addition to 4K and fast 2K240 support, the Quad Pixel Drive also features Dynamic Contrast for higher white brightness and deeper blacks, along with two modes of Rich Color Enhancer. Dynamic mode balances brightness and color, while Standard mode expands the red-channel output for more accurate artwork reproduction. These result in crisp images with no visible pixels or pixel-gridding, even when viewed up close.

Gradation Smoother

Three levels of color banding reduction is possible, which can be useful when time and/or budget do not permit additional content editing.

Evolved Dynamic Contrast

Each video frame is analyzed in real-time, where light output is continuously and automatically adjusted to optimize contrast.

Detail Clarity Processor 4

This helps to create a clear and lifelike image by analyzing low to ultra-high frequencies and using image quality correction circuitry to optimize each area.

Multi-Screen Black Level Adjustment

Curved Screens: Using up to 17 control points set to within a half-pixel margin, black borders on curved screens can be eliminated when blending multiple projections on curved screens.
Inside/Outside Display Area: Black level and geometric adjustment are unlinked, helping to eliminate distracting black-level bumps that can appear in blended images.

21:9 Widescreen

True-to-life cinematic visuals are possible with 21:9 widescreen input signal support using multimedia content, but can also benefit conferencing applications, where all remote guests remain at eye level across the width of the projection.

Test Patterns and Calibration

You have a variety of options when calibrating the PT-REQ10L. Use one of ten built-in test patterns, import and save up to three custom test patterns, or use saved BMP or PNG images of the content to be projected.

Smart Projector Control App

With simple QR code scans, you can use this app to setup and operate the PT-REQ10L and up to 63 others simultaneously. Without any need to enter OSD menus, you can do things like adjust test patterns, lens settings, focus adjustment, and more.

NFC Projector Prep:

Using a mobile device and NFC technology, you can prepare your projector without it even being powered on. Tap the decal on the PT-REQ10L to use the Smart Projector Control app to adjust settings that can then be applied when the projector is finally setup and powered on. This feature also lets you restore the PT-REQ10L to factory defaults when powered off.

Remote Control Screen Adjustment

Use the included remote control and Free Grid to make vertical and horizontal control point adjustments to fix distorted images, whether it be due to uneven surfaces or a curved screen. Choose different grid patterns from 2 x 2 to 17 x 17. Changes are saved automatically and can be done over a background image.

Pre-Activated Upgrade Kits

The PT-REQ10L comes with pre-activated upgrade kits for the free Geometry Manager Pro software. You get ET-CUK10 Auto Screen Adjustment and ET-UK20 Geometry Manager Pro upgrade kits. They add edge-blending, color uniformity, masking tools, and automatic edge-blending calibration features.

Fast Angle Correction

Finding the current orientation and installation angle is now as easy as checking the OSD menu. An embedded gyro sensor detects changes to pitch and roll angles, displaying their values on-screen in the OSD menu.

Remote Preview LITE

Accessed via software or web browser on a laptop, projectionists can preview the content’s input signal as thumbnails on a laptop. A useful feature when actual screen testing and checking is not logistically possible.

Input Insurance

Using both HDMI inputs, two sources with identical content can be sent to the projector. If one should fail, the projector will automatically switch to the backup source in roughly 0.3 seconds. Fast enough for seamless projection without any partially blank sections.

Failover Circuitry

If one laser diode fails, rather than power being cut for a significant drop in brightness, built-in failover circuitry kicks in to continue to supply electricity to the remaining diodes to minimize brightness loss.

UPC: 885170405387

In the Box

Panasonic PT-REQ10L 10,000-Lumen WUXGA Laser DLP Projector (No Lens, Black)

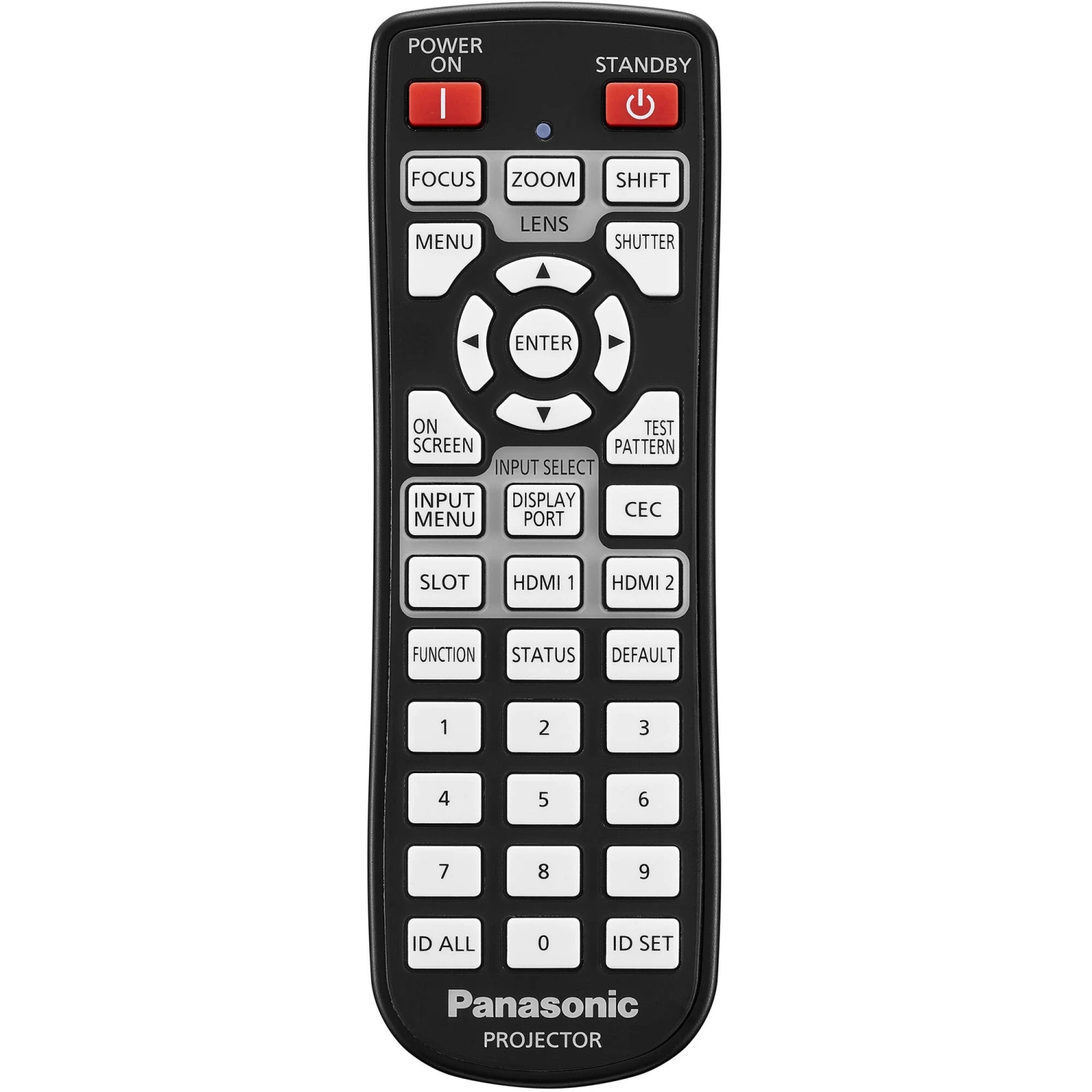

Remote Control
Limited 3-Year Manufacturer Warranty (Excluding Light Source)

Not in the Box

Essential Lenses & Lens Adapters (Not Included)

User Manual

32.8 MB

Table of Contents

Description
Quad Pixel Drive
Gradation Smoother
Evolved Dynamic Contrast
Detail Clarity Processor 4
Multi-Screen Black Level Adjustment
21:9 Widescreen
Test Patterns and Calibration
Smart Projector Control App
NFC Projector Prep:
Remote Control Screen Adjustment
Pre-Activated Upgrade Kits
Fast Angle Correction
Remote Preview LITE
Input Insurance
Failover Circuitry

Panasonic REQ10L Specs

Key Specs

Display System	1-Chip 0.80″ DLP
Native Chip Resolution	1920 x 1200 (WUXGA)
Maximum Brightness	10,000 Lumens (Center)
Supported HDR Input Formats	No

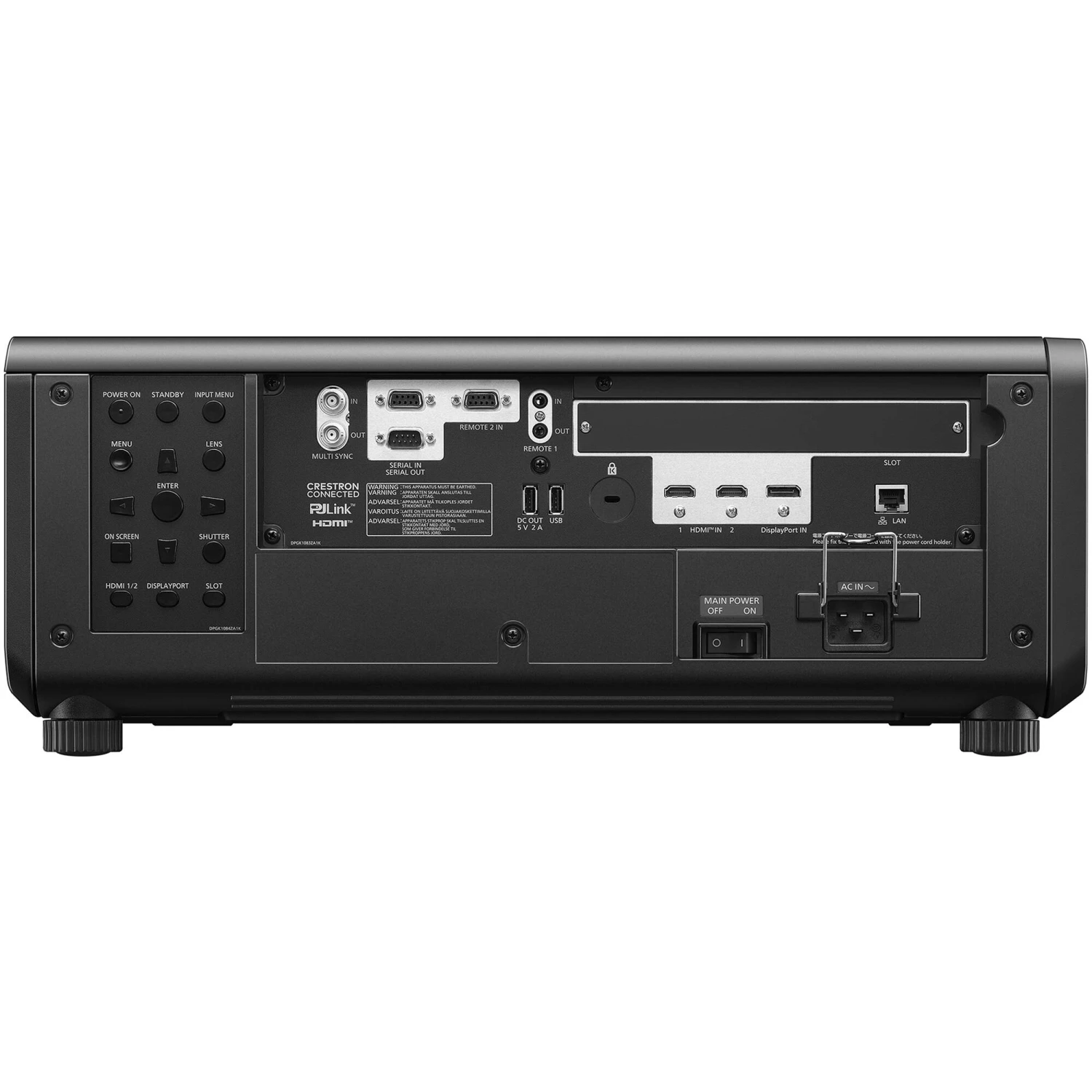

Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x BNC Video Input 1x BNC Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Data Input 1x USB-A Power Output
Light Source	Laser Phosphor

Image Display

Display System	1-Chip 0.80″ DLP
Native Chip Resolution	1920 x 1200 (WUXGA)
Supported Resolutions	Maximum: 4K UHD – 3840 x 2160
Maximum Brightness	10,000 Lumens (Center)
Aspect Ratio	Native: 16:10 Supported: 21:9
Contrast Ratio	25,000:1
Latency	6 ms

Lens

Includes Lens

Features

Supported HDR Input Formats	No
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes

Input/Output Connectors

Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x BNC Video Input 1x BNC Video Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Data Input 1x USB-A Power Output
HDCP Support	Yes, Version 2.3
Media/Memory Card Slot	No
Number of Expansion Slots	1

Hardware

Mobile App Compatible	Yes: Android & iOS App Name: Smart Projector Control Functionality: Adjust Settings, Setup
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise	Full Brightness: 36 dB Low Brightness: 33 dB
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 870 W Medium Brightness: 725 W Low Brightness: 555 W
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	10 to 80%
Dimensions (W x H x D)	19.6 x 8.3 x 21.2″ / 498.0 x 212.0 x 538.0 mm
Weight	59.5 lb / 27 kg
