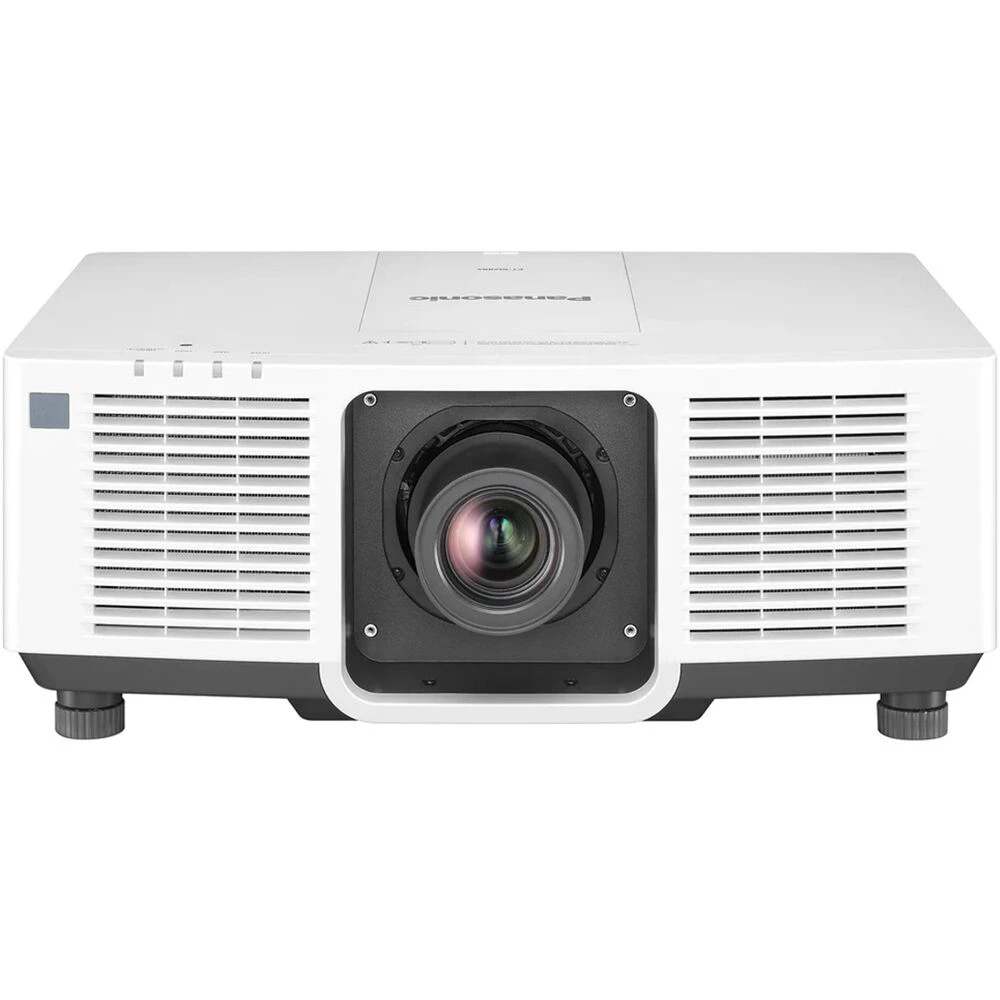

Panasonic PT-MZ682W 6500 Lumen WUXGA Laser 3LCD Projector (White)(Panasonic Pt Mz682w 6500 Lumen Wuxga Laser 3lcd Projector White)

Panasonic PT-MZ682W 6500 Lumen WUXGA Laser 3LCD Projector (White)(Panasonic Pt Mz682w 6500 Lumen Wuxga Laser 3lcd Projector White) - Image 2

Panasonic PT-MZ682W 6500 Lumen WUXGA Laser 3LCD Projector (White)(Panasonic Pt Mz682w 6500 Lumen Wuxga Laser 3lcd Projector White)

Original price was: $312.00.Current price is: $98.99.

SKU: DGFUB 7133204119637 Categories: Audio Visual Presentation, Computer & Presentation, Projectors Tags: All Projectors, Audio Visual Presentation, Panasonic PT-MZ682, Projectors

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Panasonic PT-MZ682 Overview

The Panasonic PT-MZ682W 6500 Lumen WUXGA Laser 3LCD Projector is a bright, eco-conscious model well suited to education and corporate environments. It features a long-lasting laser light source and vivid 3LCD color with Daylight Basic View to optimize the image according to ambient lighting levels. A 1.61 to 2.76:1 throw ratio lens is included, and a variety of additional lenses are available separately to cover short to long throw scenarios.

Eco-Conscious Design Includes Recycled Materials

The eco-friendly PT-MZ682W projector body is crafted using about 10% recycled resins to reduce environmental impact throughout its life cycle. It boasts an 8% efficiency improvement over previous models and a new Auto Power On function to save energy and enhance usability. Intelligent auto power-on function starts projection upon signal detection, while minimizing continuous projector operation during presentations. Additionally, the Multi Laser Drive Engine and ECO Filter reduce maintenance and waste and underscore the projector’s long-life reliability, making it well suited for sustainability-minded organizations.

Bright and Sharp

Daylight View Basic measures environmental lighting and performs real-time corrections to enhance brightness perception and optimize energy use. Dynamic Contrast delivers 3,000,000:1 contrast ratio with scene-linked modulation control to the light source. Combined with Detail Clarity Processor 4, which sharpens details and text, the projector ensures striking visual quality even in brightly lit rooms.

Streamlined Workflow and Smooth UX

Enjoy resource-friendly setup and operation with 4K input signal compatibility and support for CEC control commands via three HDMI inputs. Geo Pro and Geometric Adjustment streamline multi-screen setup, while a new posture detection gyro sensor function makes projection angle adjustment possible with one person. Optional powered lenses with wide-range lens shift, including an ultra short-throw zoom lens, cater to diverse needs, ensuring hassle-free installation and outstanding image quality. The PT-MZ682W can also display 21:9 and 27:9 widescreen content.

Additional Features

Whisper Quiet 27 dB operation reduces distractions
Widescreen 21:9 aspect ratios are supported to suit immersive conferencing layouts
Supports Art-Net DMX, PJLink, and Crestron Connected
Compatible with the Smart Projector Control app
DICOM simulation mode
Data cloning function via LAN
Utilizes the PT-MZ880 Series lens portfolio for seamless integration and compatibility into existing setups

UPC: 885170430778

Items Included

Panasonic PT-MZ682W 6500 Lumen WUXGA Laser 3LCD Projector (White)
Power Cord (9.8′)
Remote Control
2 x AAA Batteries for Remote
Lens Cover
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

21.4 MB

Panasonic PT-MZ682 Specs

Key Specs

Display System	3-Chip 0.76″ LCD
Native Resolution	1920 x 1200
Maximum Brightness	6500 Lumens (ISO)
Throw Ratio	1.61 to 2.76:1 (150″ Screen Size @ 23′ / 7.0 m)
Projection Size	40 to 400″ / 1.0 to 10.2 m
HDR Support	Yes
Inputs/Outputs	3x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x 1/8″ / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output 1x RJ45 (Ethernet) LAN Input
Light Source	Laser Phosphor

Image Display

Display System	3-Chip 0.76″ LCD
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness	6500 Lumens (ISO)
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3
Dynamic Contrast Ratio	3,000,000:1

Lens

Includes Lens	Yes
Focus	Manual Powered
Aperture	f/1.7 to 2.3
Focal Length	26.8 to 45.5mm
Lens Shift	Vertical: ± 67% Horizontal: ± 35%
Optical Zoom	Powered: 1.7x
Throw Distance	4.58 to 78′ / 1.4 to 23.8 m
Throw Ratio	1.61 to 2.76:1 (150″ Screen Size @ 23′ / 7.0 m)
Projection Size	40 to 400″ / 1.0 to 10.2 m

Features

Keystone Correction	Manual to Vertical: ± 25° Manual to Horizontal: ± 30°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	No
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Input/Output Connectors

Inputs/Outputs	3x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x 1/8″ / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output 1x RJ45 (Ethernet) LAN Input
HDCP Support	Yes, Version 2.3
Media/Memory Card Slot	No

Hardware

Mobile App Compatible	Yes: Android & iOS App Name: Smart Projector Control Functionality: Adjust Settings, Setup
Wireless LAN / Wi-Fi	No
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 34 dB
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 360 W
Operating Conditions	32 to 113°F / 0 to 45°C at 20 to 80% Humidity
Dimensions (W x H x D)	22.0 x 8.8 x 17.3″ / 560.0 x 224.0 x 439.0 mm (Including Lens and Protruding Parts, with Legs at Shortest Position)
Weight	41 lb / 18.6 kg
