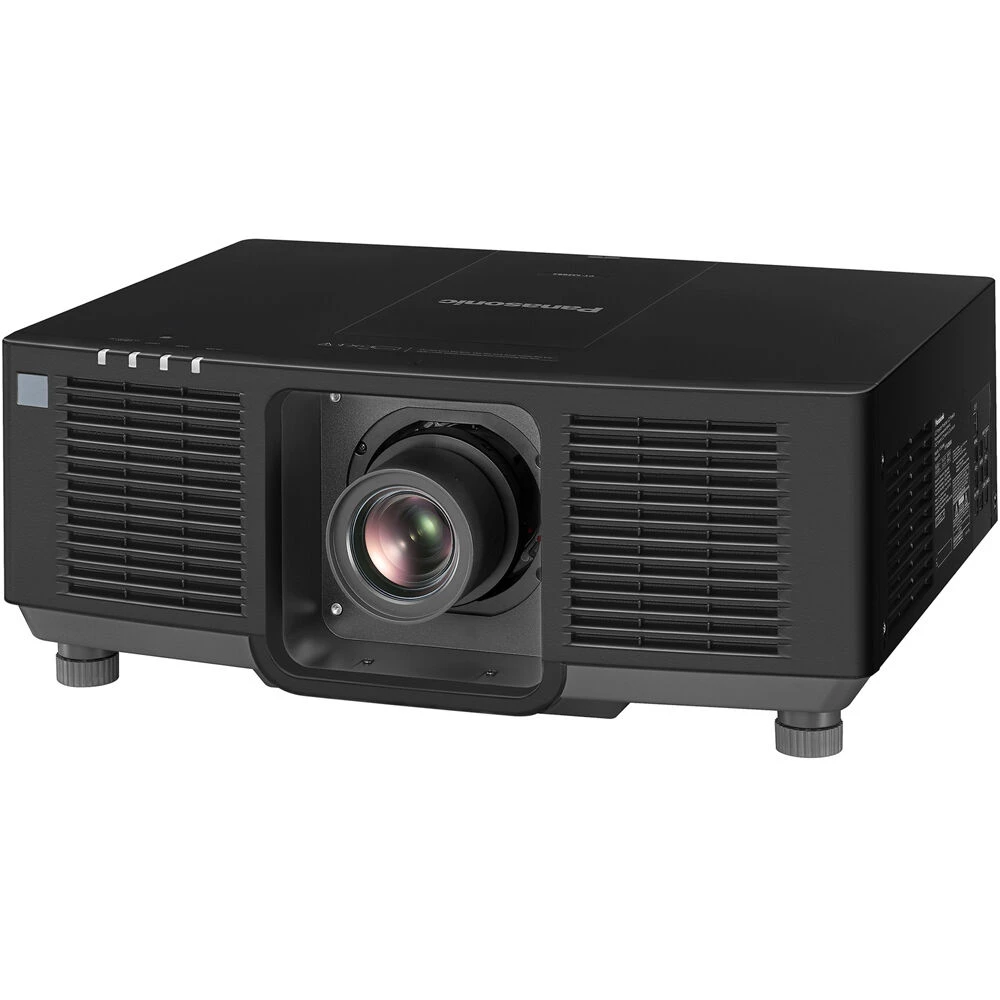

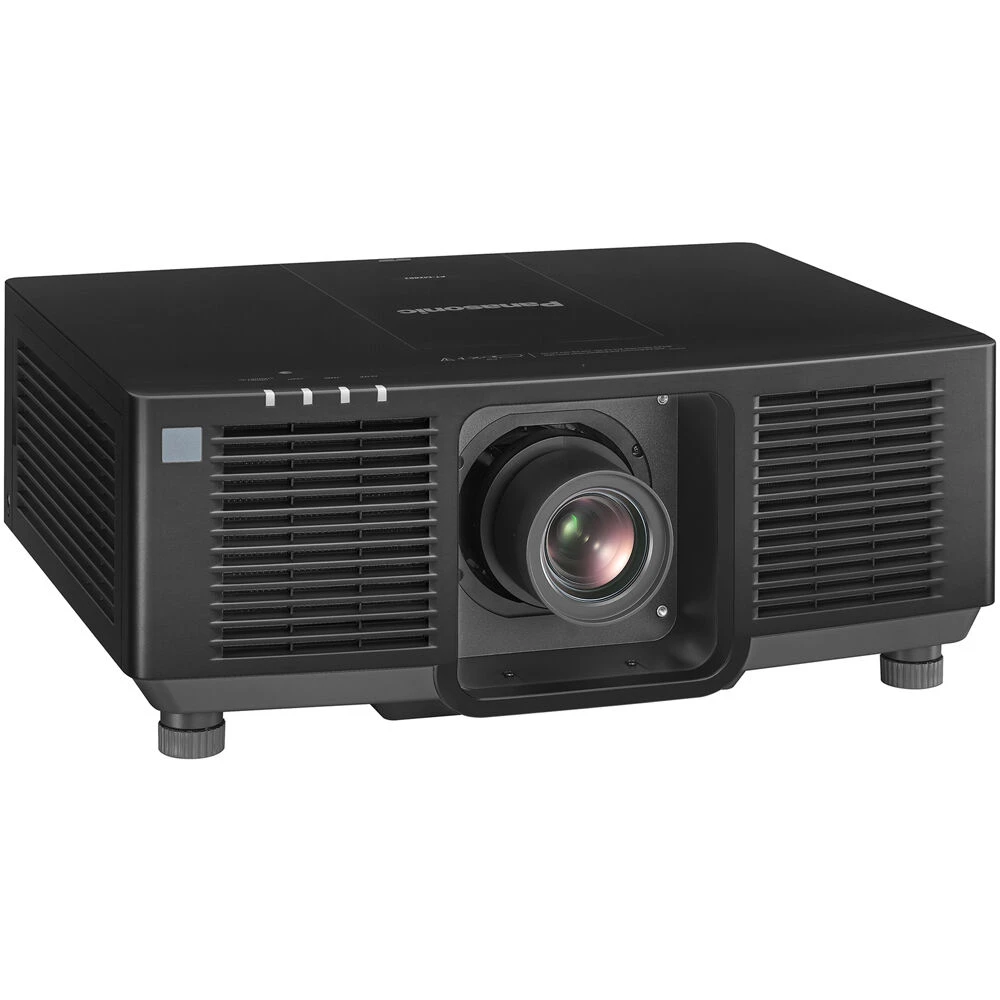

Panasonic PT-MZ682B 6500 Lumen WUXGA Laser 3LCD Projector (Black)(Panasonic Pt Mz682b 6500 Lumen Wuxga Laser 3lcd Projector Black)
Original price was: $317.00.$97.99Current price is: $97.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Panasonic PT-MZ682 Overview
The Panasonic PT-MZ682B 6500 Lumen WUXGA Laser 3LCD Projector is a bright, eco-conscious model well suited to education and corporate environments. It features a long-lasting laser light source and vivid 3LCD color with Daylight Basic View to optimize the image according to ambient lighting levels. A 1.61 to 2.76:1 throw ratio lens is included, and a variety of additional lenses are available separately to cover short to long throw scenarios.
Eco-Conscious Design Includes Recycled Materials
The eco-friendly PT-MZ682B projector body is crafted using about 10% recycled resins to reduce environmental impact throughout its life cycle. It boasts an 8% efficiency improvement over previous models and a new Auto Power On function to save energy and enhance usability. Intelligent auto power-on function starts projection upon signal detection, while minimizing continuous projector operation during presentations. Additionally, the Multi Laser Drive Engine and ECO Filter reduce maintenance and waste and underscore the projector’s long-life reliability, making it well suited for sustainability-minded organizations.
Bright and Sharp
Daylight View Basic measures environmental lighting and performs real-time corrections to enhance brightness perception and optimize energy use. Dynamic Contrast delivers 3,000,000:1 contrast ratio with scene-linked modulation control to the light source. Combined with Detail Clarity Processor 4, which sharpens details and text, the projector ensures striking visual quality even in brightly lit rooms.
Streamlined Workflow and Smooth UX
Enjoy resource-friendly setup and operation with 4K input signal compatibility and support for CEC control commands via three HDMI inputs. Geo Pro and Geometric Adjustment streamline multi-screen setup, while a new posture detection gyro sensor function makes projection angle adjustment possible with one person. Optional powered lenses with wide-range lens shift, including an ultra short-throw zoom lens, cater to diverse needs, ensuring hassle-free installation and outstanding image quality. The PT-MZ682B can also display 21:9 and 27:9 widescreen content.
Additional Features
- Whisper Quiet 27 dB operation reduces distractions
- Widescreen 21:9 aspect ratios are supported to suit immersive conferencing layouts
- Supports Art-Net DMX, PJLink, and Crestron Connected
- Compatible with the Smart Projector Control app
- DICOM simulation mode
- Data cloning function via LAN
- Utilizes the PT-MZ880 Series lens portfolio for seamless integration and compatibility into existing setups
UPC: 885170430792
Items Included
- Panasonic PT-MZ682B 6500 Lumen WUXGA Laser 3LCD Projector (Black)
- Power Cord (9.8′)
- Remote Control
- 2 x AAA Batteries for Remote
- Lens Cover
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
21.4 MB
Panasonic PT-MZ682 Specs
Key Specs
| Display System |
3-Chip 0.76″ LCD |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
6500 Lumens (ISO) |
| Throw Ratio |
1.61 to 2.76:1 (150″ Screen Size @ 23′ / 7.0 m) |
| Projection Size |
40 to 400″ / 1.0 to 10.2 m |
| HDR Support |
Yes |
| Inputs/Outputs |
3x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x 1/8″ / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output 1x RJ45 (Ethernet) LAN Input |
| Light Source |
Laser Phosphor |
Image Display
| Display System |
3-Chip 0.76″ LCD |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 4096 x 2160 @ 60 Hz |
| Maximum Brightness |
6500 Lumens (ISO) |
| Aspect Ratio |
Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio |
3,000,000:1 |
Lens
| Includes Lens |
Yes |
| Focus |
Manual Powered |
| Aperture |
f/1.7 to 2.3 |
| Focal Length |
26.8 to 45.5mm |
| Lens Shift |
Vertical: ± 67% Horizontal: ± 35% |
| Optical Zoom |
Powered: 1.7x |
| Throw Distance |
4.58 to 78′ / 1.4 to 23.8 m |
| Throw Ratio |
1.61 to 2.76:1 (150″ Screen Size @ 23′ / 7.0 m) |
| Projection Size |
40 to 400″ / 1.0 to 10.2 m |
Features
| Keystone Correction |
Manual to Vertical: ± 25° Manual to Horizontal: ± 30° |
| HDR Support |
Yes |
| Multi-Input Support (PIP/PBP) |
No |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
No |
| Projection Tilt Option |
Yes |
Input/Output Connectors
| Inputs/Outputs |
3x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x 1/8″ / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output 1x RJ45 (Ethernet) LAN Input |
| HDCP Support |
Yes, Version 2.3 |
| Media/Memory Card Slot |
No |
Hardware
| Mobile App Compatible |
Yes: Android & iOS App Name: Smart Projector Control Functionality: Adjust Settings, Setup |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
General
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours |
| Fan Noise |
Full Brightness: 34 dB |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: < 360 W |
| Operating Conditions |
32 to 113°F / 0 to 45°C at 20 to 80% Humidity |
| Dimensions (W x H x D) |
22.0 x 8.8 x 17.3″ / 560.0 x 224.0 x 439.0 mm (Including Lens and Protruding Parts, with Legs at Shortest Position) |
| Weight |
41 lb / 18.6 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
