Panasonic CMZ50 Overview
- 1Description
- 2Flexible Installation
- 3Remote Image Adjustment
- 4Quiet Operation
- 5Clear and Realistic Image
- 6Wide Format Projection
- 7Go Bigger with HDMI Out
- 8Powered USB-A Port
- 9Eco-Friendly
- 10HDMI CEC
- 11Fast Mobile Casting
- 12Additional Features
Ideal for smaller classrooms, meeting spaces, and public spaces, the black CMZ50 5200-Lumen WUXGA Ultra-Short Throw Laser Projector from Panasonic offers a very short 0.235 to 0.228:1 throw, which can equate to an 80″ display being projected from just 1/3″ away. A laser projects that content with 5200 lumens of brightness, making images and text look their best in fully lit rooms. The CMZ50 offers flexible 360° installation, and many image adjustments can be done automatically with the included remote. The CMZ50 provides a host of additional features to improve clarity, reduce noise, and generally expand its capabilities, helping to make it a more useful long-term display option.
- Accepts signals up to 4K resolution
- Project from 80 to 120″
- Dual HDMI inputs
- Quick start from standby in just one second
- Direct Off lets you turn off the CMZ50 via the room’s breaker
- Wall mountable with optional ET-WBC100 mount
- Works with free Multi Monitoring & Control software to manage up to 2048 display devices via LAN
- Built-in 10W speaker
- DICOM simulation mode
- Supports PJLink, Crestron Connected, and AMX DD
- Control emulation function
- ECO management system
- Presentation support system
In the Box
- Panasonic CMZ50 5200-Lumen WUXGA Ultra-Short Throw Laser Projector (Black)
- Remote Control
- Limited 3-Year Manufacturer Warranty
User Manual
20.7 MB
- Description
- Flexible Installation
- Remote Image Adjustment
- Quiet Operation
- Clear and Realistic Image
- Wide Format Projection
- Go Bigger with HDMI Out
- Powered USB-A Port
- Eco-Friendly
- HDMI CEC
- Fast Mobile Casting
- Additional Features
Panasonic CMZ50 Specs
| Display System |
LCD |
| Native Chip Resolution |
1920 x 1200 (WUXGA) |
| Maximum Brightness |
5200 Lumens |
| Throw Ratio |
0.23 to 0.29:1 (80″ Screen Size @ .4″ / 1 cm) |
| Supported HDR Input Formats |
No |

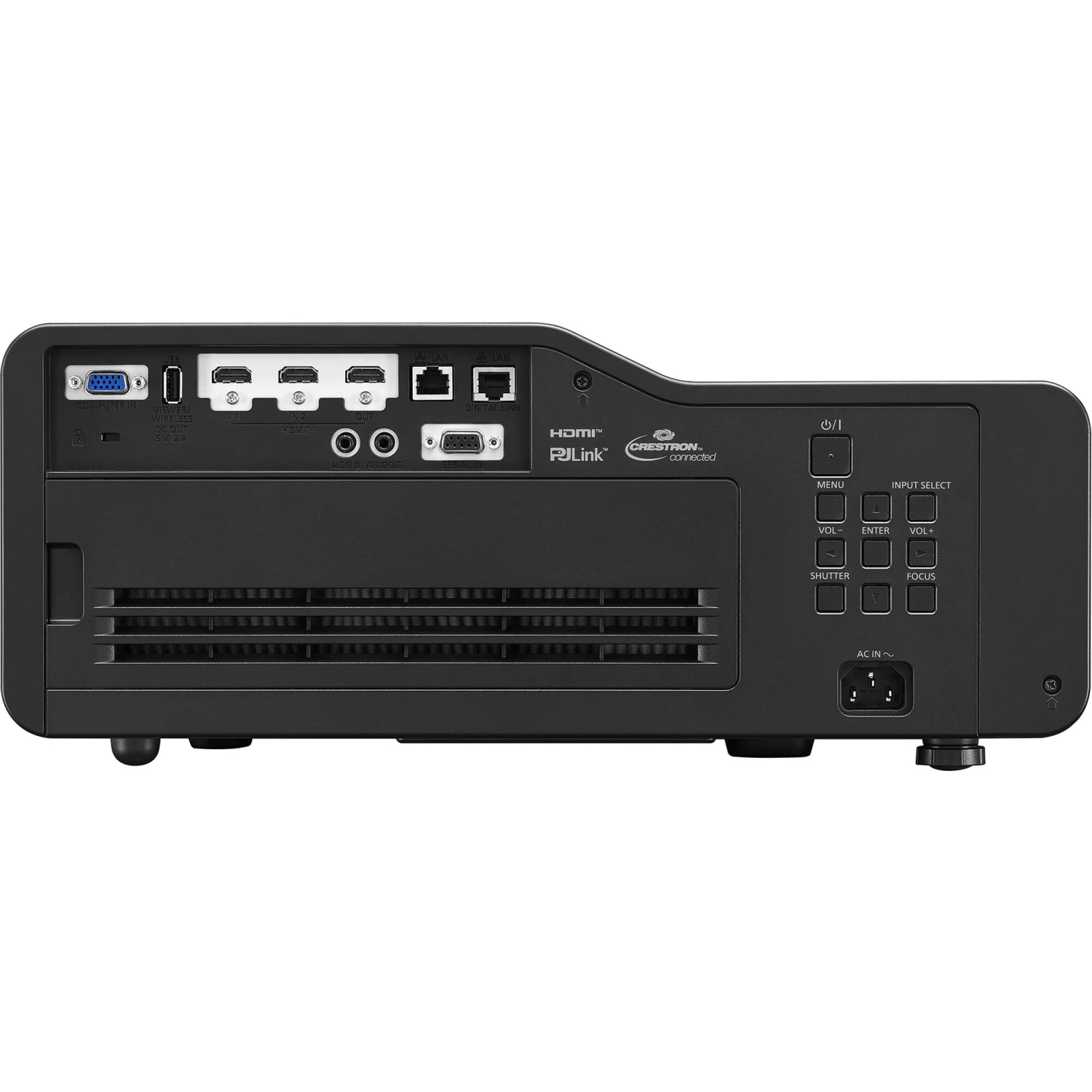

| Inputs/Outputs |
2 x HDMI Audio, Video Input 1 x HDMI Audio, Video Output 1 x DE-15/DB-15 Video Input 1 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x DE-9/DB-9 (RS-232) Control Input 1 x RJ45 (Ethernet) LAN Input/Output 1 x USB-A Data, Power Input/Output |
| Light Source |
Laser Phosphor |
| Display System |
LCD |
| Native Chip Resolution |
1920 x 1200 (WUXGA) |
| Supported Resolutions |
Maximum: 4K UHD – 3840 x 2160 @ 30 Hz |
| Maximum Brightness |
5200 Lumens |
| Aspect Ratio |
Native: 16:10 |
| Dynamic Contrast Ratio |
3,000,000:1 |
| Includes Lens |
Yes |
| Aperture |
f/1.7 |
| Focal Length |
2.81mm |
| Throw Ratio |
0.23 to 0.29:1 (80″ Screen Size @ .4″ / 1 cm) |
| Projection Size |
80 to 120″ / 2.0 to 3.0 m |
| Keystone Correction |
Vertical: ± 3° Horizontal: ± 3° |
| Supported HDR Input Formats |
No |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Ceiling Mountable |
Yes |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
10W |
| Inputs/Outputs |
2 x HDMI Audio, Video Input 1 x HDMI Audio, Video Output 1 x DE-15/DB-15 Video Input 1 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x DE-9/DB-9 (RS-232) Control Input 1 x RJ45 (Ethernet) LAN Input/Output 1 x USB-A Data, Power Input/Output |
| HDCP Support |
Yes, Version 1.4 |
| Mobile App Compatible |
Yes: Android & iOS App Name: Wireless Projector *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise |
Full Brightness: 34 dB Low Brightness: 25 dB |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 310 W Low Brightness: 200 W |
| Operating Temperature |
32 to 113°F / 0 to 45°C |
| Operating Humidity |
20 to 80% (Non-Condensing) |
| Dimensions (W x H x D) |
1.6 x 0.5 x 1.4′ / 495.0 x 160.0 x 421.0 mm Excluding Feet and Protrusions 1.6 x 0.6 x 1.4′ / 495.0 x 176.0 x 421.0 mm With Feet at Shortest Position |
| Weight |
20.9 lb / 9.5 kg |
