Panamax M2A20 Overview

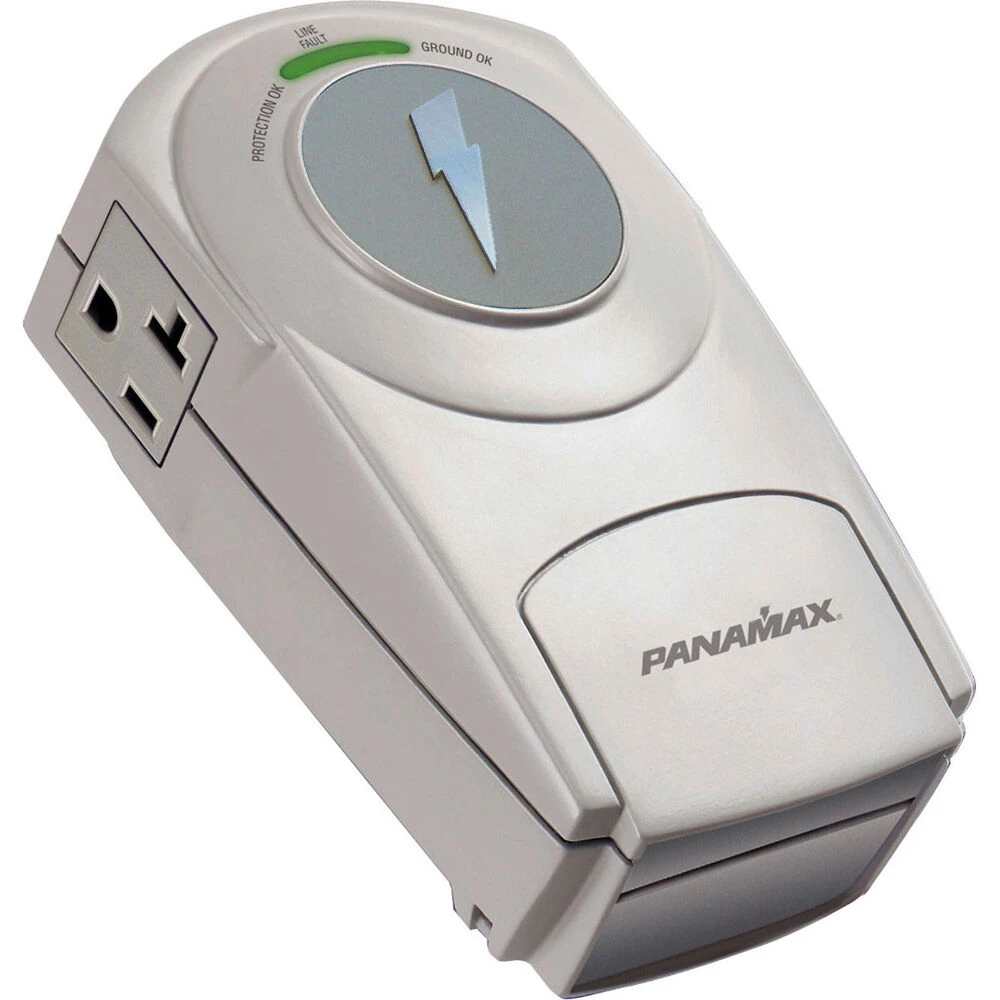

The Panamax 2-Outlet Direct Plug-In Surge Protector provides surge and over-voltage protection for high-current, AC-only electronic devices, such as copiers/printers and audio amplifiers. The surge protector features is equipped with two AC 20 Amp outlets. It also features Panamax’s exclusive Protector-or-Disconnect circuitry which handles an unlimited number of surges and will disconnect the power during a catastrophic surge to keep your equipment safe. In addition, the surge protector has 3 diagnostic lights for maximum safety.
In the Box
- Panamax 2-Outlet Direct Plug-In Surge Protector
- Limited 3-Year Manufacturer Warranty
User Manual
2.7 MB
Panamax M2A20 Specs
| Outlets | 2 x NEMA 5-15R |
| USB Ports | None |
| Ethernet | None |
| Coaxial | None |
| RJ11 | None |
| Bluetooth | None |
| Wireless | None |
| Mobile App Compatible | No *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
| AC Input Power | 120 VAC, 50 / 60 Hz |
| Rated Current | 20 A |
| Circuit Breaker | Yes |
| Clamping Voltage | 330 V (Line to Ground, Line to Neutral, Neutral to Ground) |
| Clamping Response Time | < 1 ns |
| Maximum Spike Current | 52,000 A |
| Surge Energy Rating | 1350 Joules |
| EMI/RFI Noise Filtration | 50 dB (100 kHz to 1 MHz) |
| Certifications | UL 1449 *as per Manufacturer |
| Cable Management | None |
| Dimensions | 5.5 x 3.12 x 2″ / 14 x 7.92 x 5.1 cm |
| Weight | 0.75 lb / 0.34 kg |
