OWC 18TB MiniStack STX & Thunderbolt Hub Xpansion (2TB SSD + 16TB HDD)(Owc 18tb Ministack Stx Thunderbolt Hub Xpansion 2tb Ssd 16tb Hdd)

Compatibility

• macOS 11.1 or later is required for Thunderbolt hosts, while macOS 10.14.6 is required for USB hosts
• Actual display support depends upon the host. Please review the display specifications for your specific host system to determine the maximum supported resolution, refresh rate, color depth, and number of external displays over Thunderbolt or USB
• NVMe SSD usage requires a Thunderbolt 4 host connection with a compatible system running macOS 11.x or later
• USB host connectivity provides SATA drive use only and limits additional miniStack STX ports to USB connectivity only
• Thunderbolt and Thunderbolt 2 hosts are supported via a USB-A connection, which requires a USB-C to USB-A adapter (sold separately). Thunderbolt and Thunderbolt 2 hosts are not otherwise supported and USB-A hosts do not support displays or power delivery

Mini Sized, Mammoth Possibilities

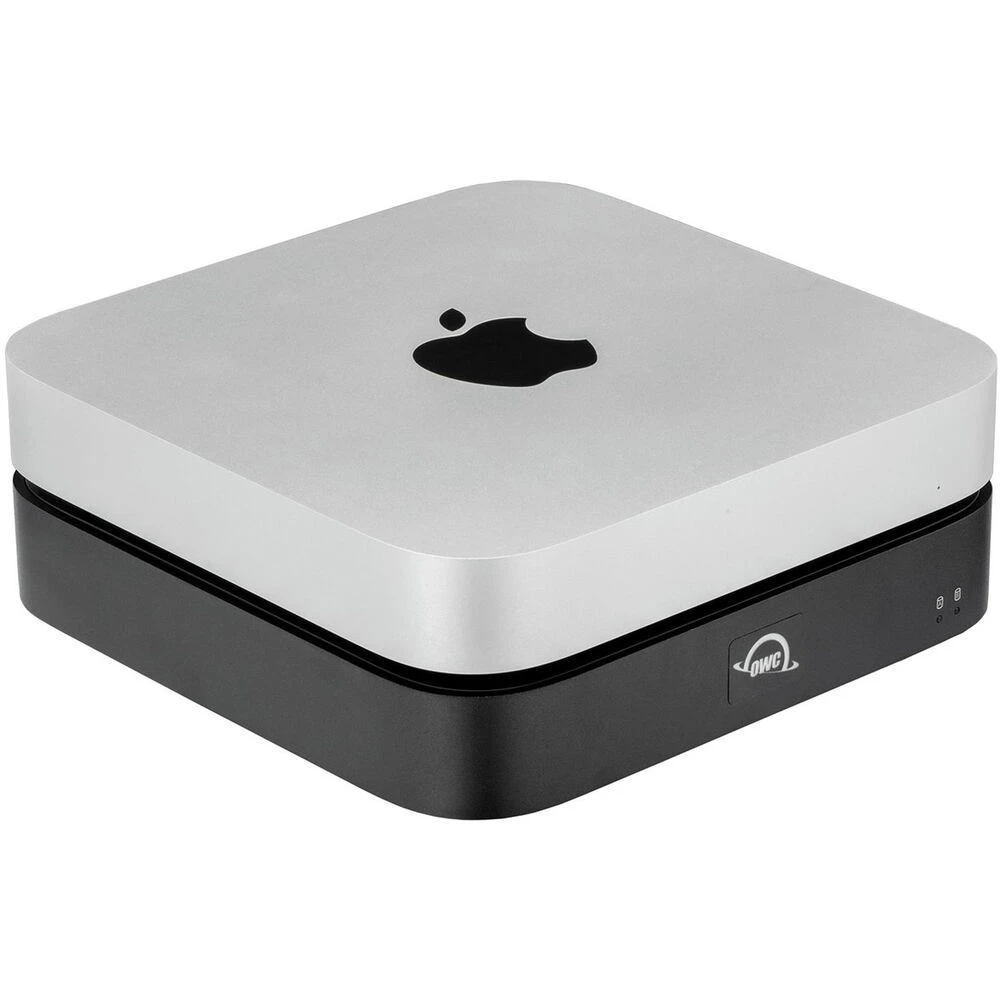

The miniStack and the Mac mini have been the perfect pair since 2005. Now featuring Storage and Thunderbolt Xpansion, the miniStack STX continues its legacy as a top sidekick that the Mac mini can have.

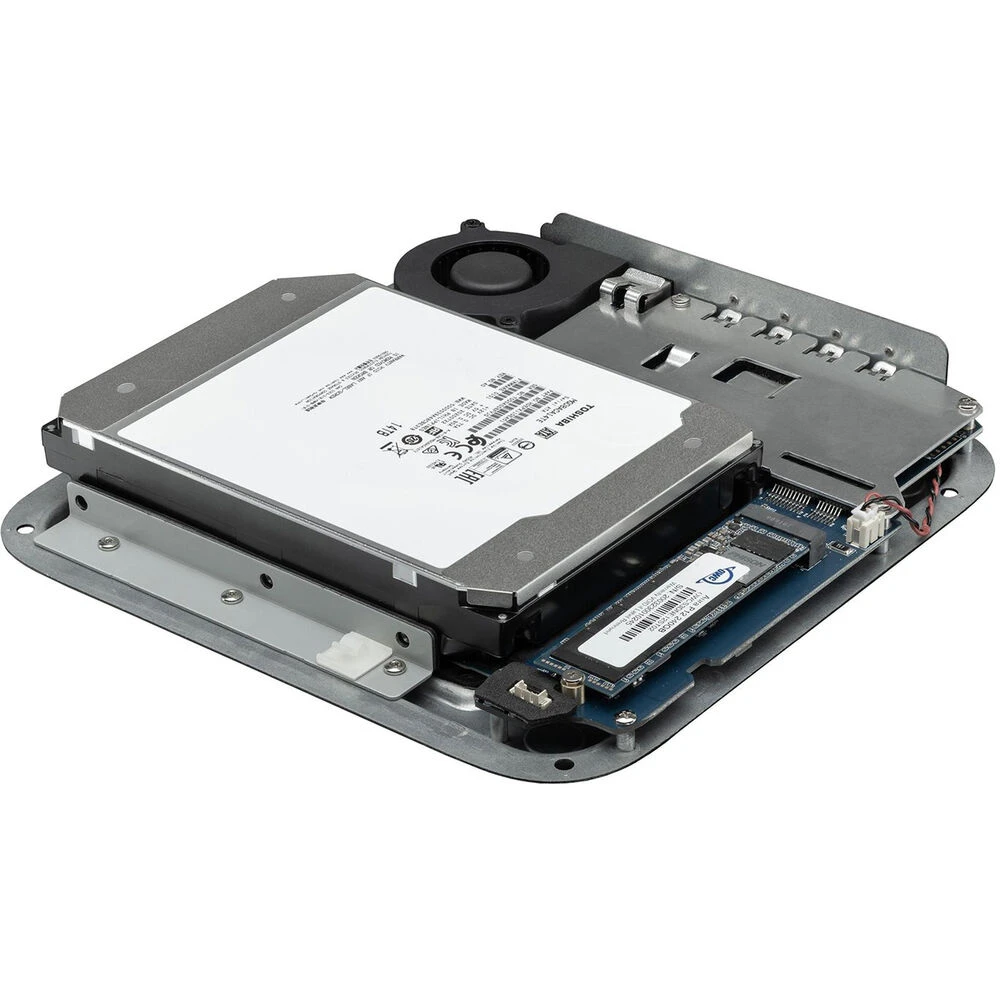

With a universal 3.5″/2.5″ SATA HDD/SSD bay and an NVMe M.2 PCIe 4.0 x4 SSD slot, you can expand your mini’s storage capacity to gigantic proportions. Three Thunderbolt 4 (USB-C) ports enable you to connect to millions of Thunderbolt, USB, and future USB4 drives, displays, A/V mixers, cameras, tablets, and desktop accessories like a keyboard, card reader, or mouse. The possibilities of how you can use your Mac mini is now only limited to your imagination.

Xpands Notebooks, Tablets, and More

While sized identically to the Mac mini, the miniStack STX is also a sleek, complementary companion for MacBook and PC notebook and desktop machines, iPads, and Chromebooks. While highly powerful, these machines are often limited in the number and variety of ports they offer. The miniStack STX solves that expansion limitation with a new world of increased connectivity and storage capacity.

The Dual Drive Dynamo

Just like superheroes have an alter ego, so too does the miniStack STX. The universal SATA drive bay holds a hard disk drive or SSD for upstanding data storage performance with big capacity. When you need to support bandwidth-intensive operations, the NVMe M.2 SSD slot reveals miniStack STX’s ferocious power. NVMe was designed to deliver the speed potential of modern flash drive technology by using a direct path to a computer’s processor over PCIe. As a result, you can enjoy near instant access performance with the miniStack STX.

Edit, Save, and Access Like a Pro

With multiple drive configurations available, you can experience data transfer speeds of up to 770 MB/s. Move 5GB of GoPro footage in about 6 seconds, transfer thousands of photos of that priceless event in mere seconds, and use the SATA drive for Time Machine or File History backups while working off the NVMe drive. With heavyweight performance like this, the miniStack STX is great for multi-stream compressed 4K video editing, photography, audio, virtual machines, and everyday data tasks.

Easily Monitor and Protect Your Data

For even more power and security, add OWC’s SoftRAID software to your miniStack STX and create a RAID 1 to automatically maintain identical copies of all your data on each drive. For over 25 years, SoftRAID has been a fully featured and powerful software RAID solution available for Mac and Windows. It starts protecting your data even before you start saving by validating the STX drives are safe for data storage. In the improbable event that you experience a disk issue, your data is still complete and accessible on the miniStack STX’s other drive. SoftRAID then constantly monitors your disks with a combination of S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) attributes along with its own I/O statistics. This deep dive disk health analysis identifies potential problems so you can take preventive action. SoftRAID is available for both Mac and PC making it possible to share the miniStack STX between computers.

Move Between Mac and Windows

Transferring data between Macs and Windows PCs has become easier, but can be extremely time consuming using cloud or email transfers. Now you can do it directly with external drives and take advantage of crazy fast speeds to transfer huge amounts of data in no time at all thanks to OWC’s MacDrive. This seamless Windows software runs in the background, so there’s nothing to launch or learn. Simply unplug your HFS+ formatted drive from your Mac or PC and move it to your other computer. Not only do you have instant read access, but full write access. MacDrive also includes powerful features that enable you to create and partition and repair basic drive issues.

• Compatible: Works with all types of media including hard drives, SSDs, CD/DVD, etc.
• Access: Read and write Mac disks direct from Windows Explorer
• Manage: Format, partition, and delete Mac disks on your PC
• Repair: Built-in tools can safely fix basic drive issues
• Backups: Browse through Time Machine backups as well as copy those files and folders to your PC

Everything is better when you share. MacDrive makes it incredibly easy to move data between Mac and Windows PCs. If you live in a cross-platform environment MacDrive is a must.

A Resolutionary Idea

Whether your computer or tablet is sporting the latest technology or is a few years loved, the OWC miniStack STX gives you multiple options to expand your visual horizons, with single and dual display support, including:

• One 8K display at 60 Hz
• One 5K display at 60 Hz
• One 4K Display at 120 Hz
• Two 4K displays at 60 Hz
• One 4K display at 60 Hz
• One 4K display at 30 Hz

Single and Dual Display Support

• Apple Silicon Mac (M1 or M2) – 4K at 30 Hz, 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K)
• Apple Silicon Mac (M1 Pro, M1 Max, M1 Ultra, M2 Pro, or M2 Max) – 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K), Dual 5K at 60 Hz (Apple Studio Display), 6K at 60 Hz (Apple Pro XDR), Dual 6K at 60 Hz (Apple Pro XDR)
• Intel Mac with Thunderbolt 3 – 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K), Dual 5K at 60 Hz (Apple Studio Display), 6K at 60 Hz (Apple Pro XDR)
• iPad Pro or iPad Air with Thunderbolt – 4K at 30 Hz, 4K at 60 Hz, 6K at 60 Hz (Apple Pro XDR)
• iPad Pro with USB-C – 4K at 30 Hz, 4K at 60 Hz, 5K at 60 Hz (Apple Studio Display or LG Ultrafine 5K)
• iPad Air with USB-C – 4K at 60 Hz
• Chromebook – 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz
• Windows with Thunderbolt 4 – 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz, 6K at 60 Hz (Apple Pro XDR), 8K at 60 Hz
• Windows with Thunderbolt 3/USB4 – 4K at 30 Hz, 4K at 60 Hz, Dual 4K at 60 Hz
• Windows with 10 Gb/s USB-C (with DisplayPort) – 4K at 30 Hz, 4K at 60 Hz
• Windows with 5 Gb/s USB-C (with DisplayPort) – 4K at 30 Hz
• Windows Tablet – 4K at 30 Hz

Xpand Your Sonic Journey

Building your music setup can be daunting. With two configurable drives in the OWC miniStack STX, it’s easy to create a storage powerhouse for recording and playback of essential tracks in real-time. You can even store your entire loop and sample libraries on the NVMe SSD for in-a-flash use with near zero latency.

Xpand Your Connections

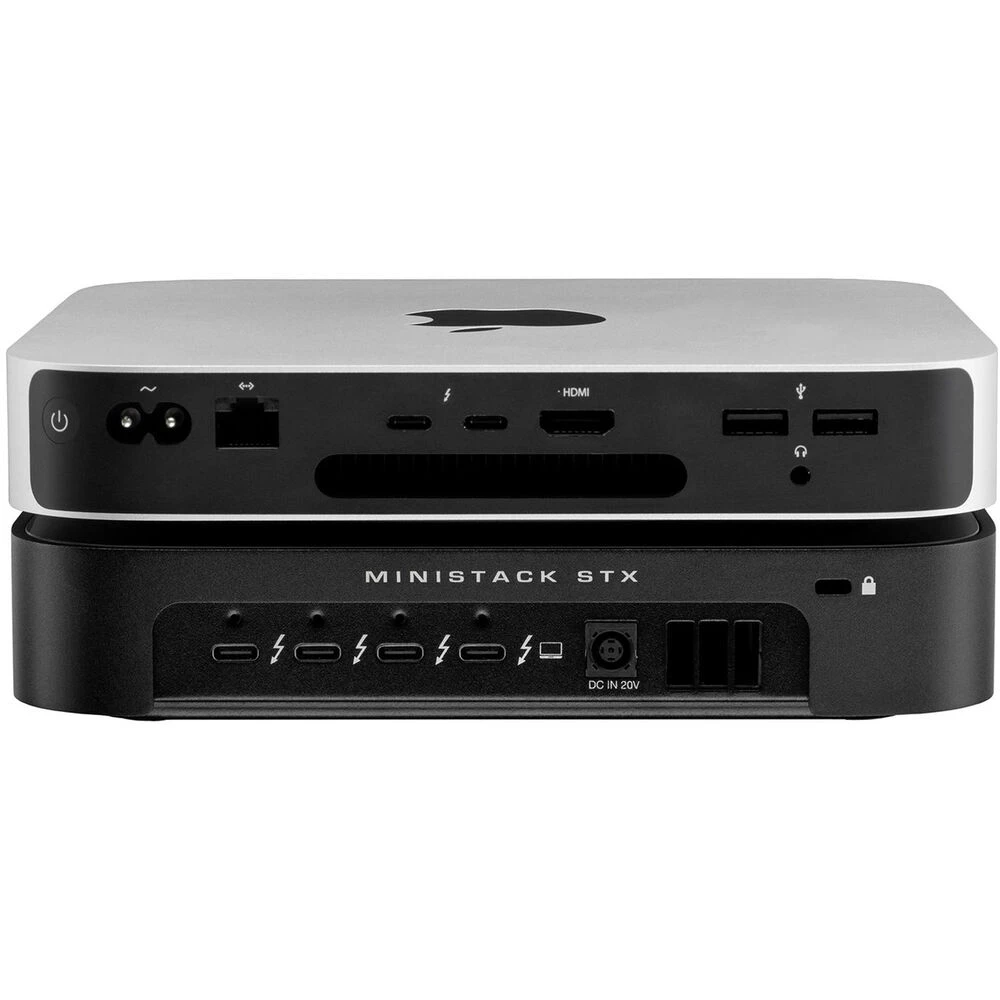

You’ll gain a newfound freedom by being able to connect to nearly any past, present, or future device and accessory via three Thunderbolt 4 (USB-C) ports. Just like the miniStack STX’s innovative storage capability, these three ports have a second ability. They reinvent the daisy chain by allowing you to create three independent chains with up to five bus-powered Thunderbolt devices with a USB device on the end of each chain for 8 devices total. You can now also remove devices from one chain without affecting the other chain or chains.

Xtend your Investment

If you own a 2018 Intel Mac mini or the latest Apple silicon version, the fact that the internal factory drive can’t be upgraded is no longer a reason to sell your beloved little powerhouse. The miniStack STX maximizes your mini’s investment with a mighty capacity punch for a fraction of the time and money you would spend in buying and setting up a new machine. You’re not left behind if you own a Mac, PC, or device equipped with USB-A only. With a USB-C to USB-A adapter cable (sold separately), you can utilize the miniStack STX’s SATA drive bay to transfer data to/from your machine plus infuse your trusty setup with additional device connectivity.

Store from Minutes to Millions

All the features and “technospeak” of an external drive don’t mean a thing if you don’t know how much of a particular file type it can hold. For every 1TB of your OWC drive capacity, you can store up to any of the following:

• 250,000 photos
• 250,000 standard quality songs
• 38,000 high quality songs
• 200 high-definition movies
• 41.6 hours of GoPro 4K footage
• 4.3 million MS Office documents
• 24+ PS4/Xbox games

Keeps the Power Flowing

Whether you’re taking a short break or are done for the day, the miniStack STX keeps you powering ahead. No matter if your machine or STX goes into sleep mode, the STX’s Thunderbolt ports continue to power and/or charge connected devices. Your notebook will stay charged and ready too, with 96W of power through its Thunderbolt or USB-C connection.

Secure Your Connections

Unexpected disconnects during file transfers or a work session can be devastating. The OWC ClingOn (sold separately) easily reduces�if not eliminates�cable strain on the miniStack STX Thunderbolt connection ports.

Certified for Demanding Use

OWC understands having confidence in gear reliability is paramount to creative professionals. That’s why the miniStack STX goes through a multi-step performance certification prior to shipping. This ensures it arrives operating properly and immediately ready for your demanding use.

OWC, Trusted by Pros & Enthusiasts the World Over

OWC builds their hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, they rigorously quality test and back the miniStack STX with 24/7 global customer support.

Key Specs

Reliability / Data Integrity

External Enclosure

Electrical

Environmental
