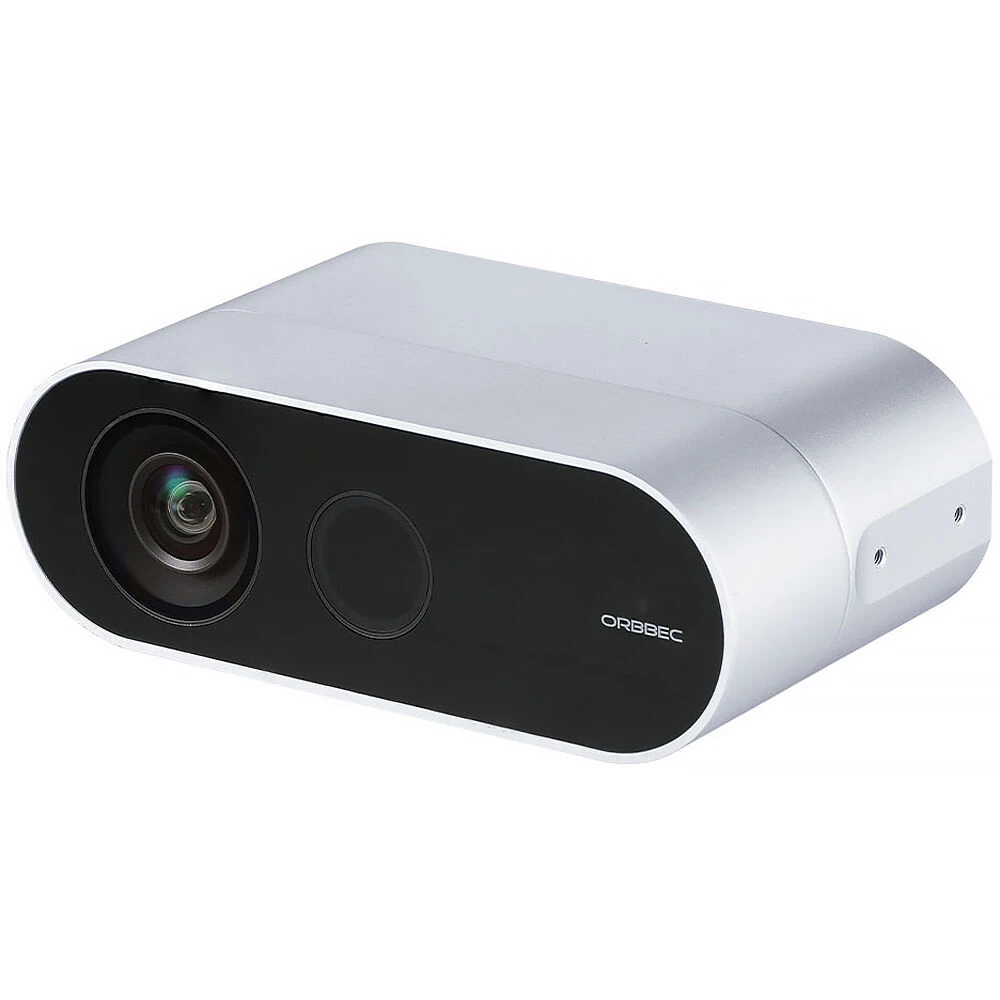

Orbbec Femto Bolt Depth Camera(Orbbec Femto Bolt Depth Camera)

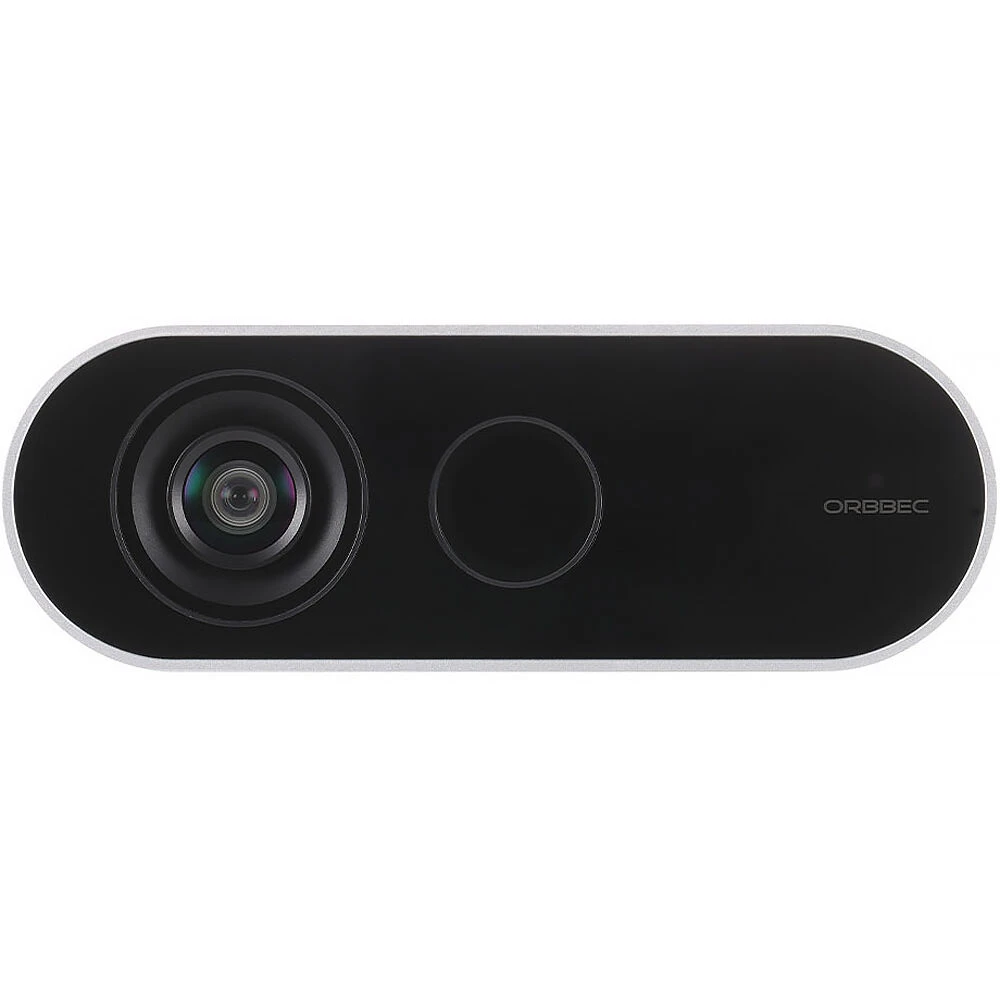

Orbbec Femto Bolt Depth Camera(Orbbec Femto Bolt Depth Camera) - Image 2

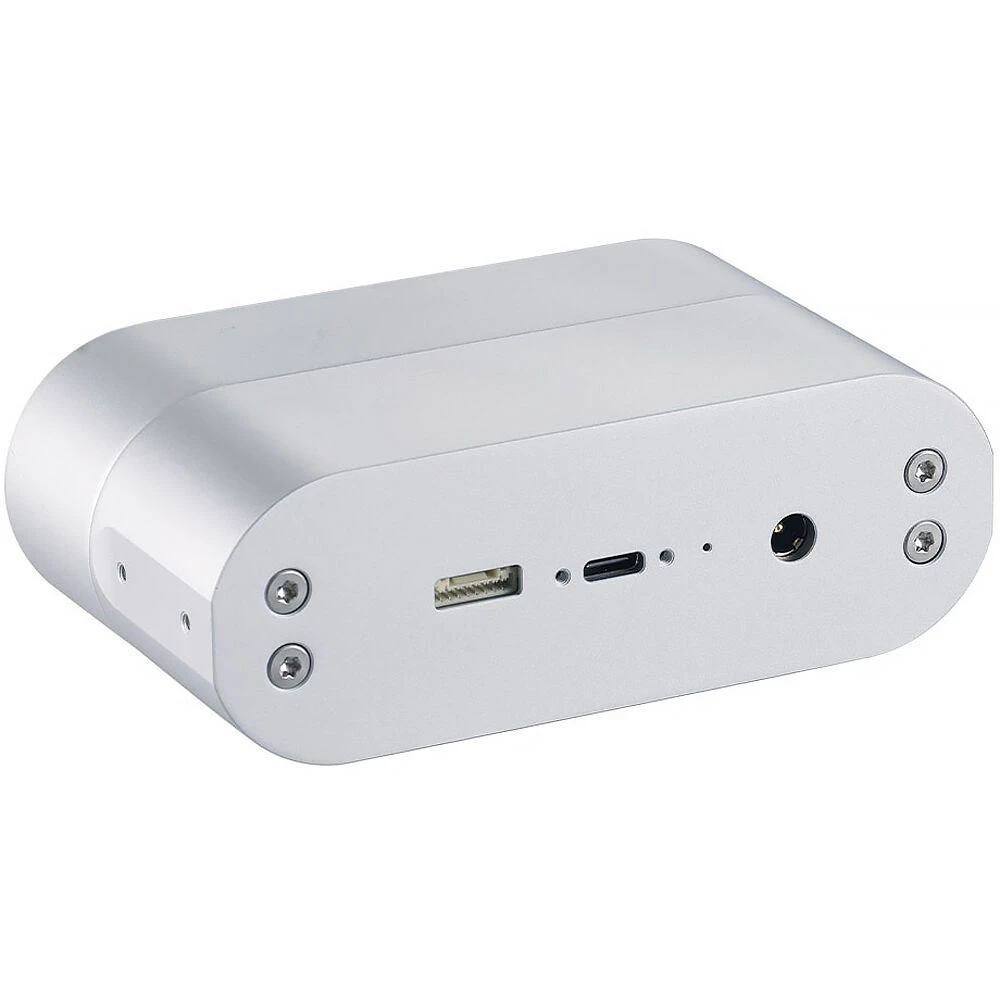

Orbbec Femto Bolt Depth Camera(Orbbec Femto Bolt Depth Camera) - Image 3

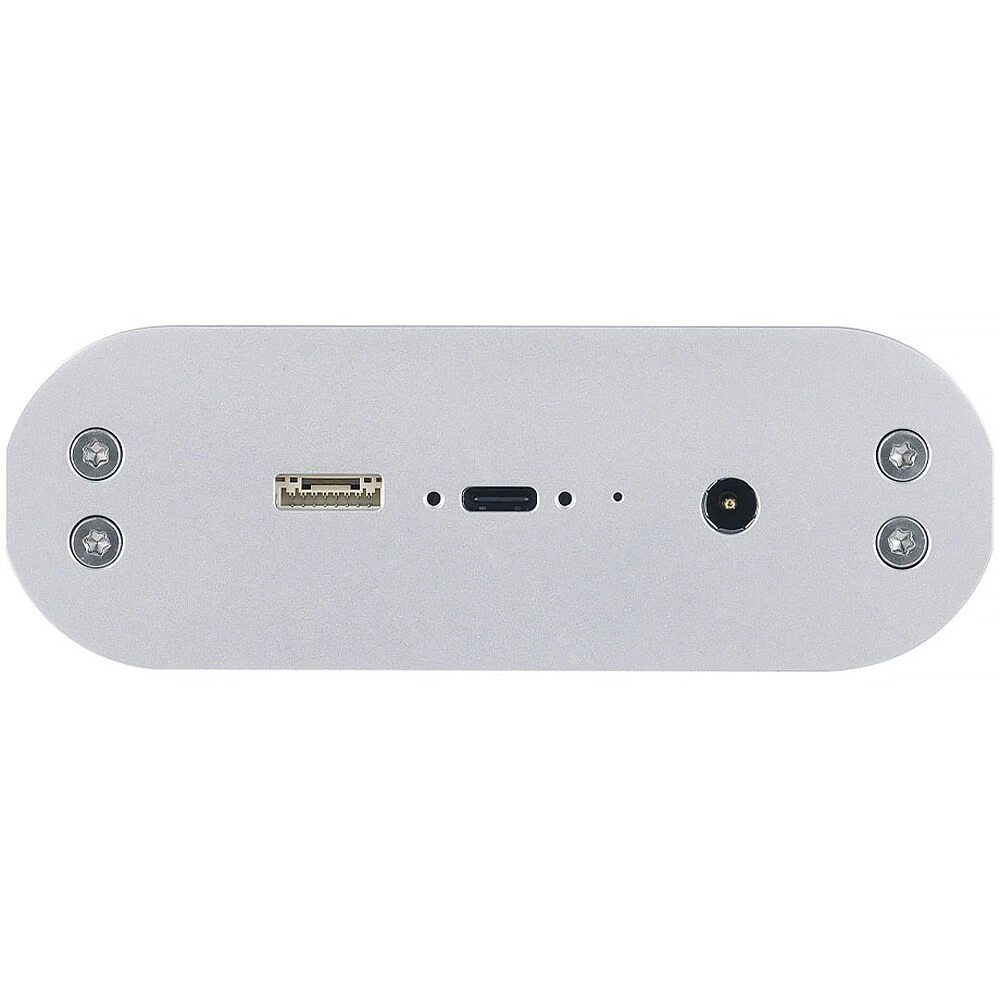

Orbbec Femto Bolt Depth Camera(Orbbec Femto Bolt Depth Camera) - Image 4

Orbbec Femto Bolt Depth Camera(Orbbec Femto Bolt Depth Camera) - Image 5

Orbbec Femto Bolt Depth Camera(Orbbec Femto Bolt Depth Camera) - Image 6

Orbbec Femto Bolt Depth Camera(Orbbec Femto Bolt Depth Camera)

Original price was: $321.00.Current price is: $96.99.

SKU: DGFUB 7132863463509 Categories: 3D Printer & Supplies, Electronics & Tools, Electronics, DIY Kit & Hobbies Tags: 3D Printers & Accessories, Computers, Orbbec Femto Bolt, Printers

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Orbbec Femto Bolt Overview

Designed for AI developers using 3D vision applications, the Femto Bolt Depth Camera from Orbbec is a high-performance device with multi-mode depth and RGB cameras that deliver resolutions up to 3840 x 2160 at 5, 15, 25, and 30 fps. Its 1MP sensor delivers a 120° FOV, while HDR functionality helps preserve details. This camera uses Microsoft’s ToF technology and has operating modes and performance that are similar to the Microsoft Azure Kinect and Orbbec Femto Mega. Also featured are rolling and global shutters, wavelength sensitivity up to 850nm, and a USB-C 3.2 Gen 1 interface that delivers power and data. The camera may also be powered using an included AC adapter.

Features

Depth camera with 1MP ToF sensor and 120° FOV
4K RGB with HDR
IMU: 6DoF
Data interface: USB-C 3.2 Gen 1
Power: USB-C/DC, 4.35W average
Trigger/Sync Control
SDK: Windows or Linux

Performance and Programmability

High resolution and high accuracy across a wide range of operation
Wide Field of View covers a large area
HDR (High Dynamic Range) function for RGB preserves details
Easy camera setup with a rich set of APIs for various applications

Ease of Use for AI Developers and Commercial Applications

Depth and RGB cameras and IMU in a single device
Combined data and power with USB-C 3.2 Gen 1 connection
High-precision synchronization trigger control

UPC: 850063467063

Items Included

Orbbec Femto Bolt Depth Camera
USB-C to USB-C Power/Data Cable
AC to DC Power Supply/Adapter
Limited 1-Year Manufacturer Warranty

Additional Resources

User Manual

1.0 MB

Orbbec Femto Bolt Specs

General

Wavelength	850 nm
Processing	Host
Shutter Type	IR: Global Shutter Color: Rolling Shutter
IMU	6 DoF Frequency Range: 50 to 2000 Hz Data Format: Float
Mirror Mode	Supported, Non-Mirror by Default
Operating Modes	DC Power + USB-C Data USB-C Power + USB-C Data (Depth & IR Mode Supports 640 x 576 and below, Y16 Format. Color Mode Supports 1920 x 1080 and Below, YUY2 and MJPG Format.)
RGB	3840 x 2160 at 5, 15, 25, and 30 fps 2560 x 1440 at 5, 15, 25, and 30 fps 1920 x 1080 at 5, 15, 25, and 30 fps 1280 x 720 at 5, 15, 25, and 30 fps FoV: 16:9, 80 x 51° Format: YUY2, MJPG, H.264, and H.265 1280 x 960 FoV: 4:3, 65 x 51° Format: YUY2, MJPG, H.264, and H.265
Supported Functions	D2C, Multi-Camera Sync
NFOV Binned	320 x 288 at 5, 15, 25, and 30 fps FoV: 75 x 65° Range: 1.64 to 17.91′ / 0.50 to 5.46 m Format: Y16
NFOV Unbinned	640 x 576 at 5, 15, 25, and 30 fps FoV: 75 x 65° Range: 1.64 to 12.66′ / 0.50 to 3.86 m Format: Y16
WFOV Binned	512 x 512 at 5, 15, 25, and 30 fps FoV: 120 x 120° Range: 0.82 to 9.45′ / 0.25 to 2.88 m Format: Y16
WFOV Unbinned	1024 x 1024 at 5 and 15 fps FoV: 120 x 120° Range: 0.82 to 7.25′ / 0.25 to 2.21 m Format: Y16

Inputs/Outputs

USB I/O	1 x USB-C 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
Trigger Sync	8-Pin Connector for Multi-Device Sync

Wireless

Mobile App Compatible

Power

Power Source	AC Adapter with Power Brick, USB
Power Consumption	4.35 W (Typical)
Power	DC/USB-C
Power Input	12 VDC/2 A 5 V/3 A USB-C

Physical

Mounting	Bottom: 1x 1/4″-20 Side: 4x M2.5
Color	Black / White
Certifications	CE, FCC, REACH, RoHS, WEEE
Dimensions	4.5 x 2.6 x 1.6″ / 115 x 65 x 40 mm
Weight	11.8 oz / 335 g

Packaging Info

Package Weight	1.565 lb
Box Dimensions (LxWxH)	9.5 x 6.5 x 3.1″
