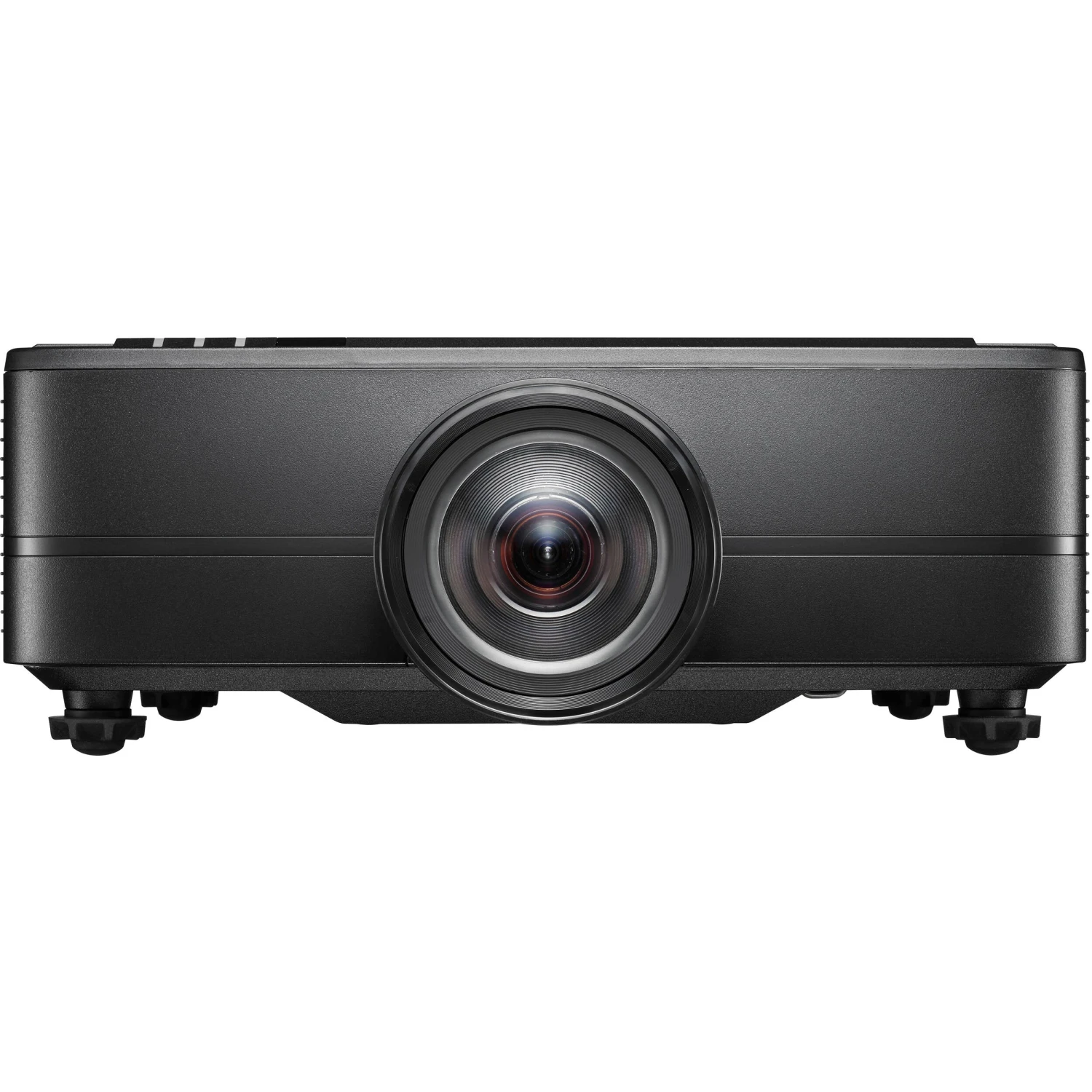

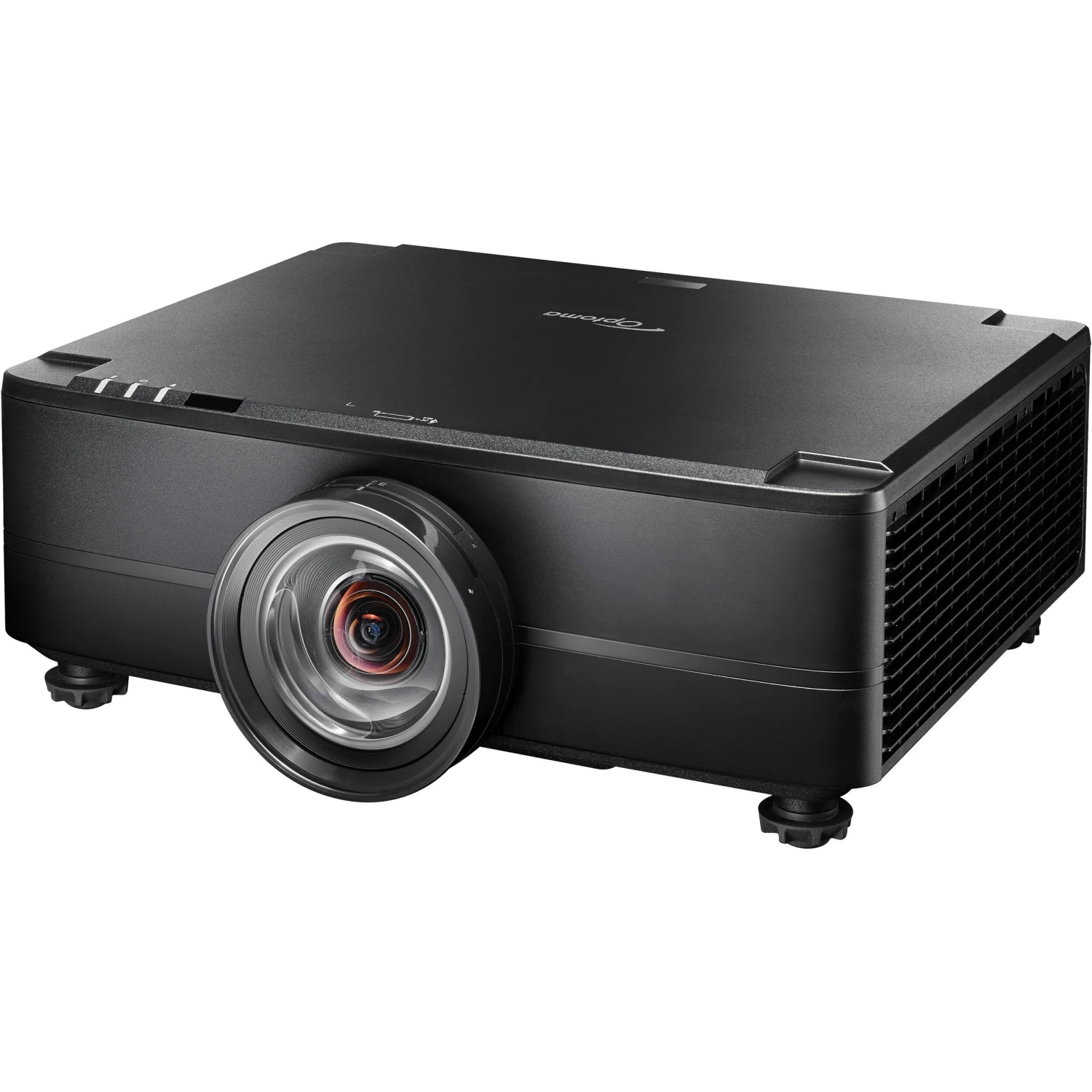

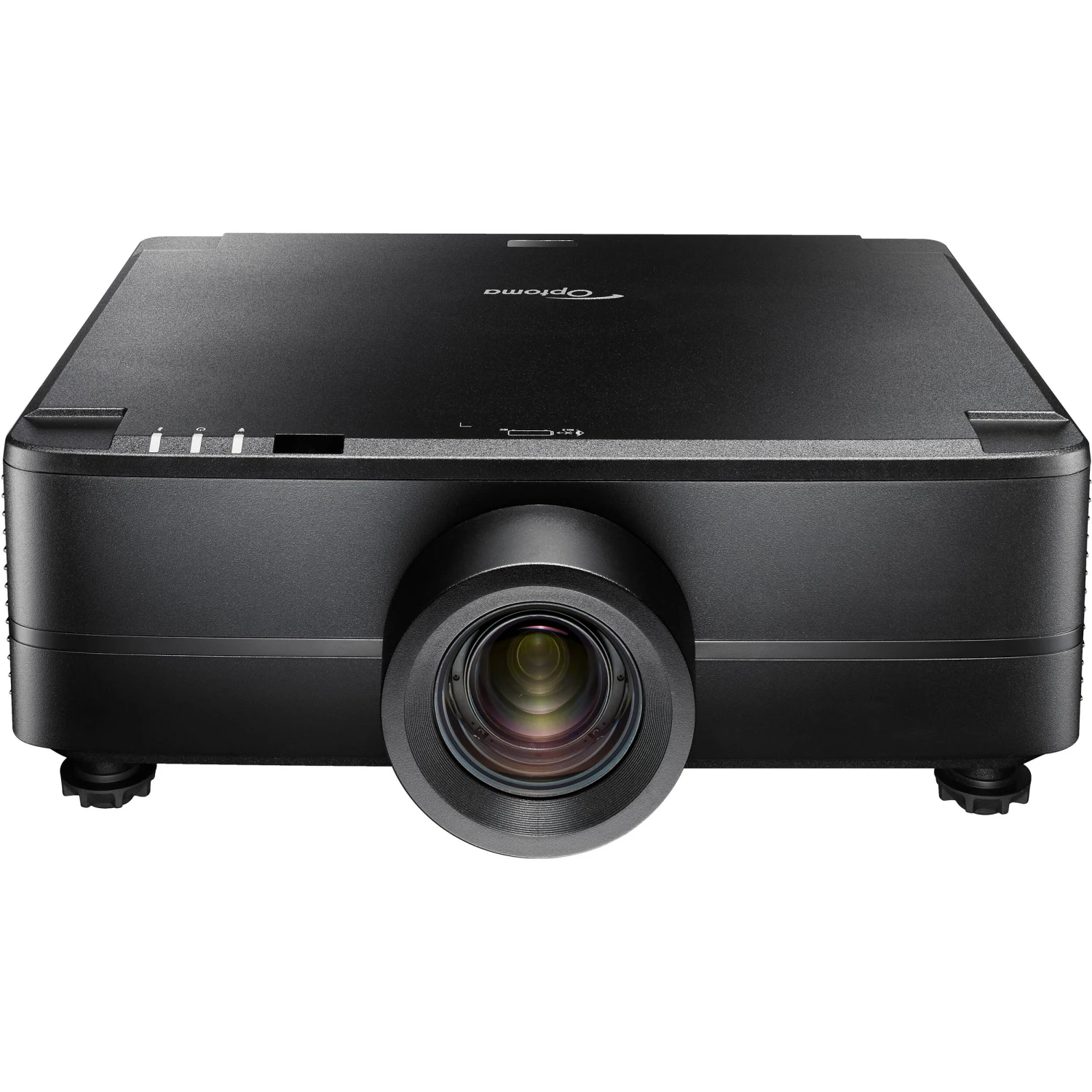

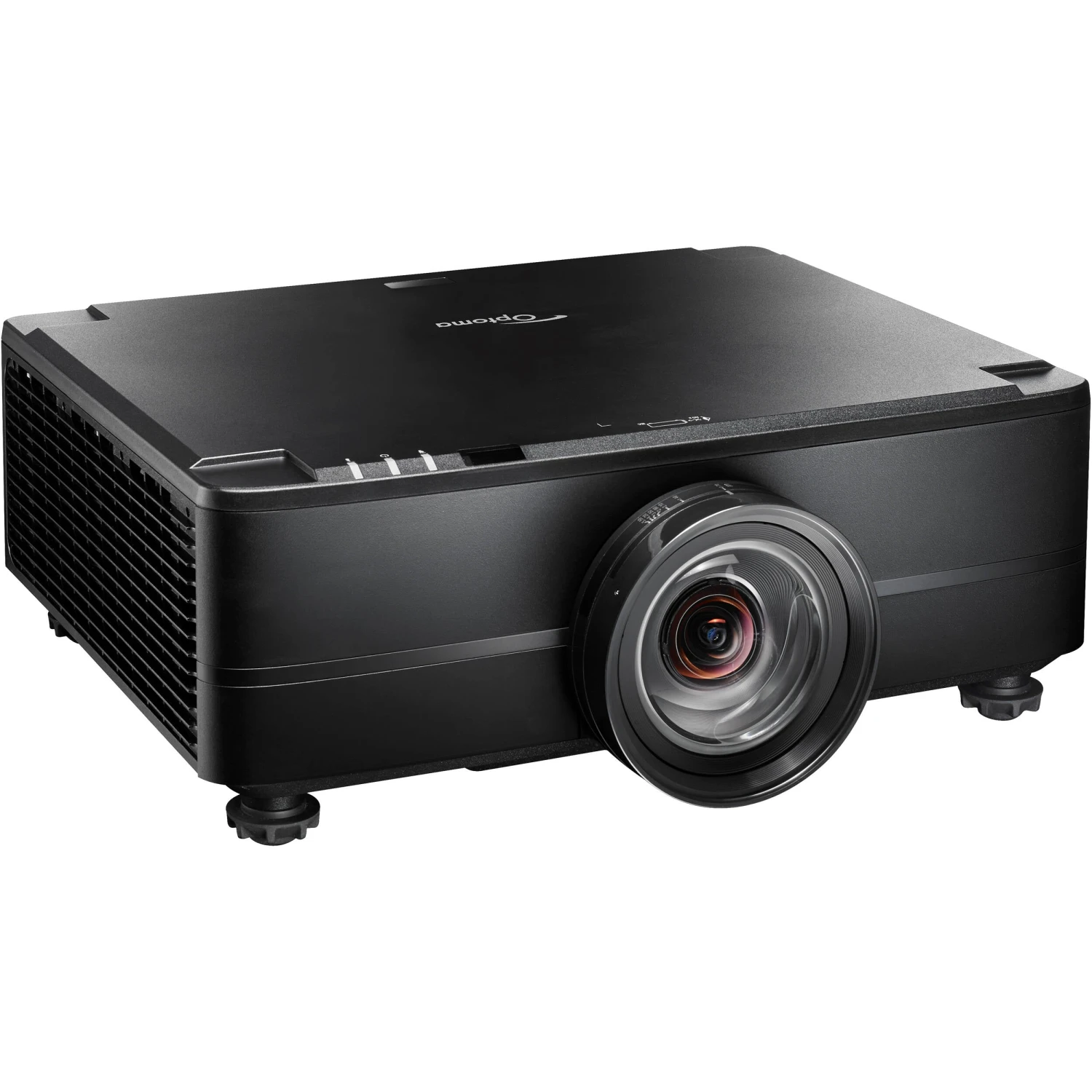

Optoma Technology ZU920TST 8200-Lumen WUXGA Short-Throw Laser DLP Projector(Optoma Technology Zu920tst 8200 Lumen Wuxga Short Throw Laser Dlp Projector)

Dust-Resistant DuraCore Laser Technology

A long lightsource lifetime is achieved using Optoma�s DuraCore technology, which implements advanced laser diode cooling techniques and an innovative dust-resistant design. The ZU920TST has been independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

Full Motorized Lens Shift

Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. With the ZU920TST, the image can be shifted via remote control, up to 55% vertically, and 25% horizontally. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Four Corner Correction

Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

HDBaseT

Uncompromising, uncompressed Full HD video, audio, network, and control commands all delivered on a single CAT-type cable capable up to 328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

360° and Portrait Orientation

The ZU920TST is ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image. With 360° projection images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

Integrated Warping and Edge Blending

An integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost and complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Color Management System

Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.

True AV Mute

True AV mute enables the light source of the projector to be instantly switched off and on at the press of a summary. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.

Constant Power and Constant Brightness

Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life, or anywhere in-between.

Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations

Integrator Friendly Control

The ZU920TST features a wide range of options to control and monitor the projector remotely.

• RS232 – Optoma projector�s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible – Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView – Using the compatible RoomView software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
• Extron IPLink compatible – Allows for easy installation with Extron control systems.

Additional Features

• 4K and HDR compatibility
• Full DLP 3D support
• 3D sync input and output
• Wired remote input
• Direct/instant power off
• Telnet compatible
• Built-in dual 10W speakers
• Backlit remote control included

Optoma Technology ZU920TSTSpecs

Display System	1-Chip DLP
Native Resolution	1920 x 1200
Maximum Brightness	8200 Lumens (ANSI)
Throw Ratio	0.65 to 0.75:1 (200″ Screen Size @ 9.8′ / 3 m)
Projection Size	50 to 300″ / 1.3 to 7.6 m
HDR Support	Yes

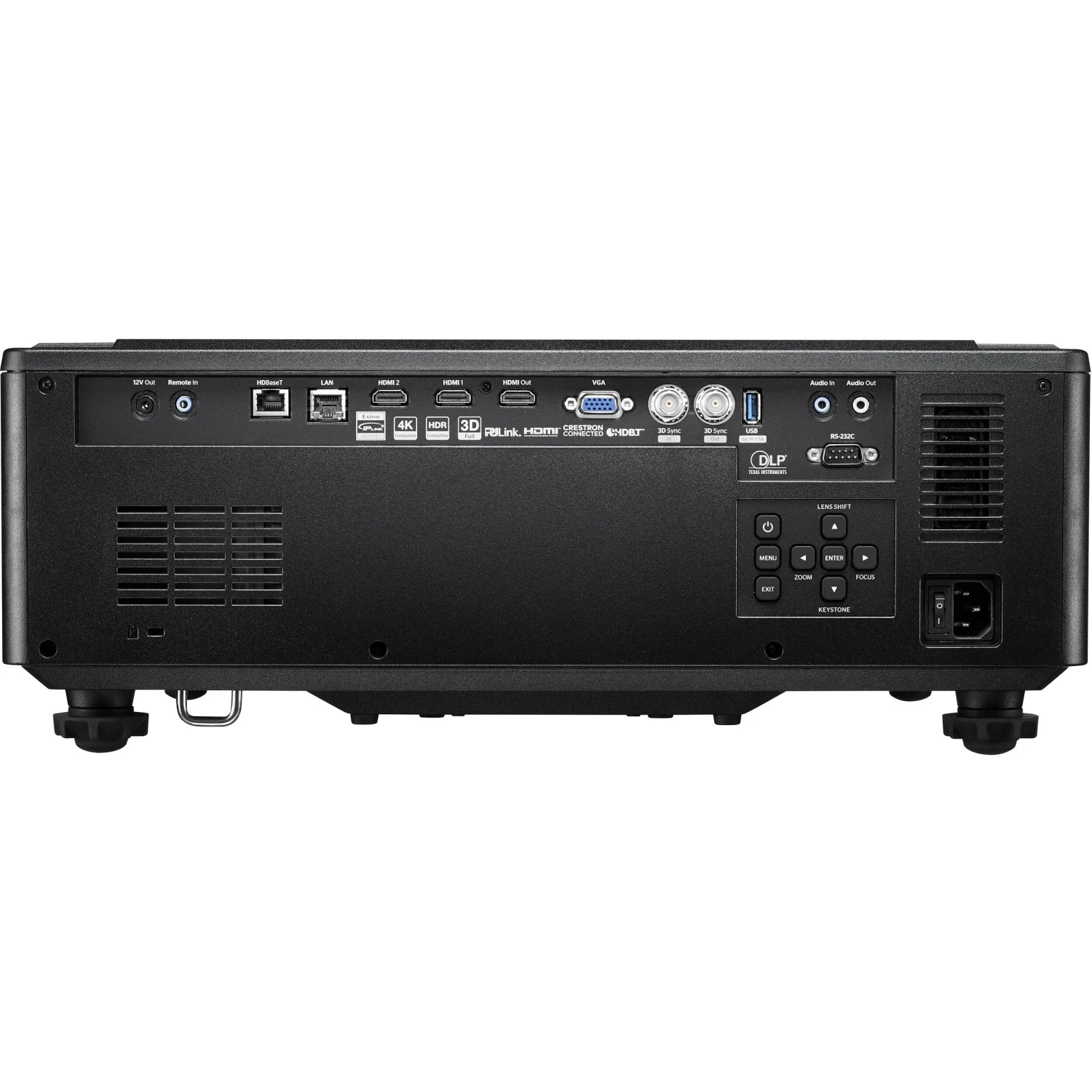

Inputs/Outputs	1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 2x HDMI 2.0 Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x RJ45 LAN Input 1x HDMI Audio, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Control Output
Light Source	Laser Phosphor

Display System	1-Chip DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness	8200 Lumens (ANSI)
Uniformity	95%
Offset	50%
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3
Contrast Ratio	1100:1
Dynamic Contrast Ratio	3,000,000:1
DLP Link 3D	Yes
Supported 3D Formats	Frame Sequential (up to 1080p) Frame Packing (up to 1080p) Side by Side (up to 1080i) Top Bottom (up to 1080p)
Color Wheel	3-Segment (RGB)
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Horizontal: 15.38 to 91.15kHz Vertical: 24 to 85Hz

Includes Lens	Yes
Focus	Manual Powered
Focal Length	9.69 to 11.19mm
Lens Shift	Vertical: ± 55% Horizontal: ± 25%
Optical Zoom	Powered: 1.15x
Throw Distance	27.6 to 190.94″ / 0.7 to 4.85 m
Throw Ratio	0.65 to 0.75:1 (200″ Screen Size @ 9.8′ / 3 m)
Projection Size	50 to 300″ / 1.3 to 7.6 m

Keystone Correction	Manual to Vertical: ± 30° Manual to Horizontal: ± 30°
HDR Support	Yes
Digital Zoom	4x
Multi-Input Support (PIP/PBP)	Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	Yes (Stereo)
Speaker Power	20 W
Projection Tilt Option	Yes

Inputs/Outputs	1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 2x HDMI 2.0 Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x RJ45 LAN Input 1x HDMI Audio, Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Control Output
HDCP Support	Yes
Media/Memory Card Slot	No

Mobile App Compatible	No
Wireless LAN / Wi-Fi	No
Bluetooth	No

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 30,000 Hours
Fan Noise	Full Brightness: 38 dB
Security	Cable Lock Slot Security Bar
Supported Languages	English French German Italian Portuguese Russian Simplified Chinese Spanish Traditional Chinese
Input Power	90 to 264 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 505 W Low Brightness: 260 W
Operating Conditions	41 to 104°F / 5 to 40°C at 10 to 85% Humidity
Dimensions (W x H x D)	19.1 x 6.9 x 16.4″ / 485.1 x 175.3 x 416.6 mm
Weight	30.86 lb / 14 kg
