Optoma Technology ZU507TST Overview
Frank Abbate
The Optoma Technology ZU507TST 5000-Lumen WUXGA Short-Throw Laser DLP Projector is a bright, professional-grade projector model with 4K and HDR compatibility. Featuring an IP6X-certified optical engine and long-lasting laser light source, the ZU507TST is capable of 24/7 maintenance-free operation, making it suitable for a wide variety of applications.
- MHL support
- USB-A to power an HDMI dongle
- 360° and portrait installation support
- Auto vertical keystone
- Four-corner correction
- Built-in dual 10W speakers
- Aito power off
- Direct power on
- Full 3D
- Golf sim picture mode delivers true-to-life greens and blues, and impressive detailing
- Telnet compatible
- Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating
- Chassis made with up to 50% post-consumer recycled plastics
- Packaging contains up to 97% recyclable materials
Items Included
- Optoma Technology ZU507TST 5000-Lumen WUXGA Short-Throw Laser DLP Projector
- Power Cord
- Remote Control
- 2 x AAA Battery for Remote
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
7.3 MB
Optoma Technology ZU507TST Specs
| Display System |
1-Chip DLP |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
5000 Lumens |
| Throw Ratio |
0.58:1 (150″ Screen Size @ 6.33′ / 1.93 m) |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
| HDR Support |
Yes, HDR10/Hybrid Log Gamma |

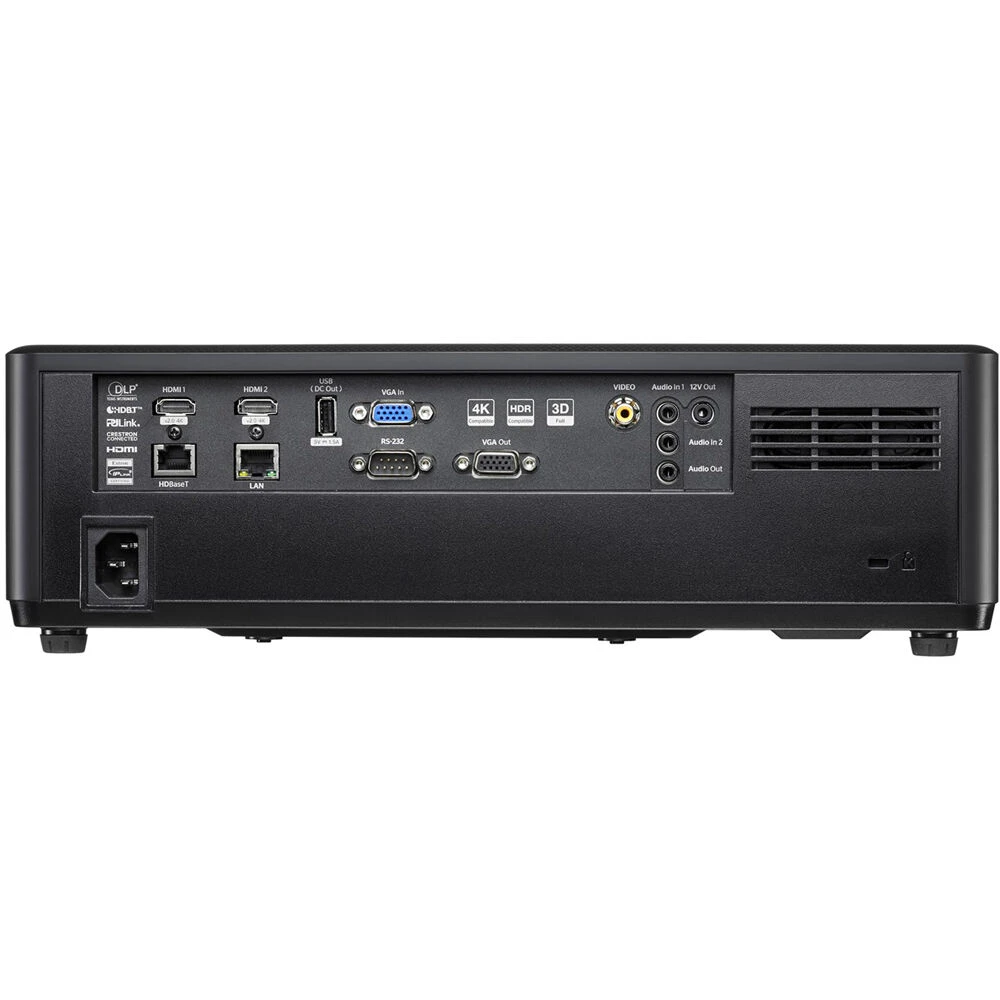

| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x RCA (Composite) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x RJ45 (Ethernet) LAN Input 1x DE-15/DB-15 (VGA) Video Output 2x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x DE-9/DB-9 (RS-232) Control Input 1x 12 V Trigger Control Output |
| Light Source |
Laser Phosphor |
| Display System |
1-Chip DLP |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 3840 x 2160 @ 60 Hz |
| Maximum Brightness |
5000 Lumens |
| Uniformity |
85% |
| Offset |
110% |
| Aspect Ratio |
Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio |
300,000:1 |
| DLP Link 3D |
Yes |
| Supported 3D Formats |
Top Bottom Frame Sequential Frame Packing |
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Horizontal: 5 to 140kHz Vertical: 24 to 120Hz |
| Includes Lens |
Yes |
| Focus |
Manual |
| Aperture |
f/2.75 |
| Focal Length |
8.51mm |
| Lens Shift |
Vertical: + 10% Horizontal: ± 4% |
| Optical Zoom |
No |
| Throw Distance |
1.25 to 12.3′ / 0.38 to 3.75 m |
| Throw Ratio |
0.58:1 (150″ Screen Size @ 6.33′ / 1.93 m) |
| Projection Size |
30 to 300″ / .8 to 7.6 m |
| Keystone Correction |
Auto / Manual to Vertical: ± 15° Manual to Horizontal: ± 15° |
| HDR Support |
Yes, HDR10/Hybrid Log Gamma |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Stereo) |
| Speaker Power |
10 W |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x RCA (Composite) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x RJ45 (Ethernet) LAN Input 1x DE-15/DB-15 (VGA) Video Output 2x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x DE-9/DB-9 (RS-232) Control Input 1x 12 V Trigger Control Output |
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours |
| Fan Noise |
Full Brightness: 36 dB Low Brightness: 33 dB |
| Security |
Cable Lock Slot Password Protection Security Bar |
| Supported Languages |
Arabic Czech Danish Dutch English Farsi Finnish French German Greek Hungarian Indonesian Italian Japanese Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish Vietnamese |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 366 W Low Brightness: 240 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 85% Humidity |
| Dimensions (W x H x D) |
14.7 x 4.6 x 11.9″ / 374.0 x 117.0 x 302.0 mm (With Feet) |
| Weight |
11.7 lb / 5.3 kg |
| Package Weight |
16.54 lb |
| Box Dimensions (LxWxH) |
21.9 x 18.2 x 10.5″ |
