Optoma Technology ZU1100 Overview
Frank Abbate

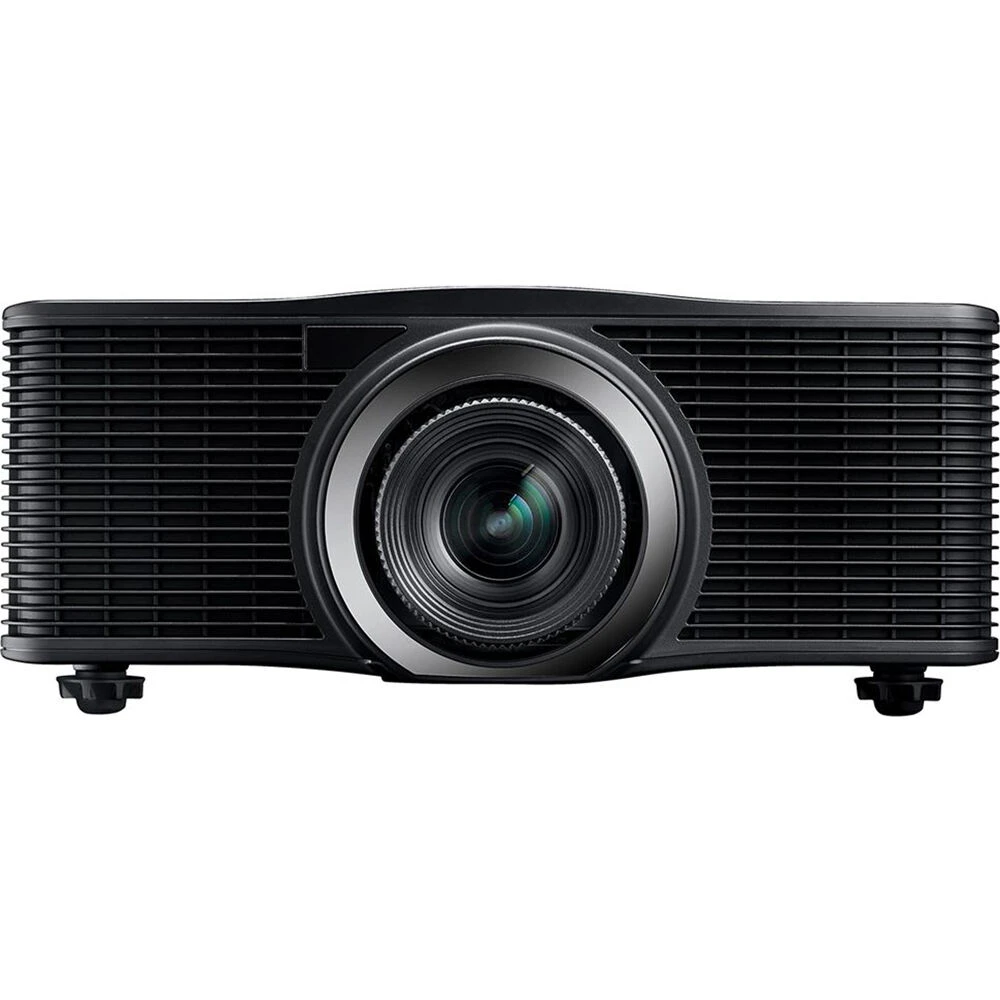

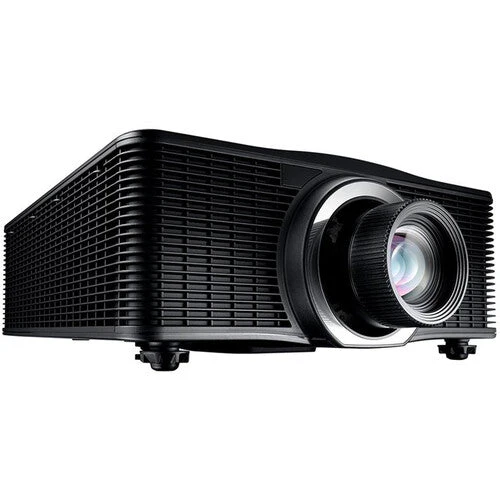

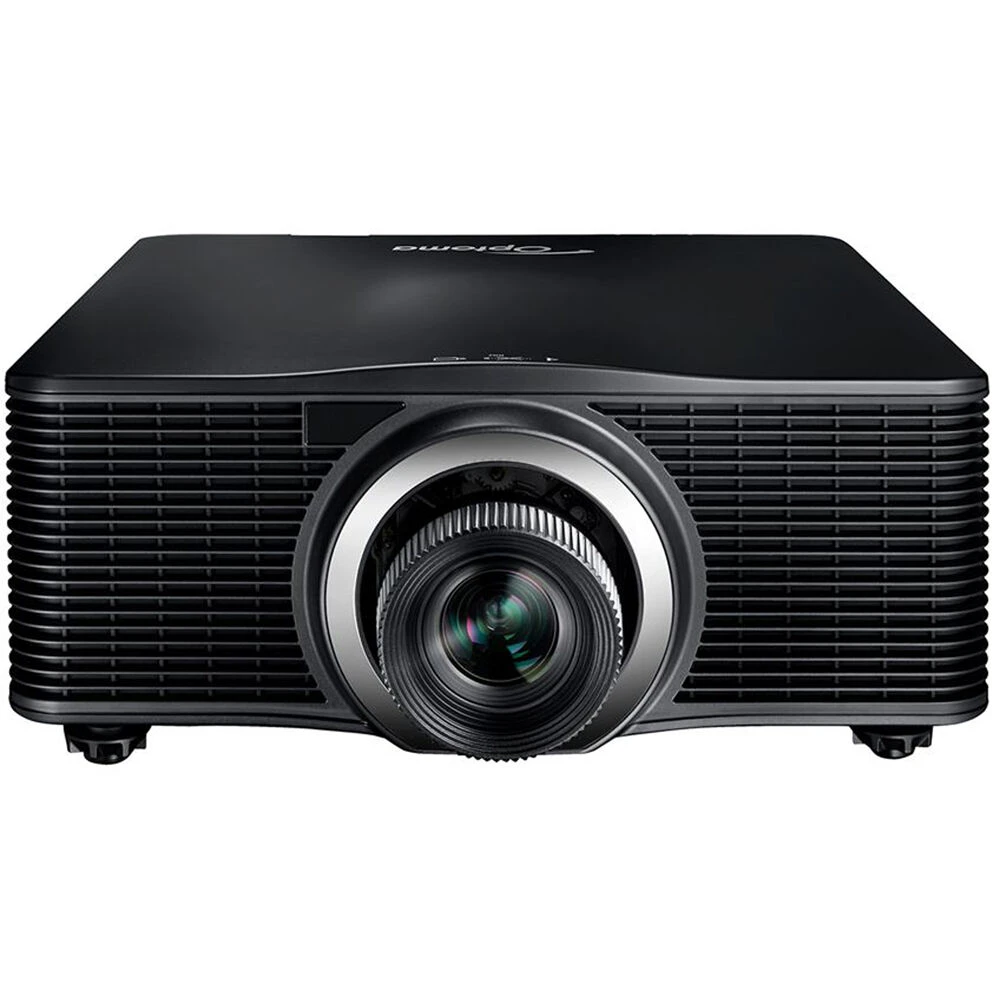

Optoma Technology ZU1100 9600-Lumen WUXGA Laser DLP Projector is a professional installation projector designed for consistent imaging, low maintenance, and long-time reliability. It includes a full suite of professional features, such as image warping and blending, color and brightness management, full lens shift, and 360° placement capability. Along with a complete lineup of separately available interchangeable lenses to cover an array of projection sizes and distances, the ZU1100 is ready for even the most complex installations.
- RS232: Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
- AMX compatible: Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
- Crestron RoomView: Using the compatible RoomView software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
- Extron IPLink compatible: Allows for easy installation with Extron control systems.
- PJLink: Allows for easy installation with PJLink compatible control systems.
- Telnet: This model can receive commands via telnet allowing for easy installation with Telnet compatible control systems.
- 4K and HDR compatible
- Manage power for longest life, brightest picture, or anywhere in between
- Constant brightness helps maintain consistent brightness levels over time for long running installations
- True AV mute gives 100% screen blackout with instant on and off
- Full lens shift
- Picture-by-picture, picture-in-picture
- Full 3D capability
- Wired remote control option
Items Included
- Optoma Technology ZU1100 9600-Lumen WUXGA Laser DLP Projector (No Lens)
- AC Power Cord (9.8′)
- Remote Control with Batteries
- Lens Cover
- VGA Cable (5.9′)
- Limited 3-Year Manufacturer Warranty (On Projector)
- Limited 5-Year Manufacturer Warranty (Or 12,000 Hours on Light Source, Whichever Comes First)
Not Included
- Essential Lenses & Lens Adapters
Additional Resources
User Manual
23.9 MB
Optoma Technology ZU1100 Specs
| Display System |
1-Chip DLP |
| Native Resolution |
1920 x 1200 |
| Maximum Brightness |
9600 Lumens (ANSI) 11,500 Lumens |
| HDR Support |
Yes |
| Inputs/Outputs |

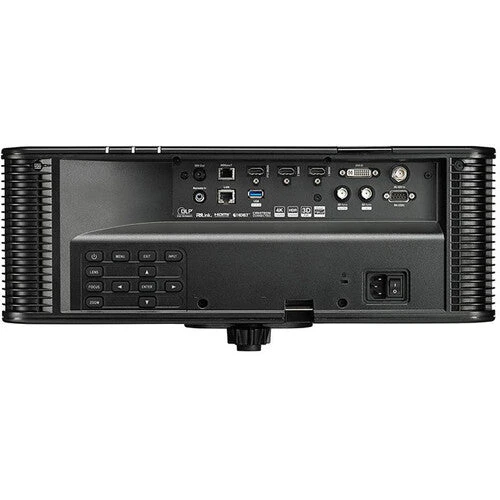

2x HDMI Audio, Video Input 1x DVI-D Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x BNC (3G-SDI) Video Input 1x HDMI Video Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x USB-A Power Output 1x 12 V Trigger Control Input 1x RJ45 LAN Input |
| Light Source |
Laser Phosphor |
| Display System |
1-Chip DLP |
| Native Resolution |
1920 x 1200 |
| Supported Resolutions |
Maximum: 4096 x 2160 @ 60 Hz |
| Maximum Brightness |
9600 Lumens (ANSI) 11,500 Lumens |
| Uniformity |
90% |
| Aspect Ratio |
Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio |
2,000,000:1 |
| DLP Link 3D |
Yes |
| Supported 3D Formats |
Side by Side (up to 1080i) Frame Packing (up to 1080p) Top Bottom (up to 1080p) |
| Includes Lens |
No |
| Keystone Correction |
Horizontal: ± 20° Vertical: ± 20° |
| HDR Support |
Yes |
| Multi-Input Support (PIP/PBP) |
Picture-in-Picture (PIP), Picture-by-Picture (PBP) |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
No |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI Audio, Video Input 1x DVI-D Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x BNC (3G-SDI) Video Input 1x HDMI Video Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8″ / 3.5 mm Mini Remote Input 1x USB-A Power Output 1x 12 V Trigger Control Input 1x RJ45 LAN Input |
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
No |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Medium Brightness: 30,000 Hours |
| Fan Noise |
Low Brightness: 38 dB Full Brightness: 40 dB |
| Security |
Cable Lock Slot Security Bar |
| Supported Languages |
Danish English French German Indonesian Italian Japanese Portuguese Russian Simplified Chinese Spanish |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: < 680 W Low Brightness: 360 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Conditions |
41 to 104°F / 5 to 40°C at 10 to 85% Humidity |
| Dimensions (W x H x D) |
19.1 x 8.2 x 20.8″ / 484.0 x 207.8 x 529.0 mm (Overall, Without Lens) |
| Weight |
46.3 lb / 21 kg |
