Optoma Technology Uhz55 Overview
John Foldi
Featuring Optoma’s PureMotion technology, the UHZ55 3000-Lumen UHD 4K Laser DLP Smart Home Theater and Gaming Projector from Optoma reduces motion judder enough to achieve a low 16.7 ms latency at 4K60, and 4 ms at 1080p240. These response times makes everything from online gaming to live sports fluid and responsive. Sport, games, movies, and more can be projected in stunning UHD 4K resolution via the laser light source that can output 3000 lumens of brightness. In addition to traditional game console and set top box devices, you can use the built-in Android OS and Android Launcher and Marketplace apps to run third-party streaming apps over your home network using dual-band Wi-Fi 5 (802.11ac) or Ethernet.
- Voice control
- Built-in media player
- Project images from 34.1 to 302.4″ in size
- 2 x 10W speakers built-in
- 3 x HDMI 2.0 inputs
Items Included
- Optoma Technology UHZ55 3000-Lumen UHD 4K Laser DLP Smart Home Theater and Gaming Projector
- AC Power Cord
- Smart Home Remote with Battery
- USB Wireless Adapter
- Limited 3-Year Manufacturer Warranty (Projector Excluding Light Source)
- Limited 5-Year Manufacturer Warranty (5-Year or 12,000 Hours on Light Source)
Additional Resources
Quick-Start Guide
2.9 MB
Optoma Technology Uhz55 Specs
| Display System |
DLP |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
3000 Lumens |
| Throw Ratio |
1.21 to 1.59:1 |
| Projection Size |
34.1 to 302.4″ / .9 to 7.7 m |
| HDR Support |
Yes, HDR10/Hybrid Log Gamma |
| Inputs/Outputs |

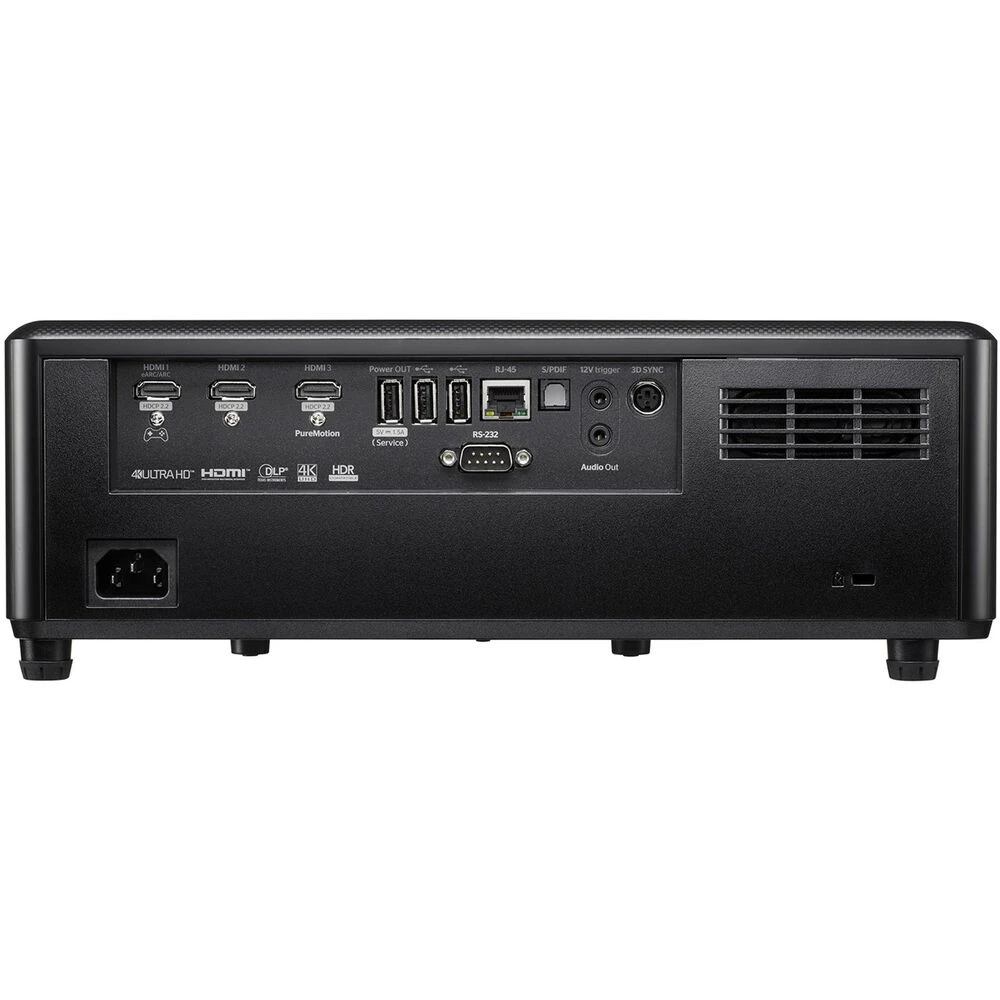

3x HDMI 2.0 Audio, Video Input 3x USB-A Data Input 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input/Output 1x 12 V Trigger Control Input 1x 4-Pin DIN (VESA 3D Sync) Data Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x RCA (Digital Coaxial) Audio Output |
| Light Source |
Laser Phosphor |
| Display System |
DLP |
| Native Resolution |
3840 x 2160 |
| Supported Resolutions |
1920 x 1080 640 x 480 |
| Maximum Brightness |
3000 Lumens |
| Uniformity |
80% |
| Offset |
105% |
| Aspect Ratio |
Native: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio |
2,500,000:1 |
| Scan |
Horizontal: 15.375 to 91.146 kHz Vertical: 50 to 120 Hz |
| Latency |
4 to 16.7 ms |
| Includes Lens |
Yes |
| Focal Length |
12.81 to 16.74mm |
| Lens Shift |
Vertical: ± 10% |
| Optical Zoom |
1.3x |
| Throw Distance |
47.24 to 318.9″ / 1.2 to 8.1 m |
| Throw Ratio |
1.21 to 1.59:1 |
| Projection Size |
34.1 to 302.4″ / .9 to 7.7 m |
| Keystone Correction |
Vertical: ± 30° Horizontal: ± 30° |
| HDR Support |
Yes, HDR10/Hybrid Log Gamma |
| Built-In Speaker |
Yes (Stereo) |
| Speaker Power |
10 W |
| Inputs/Outputs |
3x HDMI 2.0 Audio, Video Input 3x USB-A Data Input 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input/Output 1x 12 V Trigger Control Input 1x 4-Pin DIN (VESA 3D Sync) Data Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x RCA (Digital Coaxial) Audio Output |
| Operating System |
Android |
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
Yes, with Included Adapter |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 30,000 Hours |
| Fan Noise |
Full Brightness: 29 dB Low Brightness: 27 dB |
| Security |
Cable Lock Slot Password Protection Security Bar |
| Supported Languages |
English French German Italian Portuguese Russian Simplified Chinese Spanish Traditional Chinese Vietnamese |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 230 W Low Brightness: 175 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
85% |
| Dimensions (W x H x D) |
13.3 x 4.7 x 10.4″ / 337.0 x 119.3 x 265.0 mm |
| Weight |
10.6 lb / 4.8 kg |
| Package Weight |
13.965 lb |
| Box Dimensions (LxWxH) |
19.7 x 15 x 7.8″ |
