Optoma Technology UHZ35 Overview
Frank Abbate
Enjoy 4K clarity, high contrast, and fast response for lag-free gaming with the eco-friendly UHZ35 3500-Lumen UHD 4K Laser DLP Home Theater & Gaming Projector from Optoma Technology. Boasting 3500 lumens and equipped with a standard-throw lens, the UHZ35 is can produce a 120″ diagonal image from 12 to 19.5′ away, ideal for home entertainment, even in the presence of ambient light. Dual HDMI 2.0 inputs support 4K HDR content, with a variety of picture modes and built-in color management system to optimize performance for your content and environment. Additionally, the UHZ35 is WiSA Soundsend Certified to provide synchronized wireless surround sound with compatible WiSA audio systems.
- IP6X-certified dust resistance
- Full HD 3D support
- Golf sim picture mode
- 360° orientation for installation
- 24/7 operation capable
- Auto power off
- 24 fps movie support
- Built-in 15W speaker
- USB-A to power an HDMI Dongle, such as Google Chromecast or Roku stick
- Screen share with Optoma UHDCast Pro (sold separately)
Items Included
- Optoma Technology UHZ35 3500-Lumen UHD 4K Laser DLP Home Theater & Gaming Projector
- Remote Control with Battery
- Power Cord
- Limited 2-Year Manufacturer Warranty (Parts and Labor on Projector)
- Limited 5-Year Manufacturer Warranty (Or 12,000 Hours, Whichever Comes First on Light Source)
Additional Resources
Guides & Manuals
Optoma Technology UHZ35 Specs
| Display System |
1-Chip 0.65″ DMD DLP |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
3500 Lumens |
| Throw Ratio |
1.4 to 2.24:1 |
| Projection Size |
26 to 303″ / .7 to 7.7 m |
| HDR Support |
Yes, HDR10/Hybrid Log Gamma |
| Inputs/Outputs |

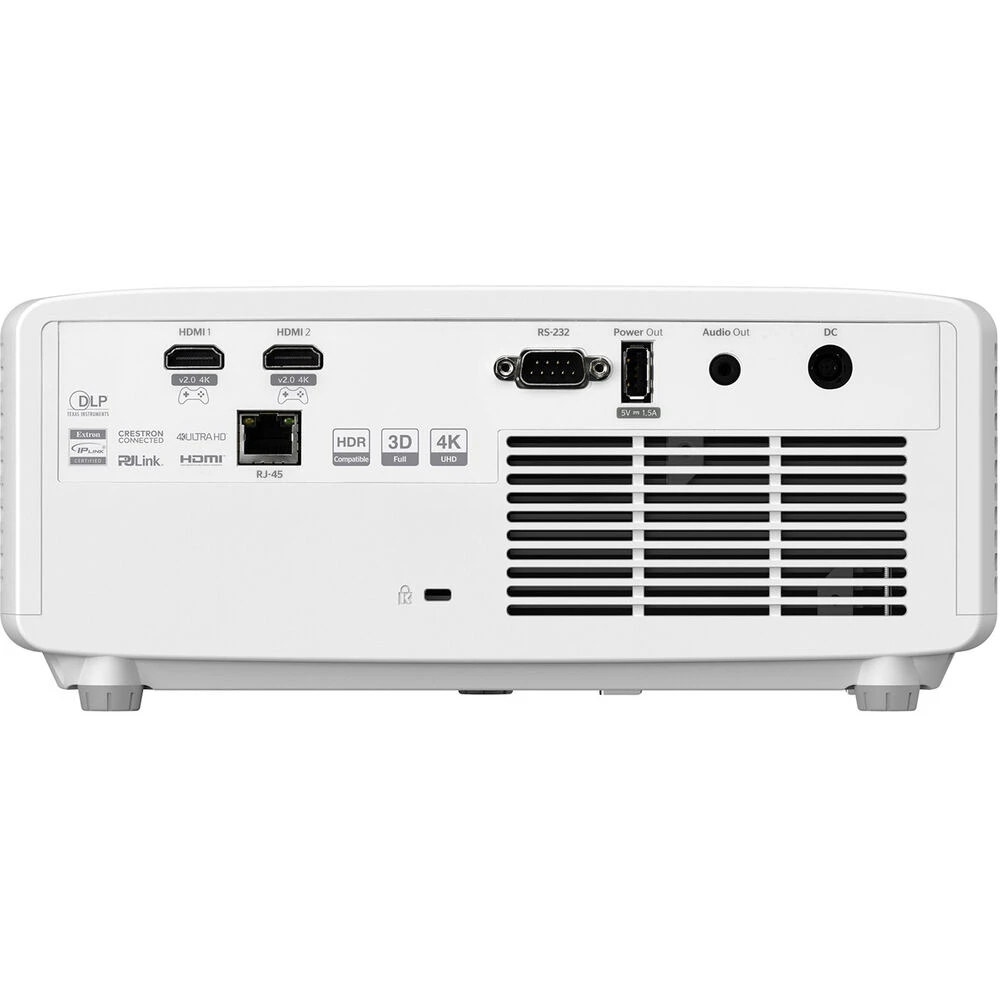

2x HDMI 2.0 Audio, Video Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Control Input 1x USB-A LAN, Power Input/Output 1x RJ45 LAN Input |
| Light Source |
Laser Phosphor |
| Display System |
1-Chip 0.65″ DMD DLP |
| Native Resolution |
3840 x 2160 |
| Supported Resolutions |
Maximum: 3840 x 2160 |
| Maximum Brightness |
3500 Lumens |
| Uniformity |
80% |
| Offset |
116% |
| Aspect Ratio |
Native: 16:9 Supported: 4:3 Supported: 16:10 |
| Contrast Ratio |
500,000:1 |
| DLP Link 3D |
Yes |
| Supported 3D Formats |
Frame Sequential (up to 1080p) |
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Horizontal: 15 to 140kHz Vertical: 24 to 240Hz |
| Latency |
4.4 to 17 ms |
| Includes Lens |
Yes |
| Aperture |
f/2.5 to 3.26 |
| Focal Length |
20.91 to 32.62mm |
| Optical Zoom |
Manual: 1.6x |
| Throw Distance |
51.18 to 370.08″ / 1.3 to 9.4 m |
| Throw Ratio |
1.4 to 2.24:1 |
| Projection Size |
26 to 303″ / .7 to 7.7 m |
| Keystone Correction |
Vertical: ± 30° Horizontal: ± 30° |
| HDR Support |
Yes, HDR10/Hybrid Log Gamma |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
15 W |
| Projection Tilt Option |
Yes |
| Inputs/Outputs |
2x HDMI 2.0 Audio, Video Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Control Input 1x USB-A LAN, Power Input/Output 1x RJ45 LAN Input |
| HDCP Support |
Yes |
| Media/Memory Card Slot |
No |
| Mobile App Compatible |
Yes, Adapter Required (Not Included): Android & iOS |
| Wireless LAN / Wi-Fi |
No, Optional Adapter Available |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 30,000 Hours |
| Fan Noise |
Full Brightness: 35 dB Low Brightness: 28 dB |
| Security |
Cable Lock Slot Password Protection Security Bar |
| Supported Languages |
Arabic Czech Danish Dutch English Farsi Finnish French German Greek Hungarian Indonesian Italian Japanese Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Traditional Chinese Turkish Vietnamese |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 185 W Low Brightness: 126 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Conditions |
32 to 104°F / 0 to 40°C up to 80% Humidity |
| Dimensions (W x H x D) |
10.8 x 4.5 x 8.5″ / 27.4 x 11.4 x 21.6 cm |
| Weight |
6.61 lb / 3 kg |
| Package Weight |
10.07 lb |
| Box Dimensions (LxWxH) |
15.8 x 11.2 x 6.2″ |
