Optoma Technology UHD35STx Overview

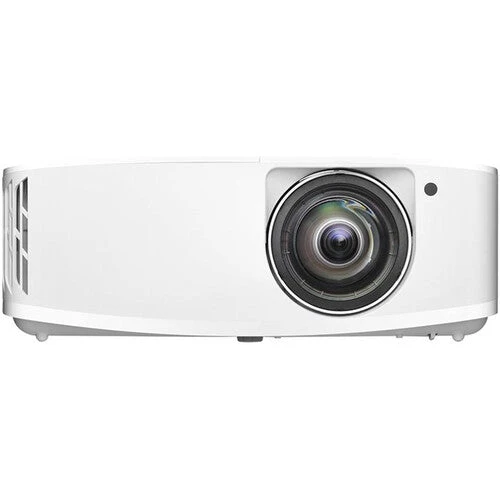

Everyone in the family can take advantage of the cinematic capabilities of the UHD35STx 3600-Lumen 4K UHD Short-Throw DLP Home Theater and Gaming Projector from Optoma. At just over 3′ away from a wall or projection screen, the UHD35STx is capable of projecting movies and TV shows at a huge 100″ size in stunning 4K UHD resolution. Thanks to its 3600-lumen lamp, you can utilize this projector in fully lit rooms in your home. Gamers can also get in on the big screen action with support for a 240 Hz refresh rate and low 4 ms response time at a Full HD 1080p resolution. These technologies work together to provide smooth fast-paced gameplay without any lag.
In the Box
- Optoma Technology UHD35STx 3600-Lumen 4K UHD Short-Throw DLP Home Theater and Gaming Projector

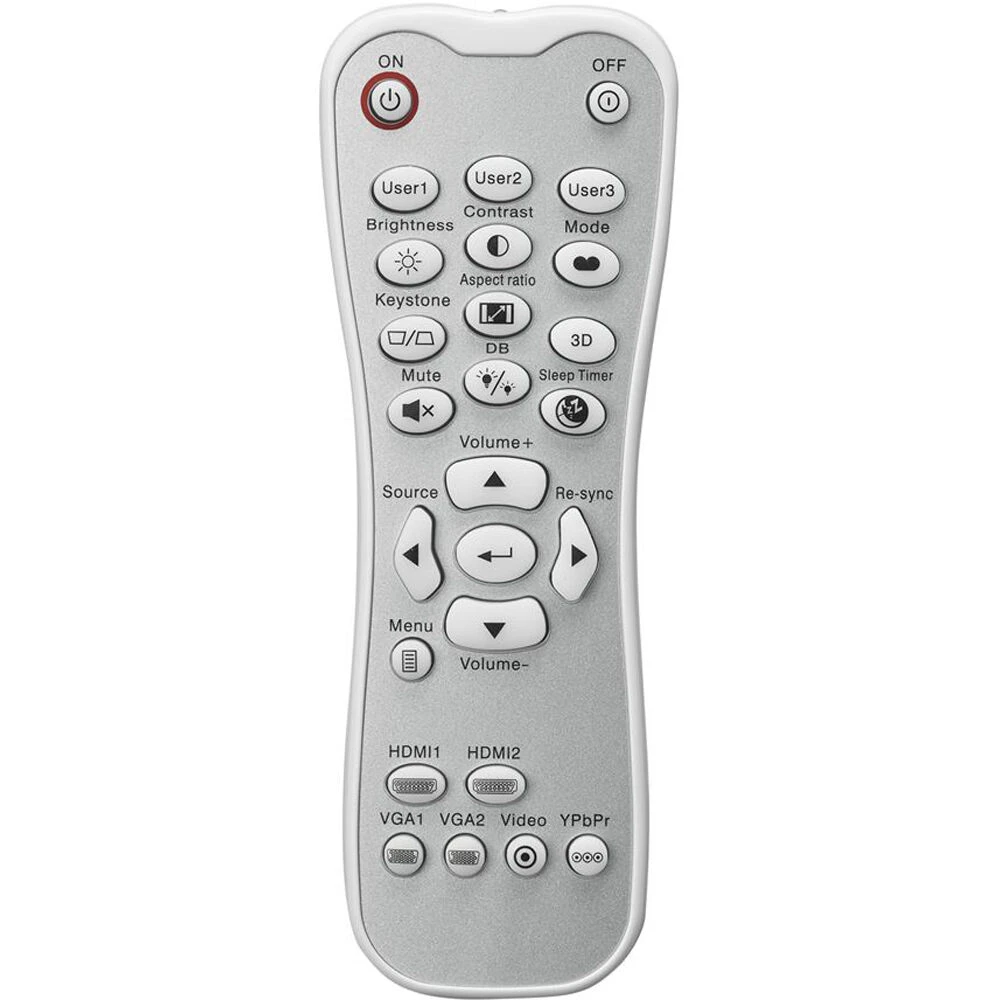

- Backlit Remote Control with Batteries
- AC Power Cord
User Manual
5.3 MB
Optoma Technology UHD35STx Specs
| Native Chip Resolution | 3840 x 2160 (4K UHD) |
| Supported Resolutions | Full HD 1080p – 1920 x 1080 @ 240 Hz WUXGA UXGA SXGA WXGA XGA SVGA VGA |
| Maximum Brightness | 3600 Lumens |
| Uniformity | 80% |
| Offset | 116% |
| Aspect Ratio | Native: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Supported 3D Formats | Frame Packing (up to 1080p) Frame Packing (up to 720p) |
| Scan | Horizontal: 31 to 135 kHz Vertical: 24 to 120 Hz |
| Latency | 4 ms |
| Lens | f/7.51 |
| Lens Shift | Vertical: + 0% |
| Optical Zoom | 1x |
| Throw Distance | 15.75 – 129.92″ / 40.01 – 330 cm |
| Throw Ratio | 0.5:1 |
| Projection Size | 36.43 – 300.53″ / .93 – 7.63 m |
| Keystone Correction | Vertical: ± 40° Horizontal: ± 40° |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |

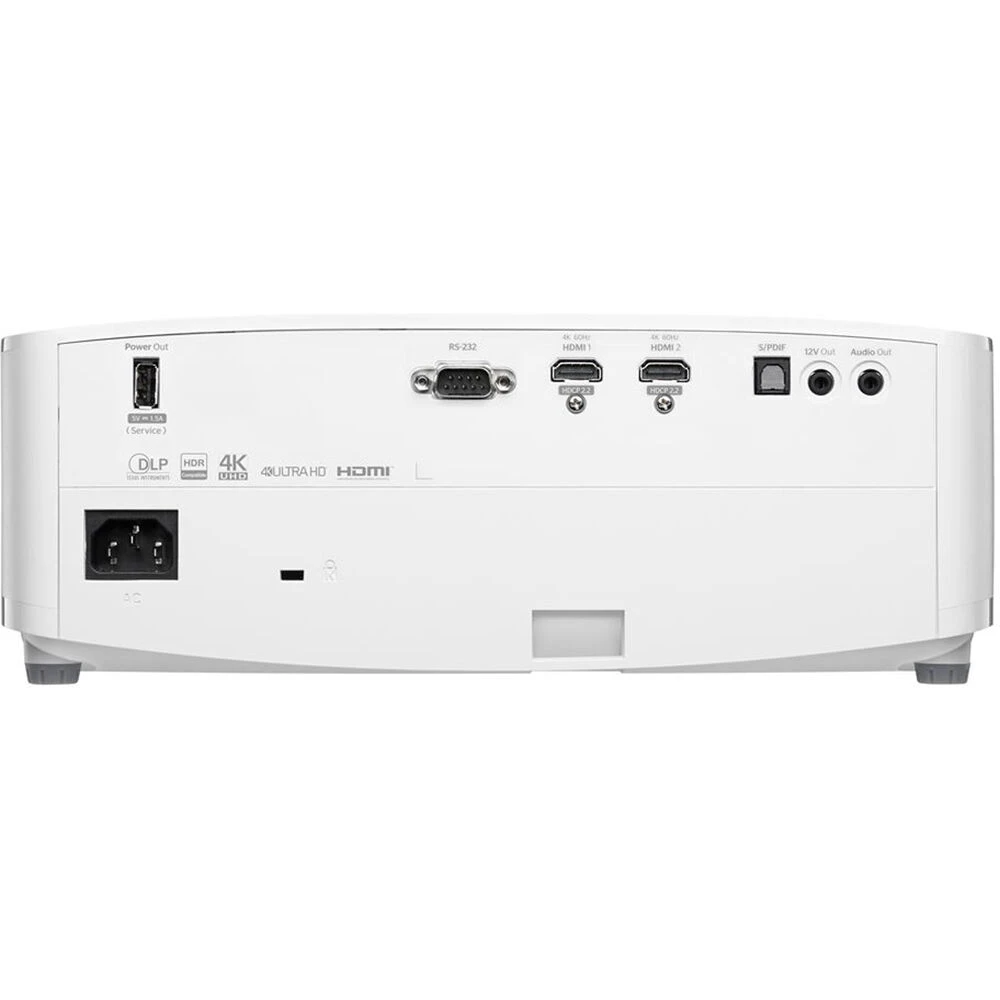

| Inputs/Outputs | 2 x HDMI 2.0 (HDMI Type-A) Audio, Video Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x Optical (TOSLINK) Audio Output 1 x USB Type-A Power Output 1 x RS-232 (DE-9/DB-9) Control Input 1 x 12 V Trigger Control Output |
| Light Source | Lamp |
| Lamp Power | 240 W |
| Expected Lamp Life | Full Brightness: 4000 Hours Medium Brightness: 15,000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Medium Brightness: 24 dB Full Brightness: 28 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Supported Languages | English French German Italian Japanese Portuguese Russian Simplified Chinese Spanish |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 320 W Low Brightness: 220 W Standby Mode (Lamp Off): 0.5 W |
| Operating Altitude | 9842′ / 3000 m |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 85% |
| Dimensions (W x H x D) | 12.4 x 4.6 x 10.6″ / 315.0 x 118.0 x 270.0 mm |
| Weight | 8.77 lb / 3.98 kg |
| Package Weight | 10.4 lb |
| Box Dimensions (LxWxH) | 15.6 x 14.9 x 6.6″ |
