Optoma Technology DuraCore ZH520 5500-Lumen Full HD Laser DLP Projector(Optoma Technology Duracore Zh520 5500 Lumen Full Hd Laser Dlp Projector)

Optoma Technology DuraCore ZH520 5500-Lumen Full HD Laser DLP Projector(Optoma Technology Duracore Zh520 5500 Lumen Full Hd Laser Dlp Projector)

Original price was: $354.00.Current price is: $95.99.

SKU: DGFUB 6995075006549 Categories: Audio Visual Presentation, Computer & Presentation, Projectors Tags: All Projectors, Audio Visual Presentation, Optoma Technology ZH520, Projectors

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Optoma Technology ZH520 Overview

1Description
2Full HD with HDR
3Laser Light Source
424/7 Operation
5Integrator Friendly
6Additional Features

By Photo’s

Frank Abbate

Enjoy maintenance-free continuous operation with the eco-friendly DuraCore ZH520 Laser DLP Projector from Optoma Technology. Geared toward conference rooms and corporate spaces, the ZH520 features 5500 lumens, Full HD resolution with HDR color support, and a standard throw lens with flexible 1.3x zoom, ideal for small to medium sized rooms with lights on viewing possible.

Optoma has their eye on sustainability and has produced the DuraCore series of projectors to be more environmentally conscious than previous designs. With that in mind, the ZH520 features a 34% more compact body, 45% reduction in power consumption, a chassis made with up to 50% post-consumer recycled plastics, and packaging that contains 97% recyclable materials.

Full HD with HDR

Native 1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for displaying presentations with fine text, watching detailed videos, and playing video games. With two HDMI 2.0 inputs, the ZH520 is capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content for enhanced color from UHD 4K media.

Laser Light Source

Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of equivalent lamp-based models. They also deliver increased efficiency to maintain consistent brightness, excellent color performance, instant on/off, and a lifespan of up to 30,000 hours. This long lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an IP6X dust-resistant design.

24/7 Operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24-hour terms and conditions.

Please note, projector warranty is based on standard business usage hours. For optimum performance, Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

Integrator Friendly

Featuring a wide range of options, you can control and monitor the projector remotely. Optoma projectors come with an extensive set of RS-232 commands, making it simple and easy to manage using any control system. Incorporated control is available with AMX, Crestron RoomView, and Extron IPLink.

Additional Features

IP6X-certified dust resistance
Full HD 3D support
360° orientation for installation
Auto power off
Built-in 15W speaker
USB-A to power an HDMI Dongle, such as Google Chromecast or Roku stick
Screen share with Optoma UHDCast Pro (sold separately)

UPC: 796435446932

In the Box

Optoma Technology DuraCore ZH520 5500-Lumen Full HD Laser DLP Projector
Remote Control
CR2025 Battery
Power Cord
Limited 3-Year Manufacturer Warranty (Projector Parts and Labor)
Limited 5-Year Manufacturer Warranty (Or 12,000 Hours on Light Source)

User Manual

10.8 MB

Table of Contents

Description
Full HD with HDR
Laser Light Source
24/7 Operation
Integrator Friendly
Additional Features

Optoma Technology ZH520 Specs

Key Specs

Display System	1-Chip DLP
Native Chip Resolution	1920 x 1080 (Full HD)
Maximum Brightness	5500 Lumens
Throw Ratio	1.12 to 1.47:1
Projection Size	31 to 322″ / .8 to 8.2 m
Supported HDR Input Formats	HDR10, Hybrid Log Gamma
Inputs/Outputs	2x HDMI 2.0 Audio, Video Input 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input/Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output
Light Source	Laser Phosphor

Image Display

Display System	1-Chip DLP
Native Chip Resolution	1920 x 1080 (Full HD)
Supported Resolutions	Maximum: 4K UHD – 3840 x 2160 Minimum: VGA – 640 x 480
Maximum Brightness	5500 Lumens
Uniformity	75%
Offset	116%
Aspect Ratio	Native: 16:9 Supported: 4:3 Supported: 16:10
Contrast Ratio	300,000:1
Dynamic Contrast Ratio	2,000,000:1
Supported 3D Formats	Frame Sequential
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Horizontal: 15 to 140 kHz Vertical: 24 to 120 Hz

Lens

Includes Lens	Yes
Focal Length	16.9 to 21.61mm
Optical Zoom	Manual: 1.3x
Throw Distance	39.37 – 314.96″ / 1 – 8 m
Throw Ratio	1.12 to 1.47:1
Projection Size	31 to 322″ / .8 to 8.2 m

Features

Keystone Correction	Vertical: ± 30° Horizontal: ± 30°
Supported HDR Input Formats	HDR10, Hybrid Log Gamma
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Built-In Speaker	Yes

Input/Output Connectors

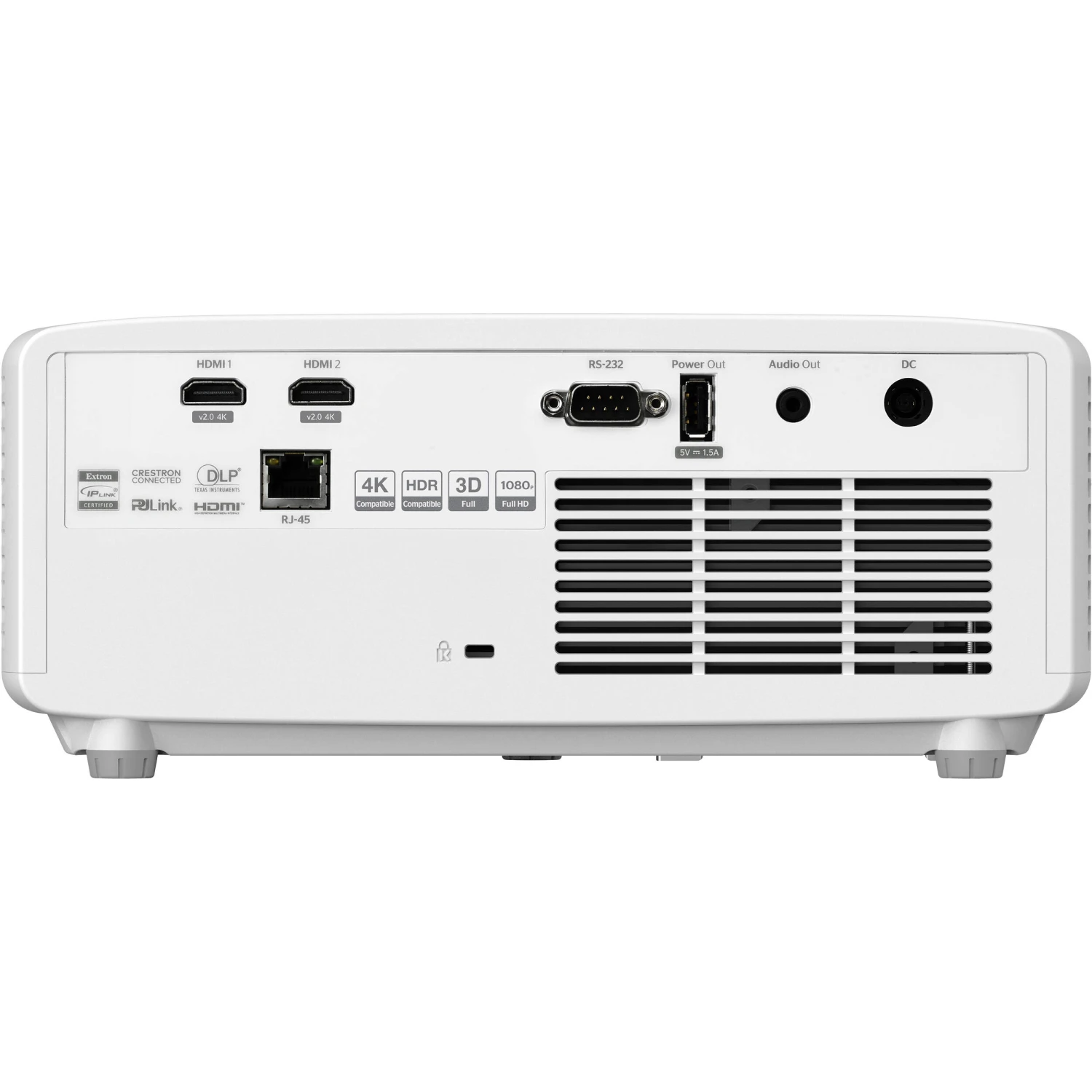

Inputs/Outputs	2x HDMI 2.0 Audio, Video Input 1x DE-9/DB-9 (RS-232) Control Input 1x RJ45 (Ethernet) LAN Input/Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output
Media/Memory Card Slot	No

Hardware

Mobile App Compatible	No
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 30,000 Hours
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 173 W Low Brightness: 119 W Standby Mode (Lamp Off): < 0.5 W
Dimensions (W x H x D)	10.7 x 4.4 x 8.5″ / 27.2 x 11.2 x 21.6 cm
Weight	6.61 lb / 3 kg

Packaging Info

Package Weight	9.49 lb
Box Dimensions (LxWxH)	15.7 x 11 x 6.7″
