Optoma Technology ZH400 Overview
- 1Description
- 2Eco-Friendly Solution
- 3Multimedia Support
- 4Minimal Maintenance
- 5Auto Power Off
- 6Additional Features
Take an environmentally conscious approach to supplying your meeting room or venue with a projector with the purchase of a DuraCore ZH400 4000-Lumen Full HD Laser DLP Projector from Optoma. In addition to other eco-friendly measures, the ZH400 uses a DuraCore laser light source, which offers a 47% power reduction compared to standard lamp-based Optoma projectors. The light offers high brightness and consistent, vivid, and accurate sRGB colors, along with 4000 lumens that allow the ZH400 to work in fully-lit spaces. The ultra-compact design with 360° horizontal orientation gives you great flexibility with installation.
- Instant on/off
- 1.1x zoom
- Horizontal and vertical keystone correction
- Built-in speaker
- 1.48:1 to 1.62:1 throw ratio
- 20 to 300″ screen size
- IP6X certified
In the Box
- Optoma Technology DuraCore ZH400 4000-Lumen Full HD Laser DLP Projector
- Remote Control with Batteries
- Power Cord
- Limited 3-Year Manufacturer Warranty (on Projector)
- Limited 5-Year Manufacturer Warranty (on Lamp or 12,000 Hours, Whichever Comes First)
User Manual
11.5 MB
- Description
- Eco-Friendly Solution
- Multimedia Support
- Minimal Maintenance
- Auto Power Off
- Additional Features
Optoma Technology ZH400 Specs
| Display System |
DLP |
| Native Chip Resolution |
1920 x 1080 (Full HD) |
| Maximum Brightness |
4000 Lumens |
| Throw Ratio |
1.48 to 1.62:1 |
| Projection Size |
20 to 300″ / .5 to 7.6 m |
| Supported HDR Input Formats |
HDR10, Hybrid Log Gamma |

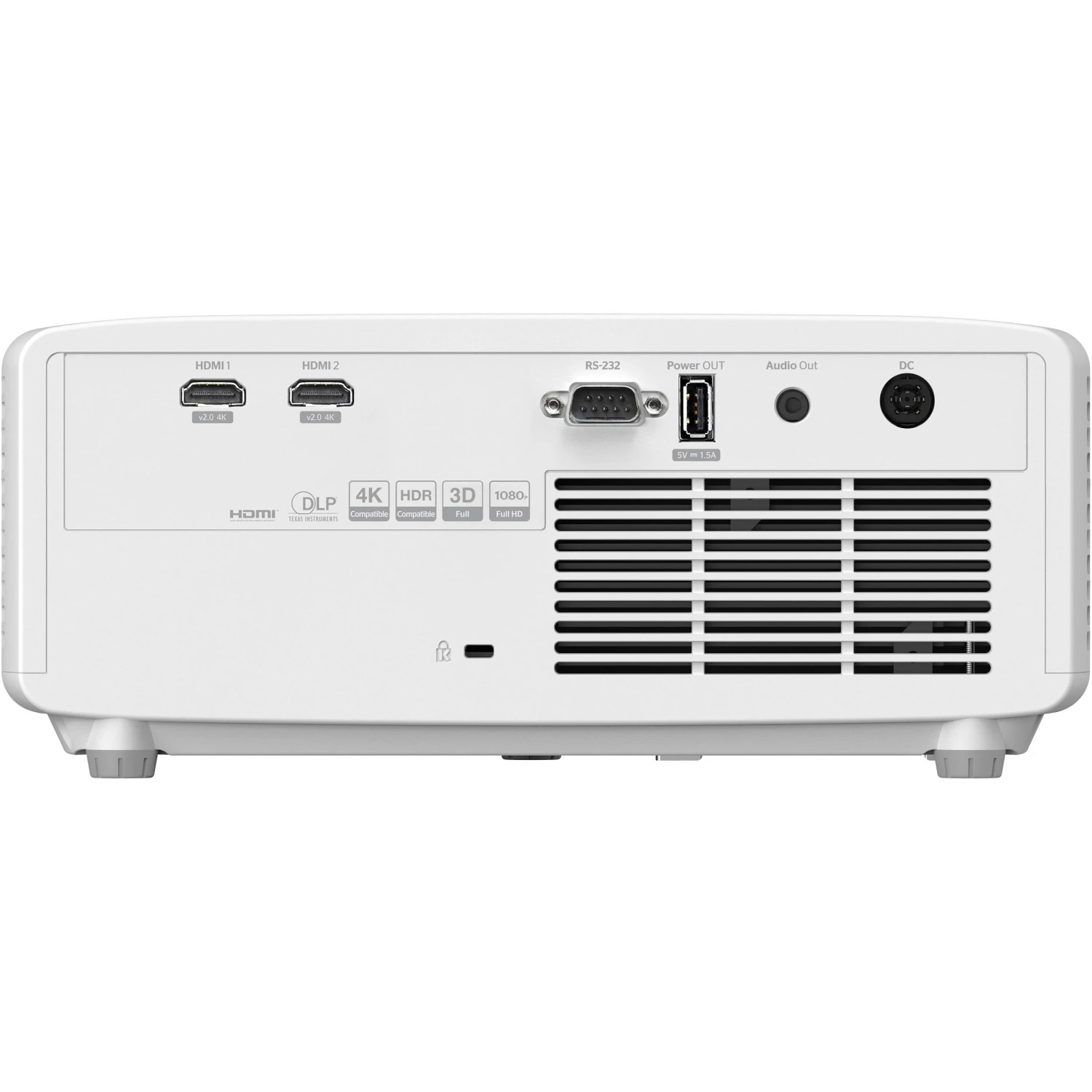

| Inputs/Outputs |
2 x HDMI 2.0 Audio, Video Input 1 x DE-9/DB-9 (RS-232) Control Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x USB-A Power Output |
| Light Source |
Laser Phosphor |
| Display System |
DLP |
| Native Chip Resolution |
1920 x 1080 (Full HD) |
| Supported Resolutions |
Minimum: VGA – 640 x 480 |
| Maximum Brightness |
4000 Lumens |
| Uniformity |
75% |
| Offset |
116% |
| Aspect Ratio |
Native: 16:9 Supported: 4:3 Supported: 16:10 |
| Contrast Ratio |
300,000:1 |
| Dynamic Contrast Ratio |
2,000,000:1 |
| Supported 3D Formats |
Frame Sequential |
| Color Depth |
10-Bit (1.07 Billion Colors) |
| Scan |
Horizontal: 15 to 140 kHz Vertical: 24 to 120 Hz |
| Includes Lens |
Yes |
| Focal Length |
12.81 to 16.74mm |
| Optical Zoom |
Manual: 1.1x |
| Throw Distance |
39.37 – 393.7″ / 1 – 10 m |
| Throw Ratio |
1.48 to 1.62:1 |
| Projection Size |
20 to 300″ / .5 to 7.6 m |
| Keystone Correction |
Vertical: ± 30° Horizontal: ± 30° |
| Supported HDR Input Formats |
HDR10, Hybrid Log Gamma |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Built-In Speaker |
Yes |
| Inputs/Outputs |
2 x HDMI 2.0 Audio, Video Input 1 x DE-9/DB-9 (RS-232) Control Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x USB-A Power Output |
| Mobile App Compatible |
No *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Bluetooth |
No |
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 30,000 Hours |
| Fan Noise |
Full Brightness: 32 dB Medium Brightness: 27 dB |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Full Brightness: 139 W Low Brightness: 88 W Standby Mode (Lamp Off): < 0.5 W |
| Dimensions (W x H x D) |
10.7 x 4.4 x 8.5″ / 27.2 x 11.2 x 21.6 cm |
| Weight |
6.61 lb / 3 kg |
| Package Weight |
9.265 lb |
| Box Dimensions (LxWxH) |
16.4 x 9.2 x 7.5″ |
