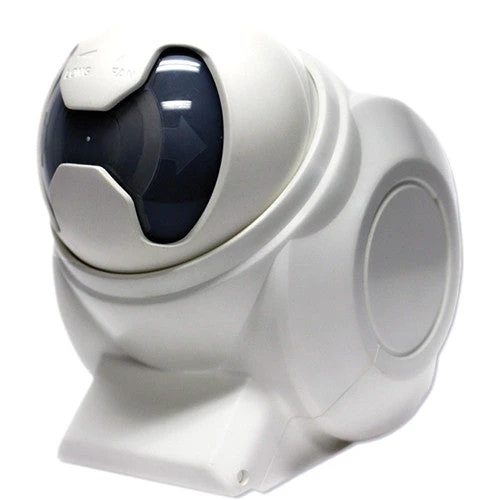

Optex TD-20U Indoor/Outdoor Sensor Transmitter For Wireless 2000 System(Optex Td 20u Indoor Outdoor Sensor Transmitter For Wireless 2000 System 1)

Original price was: $123.57.Current price is: $86.50.

SKU: DGFUB 1356278333525 Categories: Alarm Systems, Optics & Surveillance, Surviellance Tags: Alarm Systems, Motion Detectors, Optex TD-20U, Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Passive Infrared Detection
9V Alkaline Battery-Powered
Detection Up to 50′ Long and 17′ Wide
Up to 2000′ Transmission Range
Install on Walls, Ceilings, and Desktops
RC-20 & 2000 Series Receiver Compatible
IP54-Rated for Indoor/Outdoor Use

The TD-20U Indoor/Outdoor Sensor Transmitter from Optex offers two selectable detection patterns, a 17′ fan pattern or a 50′ beam pattern. The sensor uses PIR to detect motion, and once motion is detected it sends a signal back to the RC-20U Chime Box Receiver using RF signals. The device is powered by a standard 9V battery (available separately) which can last for approximately 2 years when the sensor is triggered about 250 times a day. There is a red LED that indicates when the sensor has detected motion and when the battery is low. Up to nine TD-20U units can be added to one RC-20U Receiver, enabling you to set up a full perimeter around your property.

When used with the 50′ long-range detection pattern, the transmitter is suitable for applications such as driveways, entryways/walkways, warehouse delivery areas, constructions sites, art galleries, drive-up windows, delivery doors, and similar scenarios. When used with the 17′ fan (wide) angle detection pattern, the transmitter can be used to monitor hard to see items, merchandise that is prone to shoplifting, inside display cases at jewelry stores, department store dressing rooms or fitting rooms, the unauthorized use of emergency exits, supply rooms or closets, and home or business entry points. With an IP54-rated housing, the sensor is suitable for use in outdoor areas for a wide range of applications.

Choose 50′ long-range or 17′ fan (wide) detection pattern

Weatherproof housing (IP54-rated) for both indoor and outdoor use

Uses passive infrared to detect motion and sends RF signals to receivers

2000′ transmission range (line of sight)

Can be installed on walls, ceilings, and desktops

Over 8 million codes possible, eliminating interference from neighbors

LED indicator for verifying detection and low battery status

Operates on a 9V lithium or alkaline battery

UPC: 788924040226

In the Box

Optex TD-20U Indoor/Outdoor Sensor Transmitter for Wireless 2000 System

2 x Mounting Screws Limited 2-Year Warranty

Detection Method	Passive Infrared
Pattern	50.0′ (15.2 m) long range 17.0′ (5.1 m) fan pattern
Angle Adjustment	45° vertically and ±5° horizontally ±5° vertically and 45° horizontally
Radio Frequency	418 MHz
Transmission Range	2000′ (609.6 m) line of sight
Power Source	9 V alkaline battery
Battery Life	Approximately 2 years (250 times/day at 70°F/20°C)
Status Indicator	Red LED
Water Resistance	IP54
Installation	Outdoor/Indoor
Operating Temperature	15 to 120°F (-10 to 50°C)
Dimensions (W x H x D)	3.5 x 4.2 x 4.5″ (8.9 x 10.6 x 11.4 cm)
Weight	6.3 oz (178.6 g)

Packaging Info
Package Weight	0.55 lb
Box Dimensions (LxWxH)	5.0 x 4.9 x 4.4″
