Optex MX-40PI Overview
- 1Description
- 2Anti-Crosstalk System
- 3Suitable Detection Area
- 4Spherical Lens Design
- 5Noise Reduction Function
- 6Quad Zone Logic (Patent Listed)
- 7Easy Microwave Range Selector
- 8Easy Wiring Knockouts
- 9Compact, Stylish Design
- 10Quick and Easy Installation

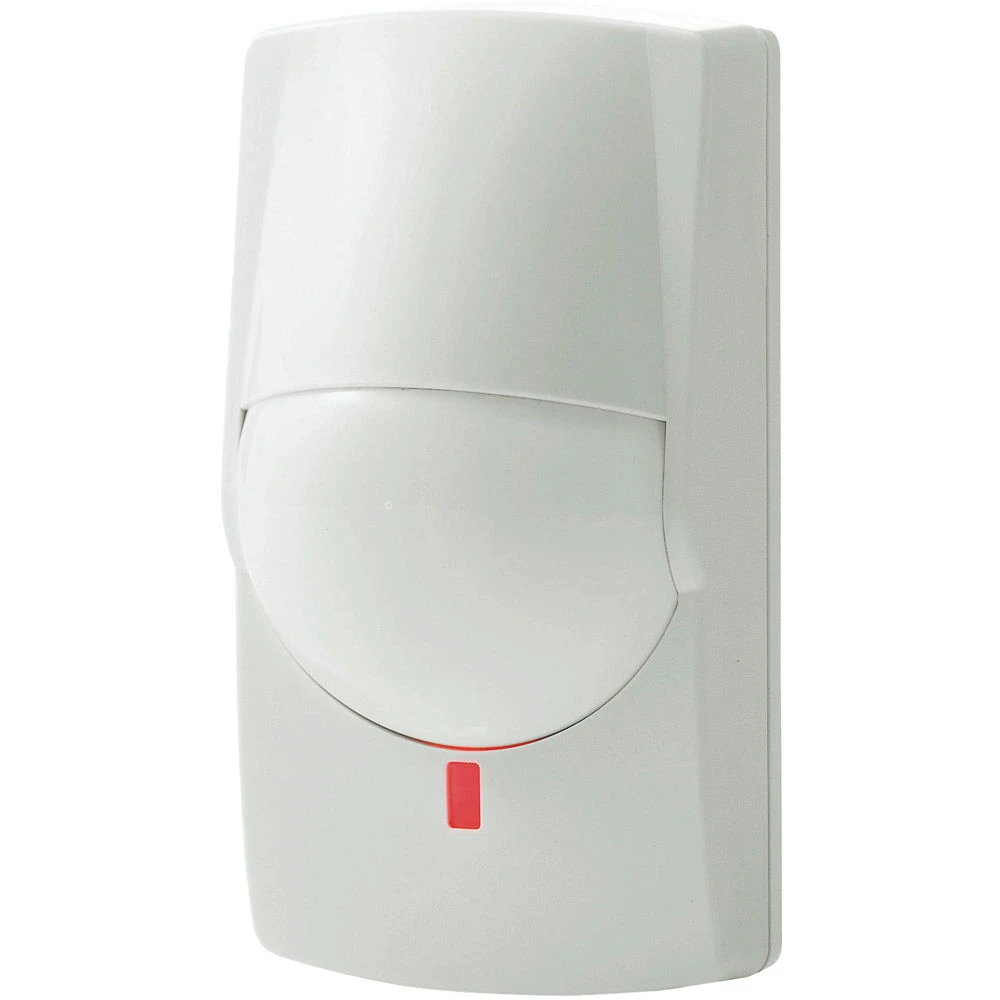

The MX-40PI Wired Indoor Passive Infrared & Microwave Combination Detector with Immunity from Optex combines the microwave and PIR technologies in attractive, easy-to-install units, and provides unprecedented reliability and detection performance.
The detector incorporates Anti-Crosstalk technology which prevents false alarms caused by microwave interference when several detectors are operating in the same area. It features Quad Zone Logic, which discriminates between human beings and other sources of infrared. This detector also features switchable on/off LED alarm indicator.
In the Box
- Optex MX-40PI Wired Indoor Passive Infrared & Microwave Combination Detector with Immunity
- Limited 5-Year Manufacturer Warranty (Part and Labor)
- Description
- Anti-Crosstalk System
- Suitable Detection Area
- Spherical Lens Design
- Noise Reduction Function
- Quad Zone Logic (Patent Listed)
- Easy Microwave Range Selector
- Easy Wiring Knockouts
- Compact, Stylish Design
- Quick and Easy Installation
Optex MX-40PI Specs
| Detection Method |
Passive infrared and microwave |
| Coverage |
40 x 40′ (12 x 12 m), 85° wide |
| Zones |
78 (PIR) |
| Mounting Height |
5.0 to 8.0′ (1.5 to 2.4 m) |
| Speed |
Detectable: 1 to 5 ft/s (0.3 to 1.5 m/s) |
| Sensitivity |
3.6°F (-15.7°C) at 0.6 m/s |
| Alarm Period |
Approximately 2.5 sec |
| Alarm Output |
N.C. 28 VDC, 0.2 A maximum |
| Count Period |
Approximately 20 sec, 2 or 4 |
| Warm-Up Period |
Approximately 1 minute |
| Power Input |
9.5 to 16 VDC |
| Current Draw |
18 mA (maximum) at 12 VDC |
| RF Interference |
No alarm 20 V/m |
| Frequency |
Micowave: 2.45 GHz (FCC, IC, ETS300-400 approval) |
| Installation |
Commercial and residential Zone: Interior |
| Operating Temperature |
14 to 131°F (-10 to 55°C) |
| Humidity |
95% maximum |
| Type |
Indoor |
| Wiring |
Wired |
| Weight |
3.9 oz (110.6 g) |
| Package Weight |
0.3 lb |
| Box Dimensions (LxWxH) |
18.4 x 6.7 x 6.4″ |
