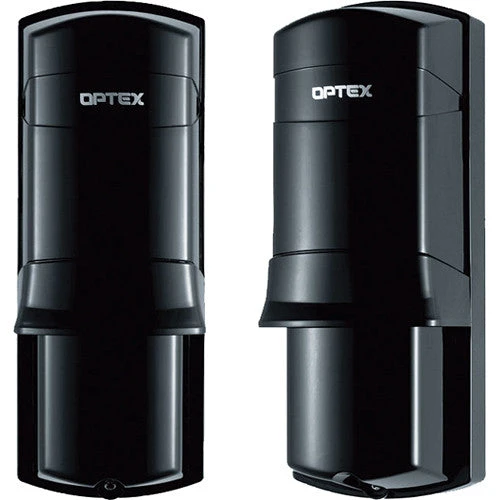

Optex AX-130TN Wired Short-Range Photoelectric Detector (130 Ft)(Optex Ax 130tn Wired Short Range Photoelectric Detector 130 Ft)

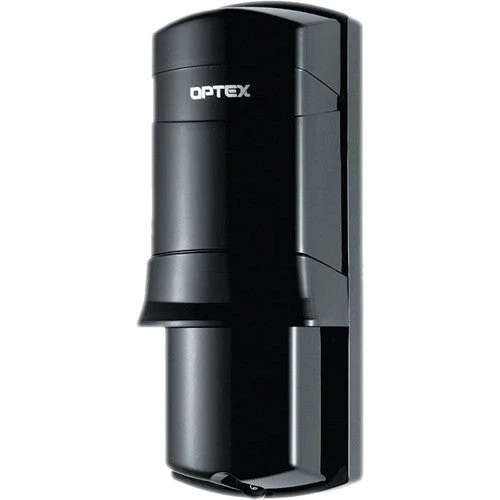

Optex AX-130TN Wired Short-Range Photoelectric Detector (130 Ft)(Optex Ax 130tn Wired Short Range Photoelectric Detector 130 Ft) - Image 2

Optex AX-130TN Wired Short-Range Photoelectric Detector (130 Ft)(Optex Ax 130tn Wired Short Range Photoelectric Detector 130 Ft)

Original price was: $214.59.Current price is: $96.99.

SKU: DGFUB 6898825920597 Categories: Alarm Systems, Optics & Surveillance, Surviellance Tags: Alarm Accessories, Alarm Systems, Optex AX-130TN, Photoelectric Beams

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Optex AX-130TN Overview

1Description
2IP65 Structure with High Sealing Rubber Packing
3Lightning & Surge Protection
4Anti-Frost Hood Cover
5Easy Angle Adjustment
6High Grade Spherical Lens
799% Beam Blocking Stability
8A.G.C. (Automatic Gain Control) Circuit
9Adjustable Beam Interruption Period
10Other Features

The AX-130TN Indoor / Outdoor Wired Short-Range Photoelectric Detector from Optex is compact in design with an IP65-compliant, highly durable structure. Rubber packing is used for all conceivable points where water, dust, or bugs may penetrate, such as wiring holes, wire ports, and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental conditions. In addition, the length between the upper and lower optics and the width of the optics are ideally engineered to produce an intelligent detection pattern, which reduces false alarms by detecting only human intruders.

IP65 Structure with High Sealing Rubber Packing

Rubber packing is used for all conceivable points where water or dust may penetrate, such as wiring holes, wire ports, and the outer chassis. Prevention from dust, bugs, and water delivers performance with higher reliability against false alarms and breakdowns.

Lightning & Surge Protection

An improved electro-magnetic interference surge absorber and high surge resistive relay have been installed to protect from lightning surges and maintain stable operation.

Anti-Frost Hood Cover

A hood is installed to prevent frost formation on the lower beams. It also makes the maintenance easy because the surface of cover is flat.

Easy Angle Adjustment

It allows the installer to finely adjust the beam with ease.

High Grade Spherical Lens

The high grade spherical lens creates sharply defined and precise infrared beams compared to ordinary Fresnel lenses.

99% Beam Blocking Stability

Enables stable operation with as much as 99% loss of beam energy caused by heavy rain, dust storms, fog, or snow.

A.G.C. (Automatic Gain Control) Circuit

A.G.C. circuit continually monitors for gradual changes in the signal’s strength caused by changing weather conditions. It adjusts the sensitivity accordingly to maintain a proper signal level for the current environmental conditions.

Adjustable Beam Interruption Period

The beam interruption time can be adjusted to fit any application. For example, when protecting a wall or fence, a longer interruption time will catch intruders.

Other Features

High-performance waterproof structure

Horizontal dial alignment for user friendliness

Adjustable beam interruption period

Tamper function

UPC: 788924084077

In the Box

Optex AX-130TN Wired Short-Range Photoelectric Detector (130 ft)
Transmitter
Receiver
4 x Pole Bracket
8 x Mounting Plate Lock Screw
8 x Pole Lock Screw
4 x Wall Mounting Screw

Table of Contents

Description
IP65 Structure with High Sealing Rubber Packing
Lightning & Surge Protection
Anti-Frost Hood Cover
Easy Angle Adjustment
High Grade Spherical Lens
99% Beam Blocking Stability
A.G.C. (Automatic Gain Control) Circuit
Adjustable Beam Interruption Period
Other Features

Optex AX-130TN Specs

Detection Range	130′ (40 m) max when used outdoors (Range doubles when used indoors)
Technology	Active infrared
Installation	Commercial, Residential
Zones	Perimeter, interior, approach
Maximum Distance	Arrival: 1,300′ (400 m)
Detection Method	Infrared beam interruption detection
Method	Interruption: Selectable between 50, 100, 250, 500 ms (4 steps)
Power Supply	10.5 to 28 VDC
Current Consumption	Transmitter & Receiver: 41 mA (maximum) T: 17 mA, R: 21 mA

Output

Alarm Output	N.C 28 VDC, 0.2 A maximum
Alarm	Period: 2 sec ± 1 nominal
Switch	Tamper: (N.C) Open when cover is removed. 28 VDC, 0.2 A maximum

Indicator

Power	Transmitter: Power On = On (Green), Power Off = Off Alarm Indicator (Receiver): Alarm On = Red, Light receiving = Off
Alignment	Angle: ±90° horizontal, ±5° vertical
Installation	Location: Indoor / outdoor, wall / pole mounting
Protection	Internal: IP65
Humidity	Environmental: 95% maximum
Operating Temperature	-31 to 140°F (-35 to 60°C)
Weight	Transmitter & Receiver: 23 oz (652 g)

Packaging Info

Package Weight	2.3 lb
Box Dimensions (LxWxH)	8.95 x 6.9 x 3.05″
