NXP PCAL6416AEV-ARD Evaluation Board, PCAL6416A, Arduino Evaluation Kits To Evaluate 16-Bit General-Purpose I/O Expander(Nxp Pcal6416aev Ard Evaluation Board Pcal6416a Arduino Evaluation Kits To Evaluate 16 Bit General Purpose I O Expander)

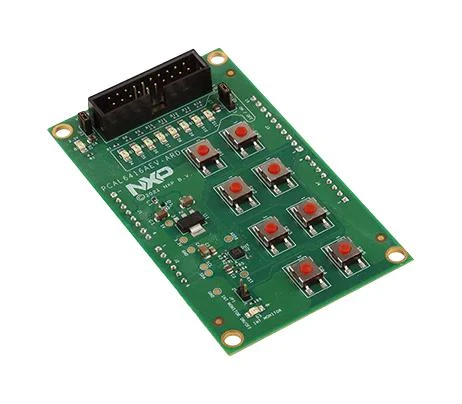

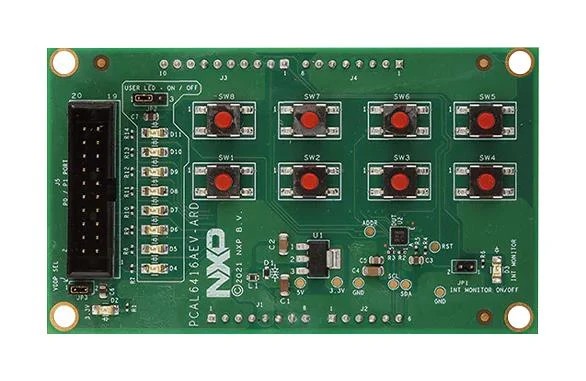

PCAL6416AEV-ARD is a PCAL6416A 16-bit GPIO Arduino® shield evaluation board. The PCAL6416AEV-ARD Arduino shield allows easy integration with Arduino EVKs to evaluate 16-bit general-purpose I/O expander features for interfacing to sensors, push summarys, keypad, etc. A graphical interface allows the user to easily explore the different functions of the GPIO expander to create an evaluation system.

• PCAL6416A low-voltage translating 16bit I²C-Bus/SMBus I/O expander
• I/O connector for external access to IC input-output pins
• Eight user switches connected to I/O pins of the IC
• Eight user LEDs connected to I/O pins of the IC
• Equipped with Arduino Uno R3 port for direct connection with Arduino devices
• Fully compliant with IMXRT1050 EVK board
• Fully compliant with LPCXpresso55S69 dev board
• Compliant with i.MX mini LPDDR4 EVK board

Contents

PCAL6416AEV-ARD Arduino shield, Quick reference card.
