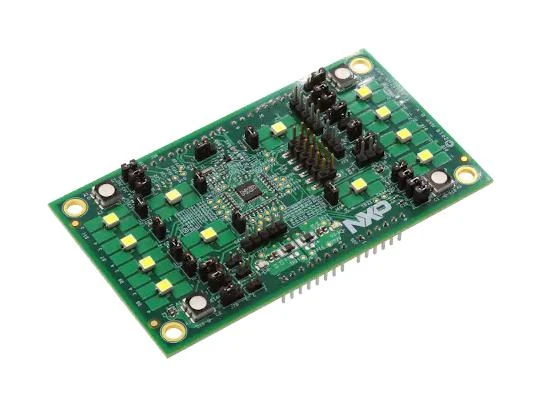

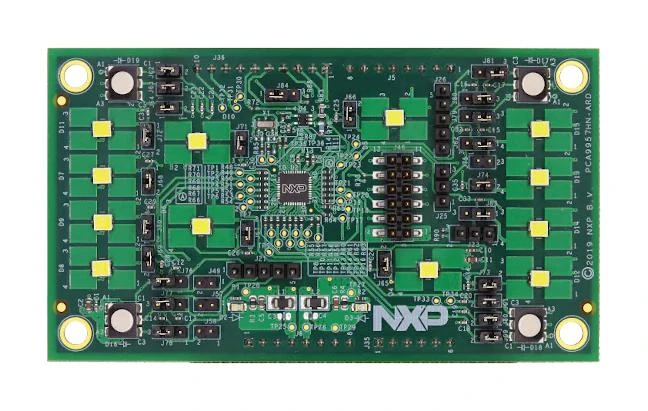

NXP PCA9959HN-ARD PCA9959HN-ARD Expansion Board PCA9959 LED Driver Power Management Arduino Platform(Nxp Pca9959hn Ard Pca9959hn Ard Expansion Board Pca9959 Led Driver Power Management Arduino Platform)

PCA9959HN-ARD Arduino shield allows easy integration with Arduino EVKs to evaluate the LED controller features for colour mixing, blinking and dimming LEDs. A graphical interface allows the user to easily explore the different functions of the driver to create an evaluation system.

• PCA9959 24-channel SPI serial bus 63mA/5.5V constant current LED driver
• Support up to four groups of LED gradation control
• Each LED channel assigned to one of four groups
• For each group, PCA9959 supports 64-grid brightness control
• Each LED output has its own 6-bit resolution (64 steps) preset current configuration
• Supply voltage range from 2.7V to 5.5V, Low standby current (170µA)
• 32mA / 5.5V output drive per channel
• Output current adjusts through resistor at REXT pin
• 10MHz SPI interface, output enable (/OE) pin

Contents

PCA9959HN-ARD Arduino shield, Quick reference card, Additional hardware required: USB A-to-MicroB cable (not included).

Product details

Accessory Type	Arduino Shield Board
For Use With	EVKs to evaluate the LED Controller
Product Range	–

Other details

Brand	NXP
Part Number	PCA9959HN-ARD
Quantity	Each
Technical Data Sheet EN
