NXP PCA9957HN-ARD Evaluation Board, PCA9957HN, Arduino Evaluation Kits To Evaluate LED Controller(Nxp Pca9957hn Ard Evaluation Board Pca9957hn Arduino Evaluation Kits To Evaluate Led Controller)

Original price was: $313.57.Current price is: $96.99.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

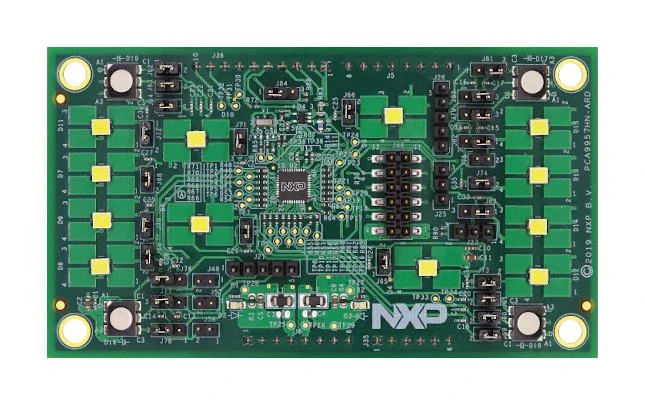

PCA9957HN-ARD is a LED Driver Arduino® shield evaluation board. The Arduino shield allows easy integration with Arduino EVKs to evaluate the LED controller features for colour mixing, blinking and dimming LEDs. A graphical interface allows the user to easily explore the different functions of the driver to create an evaluation system.

PCA9957 24-channel SPI serial bus 32mA/5.5V constant-current LED driver
Support up to four groups of LED gradation control
Each LED channel assigned to one of four groups
For each group, PCA9959 supports 64-grid brightness control
Each LED output has 6bit resolution pre-set current configuration with an absolution accuracy of ±8%
Supply voltage range from 2.7V to 5.5V, low standby current of 170µA
10MHz SPI interface, output enable (/OE) pin

PCA9957HN-ARD Arduino shield, Quick reference card.

Product details

Silicon Manufacturer:

NXP

Core Architecture:

–

Core Sub-Architecture:

–

Silicon Core Number:

PCA9957HN

Silicon Family Name:

–

For Use With:

Arduino EVKs To Evaluate LED Controller

Kit Contents:

Shield Evaluation Board PCA9957HN In Anti-Static Bag, Quick Start Guide

Product Range:

–

Other details

Brand	NXP
Part Number	PCA9957HN-ARD
Quantity	Each
Technical Data Sheet EN
