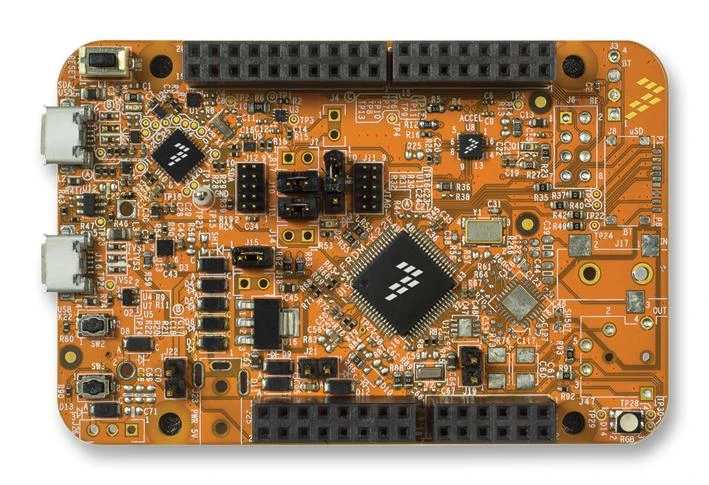

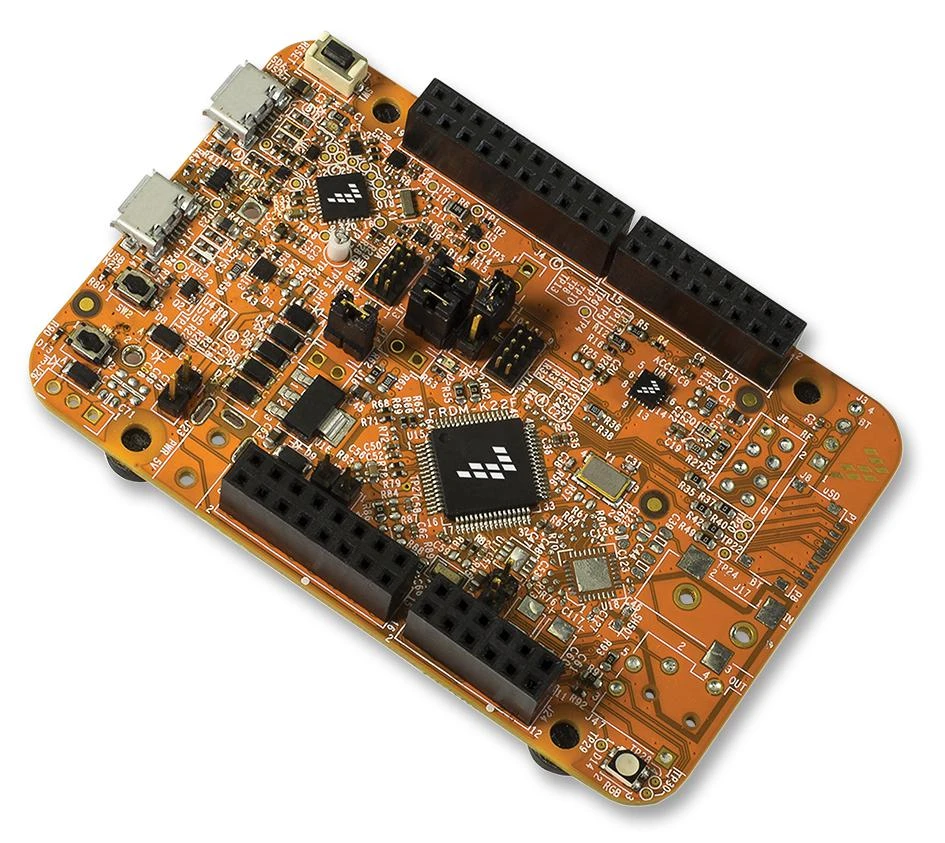

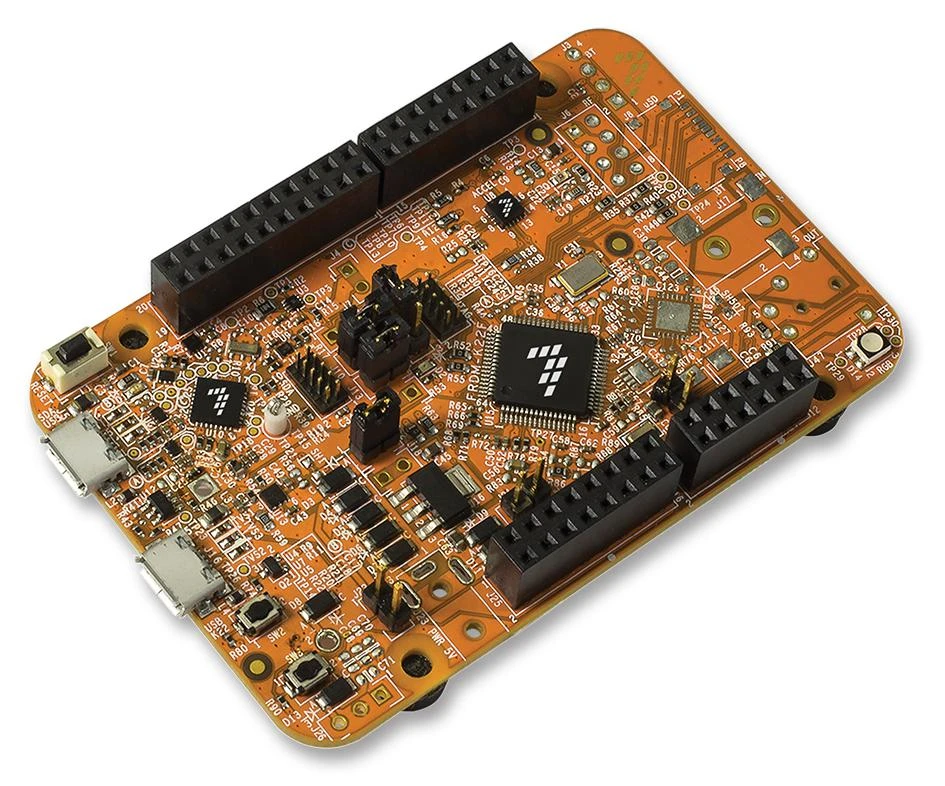

NXP FRDM-K22F FRDM-K22F Development Board Kinetis K22 Mcus Dual Role USB Interface Compatible With Arduino R3(Nxp Frdm K22f Frdm K22f Development Board Kinetis K22 Mcus Dual Role Usb Interface Compatible With Arduino R3)

The FRDM-K22F is the second Freedom board featuring a Kinetis K Next-Generation MCU (after the FRDM-K64F). It is targeting USB applications with a high-level of integration thanks to the crystal-less feature of its new USB controller (48MHz external crystal saved on the BOM cost) and the lower-power capabilities of this new generation of ARM Cortex-M4 MCUs. The FRDM-K22F is based on a Kinetis MK22

• FXOS8700CQ accelerometer and magnetometer
• Flexible power supply options -USB, external source
• RGB LED
• Easy access to MCU I/O
• Form factor compatible with Arduinoâ�¢ R3 pin layout
• OpenSDAv2 serial and debug interface
• Virtual Serial port interface
• Open-source bootloader and firmware

Applications

Consumer Electronics, Medical, Building Automation, Industrial, Imaging, Video & Vision

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Silicon Manufacturer	NXP
No. of Bits	32bit
Silicon Family Name	Kinetis – K22F
Core Architecture	ARM
Core Sub-Architecture	Cortex-M4
Silicon Core Number	MK22FN512VLH12
Kit Contents	Dev Board MK22FN512VLH12, Quick Reference Card
Product Range	–

Other details

Brand	NXP
Part Number	FRDM-K22F
Quantity	Each
Technical Data Sheet EN
Miscellaneous EN
One Page Summary EN
