Sale!

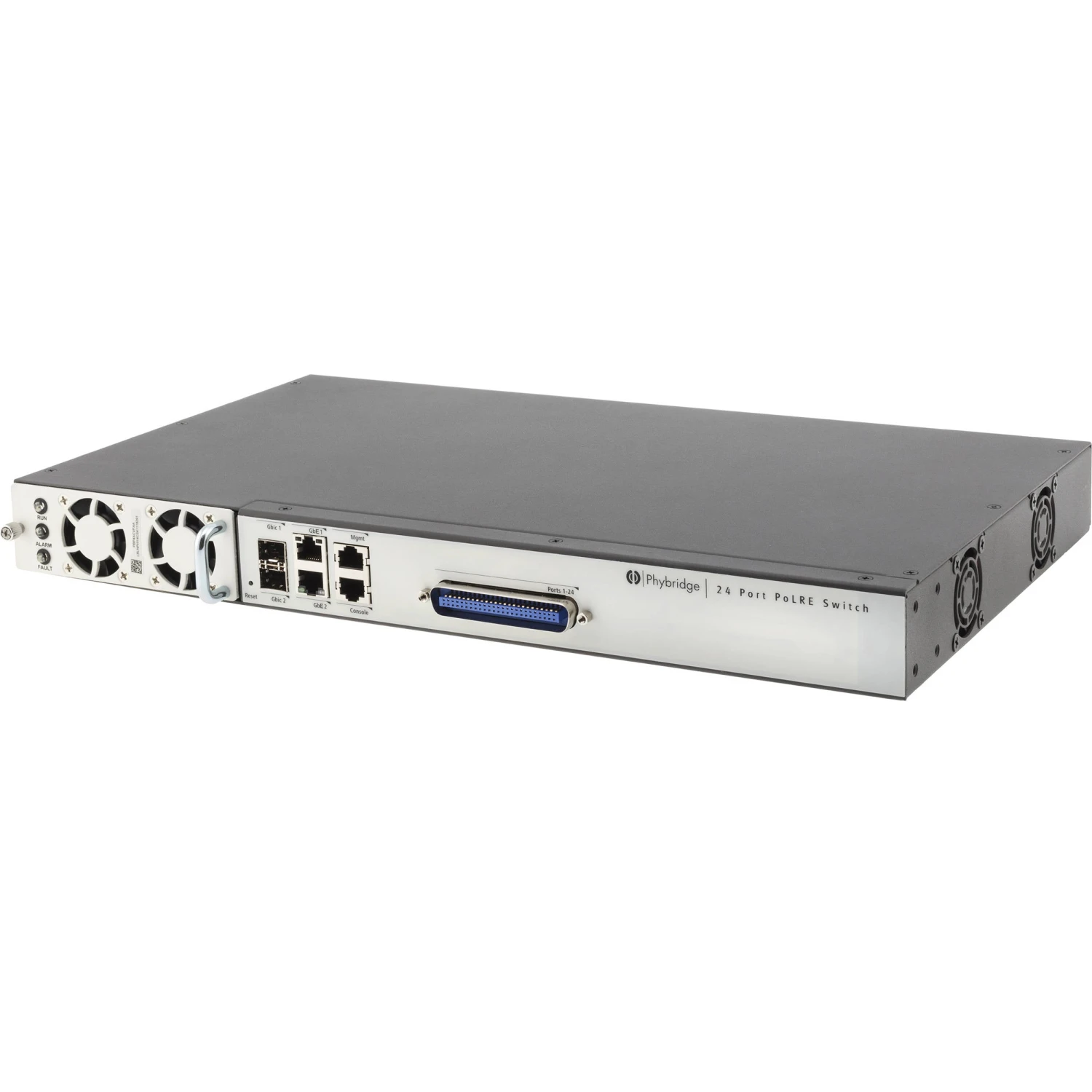

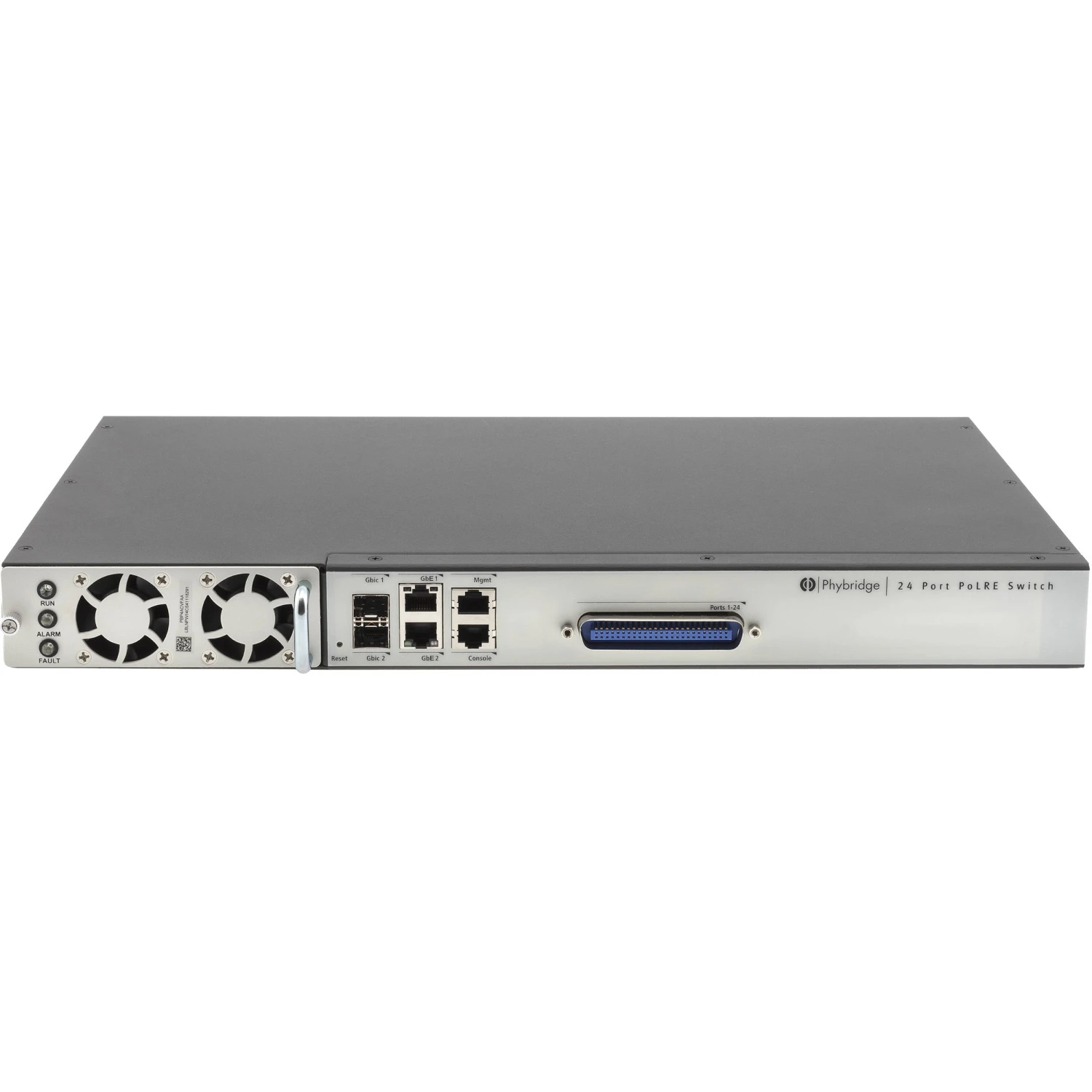

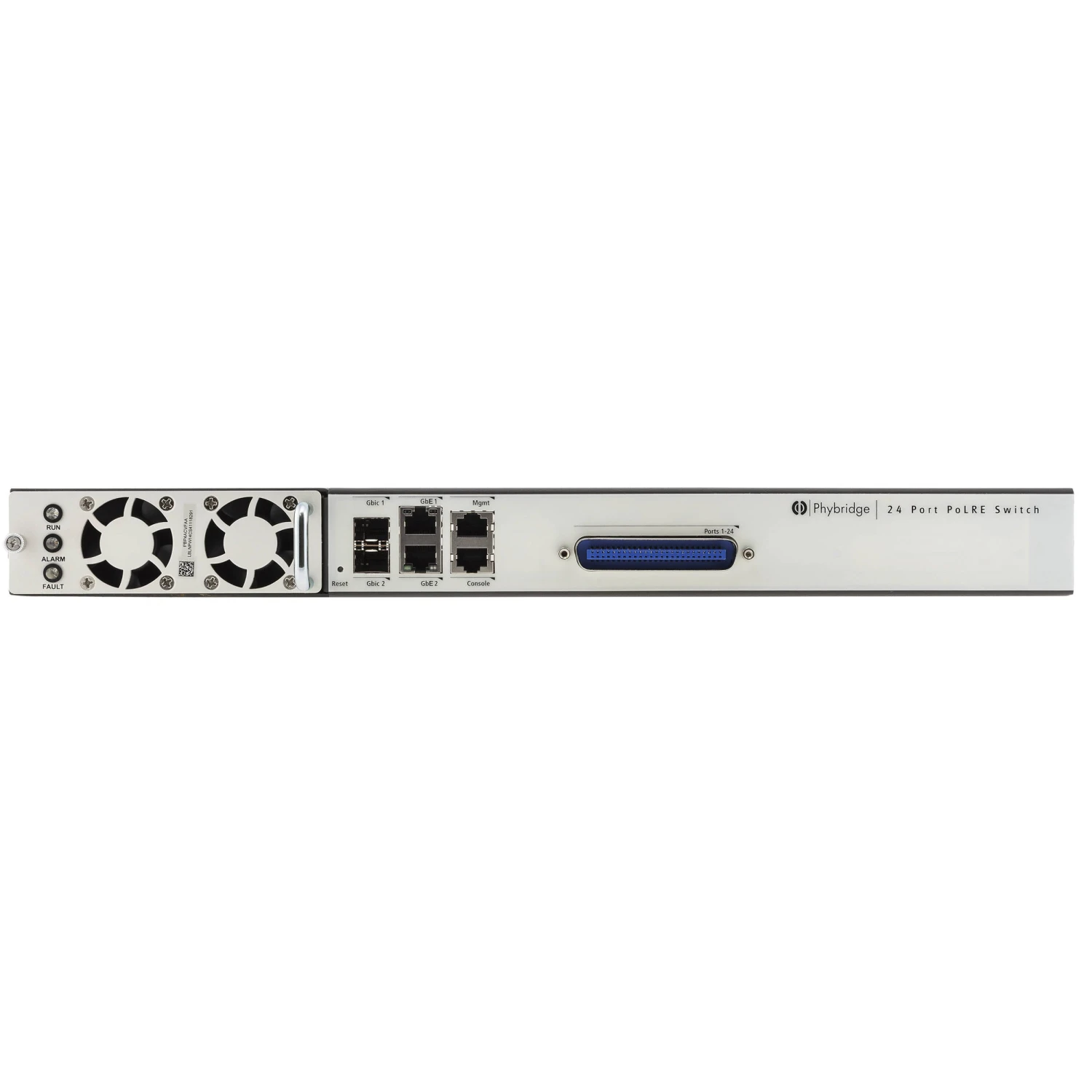

NVT Phybridge PHYBRIDGE PoLRE 24-Port Ethernet/PoE Managed Switch Over Single Pair Of Wire (Up To 1200')(Nvt Phybridge Phybridge Polre 24 Port Ethernet Poe Managed Switch Over Single Pair Of Wire Up To 1200)

NVT Phybridge PHYBRIDGE PoLRE 24-Port Ethernet/PoE Managed Switch Over Single Pair Of Wire (Up To 1200′)(Nvt Phybridge Phybridge Polre 24 Port Ethernet Poe Managed Switch Over Single Pair Of Wire Up To 1200)

Original price was: $345.00.Current price is: $98.99.

SKU: DGFUB 6613644312661 Categories: Computer & Presentation, Computer Solutions, Networking Tags: Bridges & Hubs, Network Switches, Networking, Wired Networking

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

NVT Phybridge NV-PL-024 Overview

1Description
2Key Features
3Lower total cost of ownership
4Low risk, quick & easy to deploy
5Optimized converged local area network
6Network redundancy and resilience
7Simple network management
8Beyond convergence made simple

The PoLRE switch delivers Ethernet and Power over Ethernet over a single pair of wire with up to 1,200 ft reach. This means you can transform your existing, proven reliable voice wiring infrastructure into an IP path ideal for IP telephony complementing and extending your existing data LAN. With the PoLRE, you’re in control of your migration from totally separate to fully converged LANs.

Key Features

Lower total cost of ownership
Low risk, quick & easy to deploy
Optimized converged local area network
Network redundancy and resilience
Simple network management
Beyond convergence made simple

Lower total cost of ownership

No network assessments, no rip and replacing of the infrastructure, no expensive environmental considerations for distributed closets and best of all, no financial risk. As a result, companies can allocate more of their available budget on applications and application adoption driving a better overall return on investment.

Low risk, quick & easy to deploy

A ‘Plug and Play’ deployment strategy combined with leveraging an existing proven reliable infrastructure allows customers to confidently install a Phybridge backbone. You can quickly migrate to IP telephony saving time while minimizing network and business disruption.

Optimized converged local area network

The single point of central convergence and the dedicated voice path for each IP phone results in the most robust, reliable and secure topology achievable. Voice quality of service, voice continuity and a highly secure topology come standard with Phybridge.

Network redundancy and resilience

PoLRE switches are designed to ensure uptime and availability. The PoLRE PowerWISE features providers load sharing, power sharing, load balancing and AC/DC power flexibility to create redundancy. Unlike many other data switches, the PoLRE switch was also designed to maintain connectivity even when the software fails.

Simple network management

The physical separation of voice traffic combined with user friendly management GUI eliminates the complexities of managing a LAN topology with ever changing voice, video, and data traffic sharing a single path. By giving real-time voice applications a dedicated physical path, your IT staff can easily manage their network ensuring quality of service regardless of network loads.

Beyond convergence made simple

The data needs of a business constantly evolve with data LANs changing every 3 to 5 years. You will save money while eliminating change management risk knowing you have a dedicated Phybridge infrastructure supporting the bandwidth and power needs for your IP phones. A move to gigabit to support the evolving data needs of users does not require you to buy expensive gigabit phones or POE data switches resulting in significant future savings.

UPC: 735890500018

In the Box

NVT Phybridge PHYBRIDGE PoLRE 24-Port Ethernet/PoE Managed Switch over Single Pair of Wire (Up to 1200′)
Phybridge PoLRE NV-PL-024
Serial cable
Rack mounting kit

Table of Contents

Description
Key Features
Lower total cost of ownership
Low risk, quick & easy to deploy
Optimized converged local area network
Network redundancy and resilience
Simple network management
Beyond convergence made simple

NVT Phybridge NV-PL-024 Specs

General

Device Type	Switch – 24 ports – L2+ – managed
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Ethernet
Ports	24 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
Remote Management Protocol	SNMP, HTTP
Features	Full duplex capability, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Quality of Service (QoS), LLDP support, PowerWISE technology
Compliant Standards	IEEE 802.3af
Processor	1 x Broadcom BCM56018: 266 MHz
RAM	64 MB DDR SDRAM
Flash Memory	32 MB

Expansion / Connectivity

Interfaces

2 x 1000Base-T RJ-45
2 x 1000Base-X SFP
24 x LAN RJ-21 PoE – 10 W
1 x management (LAN) RJ-45
1 x console RJ-45

Power

Power Device	Internal power supply – hot-plug
Voltage Required	AC 100/230 V (50/60 Hz)
Power Consumption Operational	22 Watt
Features	Front-to-rear airÂ¿Â¿ow

Miscellaneous

Cables Included	1 x serial cable
Rack Mounting Kit	Included
MTBF	50,000 hours

Dimensions & Weight

Width	17.1 in
Depth	9.9 in
Height	1.8 in
Weight	7.94 lbs

Manufacturer Warranty

Service & Support

Limited warranty – 1 year

Environmental Parameters

Min Operating Temperature	14 Â°F
Max Operating Temperature	122 Â°F
Humidity Range Operating	10 – 95% (non-condensing)
Min Storage Temperature	-13 Â°F
Max Storage Temperature	158 Â°F
