NVT Phybridge NV-EC1701PLS-XKIT 1701+ Extender Kit(Nvt Phybridge Nv Ec1701pls Xkit 1701 Extender Kit)

Original price was: $323.00.Current price is: $98.99.

SKU: DGFUB 6752297877589 Categories: Optics & Surveillance, Surviellance Tags: Signal Extenders, Surveillance, Transmission, Video Transmission

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

NVT Phybridge NV-EC1701PLS Overview

1Description
2NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
3NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
4NVT Phybridge NV-PS55-60W Power Supply (55 VDC, 60W)
5NVT Phybridge BNC to Screw Terminal Adapter

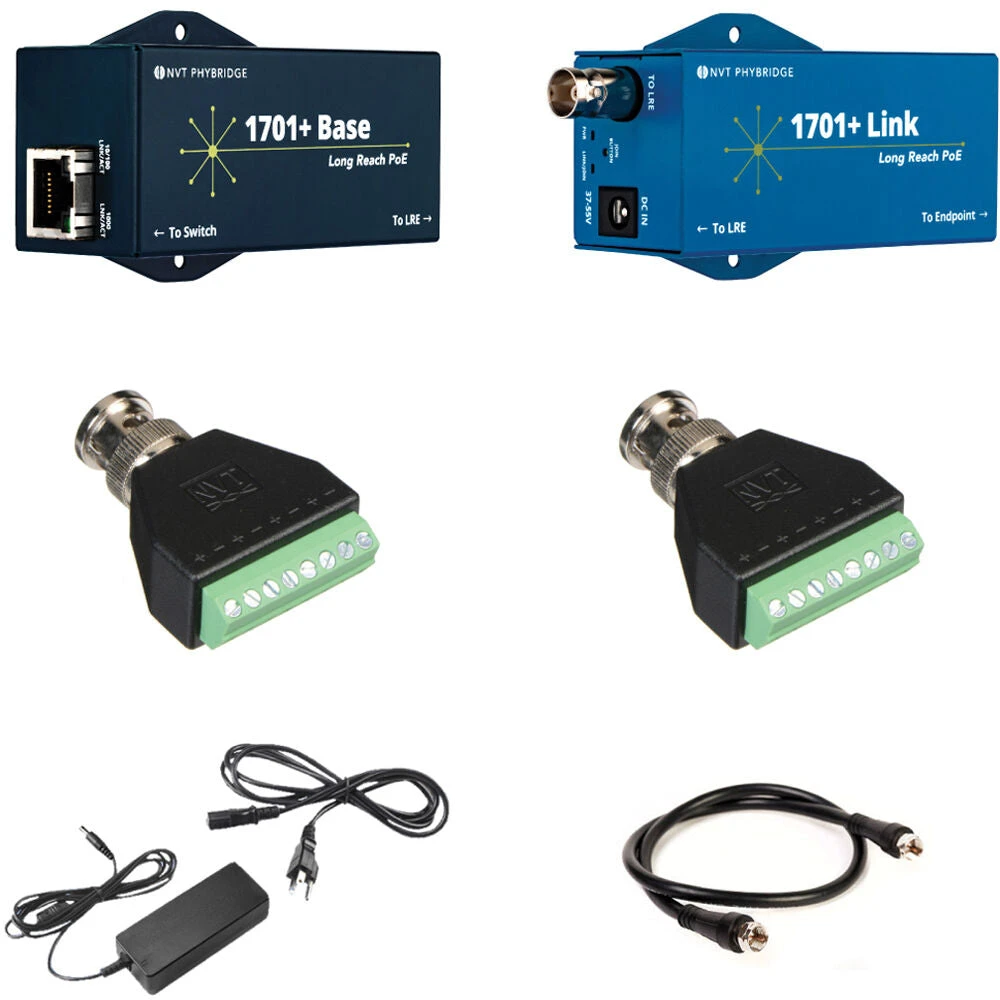

The NVT Phybridge NV-EC1701PLS-XKIT 1701+ Extender Kit includes a 1701+ Base Extender, a 1701+ Link Adapter, a power supply, two BNC screw terminals, and a 2′ coax cable. This kit collectively functions as an extender solution to deliver data at rates up to 420 Mb/s and PoE+ over Coax with a reach of up to 8000′.

NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender

The NV-EC1701PLS-BSE 1701+ Base Extender from NVT works with the 1701+ Link adapter (available separately) to function as an extender solution to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000′. This unit can be powered locally with an optional adapter or a PoE switch.

Pairs with 1701+ Link adapter

Negotiates power with 802.3af/at PoE switch

Supports RG-59, RG-6, RG-11, and Cat 3 or higher coax cables

Up to 420 Mb/s data rate (line side) with up to 8000′ reach

1000 Mb/s IEEE side data rate

Supports up to four endpoints in a point to multi-point application

Can be locally powered (power adapter available separately)

Mean time between failures (MTBF) up to 20+ years

LED indicators for power, link, and data

UPC: 735890501381

NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter

The NV-EC1701PLS-LK 1701+ Link Adapter from NVT is an endpoint solution compatible with 1701+ Base extender (available separately). When used in conjunction with the 1701+ Base extender, the pair will function as an extender solution to deliver a data rate (line side) up to 420 Mb/s and PoE+ over Coax via single pair UTP or two-wire cables with a reach of up to 8000′. This unit can be powered locally with an optional adapter.

Pairs with 1701+ Base extender

Provides up to 25W of power on 2 pairs if 1701+ Link adapter is powered by 1701+ Base extender

328′ reach from the adapter to IP endpoint via Cat 5 or higher cable

Negotiates with 802.3af/at IP endpoint

Supports RG-59, RG-6, RG-11, and Cat 3 or higher coax cables

Up to 420 Mb/s data rate (line side) with up to 8000′ reach

1000 Mb/s IEEE side data rate

Can be locally powered (power adapter available separately)

Mean time before failure (MTBF) up to 20+ years

LED Indicators for power, link, and data

UPC: 735890501374

NVT Phybridge NV-PS55-60W Power Supply (55 VDC, 60W)

The NVT NV-PS55-60W Power Supply delivers 55 VDC and 60W of power to the NV-EC1701 Ethernet over Coax (EoC) transceiver. A molded P1J 5.5mm barrel connector at the end of a 6′ cord provides Class 2 (SELV) regulated output.

UPC: 735890500247

NVT Phybridge BNC to Screw Terminal Adapter

The BNC to Screw Terminal Adapter from NVT converts BNC for 2-wire terminals in IP transceivers. This adapter can be used mid-span along a wire run and has eight screw-terminal connections that support wires up to 16 AWG. It can be used in 4:1 fan-out applications, as well as for daisy-chaining and four-pair wire connections.

Note: This adapter is not intended for use with analog video transmission.

Converts coaxial cable to 2-wire cable

For use with NVT IP transceivers and TBus transmitters

Eight screw-terminal connections each support wire diameters as large as 16 AWG and can be used in 4:1 fan-out applications, daisy-chaining, or four-pair wire connections

UPC: 735890213710

In the Box

NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
- Limited 5-Year Warranty
NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
- Limited 5-Year Warranty
NVT Phybridge NV-PS55-60W Power Supply (55 VDC, 60W)
- Limited Lifetime Warranty
2 x NVT Phybridge BNC to Screw Terminal Adapter
- Limited Lifetime Warranty
2′ Coax Cable

Table of Contents

Description
NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender
NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter
NVT Phybridge NV-PS55-60W Power Supply (55 VDC, 60W)
NVT Phybridge BNC to Screw Terminal Adapter

NVT Phybridge NV-EC1701PLS-BSE 1701+ Base Extender Specs

Interface	Line Side: 1 x BNC Port IEEE Side (IP Device): 1 x RJ45 Port (Will Negotiate Power with 802.3af/at Compliant Ethernet PoE Switch)
Data Rate	Line Side: Up to 420 Mb/s, HPAV2.1 (2 to 86 MHz) IEEE Side: 1000 Mb/s
Power Supply	37 to 55 VDC 100 W on Coax 30 W Powered by 802.3af/at Switch
DC Input	37-55 VDC via Optional External AC/DC Power Adapter (Available Separately)
Power Consumption	2 W
Operating Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 95% (Non-Condensing at 95°F / 35°C)
MTBF	20+ Years
Certifications	EMC Emissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2016 Class B Immunity: EN 55024:2010, EN 50121-4:2016 Safety UL 60950-1 2nd Ed 2019-05-09, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018 Environment RoHS Directives 2011/65 & 2015/863
Dimensions	4.15 x 2.11 x 1.33″ / 10.5 x 5.4 x 3.4 cm
Weight	4.87 oz / 138 g

Packaging Info

Package Weight	0.42 lb
Box Dimensions (LxWxH)	5.5 x 2.9 x 1.8″

NVT Phybridge NV-EC1701PLS-LK 1701+ Link Adapter Specs

Interface	Line Side: 1 x BNC Port IEEE Side (IP Device): 1 x RJ45 Port (Will Negotiate Power with 802.3af/at Compliant Endpoints)
Data Rate	Line Side: Up to 420 Mb/s, HPAV2.1 (2-86 MHz) IEEE Side: 1000 Mb/s
Power Supply	37 to 55 VDC 50 W Locally Powered, Delivered on 4 Pairs 25 W Locally or Line Powered, Delivered on 2 Pairs
DC Input	37 to 55 VDC via Optional External AC/DC Power Adapter (Available Separately)
Power Consumption	2 W
Operating Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 95% (Non-Condensing at 95°F / 35°C)
MTBF	20+ Years
Certifications	EMC Emissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2016 Class B Immunity: EN 55024:2010, EN 50121-4:2016 Safety UL 60950-1 2nd Ed 2019-05-09, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018 Environment RoHS Directives 2011/65 & 2015/863
Dimensions	4.15 x 2.11 x 1.33″ / 10.5 x 5.4 x 3.4 cm
Weight	4.87 oz / 138 g

Packaging Info

Package Weight	0.415 lb
Box Dimensions (LxWxH)	5.5 x 2.9 x 1.8″

NVT Phybridge NV-PS55-60W Power Supply (55 VDC, 60W) Specs

Output Voltage	55 VDC, 60 W
Connector	P1J 5.5 mm
Input Voltage	100 to 240 VAC, 50-60 Hz
Cord Length	6′ / 1.8 m
Dimensions	Not specified by manufacturer
Weight	Not specified by manufacturer

Packaging Info

Package Weight	0.97 lb
Box Dimensions (LxWxH)	7.25 x 2.95 x 2.45″

NVT Phybridge BNC to Screw Terminal Adapter Specs

Compatibility	NVT IP transceivers and TBus transmitters
Connectors	1 x BNC male 8 x screw-terminal connections
Wire Gauge Capacity	16 AWG, 0.051″ (1.3 mm)
Torque
