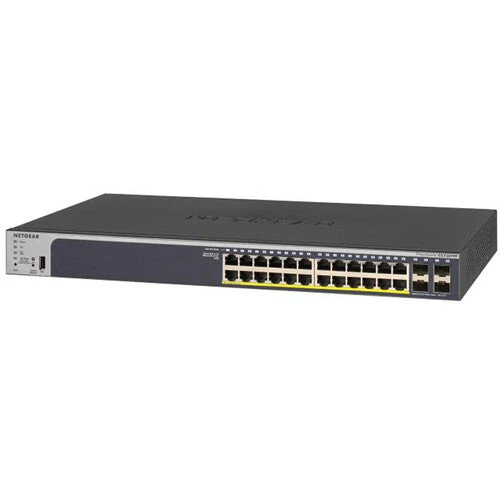

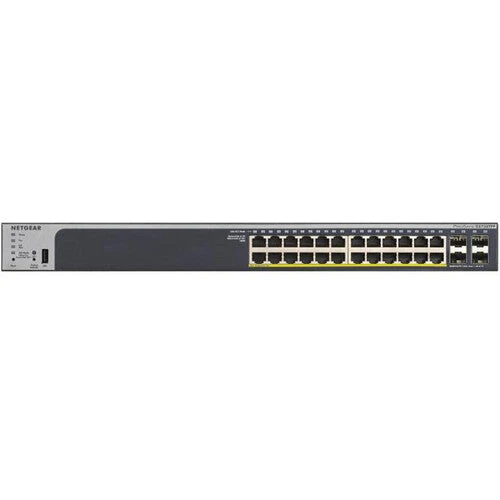

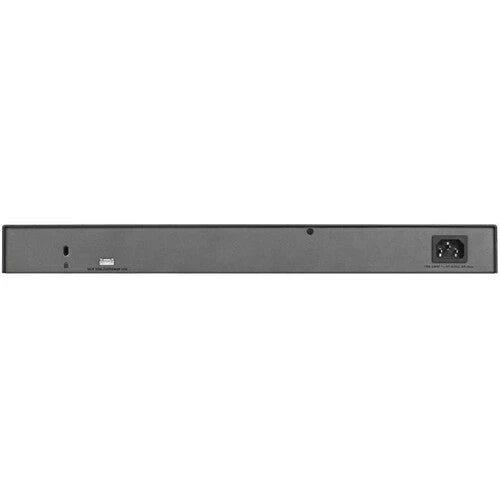

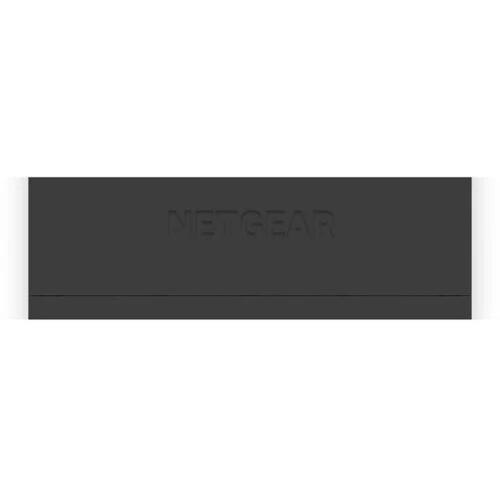

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch(Netgear Gs728txpv3 24 Port Gigabit Poe Managed Network Switch)

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch(Netgear Gs728txpv3 24 Port Gigabit Poe Managed Network Switch) - Image 2

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch(Netgear Gs728txpv3 24 Port Gigabit Poe Managed Network Switch) - Image 3

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch(Netgear Gs728txpv3 24 Port Gigabit Poe Managed Network Switch) - Image 4

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch(Netgear Gs728txpv3 24 Port Gigabit Poe Managed Network Switch) - Image 5

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch(Netgear Gs728txpv3 24 Port Gigabit Poe Managed Network Switch)

Original price was: $333.00.Current price is: $96.99.

SKU: DGFUB 7073315946581 Categories: Computer & Presentation, Computer Solutions, Networking Tags: Bridges & Hubs, Netgear GS728TXP-300NAS, Network Switches, Networking

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Netgear GS728TXP-300NAS Overview

Grow your business with powered devices such as IP cameras, access points, and VoIP phones with the GS728TXPv3 24-Port Gigabit PoE+ Managed Switch from Netgear. Designed for easy installation and flexible management, this switch features 24 Gigabit Ethernet ports, each of which supports up to 29W of power with a 190W budget. There are also four SFP+ ports that support up to 10 Gb/s fiber uplinks.

With a 128 Gb/s non-blocking switching capacity and 95.24 Mpps forwarding rate, the GS728TXPv3 delivers smooth and fast performance. It also supports up to 256 VLANs. Extensive Layer 2+ and Layer 3 Lite features add security, efficiency, and easy management. Two cooling fans help to ensure optimal performance without disturbing your environment when mounted onto a rack or desktop. A 1-year subscription to the Netgear Insight management platform is included, which allows you to configure and monitor your network using your mobile device from almost anywhere, anytime.

Netgear Insight Management

Gain simple yet powerful control of your network anytime and anywhere, even across multiple locations using a web-based interface or mobile app. NETGEAR Insight handles your network so you can focus on running your business.

Layer 2 / Layer 2+ Support

Powerful Layer 2+ / Layer 3 Lite features enhance performance, usability, and network efficiency.

Additional Features

Advanced VLAN and Private VLAN support for better network segmentation
L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling.
Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
Auto “denial-of-service” (DoS) prevention
IGMP Snooping and Querier for multicast optimization
Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
Dynamic ARP for increased security targeting a class of Man in the Middle attack
Rate limiting and priority queuing for better bandwidth allocation
Port mirroring for network monitoring
Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
Cable test to troubleshoot connection issues
SNMP v1, v2c, v3 and RMON remote monitoring

UPC: 606449171051

Items Included

Netgear GS728TXPv3 24-Port Gigabit PoE+ Managed Network Switch
Power Cable
Rackmount Kit
Rubber Footpads
Limited Lifetime Warranty
Limited Lifetime Warranty (Next Business Day Replacement)
Limited 90-Day Manufacturer Warranty (Technical Support via Phone)
Limited Lifetime Warranty (Online Chat Technical Support)

Additional Resources

Guides & Manuals

Netgear GS728TXP-300NAS Specs

Key Specs

Inputs/Outputs	24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 4x SFP+ 10 GbE
Stackable	No
Switching Bandwidth	128 Gb/s (Non-Blocking)
PoE Power Budget	190 W

Stackable

Protocols

Layer Services Supported	Layer 2, Layer 3
Supported Protocols	Auto-MDIX/MDI IGMP Snooping IPv4 IPv6 Link Aggregation
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	10,000 Bytes
MAC Address Table Size	16K
Multicast Groups	512

Security

Security Features

DHCP Snooping
DoS Attack Prevention
Storm Control

Performance

Latency	2.1 to 3.3 µs
Forwarding Rate	95.24 Mpps
Switching Bandwidth	128 Gb/s (Non-Blocking)
Priority Queues	8
Packet Buffer	1.5 MB

Computer

Flash Memory	64 MB
CPU	Single-Core: Up to 800 MHz A
Memory	512 MB

Electrical

PoE per Port	29 W
PoE Power Budget	190 W
Power Draw	231.00 W (Max) 20.00 W (Idle)
Power Supply Type	Internal

Environmental

Operating Temperature	32 to 122°F / 0 to 50°C
Operating Humidity	90%
Storage Temperature	-4 to 158°F / -20 to 70°C
Storage Humidity	95%
Noise Level	26.8 dB

General

Certifications	FCC, CE, RCM, ICES, VCCI, KC, BSMI, UKCA
Cooling System	Fan
Mean Time Between Failures (MTBF)	1.3 Million Hours
Indicator Lights	Yes
Rack Mountable	Yes
Dimensions	17.3 x 10.1 x 1.7″ / 440 x 257 x 43.2 mm
Weight	8.4 lb / 3.8 kg

Packaging Info

Package Weight	9.995 lb
Box Dimensions (LxWxH)	20.8 x 14.2 x 4.2″
