Napco Prima PKIT1D AT&T Overview

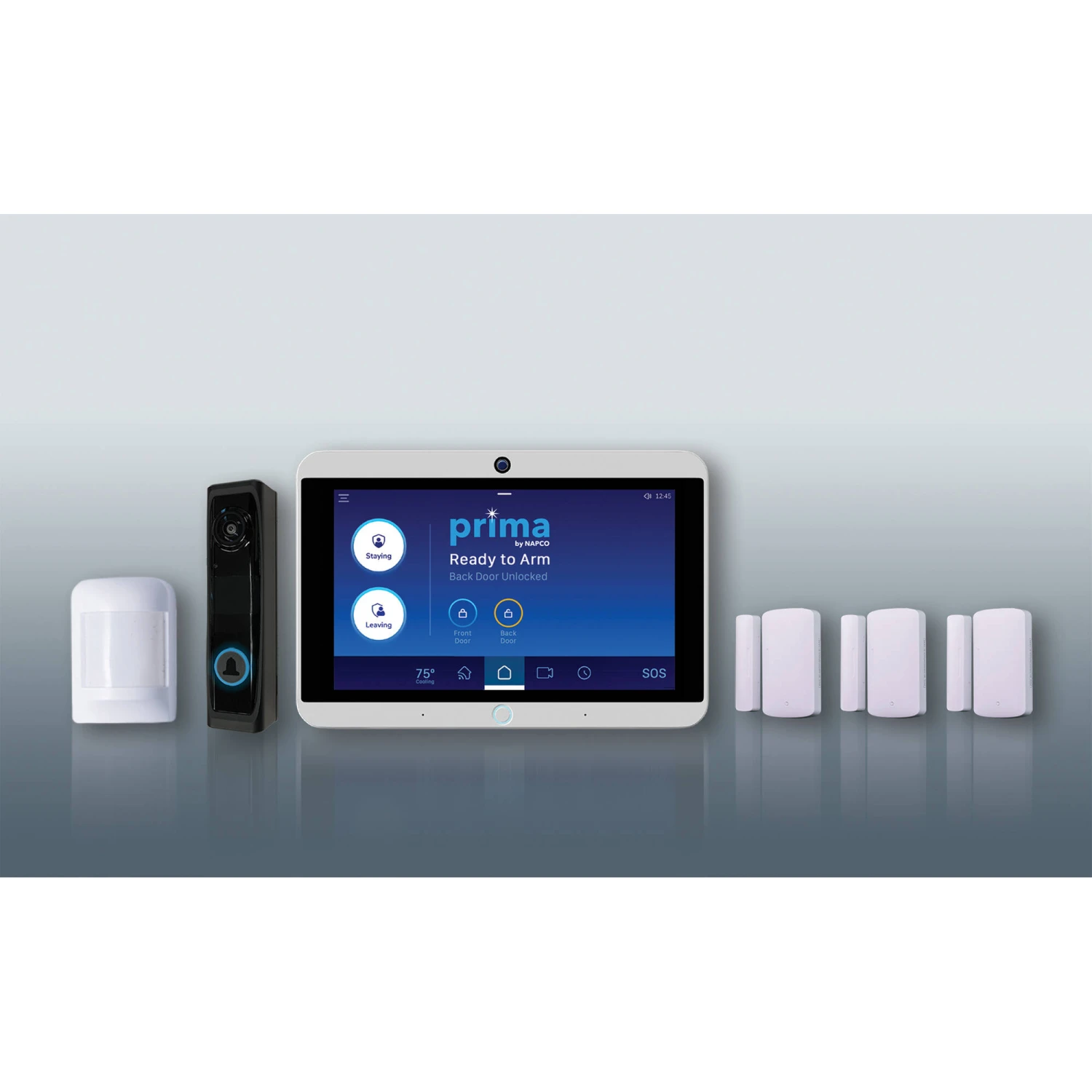

The PKIT1DA All-in-One Wi-Fi System from Napco Prima bundles a PP1A All-in-One 7″ Touchscreen (AT&T), a PBELL Self-Healing Wi-Fi Video Doorbell, three PWD Window/Door Transmitters, and a PPIR Wireless PIR Sensor Transmitter for a security and monitoring solution.
Designed to be used with a Napco Prima All-in-One System, the PP1A All-in-One 7″ Wi-Fi Touchscreen Super Panel enables users to control a host of security and safety devices all from the convenience of a touchscreen. Operating on the AT&T cellular network, this dual-band Wi-Fi 7″ panel features dual stereo speakers and microphones, echo cancellation, an 85 dB siren, an onboard 5MP color camera, and an 820′ operating range.
In addition to compatibility with Napco Prima devices, Z-Wave Plus support enables the panel to control Z-Wave devices like thermostats, dimmers, locks, plugs, garage controllers, and more.
Designed to be used with a Napco Prima All-in-One System (available separately), the PBELL Self-Healing Wi-Fi Video Doorbell enables you to securely monitor your front door. This dual-band Wi-Fi video doorbell captures 1080p resolution video at up to 15 fps. It features night vision functionality, along with two-way audio communication thanks to an omnidirectional microphone and speaker.
Remote management is via the Napco Prima app for iOS and Android. This video doorbell is IPX4 rated for protection from water and dust.
Implement window and door safeguarding with the Napco Prima PWD Window/Door Transmitter. When paired with a Prima All-in-One System (available separately), this battery-powered sensor enables you to receive alerts when a door or window is opened or closed. This device is tamper supervised and the included CR2032 batteries have a 7-year lifespan.
The Napco Prima PPIR Wireless Passive Infrared Sensor Transmitter is a motion sensor with pet immunity for minimizing false alarms. When paired with a Prima All-in-One System (available separately), this battery-powered sensor will detect motion from up to 32.8′ away. The included CR123A battery has a 5-year lifespan.
Items Included
- Napco Prima PP1A All-in-One 7″ Wi-Fi Touchscreen Super Panel (AT&T)
- Wall Mount
- Desktop Bracket
- Limited 2-Year Manufacturer Warranty
- Napco Prima PBELL Self-Healing Wi-Fi Video Doorbell
- Bracket
- Mounting Plate
- Limited 2-Year Manufacturer Warranty
- 3 x Napco Prima PWD Window/Door Transmitter
- 2 x CR2032 Lithium Coin Cell Batteries
- Self-Stick Tape
- Mounting Screws
- Limited 2-Year Manufacturer Warranty
- Napco Prima PPIR Wireless Passive Infrared Sensor Transmitter
- CR123A 3V Lithium Battery
- Self-Stick Tape
- Mounting Screws
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Napco Prima PP1A All-in-One 7″ Wi-Fi Touchscreen Super Panel (AT&T)
| Compatibility |
Napco Prima Devices Various Z-Wave Plus Devices |
| Audio |
2 x Stereo Microphones 2 x 1 W Stereo Speakers Echo Cancellation 85 dB Siren (Piezo Buzzer) |
| Camera |
5 MP Color |
| Cellular Connection |
AT&T |
| Panel Type |
LCD |
| Display Size |
7″ |
| Native Resolution |
1024 x 600 |
| Touchscreen |
Yes |
| USB I/O |
1 x Micro-USB Female Input |
| Internal Storage |
8 GB |
| Ethernet |
1000M RJ45 |
| Wireless |
Wi-Fi 4 (802.11n) Z-Wave Bluetooth |
| Mobile App Compatible |
Yes: Android & iOS App Name: Napco Prima |
| Operating System |
Android 7.1 |
| Battery Chemistry |
Lithium-Ion Polymer (LiPo) |
| Battery Capacity |
3600 mAh |
| DC Input Power |
12 VDC at 2.5 A |
| AC Power |
100 to 240 VAC, 50/60 Hz |
| Mounting |
Multiple Tabletop, Wall |
| Color |
White |
| Material of Construction |
Polycarbonate, ABS |
| Certifications |
CE, ETL, FCC, UL |
| Operating Conditions |
14 to 122°F / -10 to 50°C |
| Storage Conditions |
-40 to 176°F / -40 to 80°C |
| Dimensions |
7.7 x 5.4 x 0.75″ / 195.6 x 137.2 x 19.05 mm |
| Weight |
1.1 lb / 0.5 kg (Without Accessories) |
| Package Weight |
2.34 lb |
| Box Dimensions (LxWxH) |
10.3 x 7.2 x 4″ |
