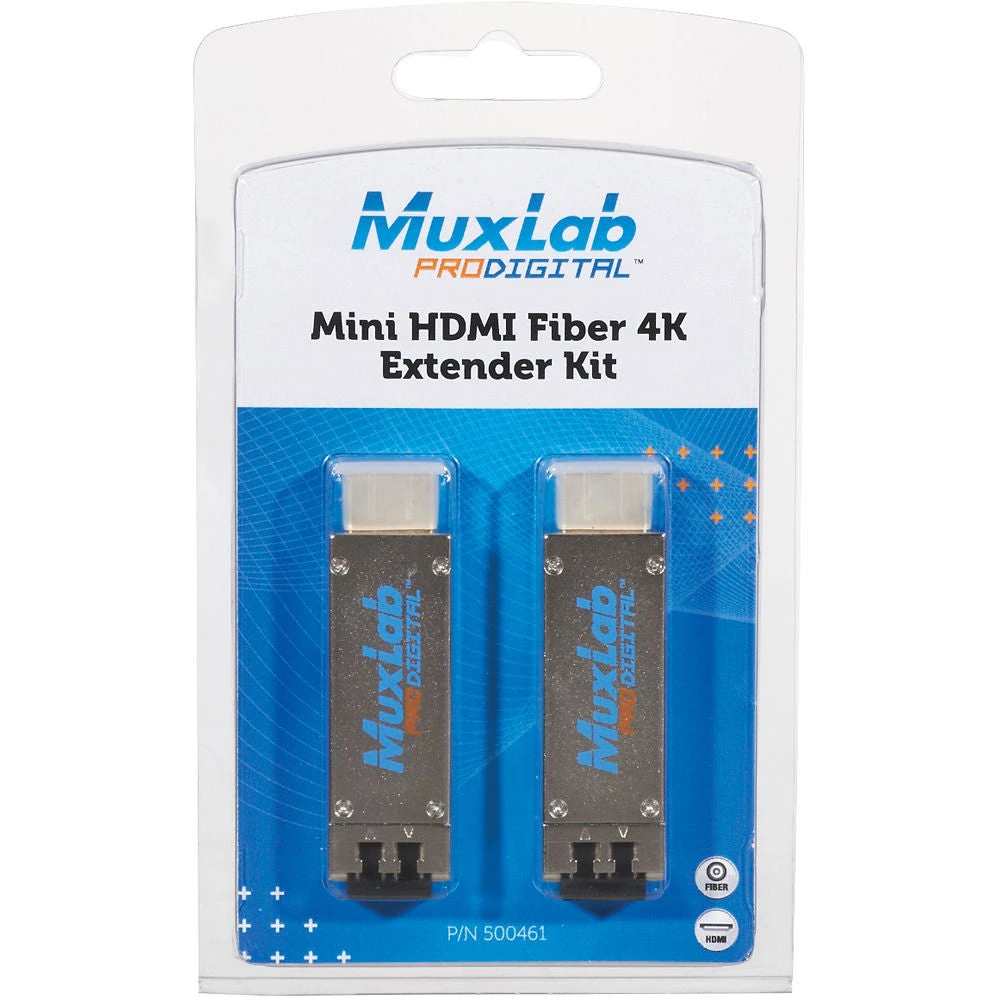

MuxLab Mini HDMI Fiber 4K Extender Kit(Muxlab Mini Hdmi Fiber 4k Extender Kit)

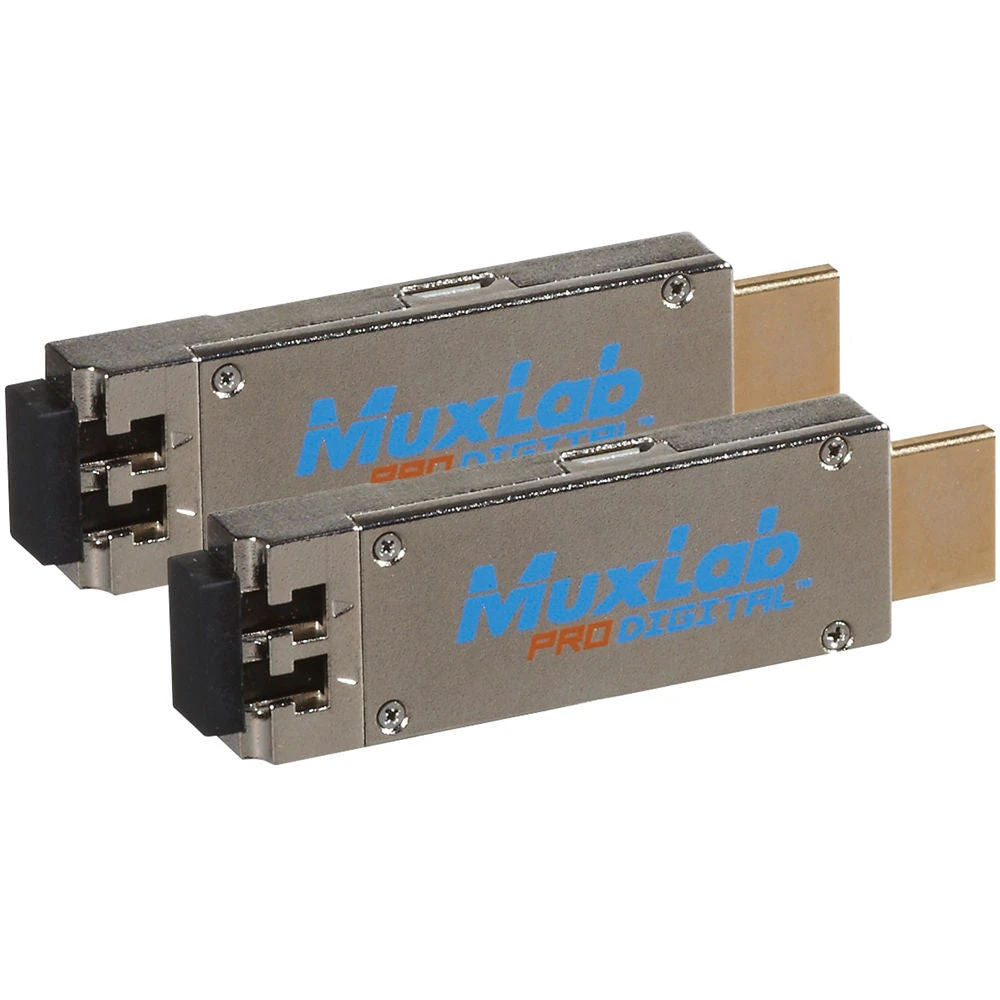

The MuxLab Mini HDMI Fiber 4K Extender Kit allows an HDMI source such as a Blu-ray player to be extended to a monitor or projector via a dual LC fiber connection. This HDMI 1.4a compliant kit supports resolutions up to 3840 X 2160 and 7.1-channel audio. Each HDMI dongle features a compact design at 2.76′ long.

MuxLab Mini HDMI Fiber 4K Extender Kit

HDMI	HDMI 1.4a (3D)
Devices Supported	DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transmission	Transparent to the user
Frequency	340 MHz
Connectors	1 x HDMI Type A male (on each dongle) 1 x LC Duplex (on each dongle) 1 x Micro-USB female (on each dongle)
Resolution	480i to 1080p at 50/60 FPS 1080p at 24/50/60 FPS 3840 X 2160 at 24/25/30 FPS VGA to UXGA
Color Support	8, 10, and 12-bit
Audio	LPCM 7.1-channel, Dolby TrueHD, and DTS-HD Master Audio
HDCP	Revision 1.3
Fiber Cable Supported	LC Duplex multimode 50/125 �m OM3 fiber cable
Distance Supported	Up to 984′ (300 m) using OM3 multimode fiber cable
Power	Micro-USB (optional power supply only needed if device doesn’t have a USB Port or if the USB Port doesn’t provide sufficient power)
Temperature	Operating: 32 to 122�F (0 to 50�C) Storage: -4 to 140�F (-20 to 60�C) Humidity: Up to 90% non-condensing
Enclosure	Metal
Regulatory	FCC, CE, RoHS
Dimensions (LxWxD)	2.76 x 0.79 x 0.31″ (70 x 20 x 8 mm)
Weight	0.29 lb (0.13 kg)

Packaging Info
Package Weight	0.3 lb
Box Dimensions (LxWxH)	6.1 x 1.2 x 0.5″
