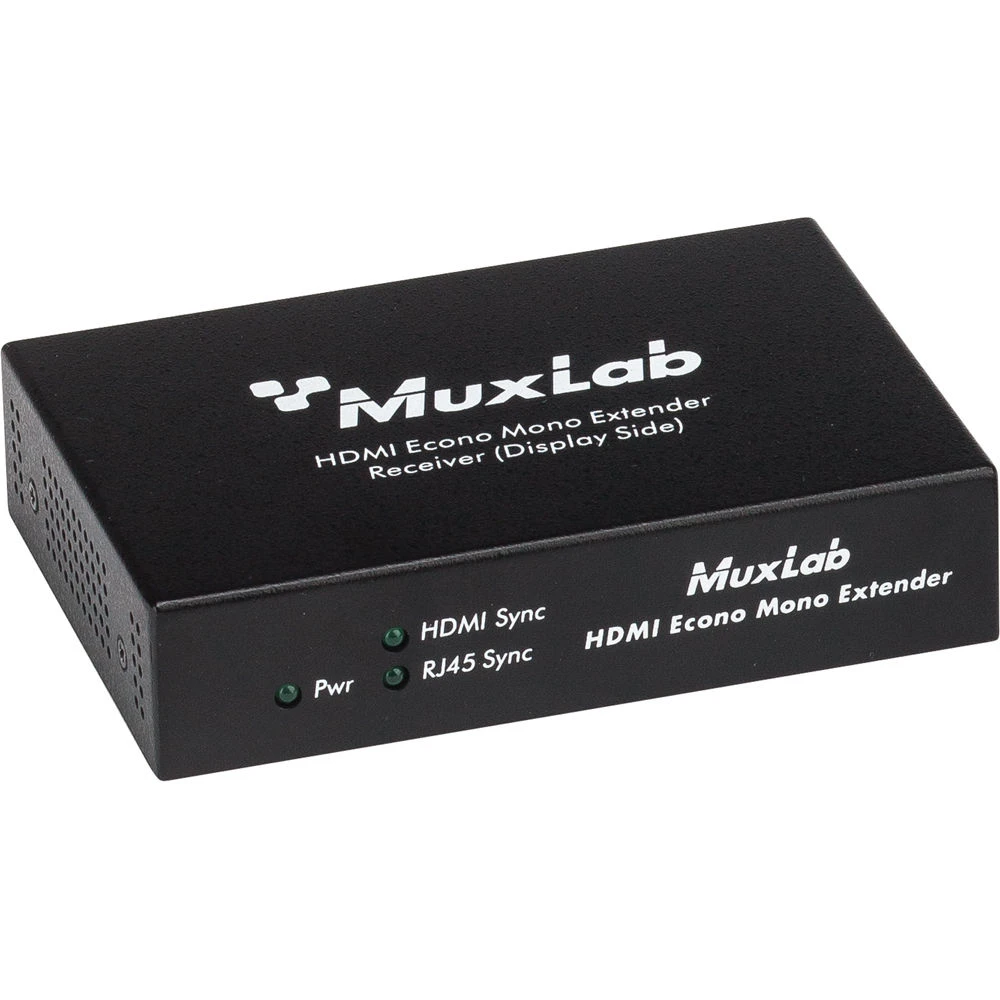

MuxLab 500451-RX Overview

The Muxlab 500451-RX HDMI Mono Receiver allows an HDMI equipment to be connected up to 230� (70m) via 1 CAT5e/6 cable (not included) in a point-to-point configuration at all resolutions up to 1080p. The 500451-RX supports IR source control and works in conjunction with the 500476 HDBaseT Output Card.

Note:

The 500451-RX Receiver requires the 500451-TX Transmitter at the transmitting end.

Features

Supports 3D feature of HDMI 1.4
Up to 230� (70m) at all resolutions up to 1080p
Deep color via single CAT5e/6
Up to 115� (35 m) @ 4K resolution
Supports all digital audio modes
Supports bi-directional IR remote control
Locking screw for HDMI connector

Applications

Commercial and residential AV systems
Classroom projector systems
Digital signage
Boardroom systems
Collaborative PC systems
Medical information systems

UPC: 627699804513

In the Box

MuxLab 500451-RX HDMI Mono Receiver
Limited 2-Year Manufacturer Warranty

MuxLab 500451-RX Specs

Environment	HDMI 1.3a, HDBaseT (5 Play technology). Supports the 3D feature of HDMI 1.4 Supports all digital audio modes, 7.1 channel, Dolby TrueHD, DTS-HD
Devices	DVD, plasma, projectors, monitors, TV, PC, laptops, and servers supporting HDMI
Transmission	Transparent to the user
Bandwidth	340 MHz
Standard	HDMI 1.3a
Connectors	1 HDMI receptacle with locking screw 1 RJ45S for link via CAT5e/6 cable 3.5 mm jacks for IR emitter and IR sensor
Maximum Distance	4480i/p: CAT5e/6: 230′ (70 m) 720p, 1080i: CAT5e/6: 230′ (70 m) 1080p: CAT5e/6: 230′ (70 m) 1080p Deep Color: CAT5e/6: 230′ (70 m) 4K (3840 x 2160): CAT5e/6: 115′ (35 m)
RJ45 Pin Configuration	RJ45 Pin 1 (R) Pin 3 (R) Pin 4 (R) Pin 7 (R)
Cable	1 x CAT5e or better twisted pair cables required
Power Supply	110 to 240 V / 5 VDC (not included)
Power Consumption	3.2 W
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 185°F (-20 to 85°C)
Humidity	Up to 95% non-condensing
Material	Metal
Regulatory Compliance	FCC Class A, CE, RoHS
Dimensions	4.4 x 3.0 x 1.0″ (11.2 x 7.6 x 2.5 cm)
Weight	1.0 lb (0.4 kg)

Packaging Info

Package Weight	1.1 lb
Box Dimensions (LxWxH)	20.945 x 4.961 x 4.409″
