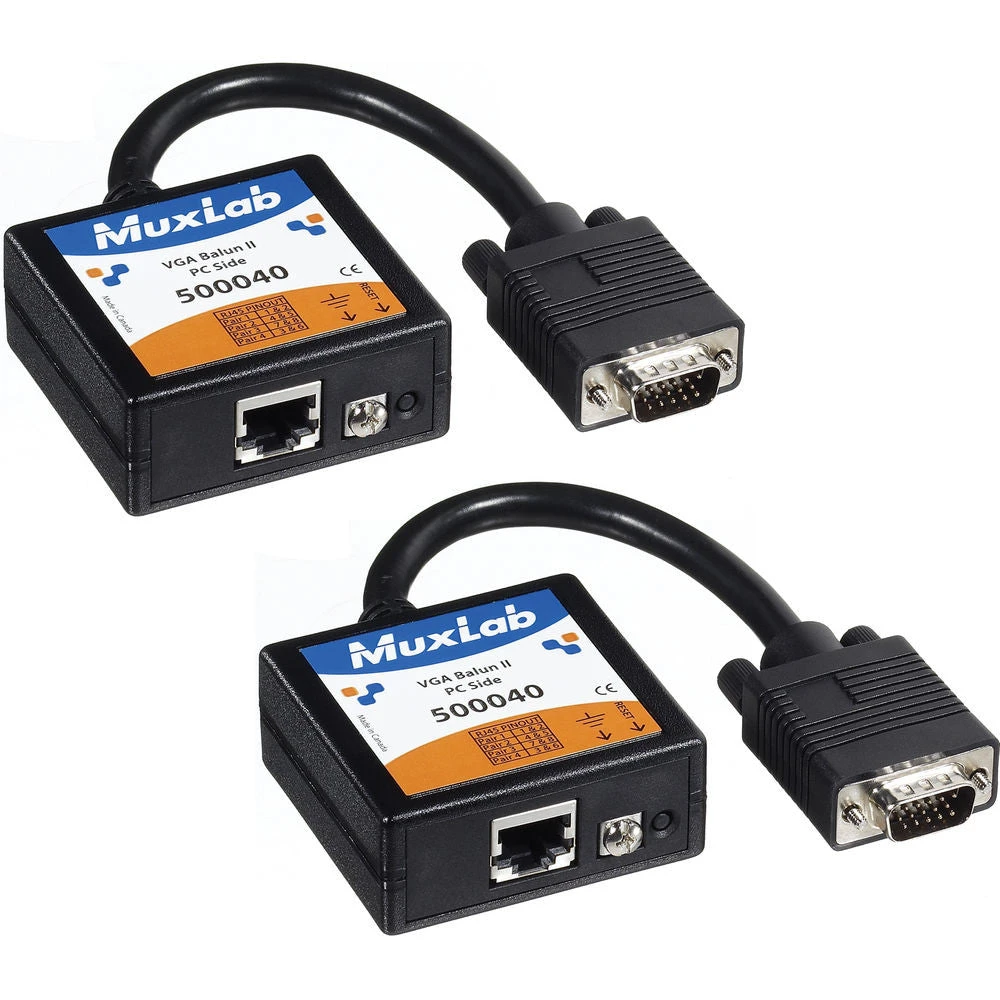

MuxLab 500040-42-PK VGA Over CAT5 Balun II Extender Kit With Reset Control(Muxlab 500040 42 Pk Vga Over Cat5 Balun Ii Extender Kit With Reset Control)

The VGA Balun II eliminates costly and bulky VGA cable, allowing a VGA source to be connected to a VGA monitor via one (1) 4-pair Cat 5 unshielded twisted pair (UTP) cable. Used in pairs, the VGA Balun II allows VGA video to be transmitted up to 350ft (107m) via Cat 5 at 800 x 600 resolution. Each VGA connection requires p/n 500040 at the source and either p/n 500041 or 500042 at the display. The product features a “reset” summary that may be required when using certain displays. rmation may be found in the product Installation Guide. The VGA Balun II works in conjunction with laptops, PCs, plasmas, CRT, LCD monitors and DLP projectors. Typical applications include digital signage, boardroom systems, classroom video instruction and custom audio-video systems.

Interfaces/Ports
Network (RJ-45)	Yes
VGA In	Yes
VGA Out	Yes
Number of Network (RJ-45) Ports	2
Number of VGA Inputs	1
Number of VGA Outputs	1

Packaging Info
Package Weight	0.8 lb
Box Dimensions (LxWxH)	10.9 x 3.5 x 2.5″

MuxLab 500040-42-PK VGA over CAT5 Balun II Extender Kit with Reset Control
