MULTICOMP PRO MP013554(Multicomp Pro Mp013554)

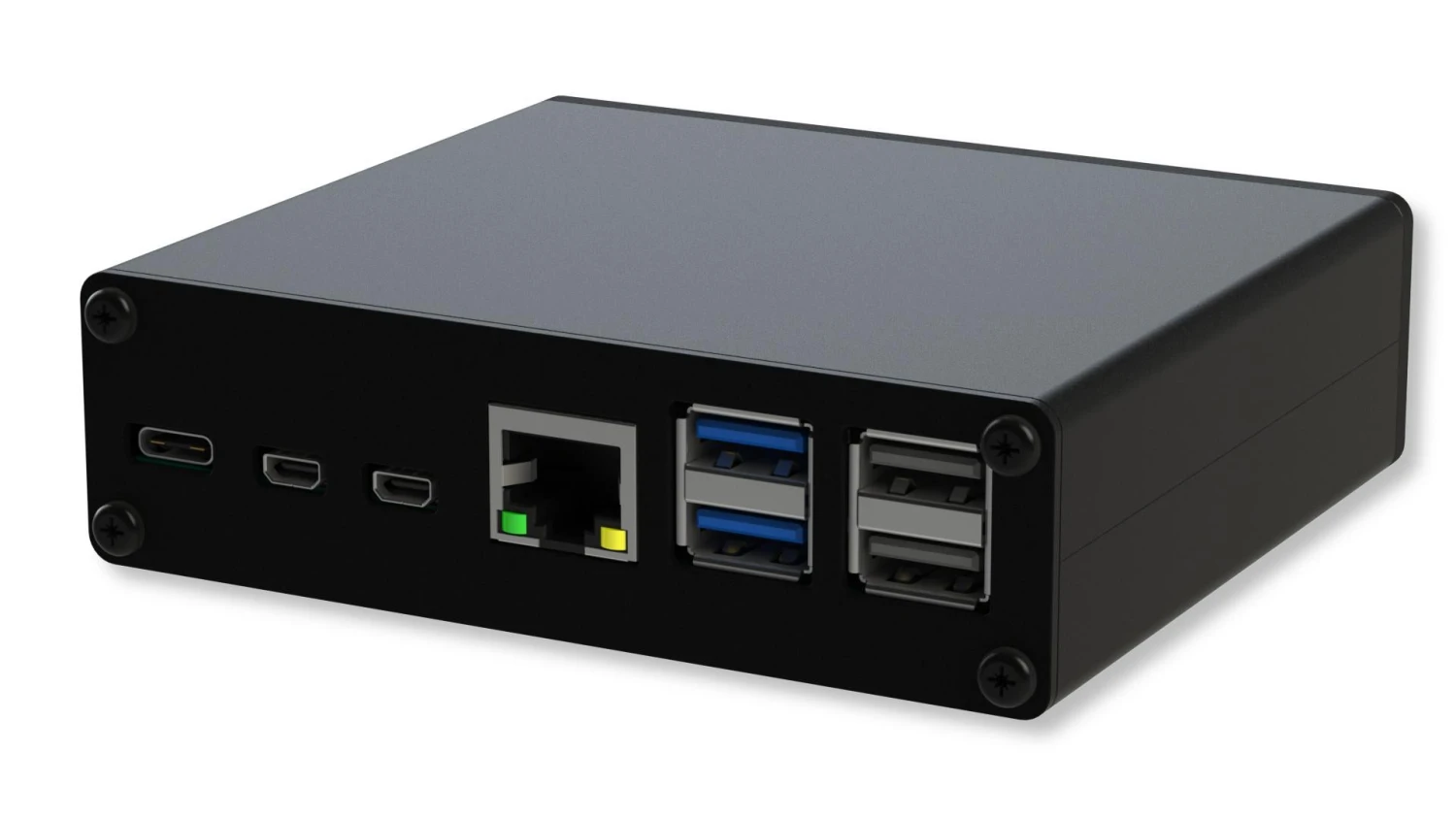

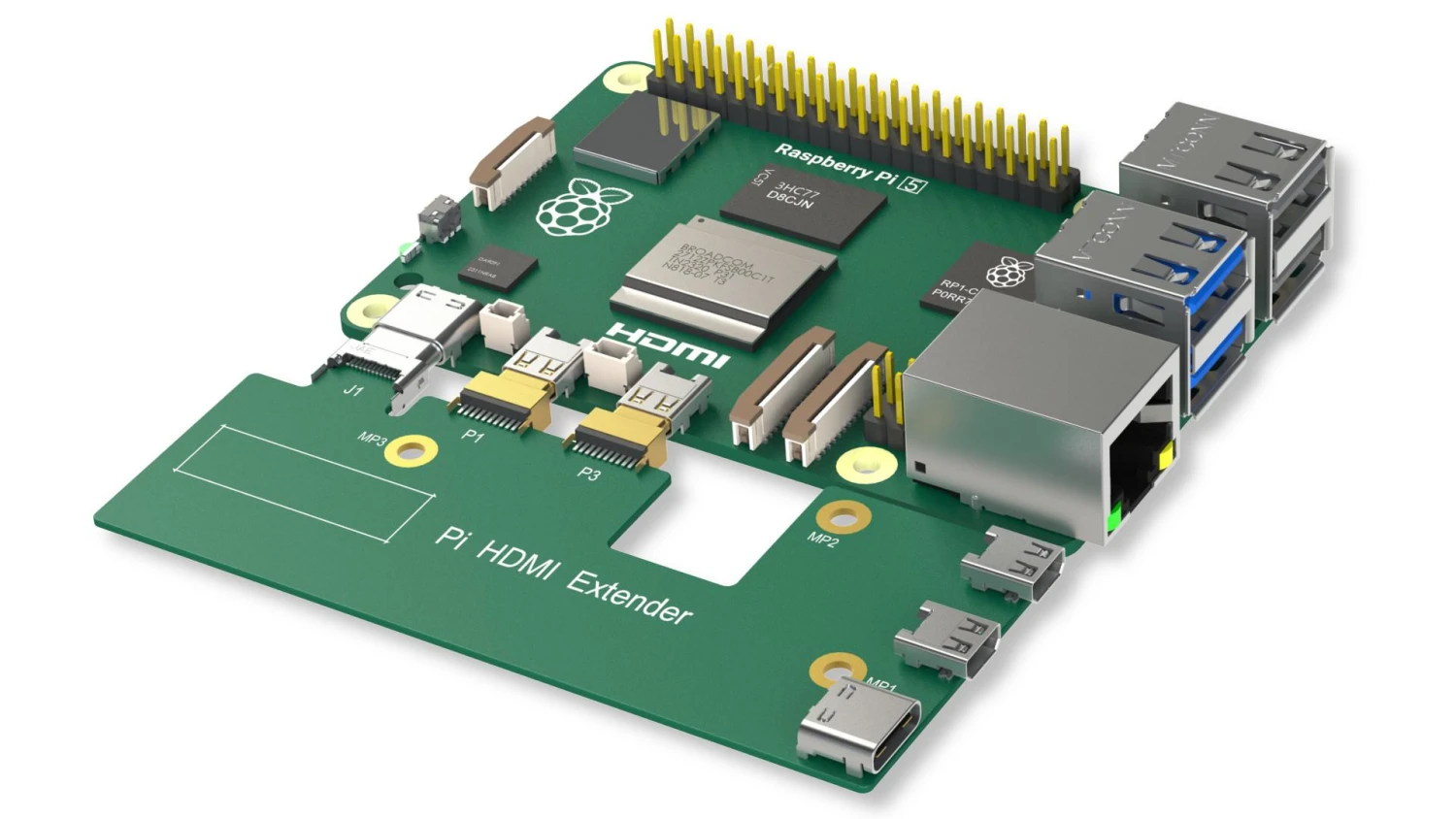

MP013554 is a Pi-Box Pro 5+ is a rugged industrial enclosure kit for the Raspberry Pi5+. By utilizing our Micro HDMI Pi5 extender board we can turn the power and Micro HDMI connectors through 90° so they are on the same plane as the Ethernet and USB connectors. The rear panel is made from 3mm acrylic and allows communication via Bluetooth and Wi-Fi signals from the Pi5/5+. The standard version allows access to the SD Card from the assembled enclosure. Pi-Box Pro 5+ has the same internal kit as the Pi-Box Pro 5 but is housed in the Combi Case extrusion. Ideal for those who wish to have a rugged aluminum case but not an industrial look.

• Rugged industrial enclosure kit
• Micro HDMI Pi5 extender board
• Rear panel is made from 3mm acrylic
• Allows for access to the SD Card from the assembled enclosure

Applications

Consumer Electronics, Automation & Process Control, Factory Automation, Industrial, Industrial Automation Control, Mechanical, Utilities

Contents

x8 M3x10 Taptite Screws; x14 M2.5×5 Screws; x4 12mm Standoffs; x3 8mm Standoffs; x1 Aluminium End Plate; x1 HDMI Extender PCB; x1 Aluminium Carrier Plate; x1 Aluminium Extrusion; x1 Acrylic End Plate.

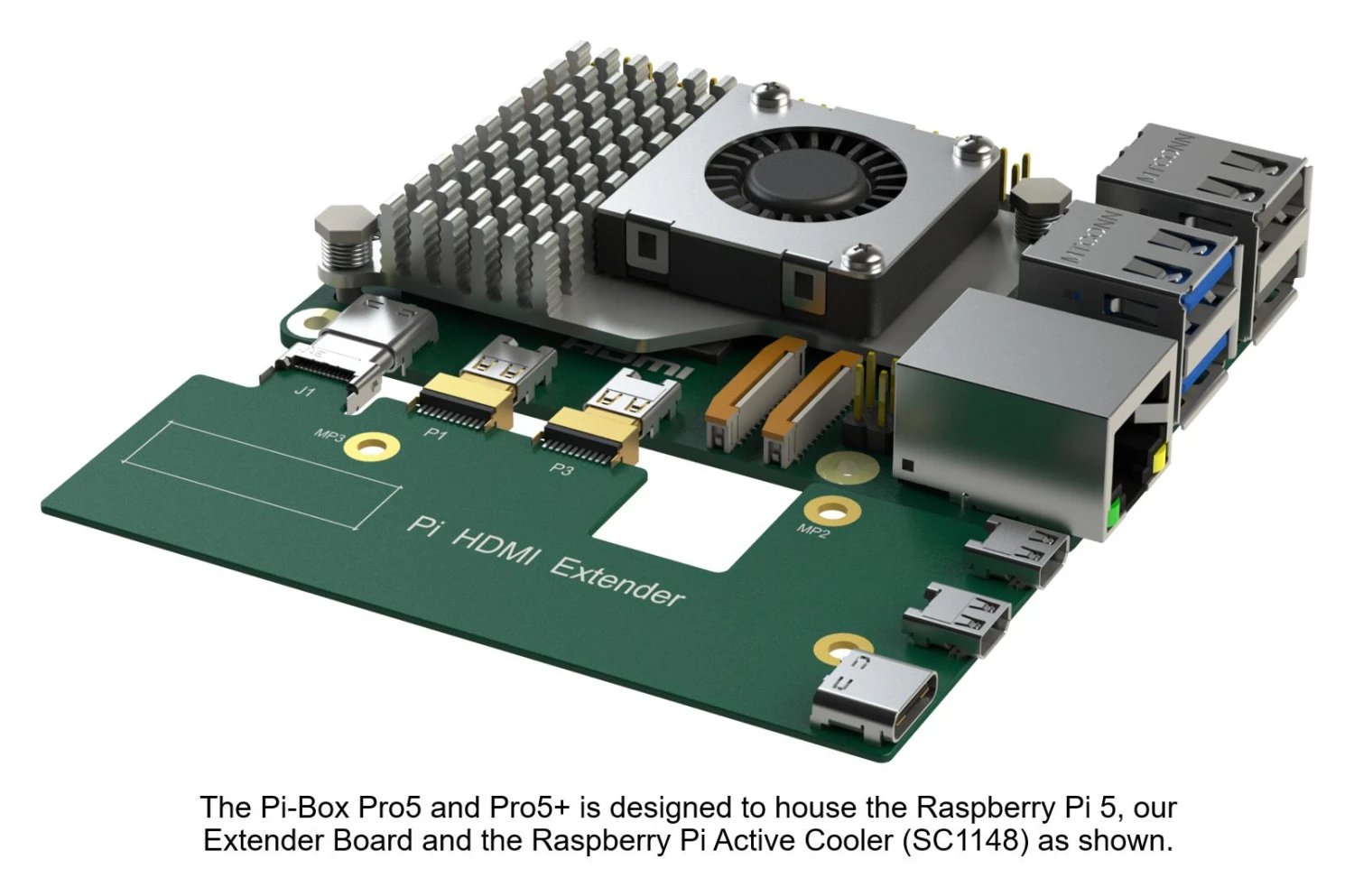

With the release of the Raspberry Pi5/5+, the temperature of the processor under 100% usage has become an issue. As a solution, we offer an Active Cooling Fan Kit (SC1148) which combines a large metal heatsink with a variable-speed blower.
