MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard)

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard) - Image 2

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard) - Image 3

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard) - Image 4

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard) - Image 5

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard) - Image 6

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard) - Image 7

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard(Msi Pro Z790 Vc Wifi Lga 1700 Atx Motherboard)

Original price was: $331.03.Current price is: $95.99.

SKU: DGFUB 7073134084181 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computer Components, Computers, Desktop Components, MSI PRO Z790-VC WIFI

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

MSI PRO Z790-VC WIFI Overview

Replace or upgrade your business-level system with the MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard. Providing ample connectivity options and the ability to leverage various powerful components, business users gain massive utility suitable for supporting a wide range of applications.

Sporting an LGA 1700 socket, you can install a wide range of Intel Core 12th, 13th, and 14th gen processors, gaining the advantages of the Z790 socket. Four dual-channel DDR5 slots can support up to four 7200 MHz modules for a total of 256GB of memory, enhancing multitasking and render speeds. Create a large digital library for important business assets with four SATA and two M.2 SSD interfaces. Connect various graphics and utility cards with one PCIe 5.0 x16, two PCIe 3.0 x16 (in x1 mode), one PCIe 3.0 x16 (in x4 mode), and two PCIe 3.0 x1 slots. Between the back panel and internal headers, you get access to USB 2.0, 3.2 Gen 1, and Gen 2×2 ports. You can also use Bluetooth 5.4 technology to connect wireless devices such as controllers, headsets, and more. Wi-Fi 7 and 2.5 GbE LAN give you wireless and wired network connectivity, allowing you to quickly download company assets, access cloud storage, watch media, and more.

Power Solution

Utilizing a 12-phase mirrored power arrangement, the enhanced digital power design can handle large loads while optimizing efficiency, giving you enhanced performance ready to take on high-powered components. The six-layer motherboard supports high-bandwidth for faster transfer speeds.

Cooling

You get a variety of cooling enhancements designed to keep your components safe even under heavy loads. Extended and heavy-plated VRM heat sinks, M.2 Shield Frozr, chipset heat sink, and 7W/mK thermal padding with additional choke protection all work together to keep the onboard hardware safe. Dedicated headers for CPU coolers, water-block coolers, and system fans assist with installation and ensure your cooling solution runs perfectly to your adjustments when teamed with various integrated programs. BIOS settings offer comprehensive cooling performance options allowing you to make easy adjustments, manage fan profiles, auto-detect fans, and monitor temperatures with just one click.

DIY-Friendly Design

Whether you are a first time or seasoned builder, the PRO Z790-VC WIFI is designed to promote easy assembly and reduce the guesswork in your system. You get a keep out zone and XL PCIe clip which help with component installation, while double ESD protection and EZ debug LEDs offer support for your software. This motherboard is also Windows 11 Certified, ensuring proper usage with the operating system.

Expansion Capabilities

MSI’s Lightning Gen 5 PCIe bandwidth supports up to 128 GB/s data transfer speeds and sports a Steel Armor covering that offers a reinforced casing to help support heavy, large graphics cards. You also get enhanced storage speeds, USB-C speeds, and more.

Protection

An array of protections is built into the PRO Z790-VC WIFI including reinforced power connectors, stainless steel I/O panels, solidified grounding structure, OCP protection, and TVS technologies, all working together to prevent electrical damage.

Memory Layout

Quad DDR5 RAM slots utilize XMP technology to boost the speed of your memory to greater levels, optimizing render and multitasking speeds. Memory Extension Mode optimizes memory parameters to achieve lower latency and higher performance.

BIOS & Software

Explore greater possibilities with various BIOS and software programs confined into a centralized application called MSI Center, giving you access to Mystic Light, True Color, User Scenario, Hardware Monitoring, Profile sharing, Fan Center, and System Diagnosis. Click BIOS 5 allows you to easily navigate the internal settings of your system with EZ-Mode and ADVANCED modes. Resizable Bar configures your system for greater GPU speeds. A free trial period for AIDA64 is also included.

Audio Support

Audio Boost 5 leverages high-performance codec and audio processor to deliver clear audio, accompanied high-quality audio capacitors, audio jacks with S/PDIF, an isolated signal, and De-POP protection.

Mystic Light

Utilize RGB peripherals and strips with built-in colorization, standard RGB colorization, and Ambient Link technology that synchronizes exterior systems like lighting panels.

UPC: 824142343203

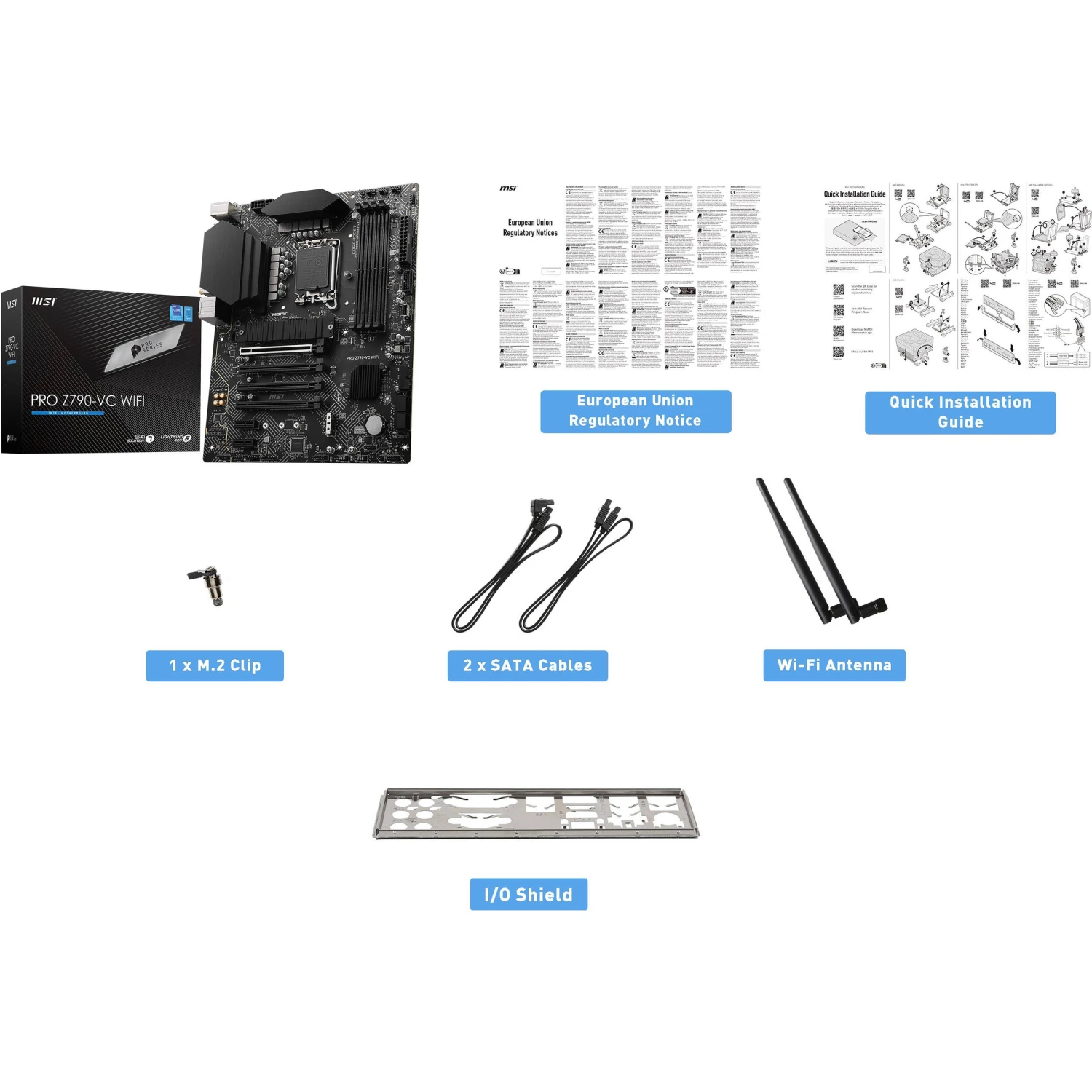

Items Included

MSI PRO Z790-VC WIFI LGA 1700 ATX Motherboard
2 x SATA Cables
Wi-Fi Antenna
I/O Shield
M.2 Clip
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

MSI PRO Z790-VC WIFI Specs

Key Specs

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots	1x PCIe 5.0 x16 (x16 mode) 2x PCIe 3.0 x16 (x1 mode) 1x PCIe 3.0 x16 (x4 mode) 2x PCIe 3.0 x1
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor	ATX

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

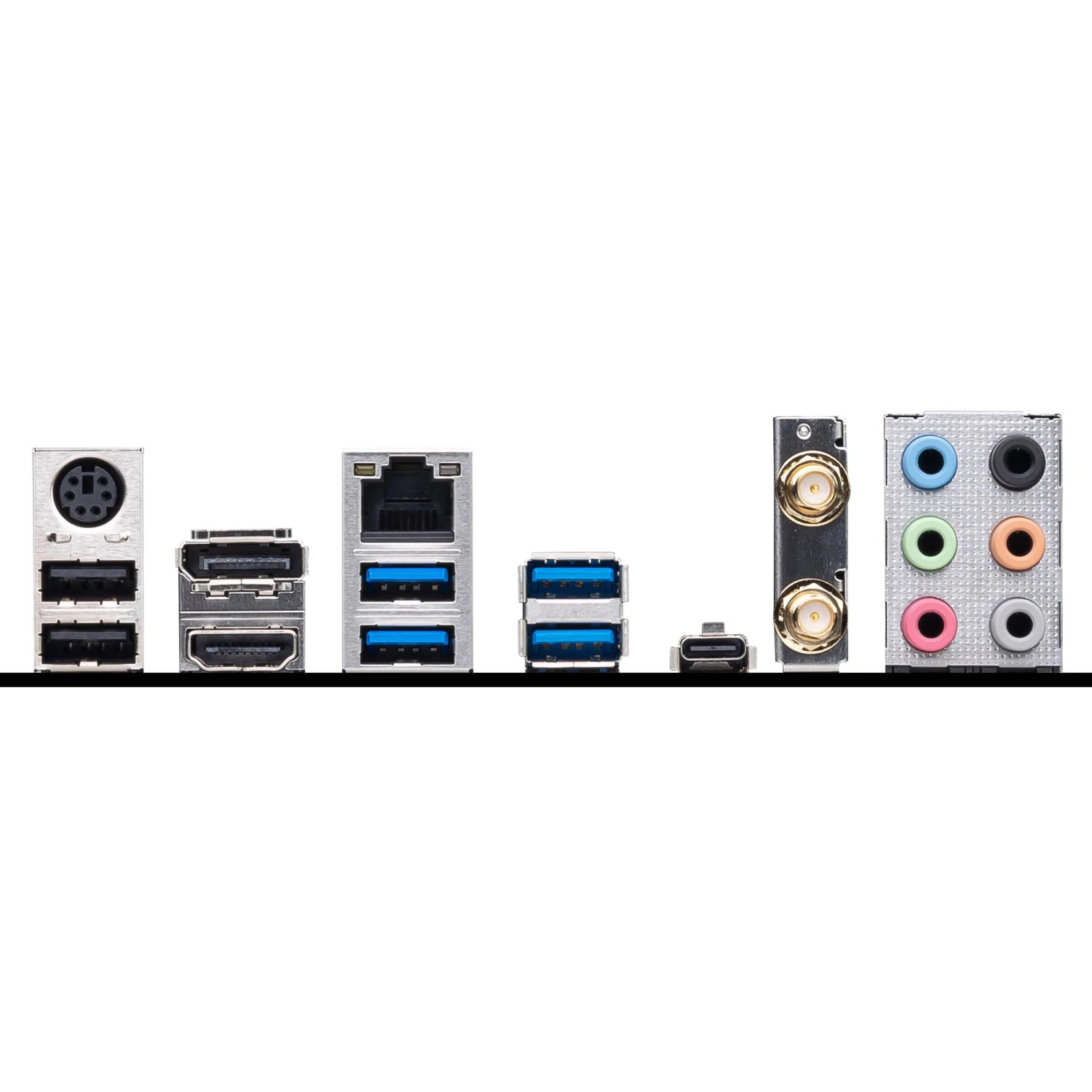

Back Panel I/O

USB	4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) 1x USB-C (USB 3.2 Gen 2×2)
Thunderbolt	No
Display	1x DisplayPort 1x HDMI
Audio	6x 1/8″ / 3.5 mm
Ethernet / Controller	1x Realtek RTL8125BG 2.5Gigabit
PS/2	1x Combo

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered
SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
RAID Support	No

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 (x16 mode) 2x PCIe 3.0 x16 (x1 mode) 1x PCIe 3.0 x16 (x4 mode) 2x PCIe 3.0 x1
USB	2x USB 2.0 Header (Supports 4 USB-A Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin CPU
Security	Chassis Intrusion, TPM Header
LED Header	4x RGB

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC897 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	5.4

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor	ATX
Dimensions	9.6 x 12″ / 24.4 x 30.5 cm

Packaging Info

Package Weight	3.07 lb
Box Dimensions (LxWxH)	14.3 x 10.7 x 2.8″
