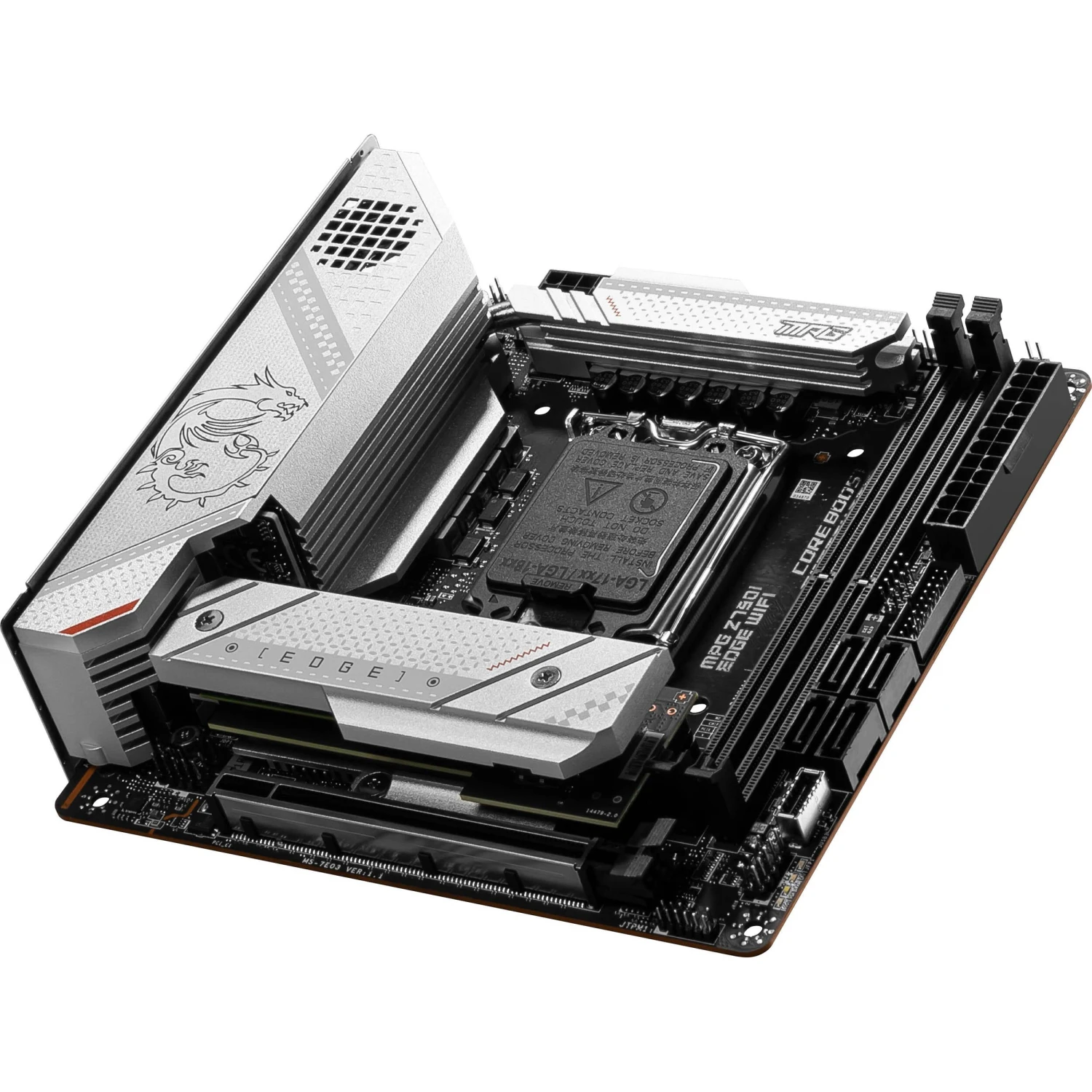

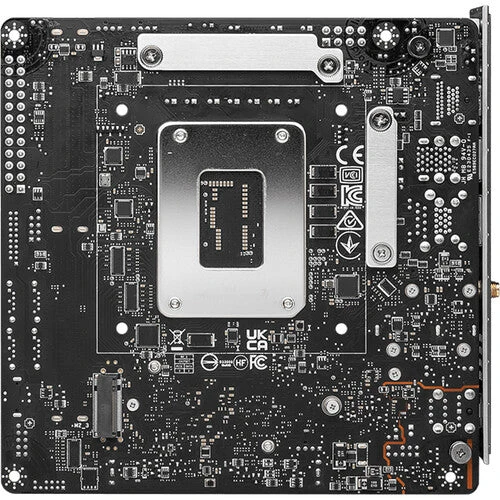

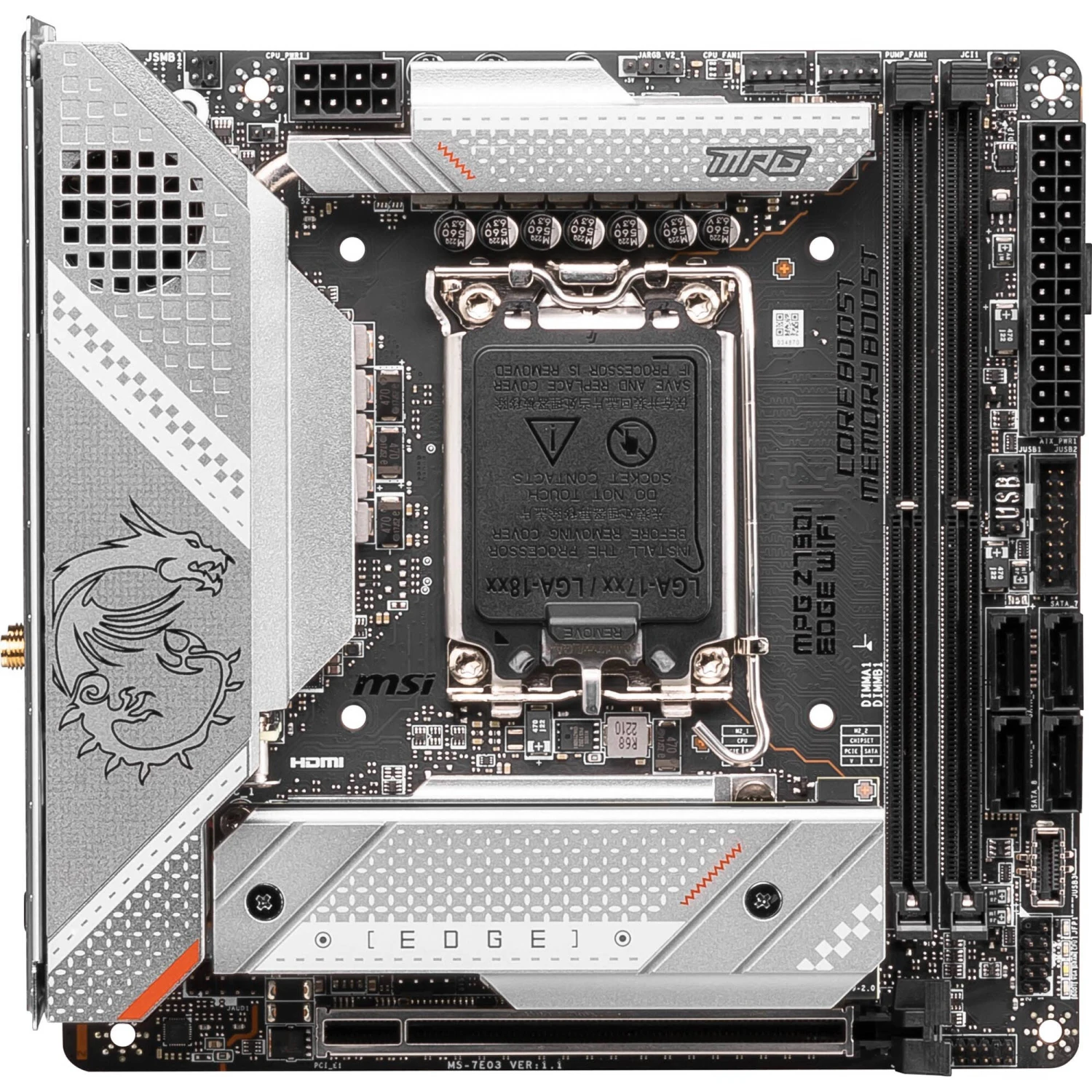

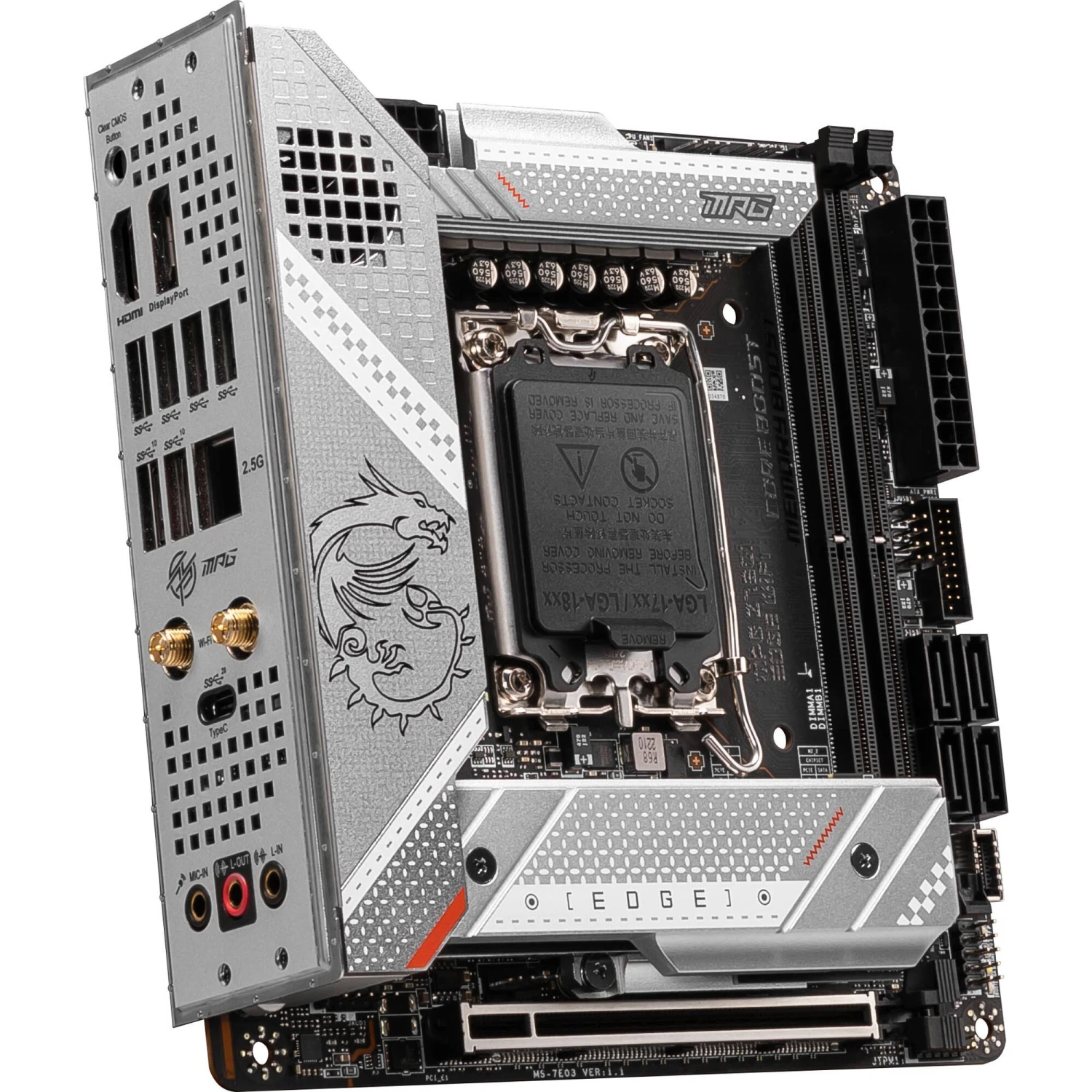

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard(Msi Mpg Z790i Edge Wifi Lga 1700 Mini Itx Motherboard)

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard(Msi Mpg Z790i Edge Wifi Lga 1700 Mini Itx Motherboard) - Image 2

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard(Msi Mpg Z790i Edge Wifi Lga 1700 Mini Itx Motherboard) - Image 3

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard(Msi Mpg Z790i Edge Wifi Lga 1700 Mini Itx Motherboard) - Image 4

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard(Msi Mpg Z790i Edge Wifi Lga 1700 Mini Itx Motherboard) - Image 5

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard(Msi Mpg Z790i Edge Wifi Lga 1700 Mini Itx Motherboard) - Image 6

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard(Msi Mpg Z790i Edge Wifi Lga 1700 Mini Itx Motherboard)

Original price was: $329.00.Current price is: $96.99.

SKU: DGFUB 6950302449749 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computers, Desktop Components, Motherboards, MSI MPG Z790i EDGE WIFI

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

MSI MPG Z790i EDGE WIFI Overview

1Description
2LGA 1700 Socket
3Intel Z790 Chipset
410+1+1 Phase Power
5Lightning Gen 5
6DDR5 Memory Support
7Audio Boost 5
82.5 Gigabit Etherent
9USB 3.2 Gen 2×2

Bring big performance to small cases with the MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard from MSI. Utilizing the Intel Z790 chipset and LGA 1700 socket, this Mini-ITX motherboard sports two DDR5 RAM slots supporting dual channel memory and speeds up to 8000 MHz when overclocked. Four SATA III and three M.2 interfaces provide ample room for storage. RAID 0, 1, 5, and 10 is supported via SATA; RAID 0, 1, and 5 is supported via M.2. Install a GPU or other adapter card via a PCIe 5.0 x16 slot. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals with ease using Bluetooth 5.2.

The Realtek ALC4080 audio codec supports 7.1 channel surround sound, while rear ports allow for analog connections. Interface with wired peripherals via four USB 3.2 Gen 1 and two Gen 2 Type-A ports, or via a USB 3.2 Gen 2×2 Type-C port. Output video via DisplayPort and HDMI. The rear I/O panel also sports a Clear CMOS summary, while internal headers provide support for front-panel USB 3.2 Gen 2×2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, chassis intrusion, a TPM module, RGB connector, and more.

LGA 1700 Socket

This motherboard features an LGA 1700 socket, which supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.

Intel Z790 Chipset

This motherboard sports the Intel Z790 chipset for optimal performance.

10+1+1 Phase Power

Maximize CPU performance with 10+1+1 phase power and 105A Smart Power Stage.

Lightning Gen 5

Lightning Gen 5 is a PCIe 5.0 solution that boasts up to 128 GB/s bandwidth and for optimal transfer speed.

DDR5 Memory Support

DDR5 support allows for optimized performance and increased speed over older DDR4 standards. Plus, Memory Boost technology delivers pure data signals for unfettered performance, stability, and compatibility.

Audio Boost 5

Audio Boost 5 provides isolated audio with high quality audio processor for the most immersive gaming experience.

2.5 Gigabit Etherent

This motherboard also features a 2.5G LAN to deliver fast networking.

USB 3.2 Gen 2×2

A built-in USB 3.2 Gen 2×2 port offers up to 20 Gb/s transmission speed, four times faster than USB 3.2 Gen 1.

UPC: 824142301456

In the Box

MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard
2 x SATA Cables
M.2 Screw Package
USB Drive
Rainbow RGB LED Extension Cable
Cable Stickers
Wi-Fi Antenna
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
LGA 1700 Socket
Intel Z790 Chipset
10+1+1 Phase Power
Lightning Gen 5
DDR5 Memory Support
Audio Boost 5
2.5 Gigabit Etherent
USB 3.2 Gen 2×2

MSI MPG Z790i EDGE WIFI Specs

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

Back Panel I/O

USB	4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2 x USB-A (USB 3.1/3.2 Gen 2) 1 x USB-C (USB 3.2 Gen 2×2)
Thunderbolt	None
Display	1 x HDMI 2.1 1 x DisplayPort 1.4
Audio	3 x 1/8″ / 3.5 mm
Ethernet / Controller	1 x Intel 2.5Gigabit
Wi-Fi Antenna	2 x Connector
Buttons	Clear CMOS

Memory

Memory Slots	2 x 288-Pin
Memory Support	DDR5 5600, 6600, 8000 MHz
Maximum Capacity	64 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4 x SATA III
M.2	2 x M Key 2280 (PCIe 4.0 x4) 1 x M Key 2280 (PCIe 3.0 x4, SATA III)
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5 (M.2)

Internal I/O

Expansion Slots	1 x PCIe 5.0 x16
USB	1 x 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1 x 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1 x 4-Pin CPU 1 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin ATX
Security	Chassis Intrusion, TPM Module
LED Header	1 x RGB
Audio	None
Diagnostics	2-Digit Debug LED

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec

Realtek ALC4080 (7.1-Channel)

Wireless

Bluetooth	5.2
Wi-Fi	Wi-Fi 6E (802.11ax) with MU-MIMO Support
Wireless	Wi-Fi 6E (802.11ax) / Bluetooth 5.2
Module Support	1 E Key M.2

Physical

Form Factor	Mini-ITX
Dimensions	6.7 x 6.7″ / 17.0 x 17.0 cm

Packaging Info

Package Weight	2.68 lb
Box Dimensions (LxWxH)	9.2 x 7.7 x 3.3″
