Sale!

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard)

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard) - Image 2

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard) - Image 3

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard) - Image 4

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard) - Image 5

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard) - Image 6

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard) - Image 7

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard(Msi Mag B760 Tomahawk Wifi Ddr4 Lga 1700 Atx Gaming Motherboard)

Original price was: $343.41.Current price is: $95.99.

SKU: DGFUB 6980910350421 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computer Components, Computers, Desktop Components, MSI MAG B760 TOMAHAWK WIFI

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

MSI MAG B760 TOMAHAWK WIFI Overview

1Description
2Enhanced Design
3DIY Friendly
4Built for Performance
5Software Enhancements
6Reliable Design
7Enhanced Audio
8Mystic Light

Set the foundation of your next PC build with the robust MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard. Designed to leverage the power of 12th and 13th Gen Intel CPUs, the MAG offers a solid foundation designed for gaming enthusiasts.

Intel’s LGA 1700 socket rests at the heart of the MAG, allowing you to install a variety of 12th and 13th Gen processors to match your needs. Four DDR4 RAM slots allow you to install up to 128GB of memory to enhance multitasking and render speeds. Four SATA III and three M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with PCIe 5.0 x16, 4.0 x16 (in x1 mode), and 3.0 x4 expansion slots. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. A single USB-C 3.2 Gen 2×2 port offers enhanced data transfer speeds and Power Delivery, allowing you to support power-hungry devices with ease. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.

Enhanced Design

Providing you with enhanced performance, the MAG utilizes several features and electrical designs to optimize your gaming experience. Core Boost Technology works in tandem with the 12+1+1 Dual Rail Power System with 75A DrMOS. Extended heat sink, pump fan support, M.2 Shield Frozr, and chipset heat sink with 7W/mK thermal pad all work together to ensure your system remains cool under heavy loads.

DIY Friendly

Whether you are a seasoned or a brand new builder, the MAG offers several enhancements that are useful to everyone. EZ M.2 Clip makes securing your SSDs quick, easy, and screw-free. Driver Utility Installer keeps your firmware up to date, preventing potential software issues. You also have several other conveniences such as the pre-installed I/O shield, XL PCIe clip, EZ debug LEDs, and an electrical keep out zone.

Built for Performance

The MAG’s PCIe 5.0 x16 slot is backed by their proprietary Lightning Gen 5 technology, giving you up to 128 GB/s bandwidth, driving up graphical performance as well as up to 20 Gb/s speeds for the rear USB-C 3.2 Gen 2×2 port. Integrated Xtreme Memory Profile (XMP) overclocks your memory and ensures proper electrical throughput for greater RAM speeds.

Software Enhancements

Various ingrained systems allow you to fully optimize your gaming experience. MSI Center is a one-stop-shop platform for most of your needs. You can customize your settings with Profile Setting, Fan Center, System Diagnosis, Hardware Monitoring, User Scenario, and True Color settings. You also have various BIOS settings that can be adjusted with EZ-Mode or Advanced Mode along with Resizable Bar, adding even more optimization options for your system.

Reliable Design

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

Enhanced Audio

Ensure your audio is top-notch with an array of high-definition processors, audio capacitors, and jacks designed to deliver immersive audio suitable for your games and media. Isolated audio signal splits channels to prevent crosstalk for an even clearer sound. Protect your ears as you plug and unplug your headset with De-Pop Protection.

Mystic Light

Mystic Light allows you to customize your lighting colors and effects to add personality to your system.

UPC: 824142305980

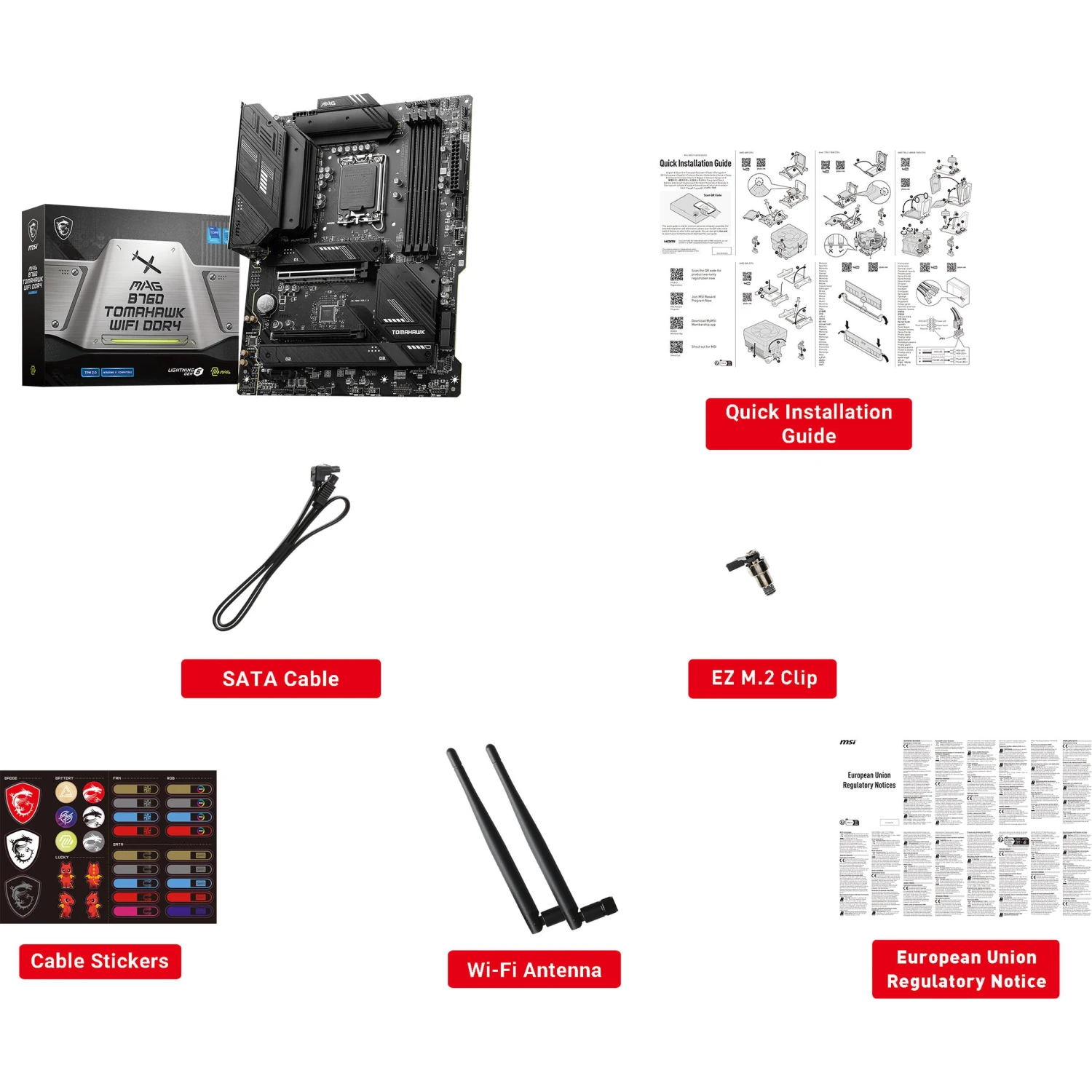

In the Box

MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard
SATA Cable
EZ M.2 Clip
Wi-Fi Antennas
Cable Sticker Sheet
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Enhanced Design
DIY Friendly
Built for Performance
Software Enhancements
Reliable Design
Enhanced Audio
Mystic Light

MSI MAG B760 TOMAHAWK WIFI Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	4 x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz
M.2	1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots	1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x1 mode) 1 x PCIe 3.0 x4
Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor	ATX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

Back Panel I/O

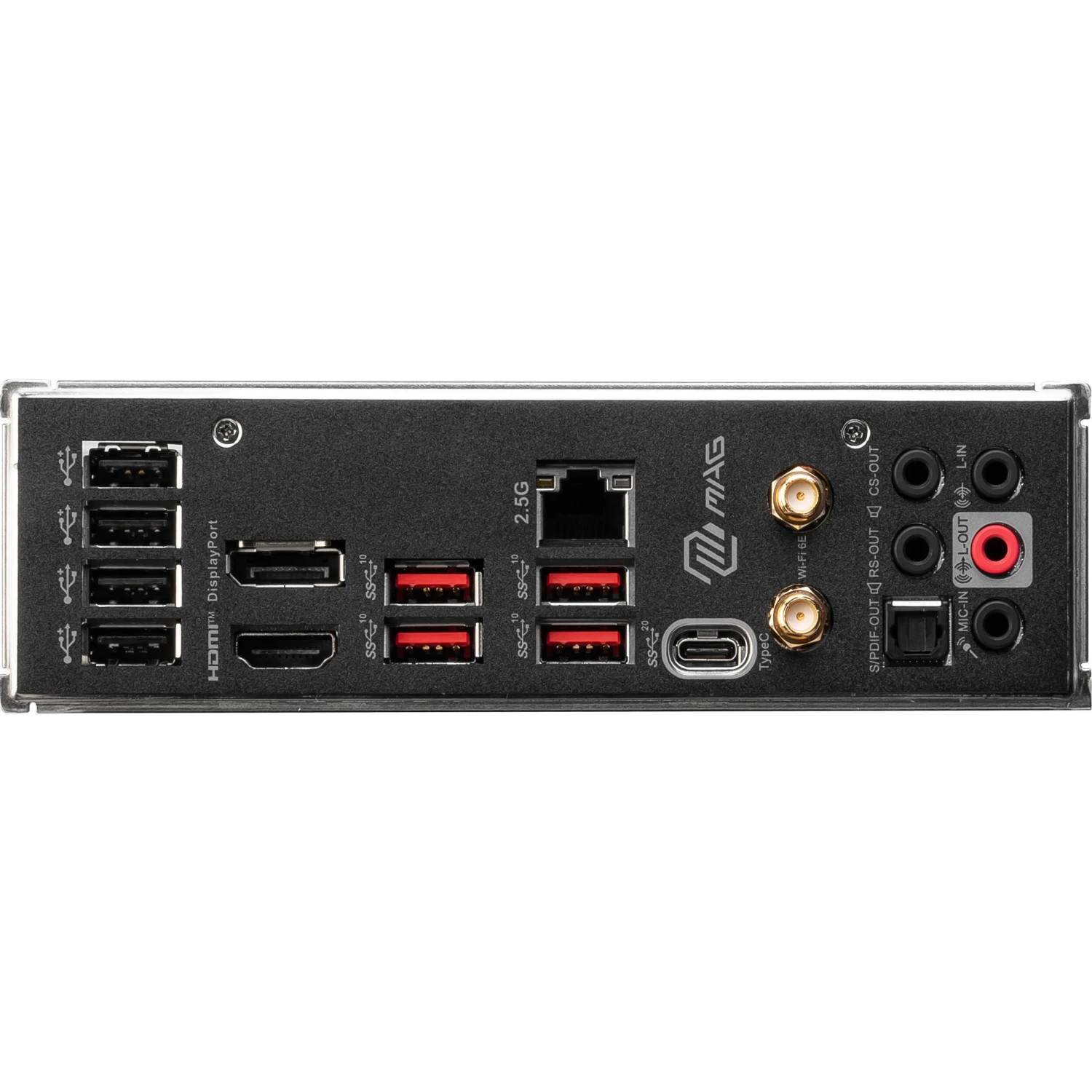

USB	4 x USB-A (USB 2.0) 4 x USB-A (USB 3.1/3.2 Gen 2) 1 x USB-C (USB 3.2 Gen 2×2)
Thunderbolt	No
Display	1 x DisplayPort 1.4 1 x HDMI 2.1
Audio	5 x 1/8″ / 3.5 mm 1 x S/PDIF
Ethernet / Controller	1 x 2.5Gigabit
Wi-Fi Antenna	2 x Connector

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4 x SATA III
M.2	1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x1 mode) 1 x PCIe 3.0 x4
USB	1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1 x 4-Pin CPU 5 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 2 x 8-Pin CPU
Security	Chassis Intrusion, TPM Header
LED Header	4 x RGB
Add-On	1 x Thunderbolt Header

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec

Realtek ALC897 (7.1-Channel)

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth	5.3

Software

OS Compatibility

Windows 10 to 11
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor	ATX
Dimensions	9.60 x 12.0″ / 243.84 x 304.8 mm

Packaging Info

Package Weight	3.94 lb
Box Dimensions (LxWxH)	13.7 x 11.1 x 2.9″
