MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard(Msi Mag B650 Tomahawk Wifi Am5 Atx Motherboard)

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard(Msi Mag B650 Tomahawk Wifi Am5 Atx Motherboard) - Image 2

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard(Msi Mag B650 Tomahawk Wifi Am5 Atx Motherboard) - Image 3

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard(Msi Mag B650 Tomahawk Wifi Am5 Atx Motherboard) - Image 4

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard(Msi Mag B650 Tomahawk Wifi Am5 Atx Motherboard) - Image 5

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard(Msi Mag B650 Tomahawk Wifi Am5 Atx Motherboard) - Image 6

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard(Msi Mag B650 Tomahawk Wifi Am5 Atx Motherboard)

Original price was: $343.41.Current price is: $99.99.

SKU: DGFUB 6954211016789 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computers, Desktop Components, Motherboards, MSI MAG B650 TOMAHAWK WIFI

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

MSI MAG B650 TOMAHAWK WIFI Overview

1Description
2DIY Friendly
3Expansion Slots
4Performance Boosting Technologies
5Thermal Enhancements
6MSI Center

Get your next build off on the right foot with the MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard. Offering robust connectivity for gaming-focused components and unique customization options, the MAG B650 TOMAHAWK WIFI is ideal for both new and seasoned builders alike.

With an AM5 socket, you can support a wide range of AMD Ryzen 7000 Series processors. Four dual-channel DDR5 RAM slots allow you to install up to 128GB of memory so you can scale your multitasking performance to your liking. Six SATA and three M.2 interfaces allow you to create an array of storage drives for your games, media, and other important applications. Easily install various graphics and utility cards with PCIe 4.0 x16, PCIe 4.0 x16 (x4 mode), and PCIe 3.0 x1 expansion slots. The back panel provides you with ample connectivity options, giving you four USB-A 3.2 Gen 1 and three USB-A 3.2 Gen 2 ports, giving you data transfer speeds up to 5 and 10 Gb/s, respectively, suitable for a wide range of peripherals such as external storage drives, microphones, and more. Connect your keyboard and mouse with two USB-A 2.0 ports. A single USB-C 3.2 Gen 2×2 port offers up to 20 Gb/s speeds, suitable for audio arrays. Bluetooth 5.2 technology provides support for wireless devices such as headphones and controllers. When combined with Ryzen processors with integrated graphics, the DisplayPort and HDMI video outputs can provide you with enhanced visual capabilities suitable for light workloads and troubleshooting. Connect to your network via Wi-Fi 6E (802.11ax) technology or use the integrated 2.5 Gigabit Ethernet port for a reliable wired connection. You also get dual BIOS, allowing you to swap back and forth between two different setups with ease.

DIY Friendly

The MAG B650 TOMAHAWK WIFI includes a variety of built-in functions that enable an easy installation ideal for both new and seasoned builders. PCI-E Steel Armor slot provides extra rigidity to the expansion slot by adding metal plating and extra anchor points. EZ M.2 Clips make installation of solid-state drives easier and quicker. EZ DEBUG LED, EZ LED Control, and Flash BIOS Button streamline your troubleshooting process in the event of a failure.

Expansion Slots

Three expansion slots operate on different electrical patterns to ensure compatibility with a wide range of graphics and utility cards. The PCIe 4.0 x16 slot is for powerful GPUs along with one PCIe 4.0 x16 slot which operates in x4 mode. One PCIe 3.0 x1 mode is available for devices such as network and sound cards.

Performance Boosting Technologies

Software- and hardware-based technologies are integrated into the fabric of the MAG B650 TOMAHAWK WIFI design. Not only is electrical load managed throughout the 2 ounce copper thickened, server-grade PCB, but efficiency is optimized with Dual CPU Power design. Core Boost and Memory Boost technologies promote greater communications between the processor and memory modules for better performance. MSI’s Lightning Gen 4 PCI-E Slot and M.2 Slot technology leverage the CPU and B650 chipset to enhance performance for the graphics card and M.2 storage drives.

Thermal Enhancements

The MAG B650 TOMAHAWK WIFI includes an array of thermal enhancements that allow you to fully utilize the power of your components without worry of throttling. An extended heat sink design along the back panel, MOSFET K7 thermal pad, M.2 Shield Frozr, and extra choke pad all ensure the motherboard remains cool even under heavy loads. Additionally, the MAG B650 TOMAHAWK WIFI includes enhanced headers for CPU and liquid cooling pump systems for efficient cooling.

MSI Center

MSI added a wide array of proprietary software designed to enhance the user experience, whether you are sticking with a stock layout or decide to dive into overclocking. User Scenario, True Color, Live Update, Super Charger, Frozr AI Cooling, System Diagnosis, and Hardware Monitoring all work together so you can adjust various aspects of your system with ease. MSI’s Mystic Light and Ambient Devices software allows you to customize the appearance of your lighting systems, turning your PC into the centerpiece of your gaming room.

UPC: 824142301036

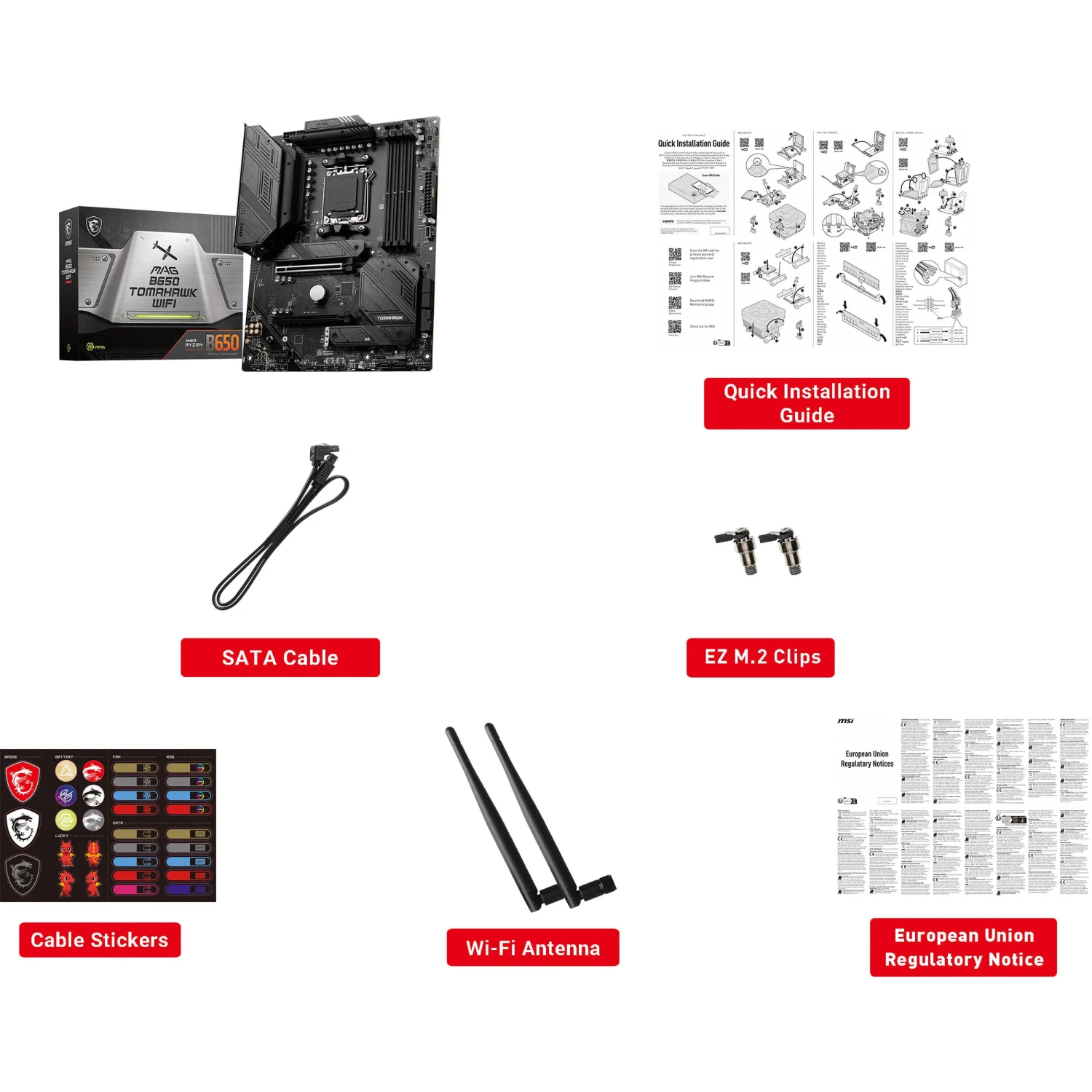

In the Box

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard
SATA Cable
EZ M.2 Clip Set
Cable Stickers
Wi-Fi Antenna
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
DIY Friendly
Expansion Slots
Performance Boosting Technologies
Thermal Enhancements
MSI Center

MSI MAG B650 TOMAHAWK WIFI Specs

CPU

Chipset	AMD B650
CPU Socket	AM5

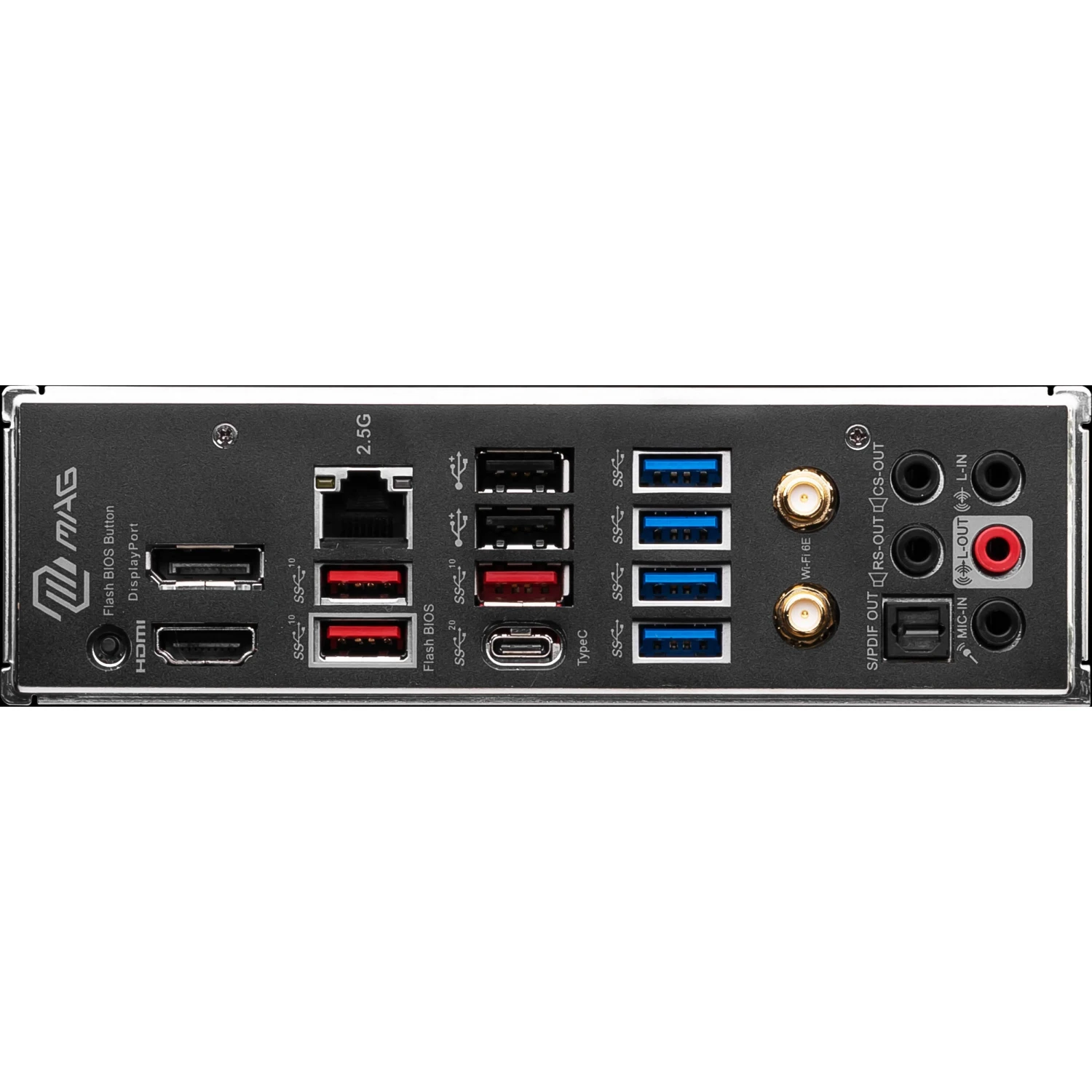

Back Panel I/O

USB	2 x USB-A (USB 2.0) 1 x USB-C (USB 3.2 Gen 2×2) 3 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt	None
Display	1 x HDMI 1 x DisplayPort
Audio	5 x 1/8″ / 3.5 mm 1 x S/PDIF
Ethernet / Controller	1 x 2.5Gigabit
Wi-Fi Antenna	2 x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR5 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	6 x SATA III
M.2	2 x M Key 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2280, 22110 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 10 (SATA) RAID 0, 1, 10

Internal I/O

Expansion Slots	1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x2 mode) 1 x PCIe 3.0 x1
USB	1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1 x 4-Pin CPU 6 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 2 x 8-Pin CPU
Security	Chassis Intrusion, TPM Header
LED Header	4 x RGB

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec

Realtek ALC4080 (7.1-Channel)

Wireless

Bluetooth	5.2
Wi-Fi	Wi-Fi 6E (802.11ax) with MU-MIMO Support
Wireless	Wi-Fi 6E (802.11ax) / Bluetooth 5.2
Module Support	1 E Key M.2

Physical

Form Factor	ATX
Dimensions	12 x 9.6″ / 30.5 x 24.4 cm

Packaging Info

Package Weight	3.92 lb
Box Dimensions (LxWxH)	13.5 x 10.6 x 2.8″
