Mimo Monitors UM-1080C Overview

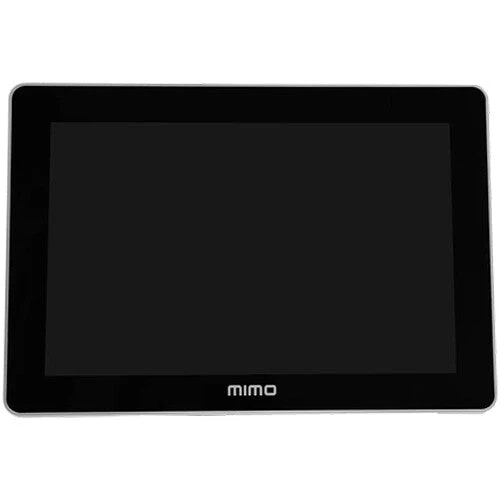

The Mimo Monitors UM-1080C-G-NB 10.1″ WXGA Commercial Touchscreen Monitor is a 350 nits bright IPS display with capacitive touch technology designed for retail, hospitality, information systems, control applications, and more. It features DisplayLink technology, which utilizes a single USB connection to supply power and video from a connected computer.
- Touch is driverless on most operating systems
- Compatible with Windows 7 and newer, and Linux
- Touchscreen driver purchase required for macOS and Win XP systems
Items Included
- Mimo Monitors UM-1080C-G-NB 10.1″ WXGA Commercial Touchscreen Monitor (USB, No Base)
- USB Cable
- Cable Cover and Attachment Screws
- Limited 1-Year Manufacturer Warranty
Additional Resources
User Manual
0.3 MB
Mimo Monitors UM-1080C Specs
| Display Size |
10.1″ |
| Panel Type |
IPS-Type LCD |
| Native Resolution |
1280 x 800 |
| Maximum Brightness |
350 nits / cd/m2 |
| HDR Support |
No |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
Capacitive |
| Outputs |
No |
| USB I/O |
1x USB-A (Unspecified Version) (Video/Touchscreen Control) |
| Display Size |
10.1″ |
| Panel Type |
IPS-Type LCD |
| Aspect Ratio |
16:10 |
| Native Resolution |
1280 x 800 |
| Maximum Brightness |
350 nits / cd/m2 |
| HDR Support |
No |
| Contrast Ratio |
800:1 |
| Refresh Rate |
60 Hz |
| Variable Refresh Technology |
No |
| Viewing Angle (H x V) |
170 x 170° |
| Screen Area |
8.5 x 5.3″ / 217 x 135.6 mm |
| Pixels Per Inch (ppi) |
149 ppi |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
Capacitive |
| Hardness Rating |
3H |
| Outputs |
No |
| Wireless |
No |
| USB I/O |
1x USB-A (Unspecified Version) (Video/Touchscreen Control) |
| USB Power Delivery |
6 W (via USB-A) |
| Ethernet I/O |
No |
| Built-In Speakers |
No |
| Power Consumption |
Operational: 6.0 W |
| Power Adapter Type |
External |
| Operating Conditions |
14 to 122°F / -10 to 50°C |
| Certifications |
FCC, CE, RoHS |
| Dimensions |
10.3 x 7.1 x 0.7″ / 260.7 x 179.4 x 17.5 mm |
| Package Weight |
2.195 lb |
| Box Dimensions (LxWxH) |
12.7 x 12.5 x 2.9″ |
