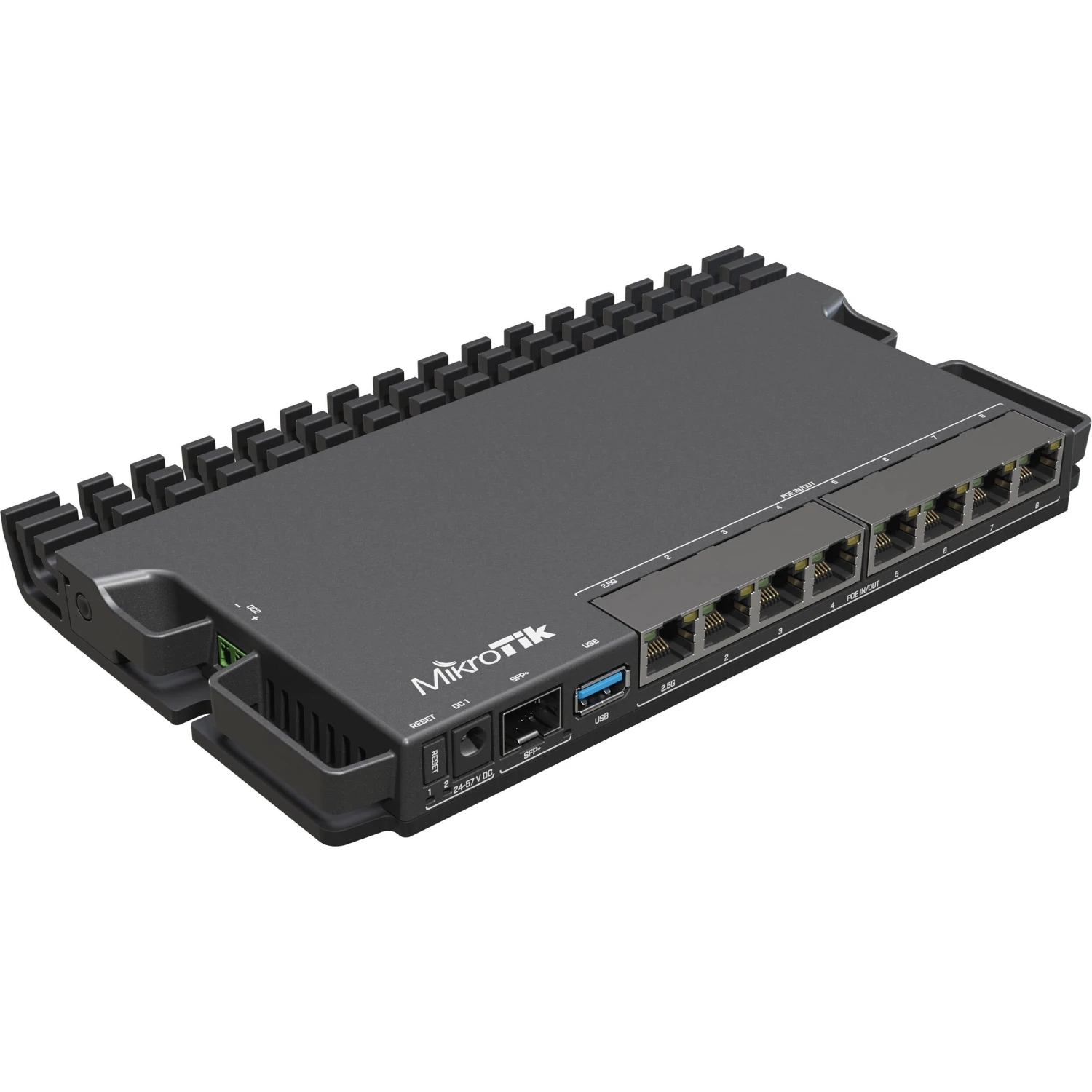

MikroTik RB5009UPr+S+IN 8-Port Multi-Gig PoE Router(Mikrotik Rb5009upr S In 8 Port Multi Gig Poe Router)

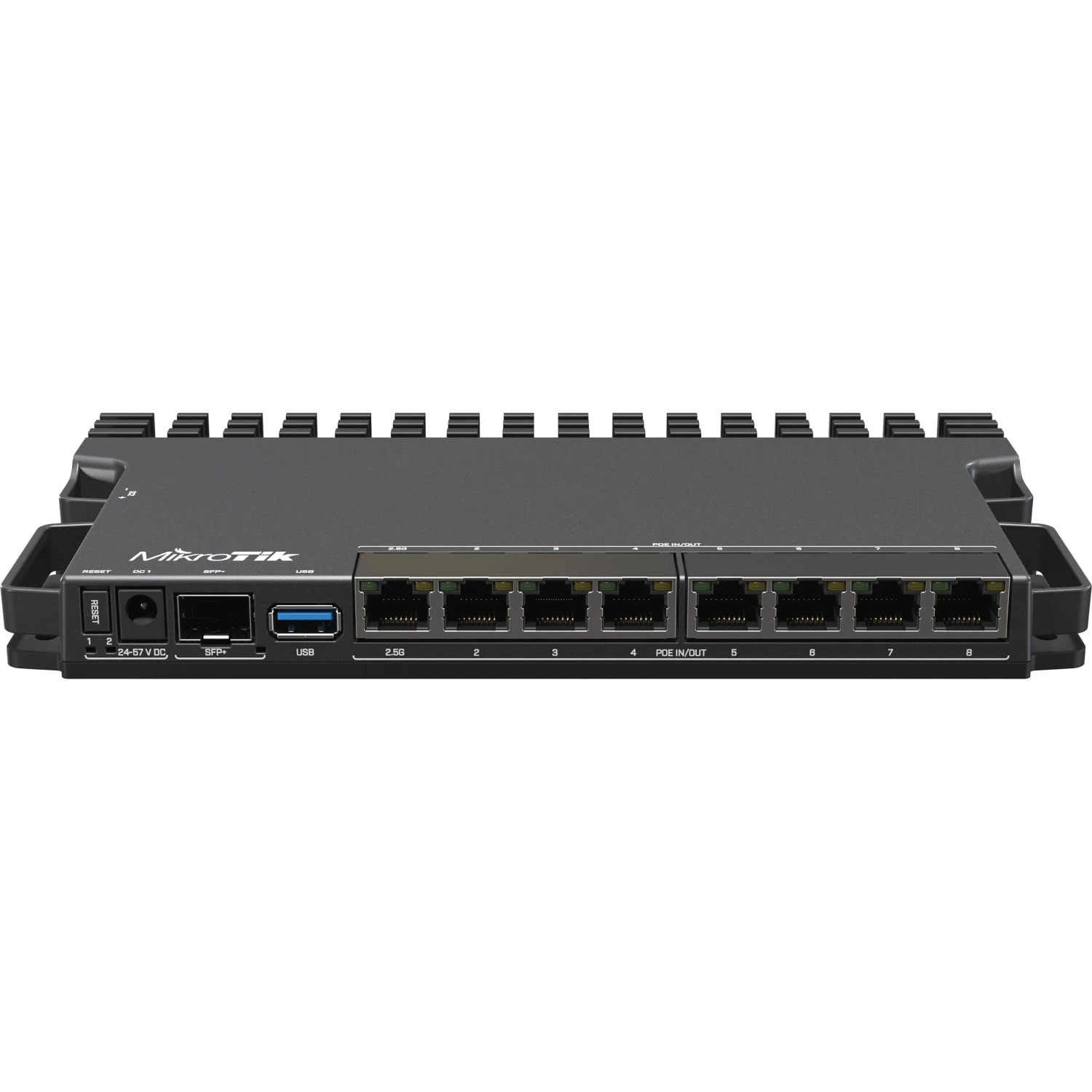

MikroTik RB5009UPr+S+IN 8-Port Multi-Gig PoE Router(Mikrotik Rb5009upr S In 8 Port Multi Gig Poe Router) - Image 2

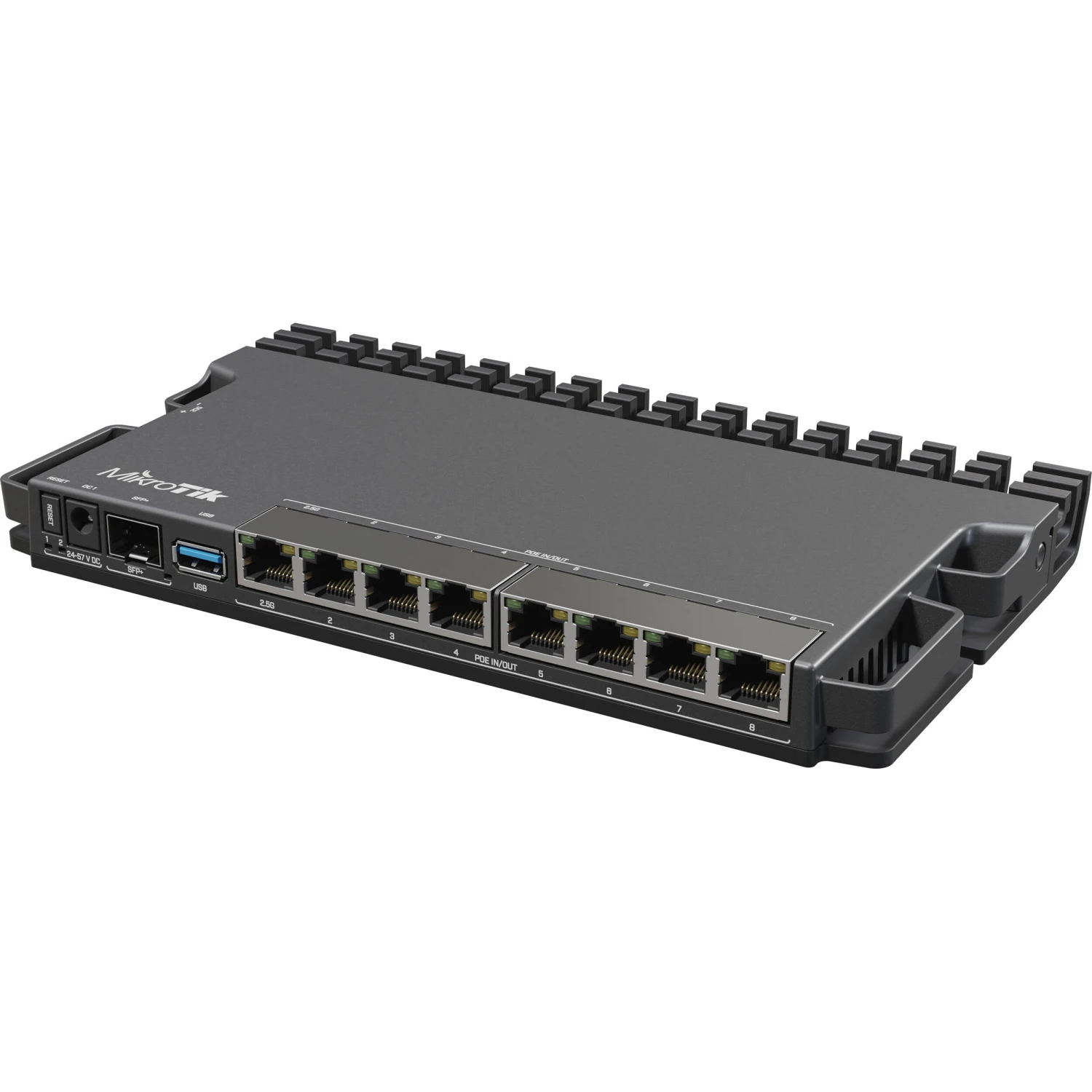

MikroTik RB5009UPr+S+IN 8-Port Multi-Gig PoE Router(Mikrotik Rb5009upr S In 8 Port Multi Gig Poe Router) - Image 3

MikroTik RB5009UPr+S+IN 8-Port Multi-Gig PoE Router(Mikrotik Rb5009upr S In 8 Port Multi Gig Poe Router)

Original price was: $371.00.Current price is: $98.99.

SKU: DGFUB 7132843933781 Categories: Computer & Presentation, Computer Solutions, Networking Tags: Computers, MikroTik RB5009UPR+S+IN, Network Routers, Networking

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

MikroTik RB5009UPR+S+IN Overview

Packing reliable performance into a small form factor, the RB5009UPr+S+IN 8-Port Multi-Gig PoE Router from MikroTik features seven Gigabit speed Ethernet ports and one 2.5 Gigabit Ethernet port, all of which are equipped with PoE input and output. There is also an SFP+ slot for up to 10 Gb/s fiber connections.

A 1.4 GHz Quad-Core processor is located at the bottom of the board alongside the switch chip, using the entire chassis as a massive heat sink to maintain optimal performance, alongside 1GB of RAM and 1GB of NAND storage. You can power this router by connecting the first port to a PoE compatible device, through the 2-pin terminal block, or using the included AC power adapter. You can mount the RB5009UPR+S+IN onto a wall or rack, with up to four able to fit in 1 RU of space. Use the RouterOS operating system to manage its settings.

This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, MikroTik added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level, but the RB5009UPr+S+IN takes it one step above that.

All power options support a wide voltage range of 24 to 57V. However, you cannot mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.

Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary.

Protect Your Uptime

So, what exactly happens if there is a problem with one of your power sources? Here’s a quick example: you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the PoE-in. The board itself gets powered by the highest voltage input, the PoE-in. If there’s a problem, RB5009 will fall back to the second highest voltage, the 2-pin connector. And if that fails, there’s the 24V option on the DC jack.

What about the PoE-out devices? Once again, the highest voltage wins. PoE-out devices will draw power from the 48V source on the 2-pin connector. If that fails, the 24V on the DC jack come into play. The board will always reserve 20 watts to power itself. If there is not enough power for all the PoE-out ports, it will start disabling the ones with the lowest priority. You can set the port priority manually.

Items Included

MikroTik RB5009UPr+S+IN 8-Port Multi-Gig PoE Router
48V/2A Power Adapter
IEC Power Cord
K-55 Screw Kit
Connector Plug
Limited 1-Year Manufacturer Warranty

Additional Resources

Quickstart Guide
