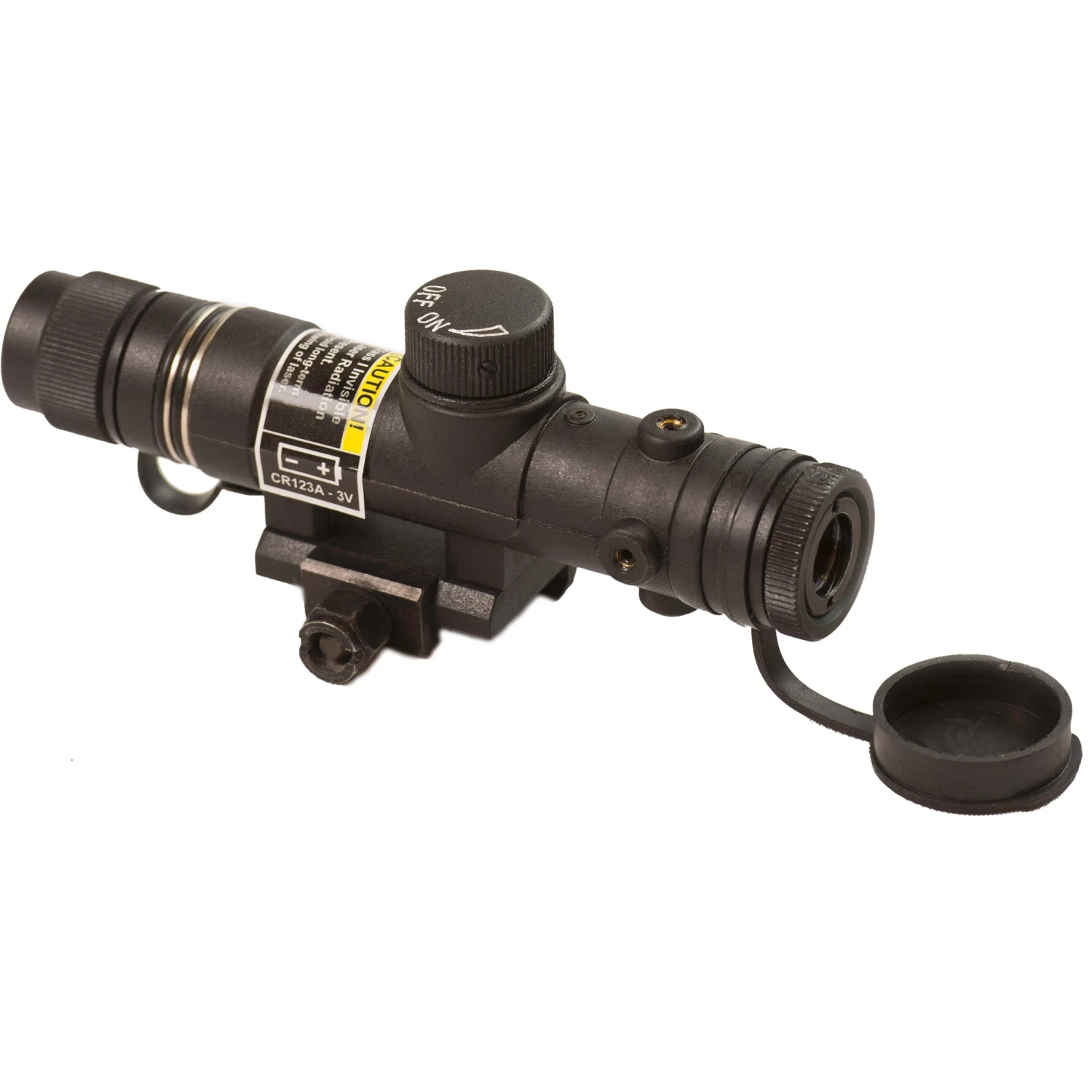

Luna Optics LN-ELIR-2 Overview
Use this Luna Optics Laser IR Illuminator with your night vision device to improve long-range visibility and aiming precision. It attaches to your NVD via a 1/4″-20 screw mount and casts up to 0.5mW of eye-safe coherent infrared laser light on your target. Change the beam divergence by twisting the bezel ring from 0.1° to 5°. For precision alignment with the line of sight of your night optic, the illuminator has beam direction adjustments for two axes. A direction adjustment tool and a belt pouch are included.
Items Included
- Luna Optics Laser IR Illuminator (1/4″-20 Screw Mount)
- Tethered Objective Cap
- Beam Adjustment Tool
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Luna Optics LN-ELIR-2 Specs
| Light/Emitter Type |
IR Laser w/ IR Illuminator |
| Laser Type |
Class 1 Eye Safe (IR) |
| Range of Illumination |
Not Specified by Manufacturer |
| Peak Wavelength |
850 nm |
| Peak Output |
IR Illuminator: 0.5 mW |
| Power Source |
1x CR123A Battery |
| Runtime |
4 Hours |
| Mount |
1/4″-20 Thread |
| Environmental Resistance |
Not Specified by Manufacturer |
| Material |
Plastic |
| Dimensions |
L: 4.8 x W: 1.2 x H: 0.9″ / L: 12.2 x W: 3.0 x H: 2.3 cm |
| Weight |
2.6 oz / 75 g |
| Package Weight |
0.45 lb |
| Box Dimensions (LxWxH) |
6.8 x 4.4 x 3.3″ |
