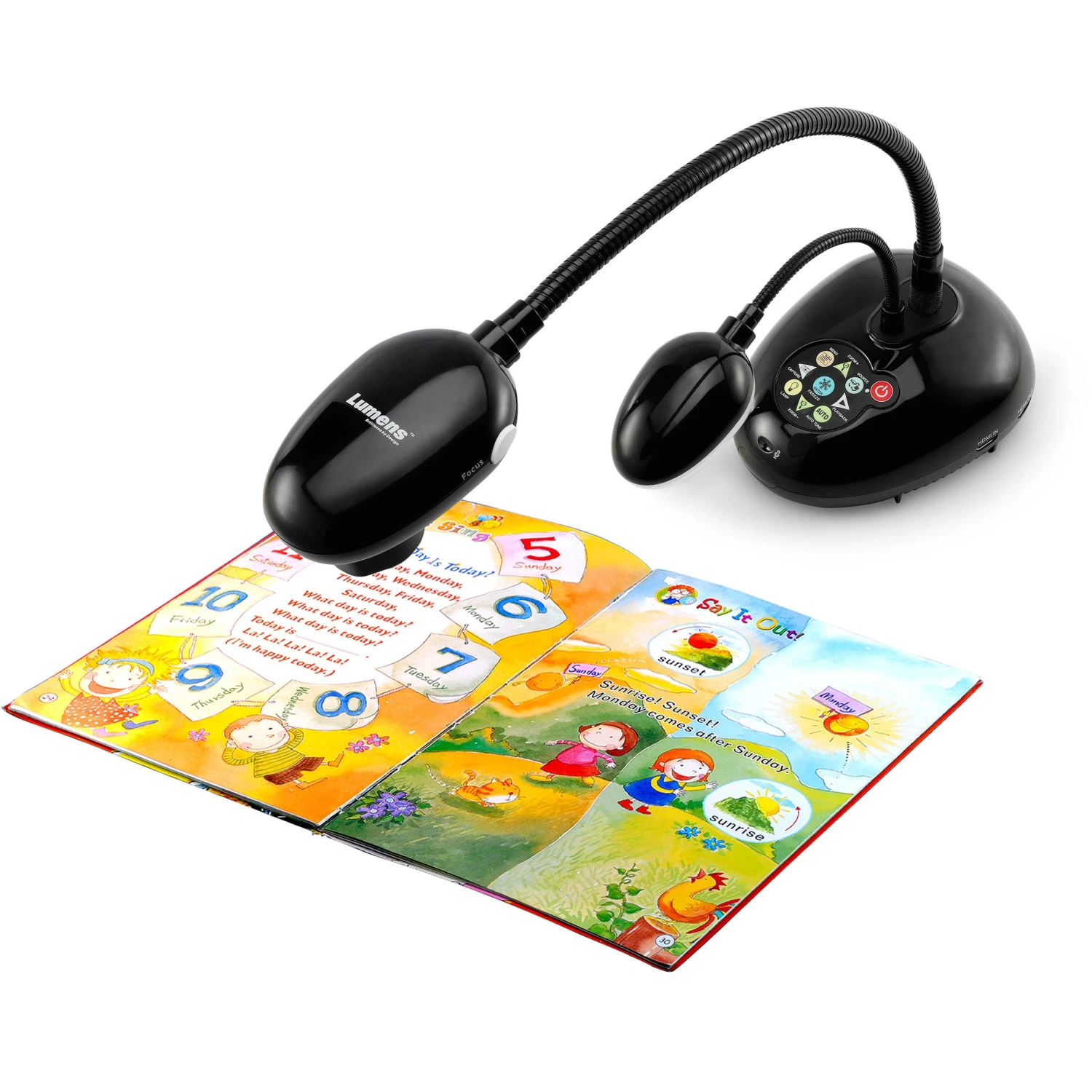

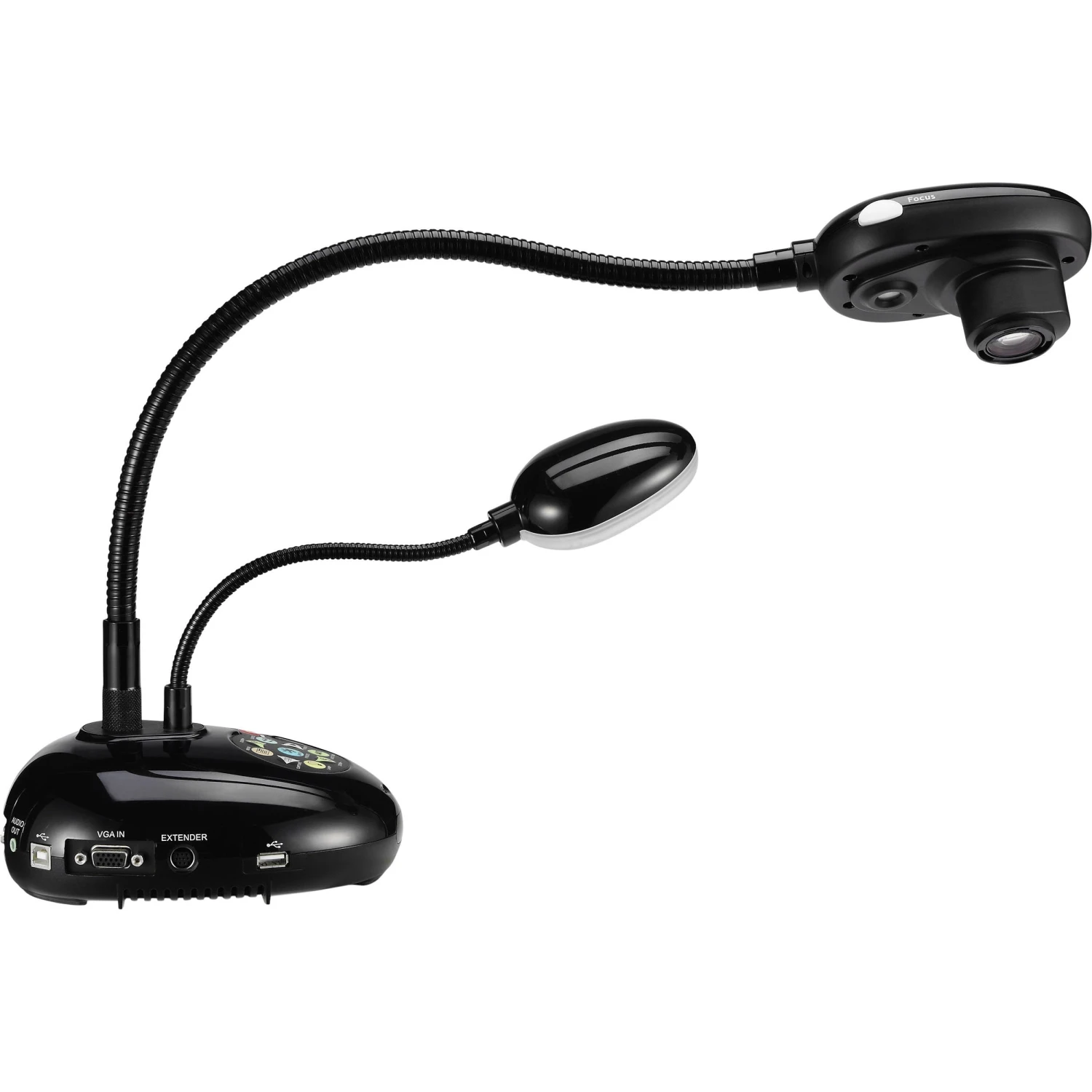

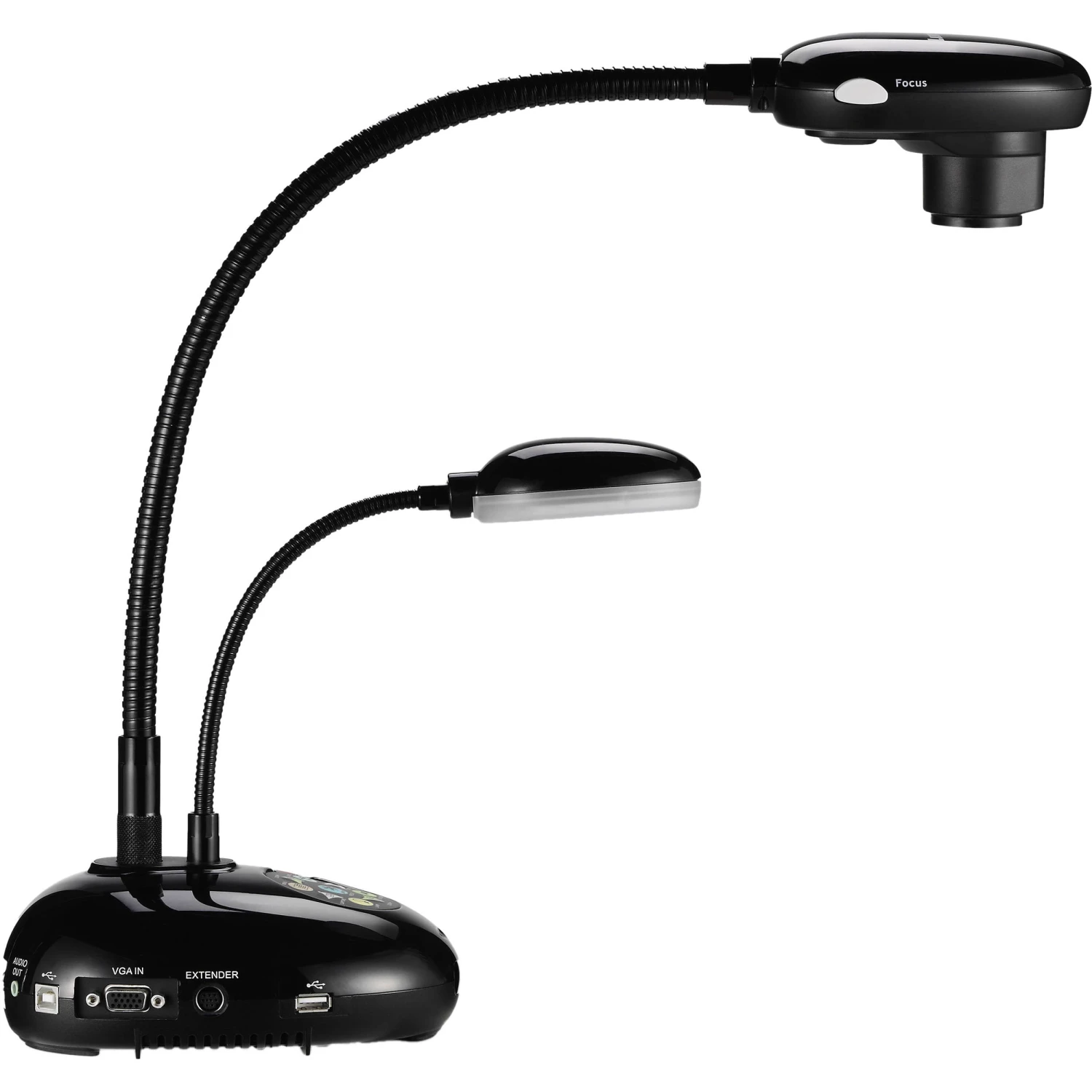

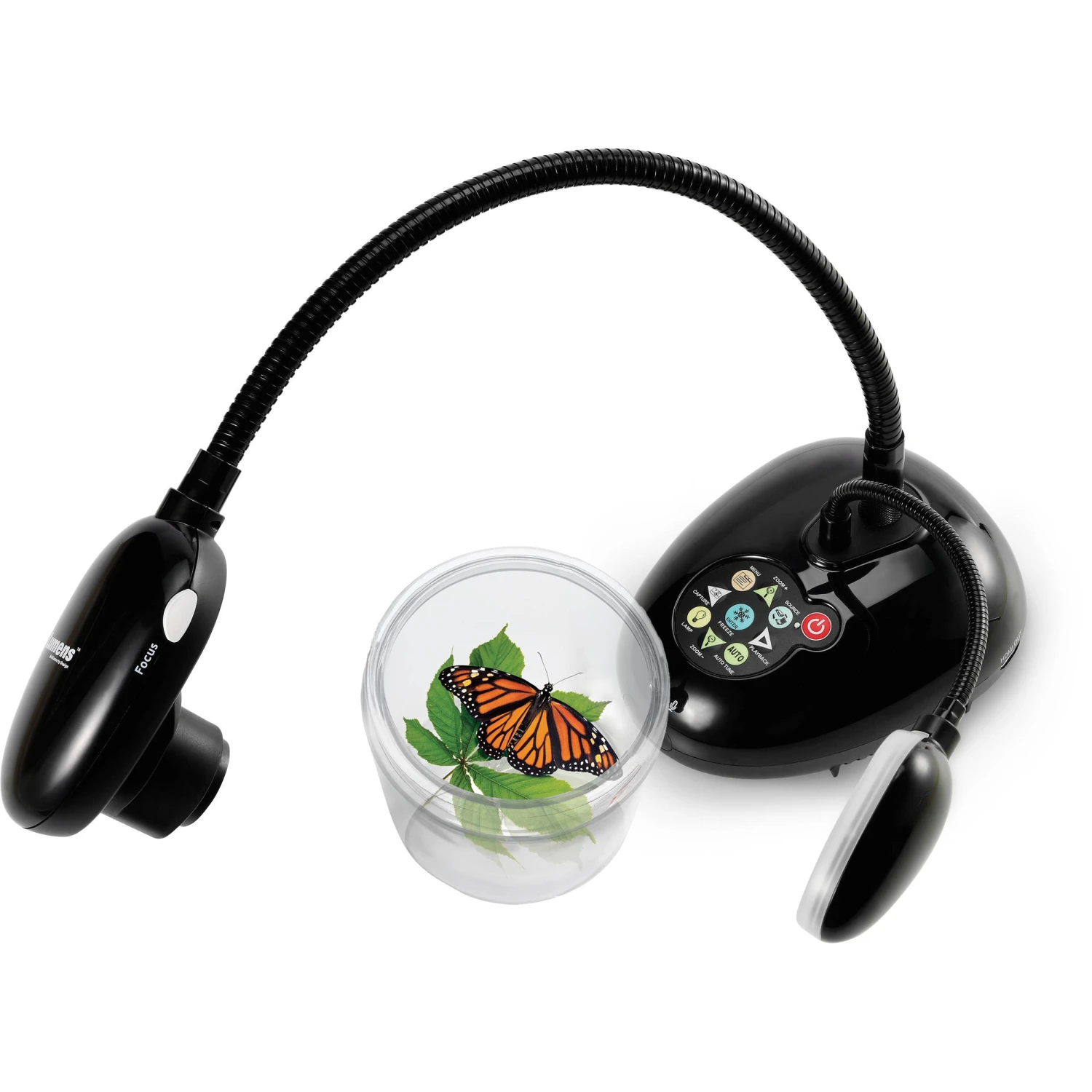

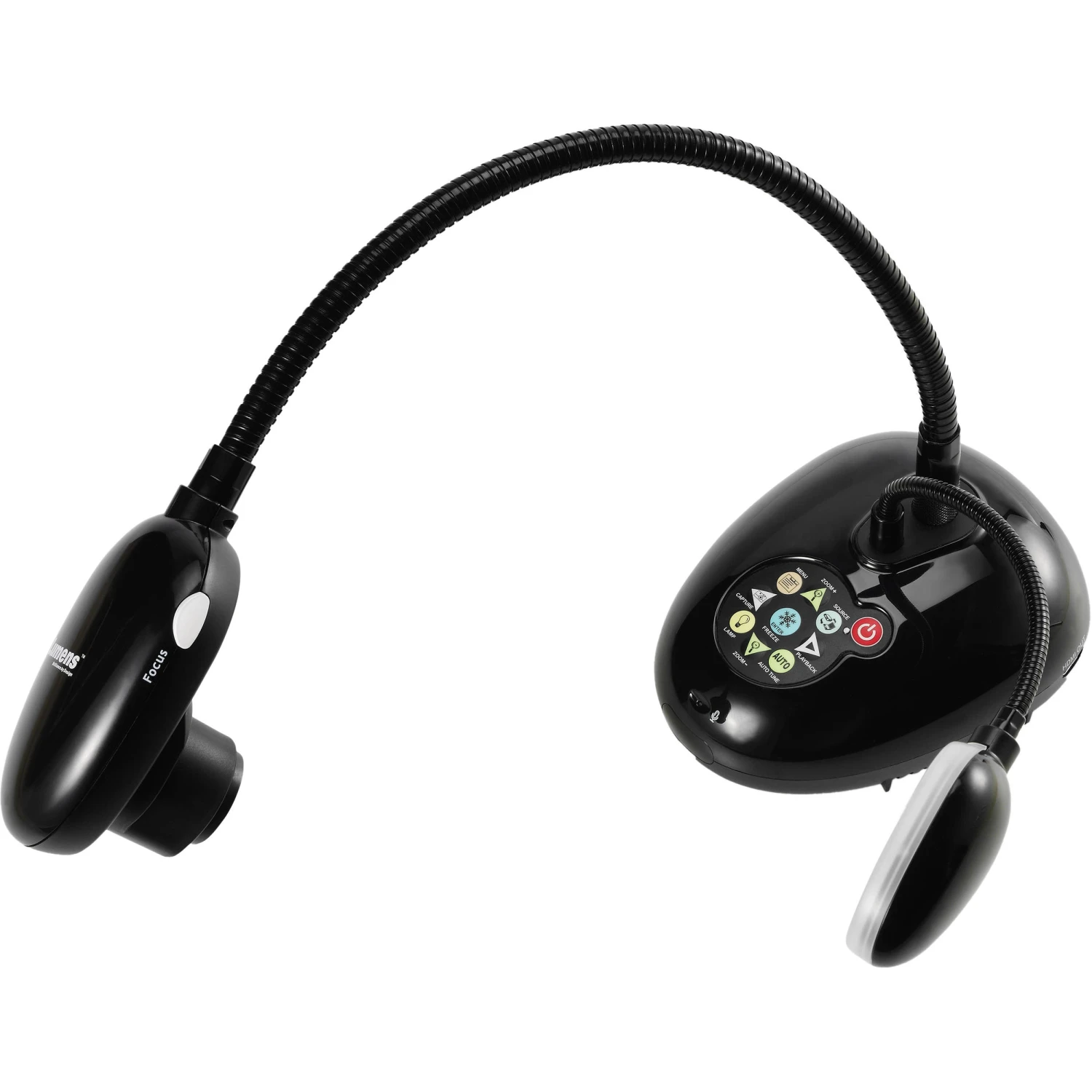

The black Ladibug PC193 Document Camera from Lumens features a 20x zoom and a professional image sensor to deliver vivid colors at Full HD 1080p/30 fps. It transmits a streaming image smoothly in real-time without delays. The internal memory stores up to 240 images and is expandable to 4TB using a USB flash drive. The one-touch video recording summary allows for recording standalone presentations without the need for a PC. The jointless, highly flexible gooseneck enables a 360° viewing angle and the ability to view an object from just 1.2″ to observe the object’s finer details. The adjustable side lamp design prevents reflections. It is a high-definition multimedia document camera that makes presentations and teaching more interactive.
- VGA and HDMI input/output
- Built-in microphone
- Compatible with USB flash drives
- Plug-and-play

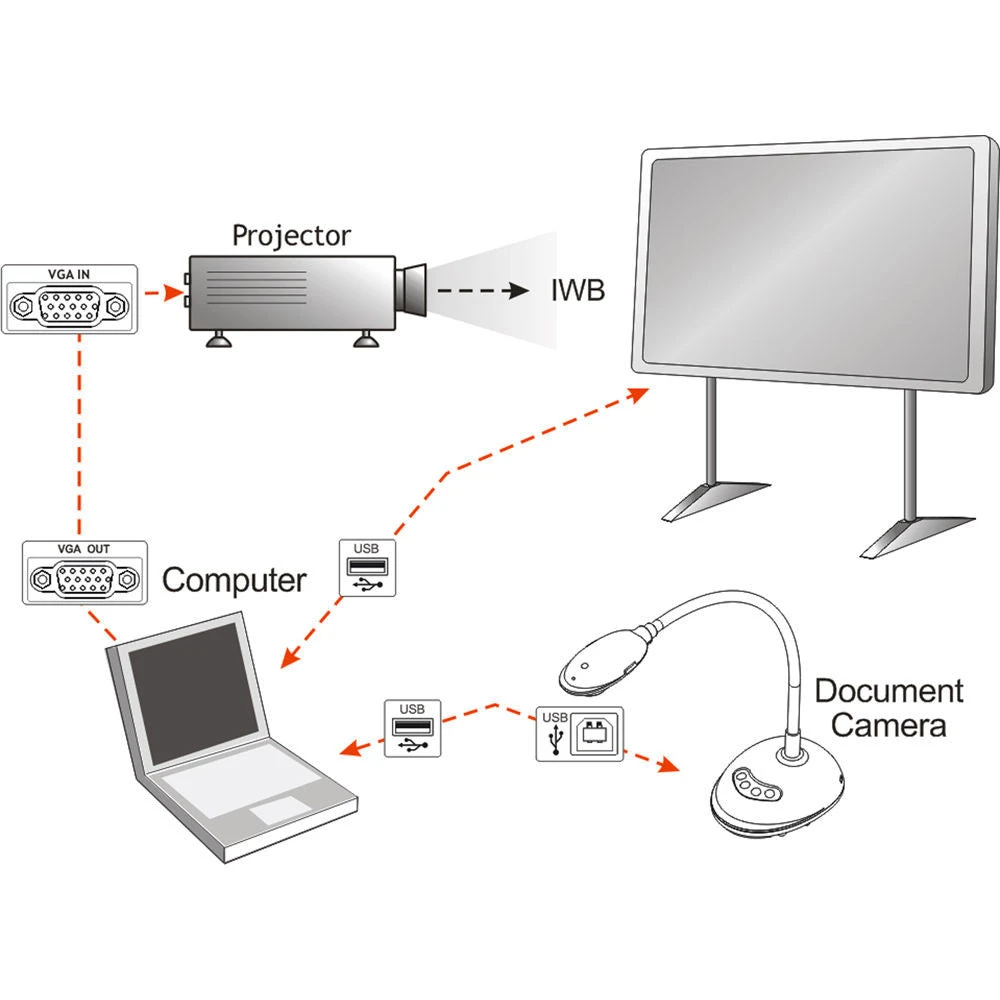

- Compatible with all major whiteboard brands
- Offers image optimization auto-tune summary
- Rigid lens provides protection from abnormal operation
- Annotation without PC allows a USB wired or wireless mouse to directly edit the image
- Built-in power allows a stable power supply for constant image and data flow
- Anti-reflection allows light source to be adjusted according to the environment in order to prevent reflections.
- Instant image adjustment adjusts the clarity, brightness, and color according to the actual environment automatically
| Image Sensor | 1/3″ CMOS color image sensor |
| Total Pixels | 3.25 MP |
| Zoom | 20x Digital: 12x Mechanical: 10x |
| Close-up | 0.78″ (2 cm) |
| Shooting Area | 15.7 x 11.8″ (400 x 300 mm) maximum |

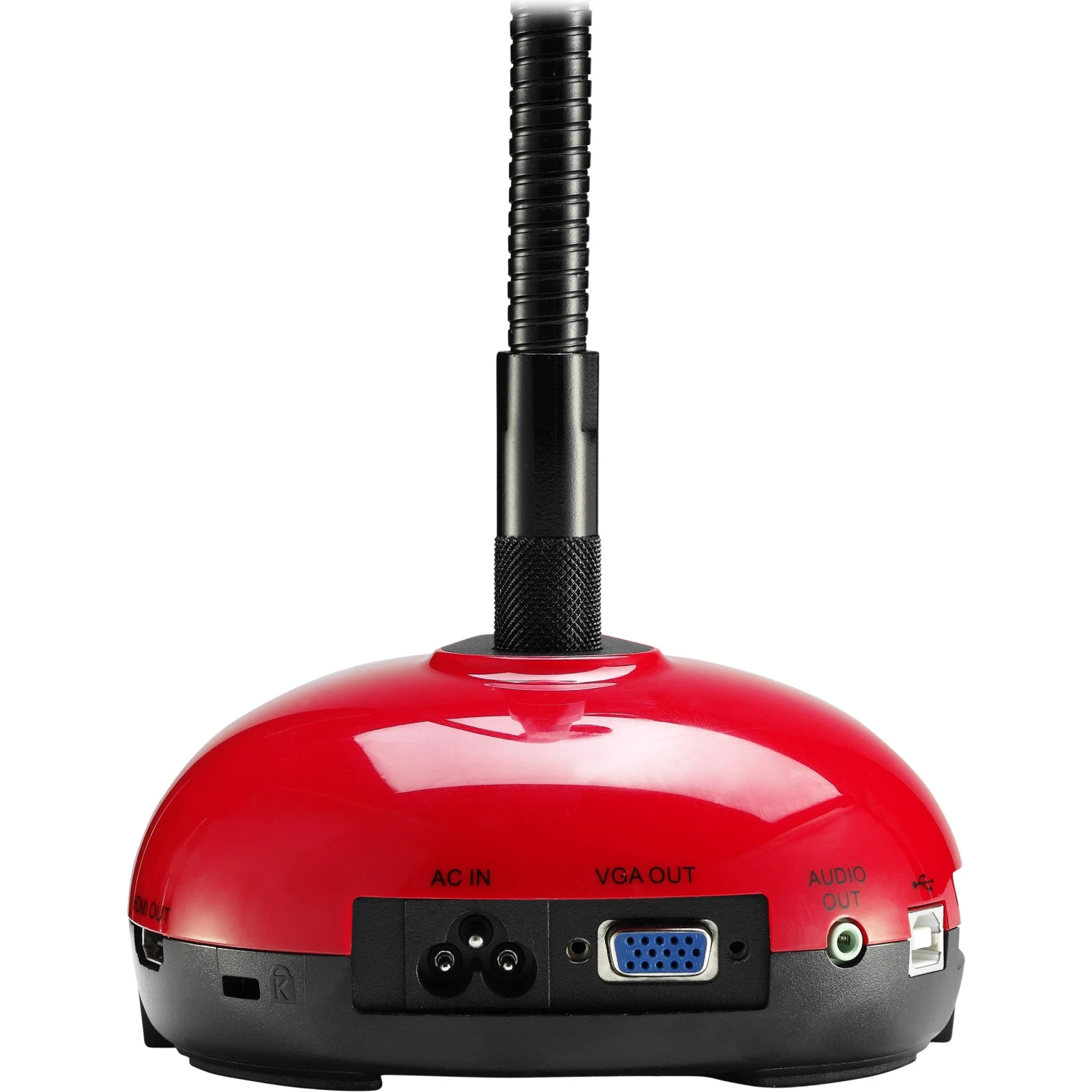

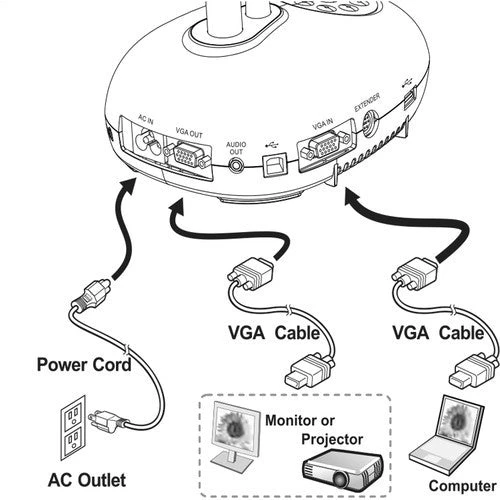

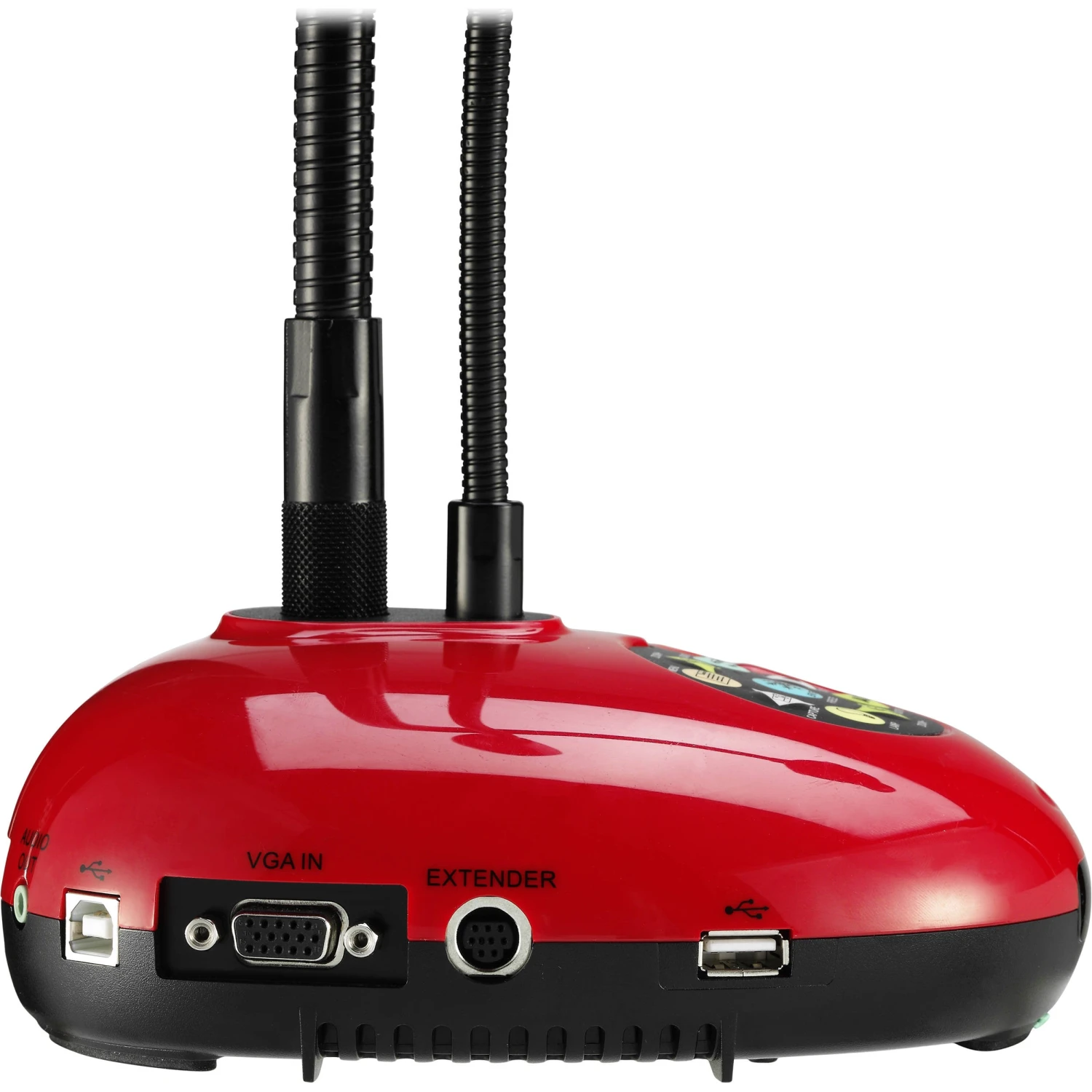

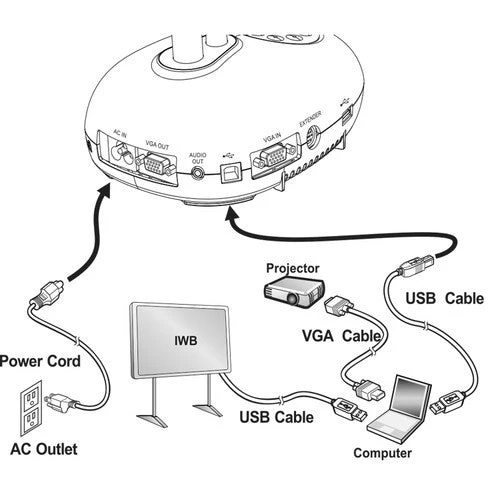

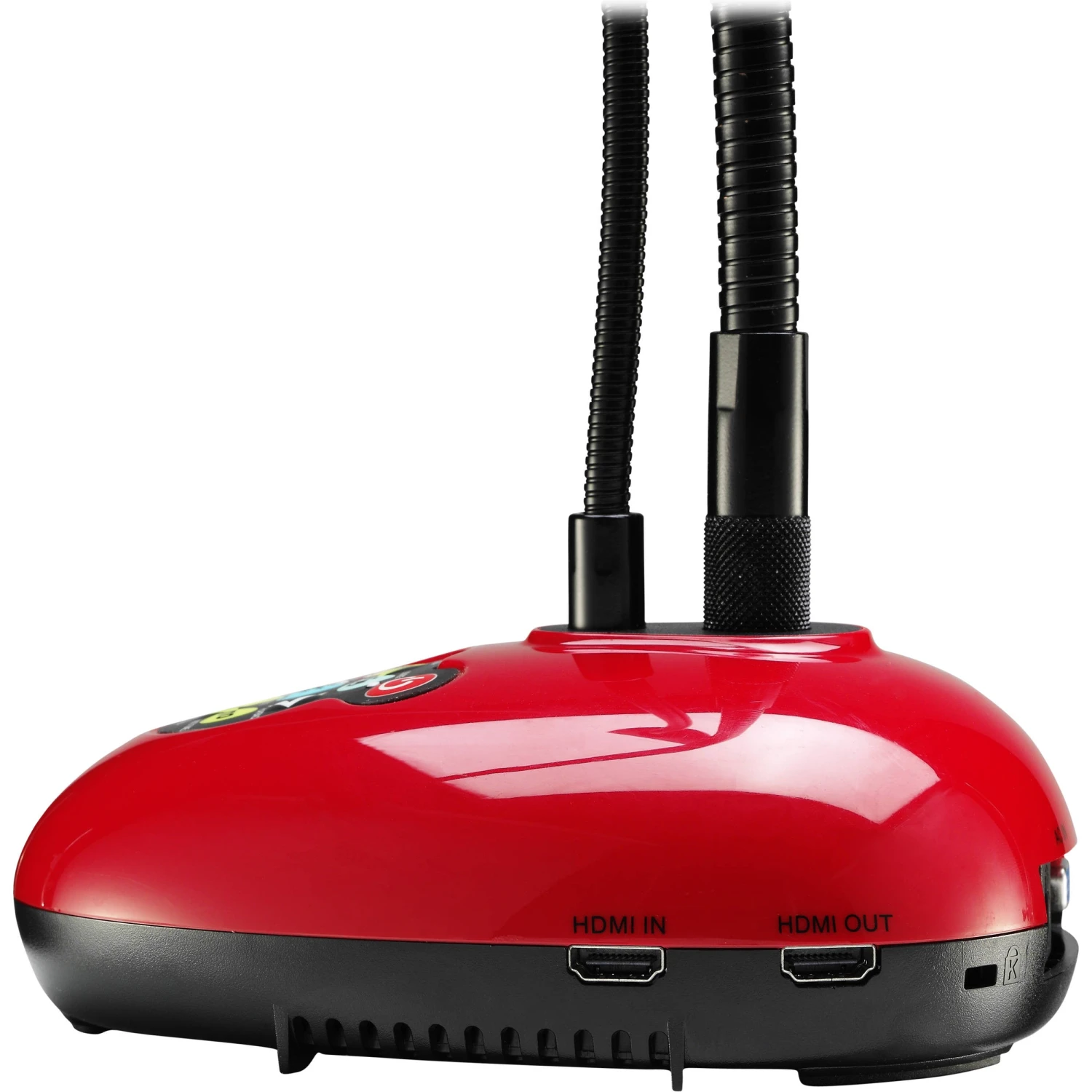

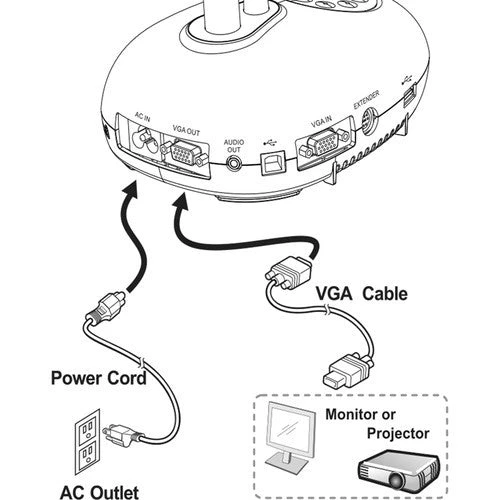

| Connectors | 1 x HDMI input 1 x HDMI output 1 x Kensington lock slot 1 x AC power supply 1 x VGA out 1 x 3.5 mm audio out 2 x USB 2.0 Type-B 1 x VGA pass-through 1 x C-video/RS-232 out |
| Output Resolution | XGA, SXGA(1280 x 960), WXGA, 1080p |
| Color Reproduction | ?E*ab (mean): 14.8 |
| SNR | 51 dB |
| Sharpness | MTF 937 line |
| Frame Rate | 30 fps |
| Lamp | LED side lamp supported by gooseneck |
| Power Supply | Internal Power Supply: 100 to 240 VAC |

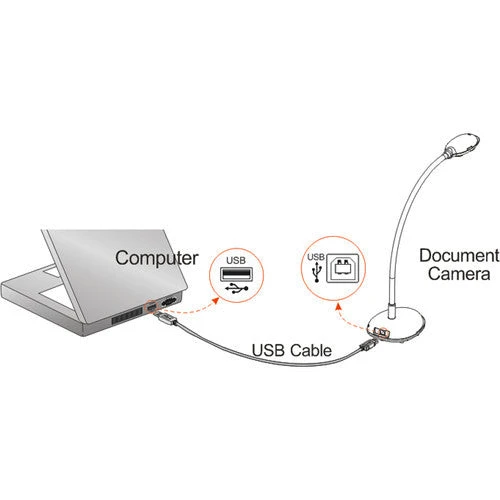

| Transmission | USB 2.0 (480 Mbps) high speed transmission |
| Video/Audio Recording | One-touch summary records image and sound synchronously |
| Built-In Microphone | Yes |
| Image Capture | Single or continuous capturing |
| Tuning | Yes, one summary for optimization image |
| Image Rotation | 0?, 180?, flip, mirror |
| Kensington Security Slot | Yes |
| Compatibility | Supports Windows 10, 8, 7, XP, and Vista Mac OS X Chrome OS iOS and Android with app WIA and TWAIN interface |
| Gooseneck Length | Not specified by the manufacturer |
| Dimensions | Not specified by the manufacturer |
| Weight | Not specified by the manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 7.95 lb |
| Box Dimensions (LxWxH) | 14.1 x 12.3 x 7.6″ |
- Power Cable
- VGA Cable
- USB Cable
- Remote Control
- Microscope Adapter
- Limited 5-Year Warranty
