Louroe LE-072 Verifact C Microphone(Louroe Le 072 Verifact C Microphone)

Louroe LE-072 Verifact C Microphone(Louroe Le 072 Verifact C Microphone) - Image 2

Louroe LE-072 Verifact C Microphone(Louroe Le 072 Verifact C Microphone)

Original price was: $272.67.Current price is: $96.99.

SKU: DGFUB 6954862313557 Categories: Optics & Surveillance, Surviellance Tags: Audio Surveillance, Louroe LE-072, Surveillance, Surveillance Video

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Louroe LE-072 Overview

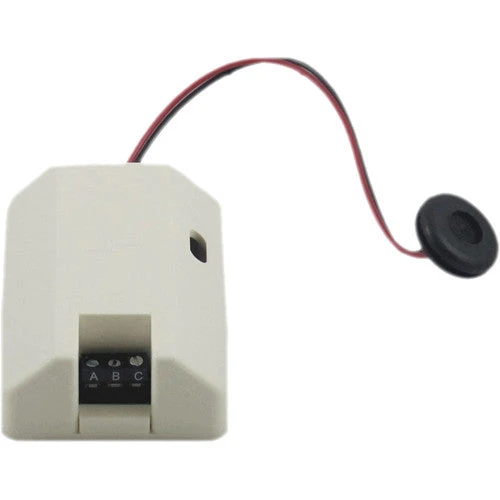

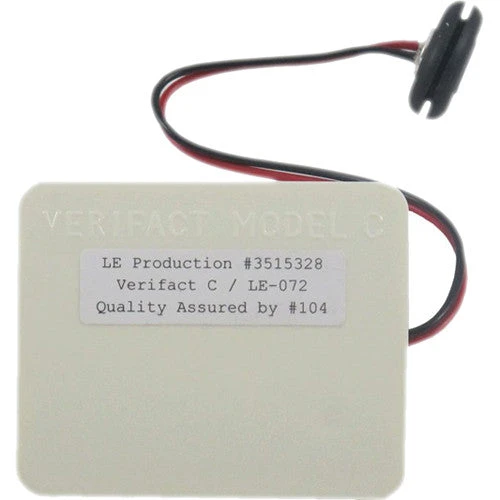

The LE-072 Verifact C Microphone from Louroe Electronics is an omni-directional, line level, electret condenser microphone mounted to a small PC board via 2 lead wires measuring 6″ (15cm) in length. The Model C microphone is designed for small or unusual housings and custom requirements. The electronics on the PC board are protected by a plastic housing. A barrier block is exposed for connection to the Louroe base station or other audio devices. A cut-out is provided for making wire connection to the Louroe Base Station or Audio Interface Adapter. A rubber grommet is included for positioning the microphone element. The Model C microphone is compatible with all Louroe base stations.

High sensitivity to low sound pressure

Omni-directional, picks up normal sounds 15.0′ (4.5m) away all directions, or within a 30.0′ (9.1m) circle

May be located up to 1000.0′ (304.8m) from the Louroe Base Station or Interface Adapter

Phantom powered from Louroe Base Station

Pre-amp contains a sensitivity switch for lowering gain

Applicable in scenarios like convenience stores, fast food restaurants, booking rooms, interrogation rooms, day care centers, sleep disorder centers, therapy labs, cashier booths, observation rooms and anywhere CCTV cameras are installed

UPC: 785583000721

In the Box

Louroe LE-072 Verifact C Microphone
Limited 1-Year Manufacturer Warranty

Guides & Manuals

Louroe LE-072 Specs

Output	Line Level (0 dB @ 1000 ?)
Frequency Response	40 Hz to 15 kHz ± 1 dB
Current Drain	4 mA
Supply Voltage	12 VDC
Output Impedance	600 ? unbalanced
Dimensions	PC Board: 2.18 x 1.62 x 0.62″ (5.53 x 4.11 x 1.57 cm) PC Board Housing: 2.62 x 2.12 x 1.06″ (6.65 x 5.38 x 2.69 cm)
Dimensions	Microphone: 0.37 x 0.25″ (0.93 x 0.63 cm)
Weight	0.12 lb (0.05 kg)

Packaging Info

Package Weight	0.2 lb
Box Dimensions (LxWxH)	6 x 3 x 2.5″
