Louroe DA-4 Audio Distribution Amplifier(Louroe Da 4 Audio Distribution Amplifier)
Original price was: $385.33.$96.99Current price is: $96.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.

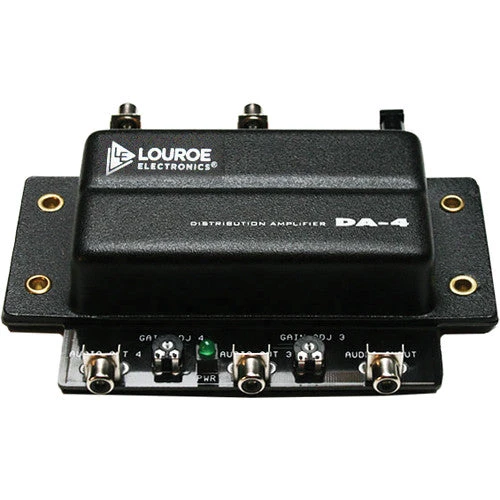

Louroe DA-4 Overview
The Louroe Electronics DA-4 Audio Distribution Amplifier features 1 audio input and 4 audio outputs. It receives line level audio signals from the Louroe microphone and distributes it to up to 4 sources such as VCR, DVR, CCTV monitors with amplifiers, or other audio devices that accept line level input (0 dB @ 600?). Each output has a gain adjust potentiometer for correcting the audio level. Maximum gain when potentiometer is fully engaged is 15 dB.
In the Box
- Louroe DA-4 Audio Distribution Amplifier
- RCA Connector Cable
- 12VDC Power Supply
- Limited 1-Year Manufacturer Warranty
Louroe DA-4 Specs
| Audio Input | 1 x RCA |
| Audio Output | 4 x RCA |
| Maximum Gain | 15 dB (per output) |
| Output | Line level (0 dB @ 1 kW) |
| Power Input | 12 VDC, 500 mA |
| Wiring | Requirements: 2 Conductor shielded cable, 22 gauge with a 24 gauge drain wire |
| Dimensions | 6.13 x 4.63 x 1.88″ (155.70 x 117.60 x 47.75 mm) |
| Weight | 1.5 lb (0.7 kg) |
| Package Weight | 1.35 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.4 x 3.3″ |
