Lorex Pro Series N884A64B 16-Channel 4K UHD NVR With 4TB HDD With Eight LNB9252B Bullet Cameras (White)(Lorex Pro Series N884a64b 16 Channel 4k Uhd Nvr With 4tb Hdd With Eight Lnb9252b Bullet Cameras White)
Original price was: $372.00.$98.99Current price is: $98.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Lorex NP4K4F-168 Overview

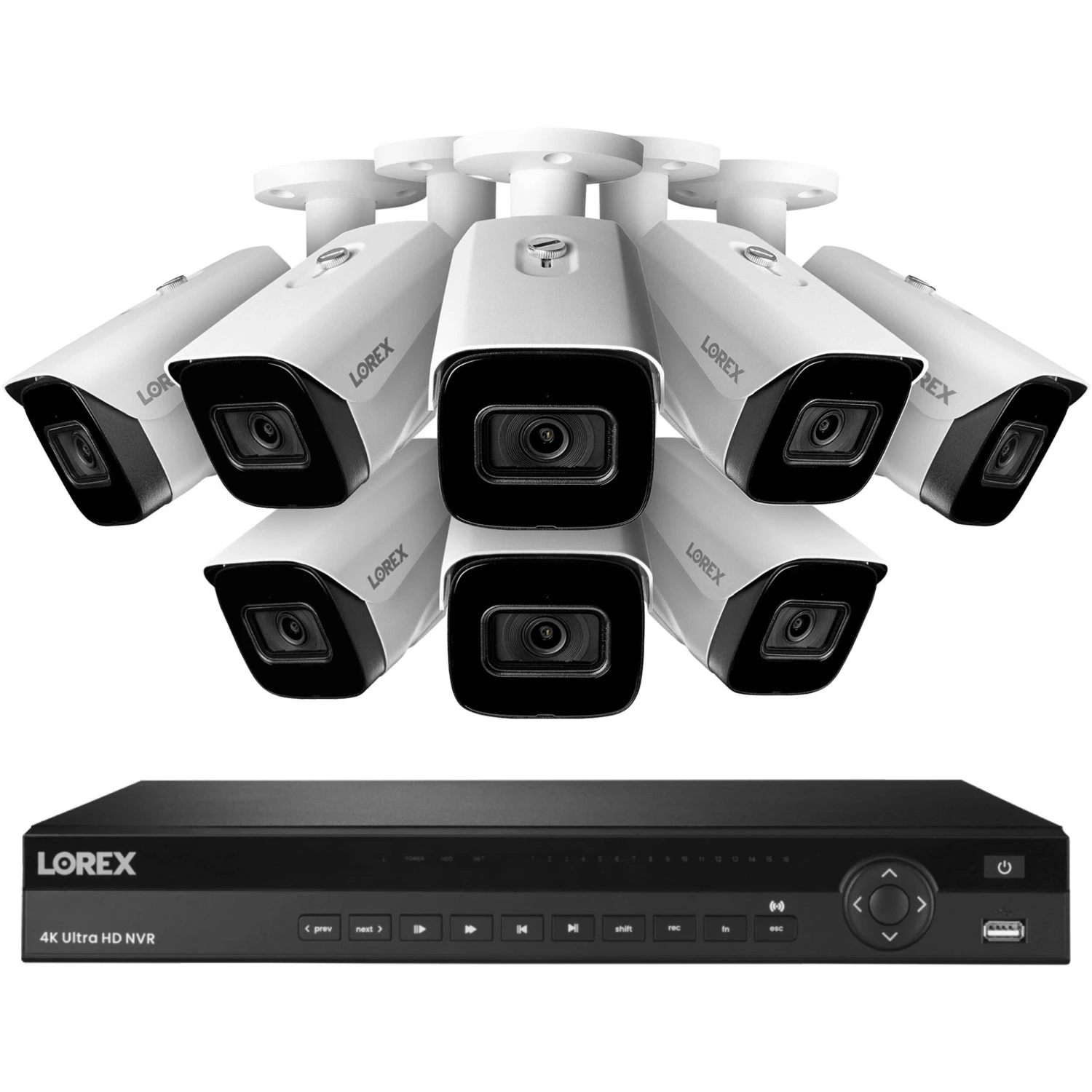

This Kit includes the Lorex Pro Series N884A64B 16-Channel 4K UHD NVR with 4TB HDD bundled with eight white LNB9252B 4K outdoor network bullet cameras for an indoor/outdoor surveillance solution.
Record from and manage up to 16 cameras with the Pro Series N884A64B 16-Channel 4K UHD NVR with 4TB HDD from Lorex at resolutions up to 3840 x 2160. Equipped with two SATA 3.5″ drive bays, this NVR can be configured to have an internal storage of up to 32TB, with 4TB currently installed. H.265 and H.264 video codecs keep file sizes manageable while maintaining the best quality possible.
This NVR features HDMI and VGA outputs to connect to external monitors. Lorex Cloud and Lorex Pro apps enable remote management via your iOS or Android device.
Security-grade hard drive designed for advanced processing and the workload of 24/7 recording.
Storage mirroring for continuous backup of data from one hard drive to another.
Reduce unnecessary alerts and false alarms with advanced motion detection.
Use Smart Search to filter motion events for reviewing footage quickly and easily.

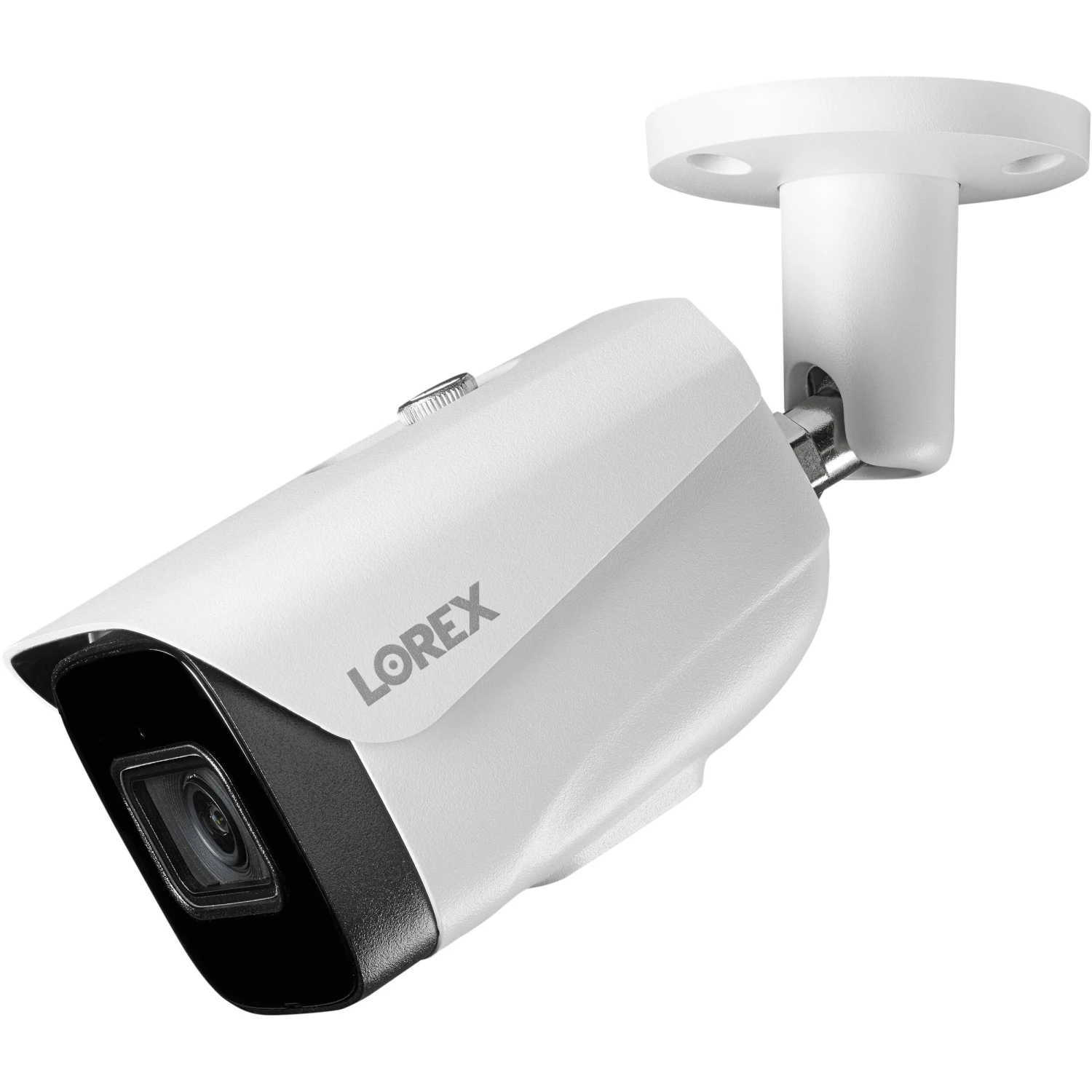

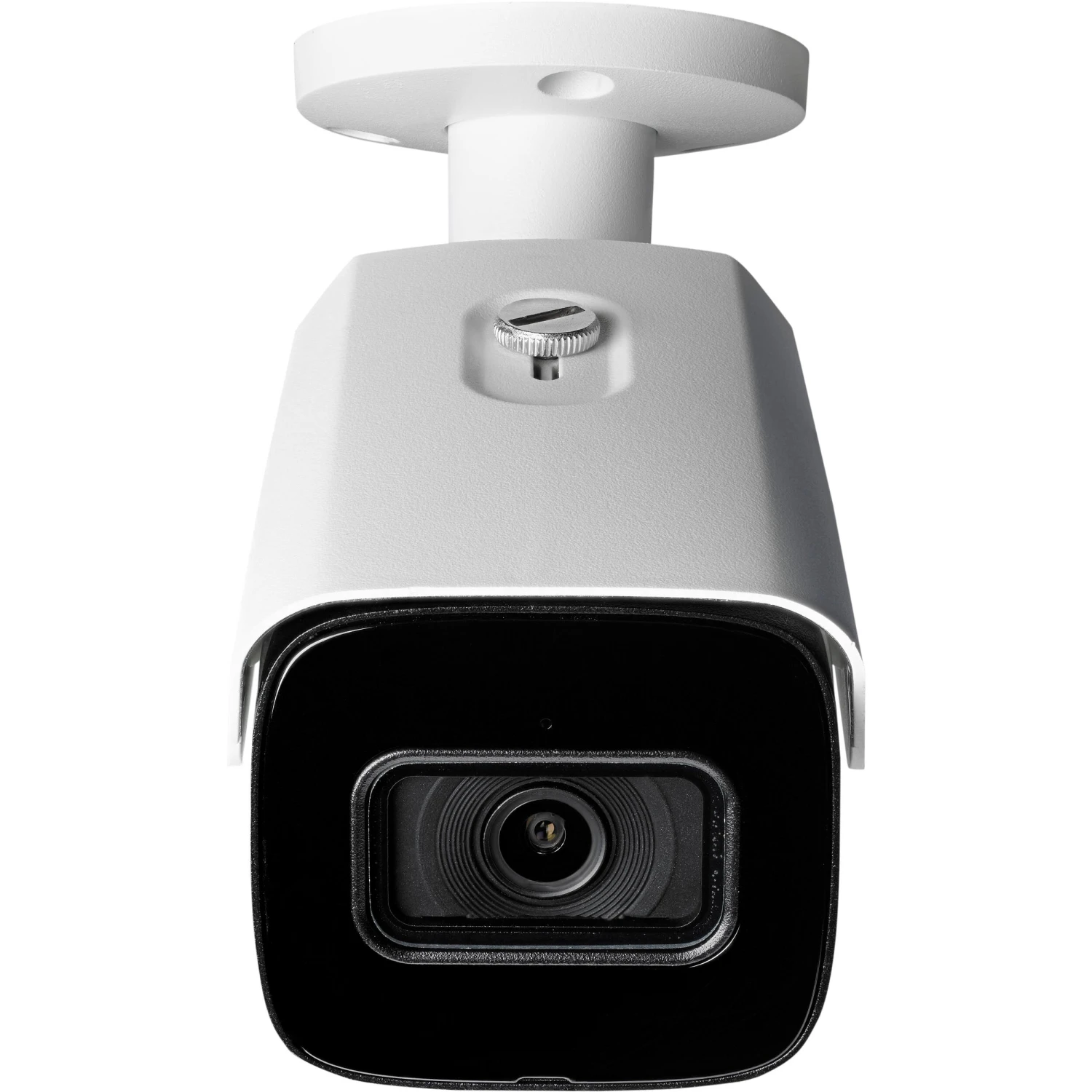

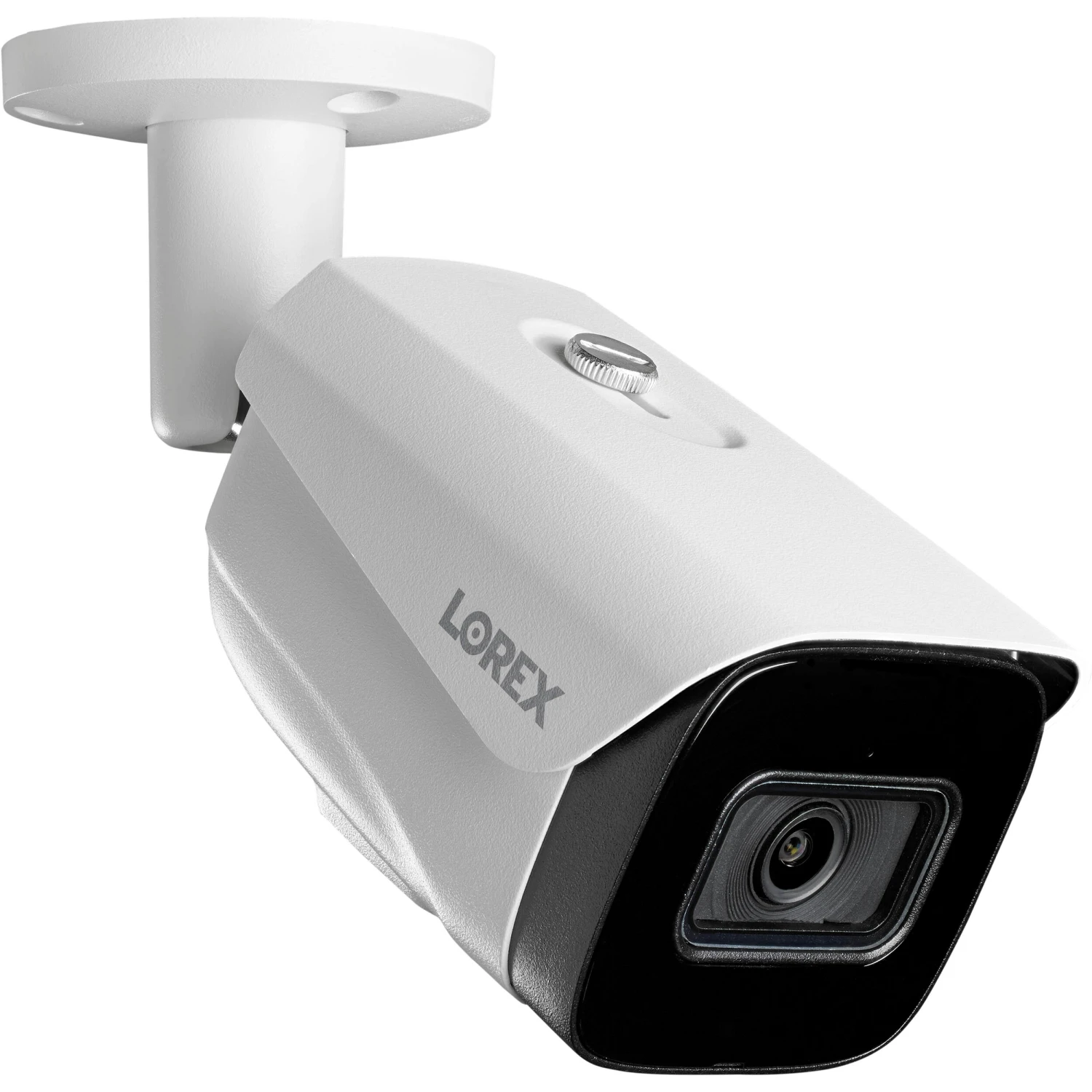

Monitor an indoor or outdoor area with the white LNB9252B 4K UHD Network Bullet Camera from Lorex. This unit uses a 1/2.8″ progressive scan image sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide a night vision range up to 98′ in total darkness and 150′ in ambient lighting. The camera features a 2.8mm fixed lens that delivers a 107° horizontal field of view, a built-in microphone, and motion detection. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is housed in an IP67-rated aluminum alloy enclosure that is suitable for outdoor use.
Items Included
- Lorex Pro Series N884A64B 16-Channel 4K UHD NVR with 4TB HDD
- Ethernet Cable
- USB Mouse
- HDMI Cable
- Power Cord
- 2 x 6-Pin Cable Adapter
- Limited 1-Year Manufacturer Warranty (for NVR)
- Limited 90-Day Manufacturer Warranty (for Accessories)
- 8 x Lorex LNB9252B 4K UHD Outdoor Network Bullet Camera with Night Vision (White)
- Ethernet Cable
- Mounting Kit
- Limited 1-Year Manufacturer Warranty (For Camera)
- Limited 90-Day Manufacturer Warranty (For Accessories)
Additional Resources
Guides & Manuals
Lorex Pro Series N884A64B 16-Channel 4K UHD NVR with 4TB HDD
| Number of Channels |
16 |
| Playback Resolution |
HDMI: 3840 x 2160 (4K) at 30 fps VGA: 1920 x 1080 (1080p) at 30 fps |
| Recording Resolution |
3840 x 2160 (4K, 8 MP) at 30 fps 5 MP at 30 fps 4 MP at 30 fps 3 MP at 30 fps 1920 x 1080 (1080p) at 30 fps 1280 x 720 (720p) at 30 fps |
| PTZ Support |
Yes |
| Throughput |
320 Mb/s |
| A/V I/O |
1x HDMI 1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 (Rear) PoE 1x RJ45 Gigabit Ethernet (Rear) 1x USB-A 2.0 (Rear) 1x USB-A 2.0 (Front) 1x DE-9/DB-9 RS-232 (Rear) |
| Wi-Fi |
No |
| Bluetooth |
No |
| Installed Drive |
1x 4 TB Hard Drive |
| Mobile App Compatible |
Yes: Android & iOS App Name: Lorex Pro, Lorex Cloud |
| PoE Power Budget |
220 W |
| Number of Channels |
16 |
| Playback Resolution |
HDMI: 3840 x 2160 (4K) at 30 fps VGA: 1920 x 1080 (1080p) at 30 fps |
| Recording Resolution |
3840 x 2160 (4K, 8 MP) at 30 fps 5 MP at 30 fps 4 MP at 30 fps 3 MP at 30 fps 1920 x 1080 (1080p) at 30 fps 1280 x 720 (720p) at 30 fps |
| PTZ Support |
Yes |
| Playback Speeds |
16x |
| Throughput |
320 Mb/s |
| IP Camera Support |
16 (32 Expansion) |
| 2-Way Audio |
Yes |
| A/V I/O |
1x HDMI 1x VGA 1x RCA Audio Input 1x RCA Audio Output |
| Communication I/O |
16x RJ45 (Rear) PoE 1x RJ45 Gigabit Ethernet (Rear) 1x USB-A 2.0 (Rear) 1x USB-A 2.0 (Front) 1x DE-9/DB-9 RS-232 (Rear) |
| Audio I/O |
1x Input 1x Output |
| System Connection |
2x SATA |
| Wi-Fi |
No |
| Bluetooth |
No |
| Network Protocols |
DDNS |
| Supported Video Codecs |
H.264, H.265 |
| Software Upgrade |
USB, Network |
| Backup Method |
External HDD, USB Drive |
| Installed Drive |
1x 4 TB Hard Drive |
| Max Capacity Supported |
4 TB (Each Drive) 32 TB (Total) |
| Number of Bays |
2x 3.5″ Internal |
| OS Compatibility |
Android/iOS |
| Mobile App Compatible |
Yes: Android & iOS App Name: Lorex Pro, Lorex Cloud |
| Alarm I/O |
4x Input 2x Output |
| Event Trigger |
Alarm, Alarm Out, Email, Motion, Snapshot |
| Notification Type |
Email |
| Search Modes |
Date/Time, Event, Motion, Smart Search |
| Recording Modes |
Alarm, Continuous, Motion, Schedule |
| Multi-Screen Configuration |
1, 4, 8, 9, 16 |
| Fisheye Dewarping |
No |
| Power Consumption |
15 W (Without HDD) |
| Power Supply Type |
Internal |
| PoE Power Budget |
220 W |
| PoE per Port |
25.5 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Built-In Display |
No |
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 90% Humidity |
| Cooling Method |
1x Fan |
