Lorex N91062-8CD4-E Overview

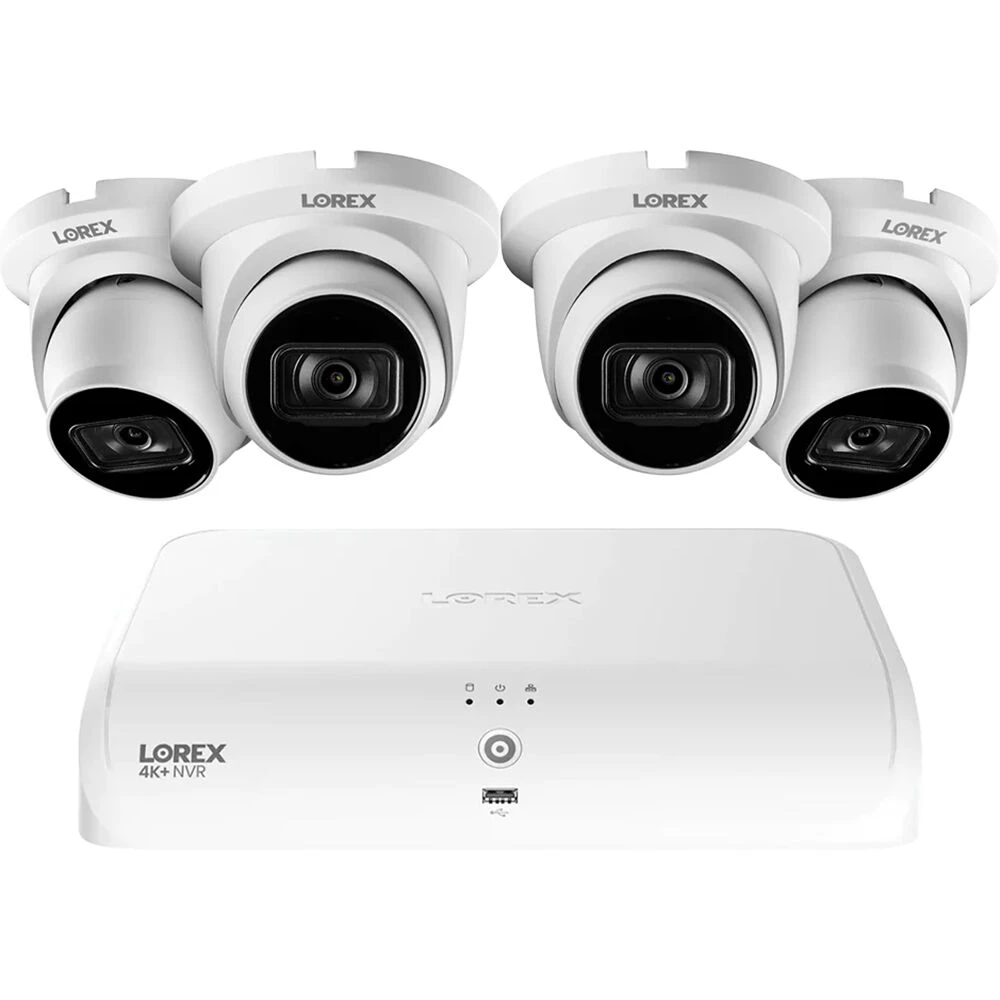

Monitor your home or business with the Fusion Series N91062-8CD4-E 16-Channel 12MP NVR with 2TB HDD & Four 4K UHD Dome Cameras from Lorex. This NVR has a storage capacity of up to 16TB (2TB preinstalled). Space-saving H.265 and H.264 video compressions reduce bandwidth requirements for efficient data storage while maintaining the best quality possible.

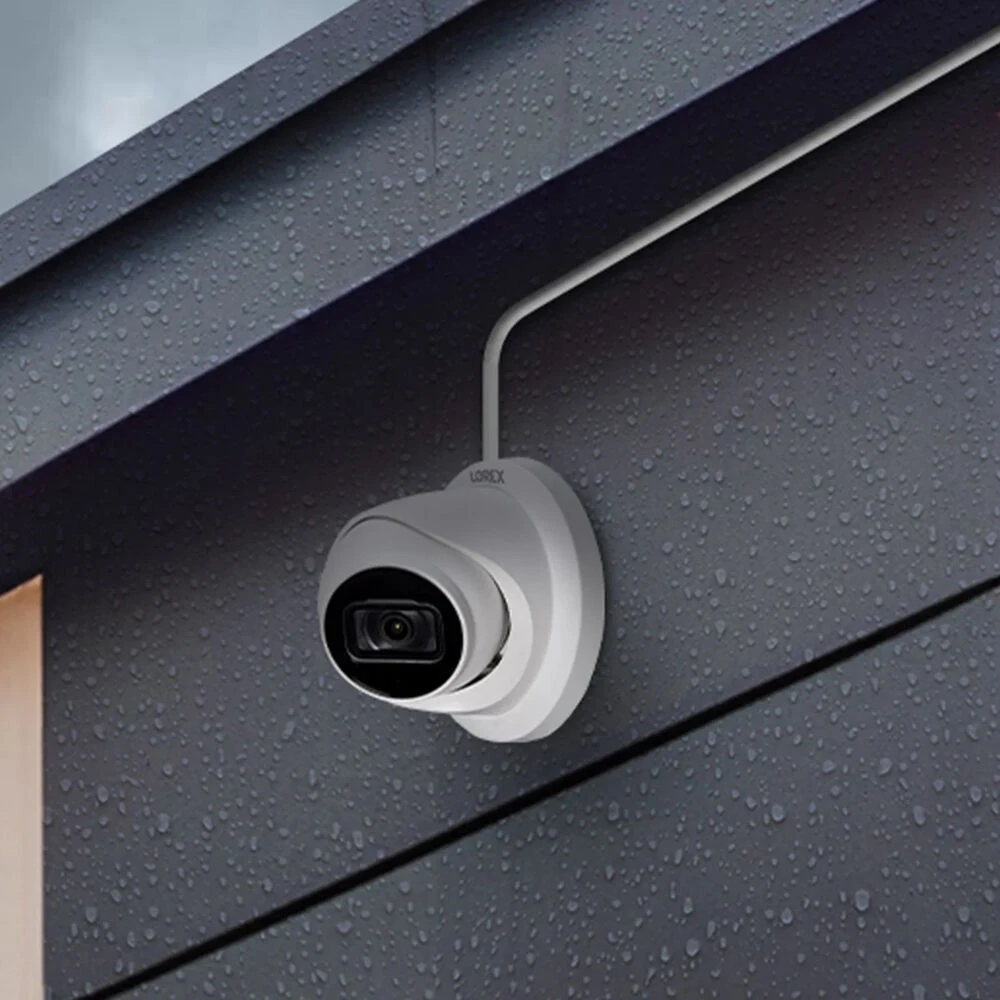

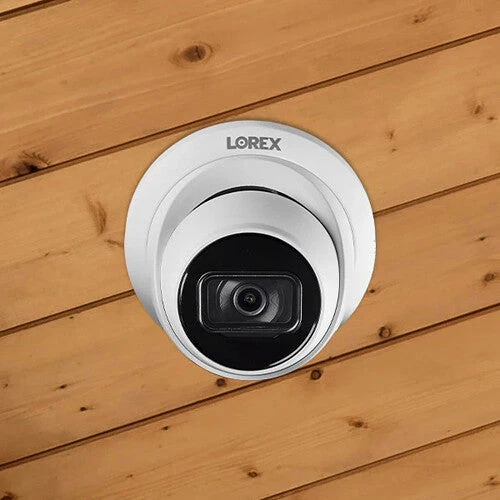

The included IP67-rated cameras capture 4K UHD resolution video at 15 fps. IR LEDs provide a night vision range up to 98′ in total darkness and 150′ in ambient lighting. The cameras each feature a 2.8mm fixed lens that delivers a 125° diagonal angle of view.
Items Included
- Lorex Fusion Series N91062-8CD4-E 16-Channel 12MP NVR with 2TB HDD & Four 4K UHD Dome Cameras
- 4K UHD NVR with 2TB HDD
- Ethernet Cable
- Power Adapter
- HDMI Cable
- USB Mouse
- 4 x Lorex E842CD 4K UHD Outdoor Network Dome Camera with Night Vision (White)
- 4 x 60′ Cat 5 Ethernet Extension Cables
- 4 x Mounting Kits
- 4 x Mounting Brackets
- Limited 1-Year Manufacturer Warranty (For NVR & Cameras)
- Limited 90-Day Manufacturer Warranty (For Accessories)
Additional Resources
User Manual
165.7 MB
Lorex N91062-8CD4-E Specs
| Video Transmission Technology |
IP |
| Channels |
16, Lorex Fusion Wi-Fi |
| Video Inputs |
8 x PoE 8 x Fusion Wi-Fi |
| Video Outputs |
1 x VGA 1 x HDMI |
| Audio |
1 x RCA Input 1 x RCA Output |
| Display Output Resolution |
Up to 4K UHD |
| Live Display |
1, 4, 8, 9, 16 |
| Live Display Speed |
NTSC: 480 fps PAL: 400 fps |
| OSD |
On/Off |
| System Navigation |
USB Mouse |
| Recording Resolution |
12 MP (16:9), 4K+ (11.3 MP, 16:9) |
| Recording Schedule |
Continuous, Motion, Smart Motion (Person, Vehicle, Face), Alarm, Day, Hour per Channel |
| Backup File Format |
DAV, AVI, MP4 |
| Video Compression |
H.265, H.264 |
| Simultaneous Playback |
Up to 4 Channels, Synchronized |
| Playback Speed |
Variable Max 2x, 4x, 8x, 16x, 1 Minute, 5 Minutes, 30 Minutes |
| Search |
By Time/Date, All Motion Events or Smart Motion (Person, Vehicle), Attribution (Person Clothes Color, Vehicle Color, Plate Number) |
| HDD Bay |
1 |
| HDD Capacity |
1 x 16 TB (SATA) |
| HDD Included |
2 TB |
| Backup Media |
USB Flash Drive & USB HDD |
| Motion Detection |
Support for Person and Vehicle Smart Motion Detection |
| Features |
Wired/Wireless Fusion, Lorex Sensor Compatible, Face Detection Support, Mask Detection Support, Package Detection (Missing Package & Package Left Behind), Active Deterrence Support, Active View Support, Selectable Siren Support, Panic Button, Smart Search, Attribution (Person Clothes Color, Vehicle Color, Plate Number) |

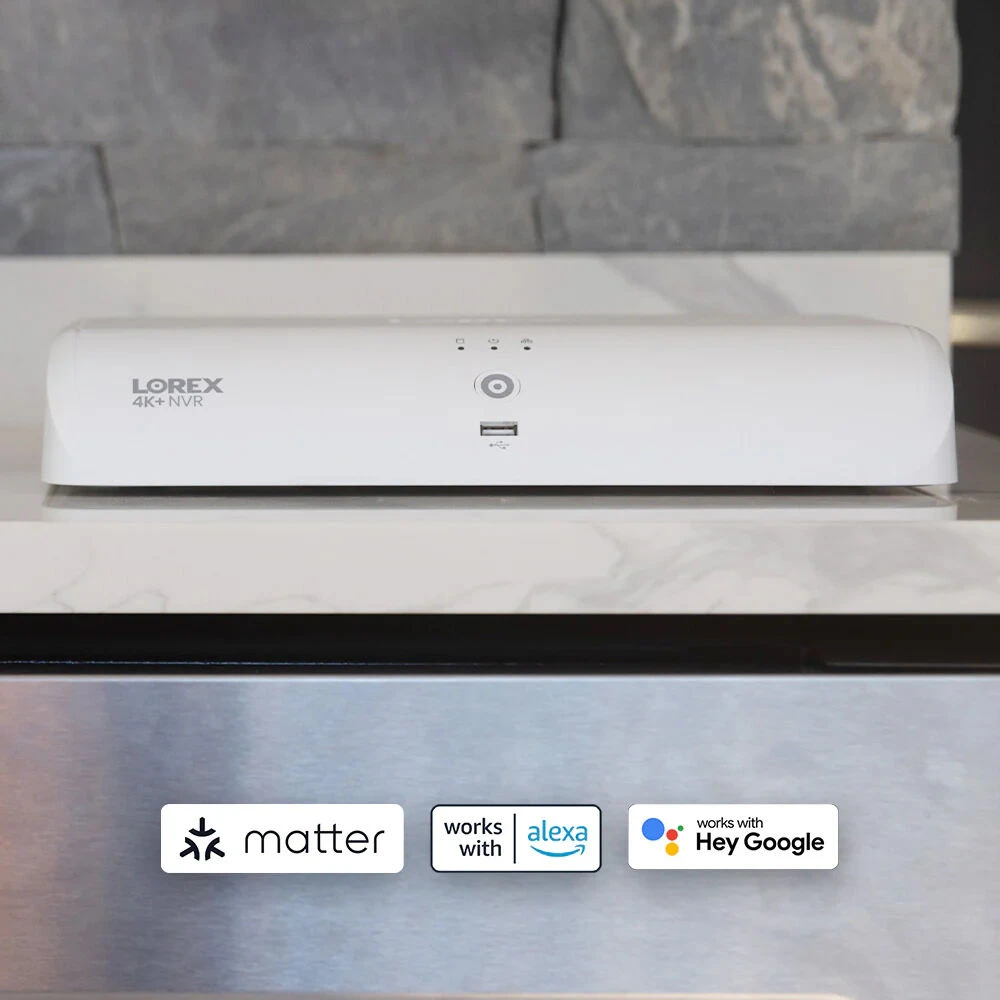

| Voice Control |
Amazon Alexa, Google Assistant |
| Streaming Options |
Chromecast, Amazon Echo Show, Google Home Hub |
| Support |
Matter |
| Mobile App |
Lorex Home for iOS & Android |
| Remote Viewing Options |
Lorex Cloud for Windows & Mac PCs |
| Email Notification |
Text & Snapshot |
| Network Interface |
100M RJ45 |
| Network Bit Rate |
80 Mb/s Total, 48 to 8192 kb/s per Camera |
| DDNS |
Optional |
| USB Interface |
2 x USB 2.0 |
| Firmware Upgrades |
USB, Network |
| Watchdog Function |
Yes |
| Power Consumption |
8.3 W without HDD |
| Supply Voltage |
100 to 240 VAC, 50/60 Hz, 53 VDC, 1.8 A |
| PoE Power Output |
25.5 W for Single Port, 72 W Total |
| Operating Temperature |
14 to 131°F / -10 to 55°C |
| Humidity |
10 to 90% RH |
| Dimensions |
12.9 x 9.6 x 2.1″ / 328 x 245 x 53 mm |
| Weight |
2.75 lb / 1.26 kg without HDD |
| Transmission Technology |
IP |
| Image Sensor |
4K CMOS |
| Video Format |
NTSC |
| Video Compression |
H.265, H.264H (Main Stream & Sub Stream) |
| Angle of View |
Diagonal: 125° |
| Lens |
2.8mm Fixed |
| Aperture |
f/2.0 |
| Resolution |
8 MP at 15 fps, 4 MP at 30 fps, 1080p at 30 fps, 720p at 30 fps |
| Effective Pixels (H x V) |
3840 x 2160 |
| HDR |
Yes |
| Termination |
RJ45 |
| Microphone |
Built-In |
| Night Vision Range |
Complete Darkness: 98′ / 30 m Ambient Lighting (Color Night Vision): 150′ / 45 m |
| Smart Motion Detection |
Person and Vehicle |
| Power Requirements |
PoE Class 802.3af / 12 VDC |
| Power Consumption |
Maximum 5.4 W (PoE) |
| microSD Card Slot |
Yes |
| Operating Temperature |
-40 to 140°F / -40 to 60°C |
| Humidity |
<95% RH |
| Housing Material |
Aluminum Alloy |
| IP Rating |
IP67 |
| Dimensions (Diameter x Height) |
3.3 x 4″ / 83 x 102 mm |
| Weight |
0.86 lb / 0.39 kg |
| Package Weight |
16.7 lb |
| Box Dimensions (LxWxH) |
15.5 x 15.4 x 11.3″ |
