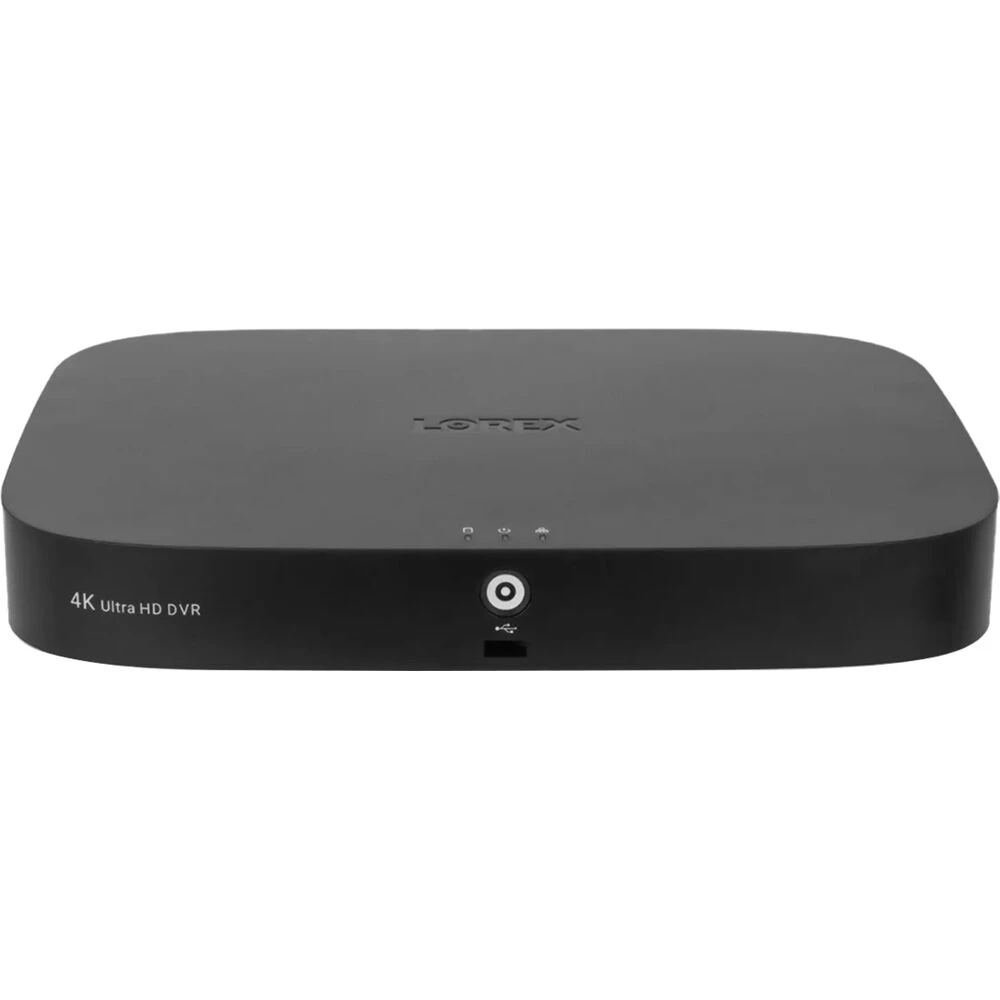

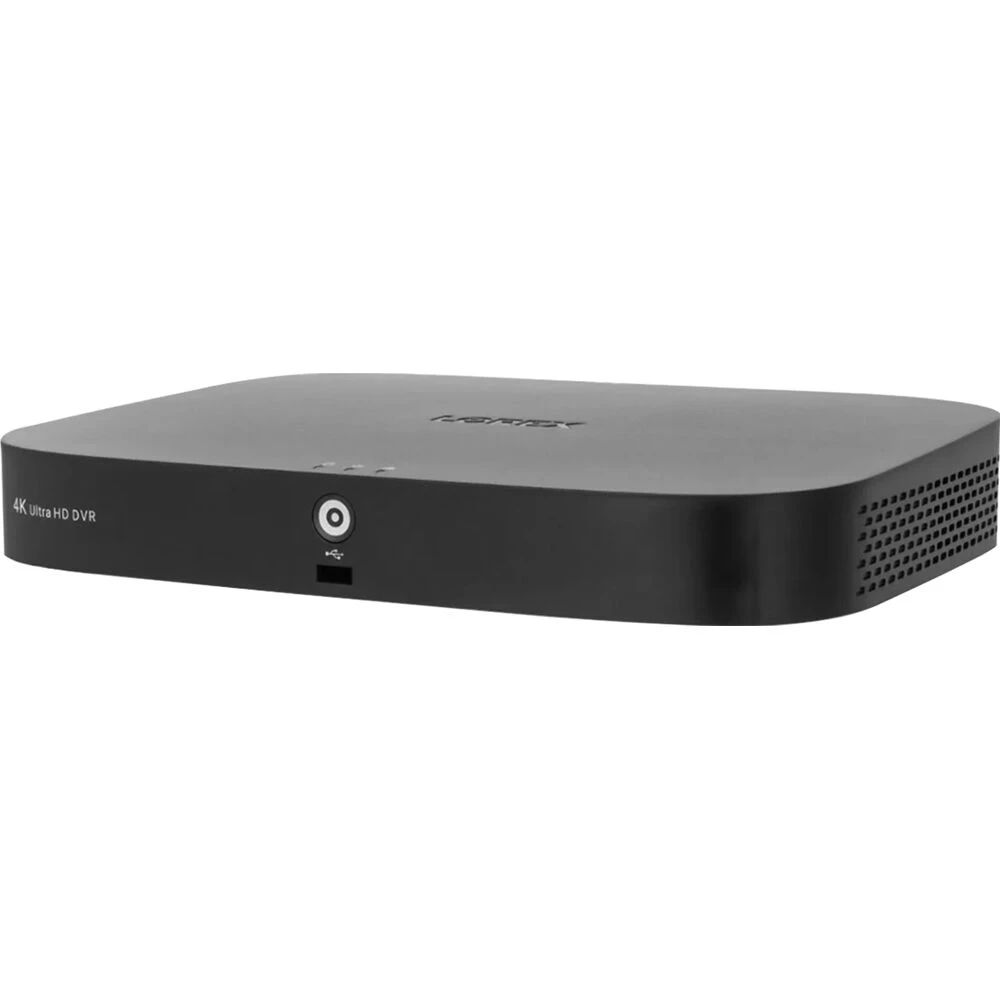

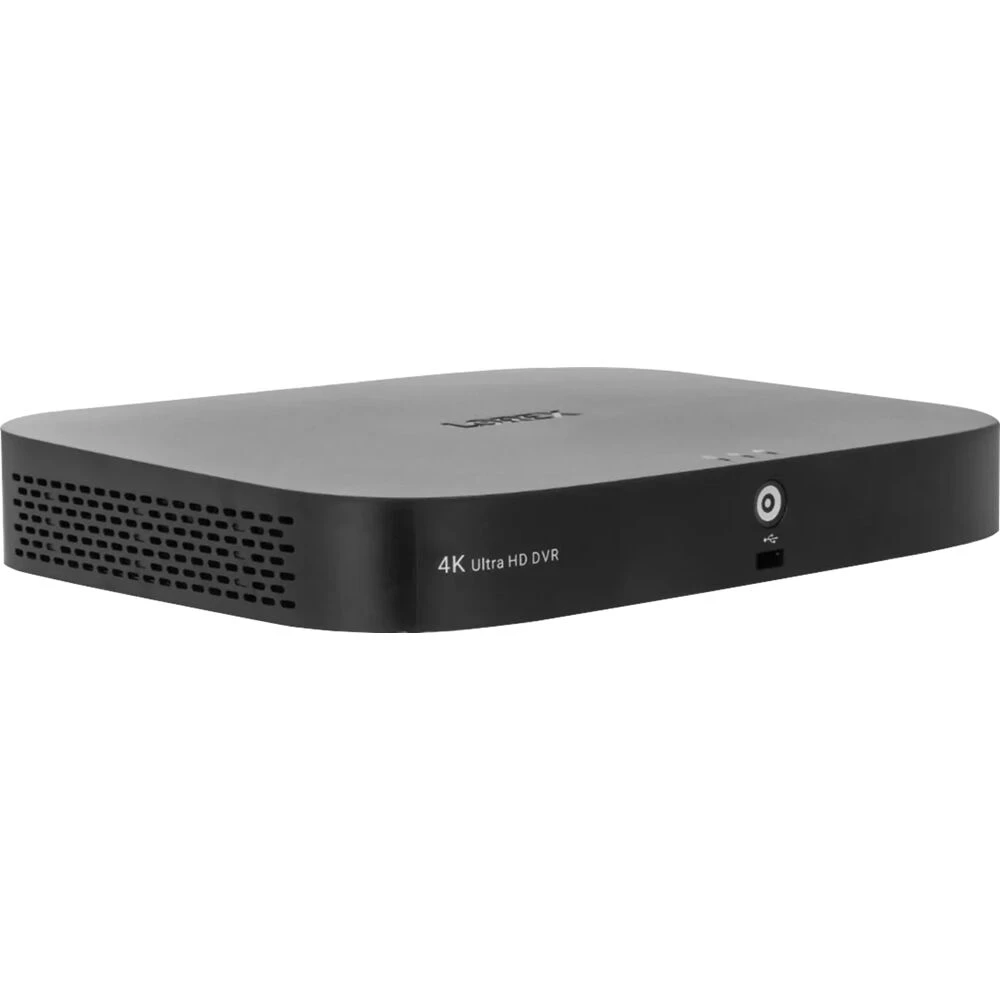

Lorex Fusion Series D863A62B 20-Channel 4K UHD DVR With 2TB HDD(Lorex Fusion Series D863a62b 20 Channel 4k Uhd Dvr With 2tb Hdd)
Original price was: $349.00.$95.99Current price is: $95.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Lorex D863A62B Overview
Record from and manage up to 20 cameras with the Fusion Series D863A62B 20-Channel 4K UHD DVR with 2TB HDD from Lorex at resolutions up to 12MP. This unit is equipped with a SATA port that supports an HDD up to 16TB (2TB preinstalled). H.265 and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This DVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor at up to 4K UHD resolution (HDMI output only). Lorex Home and Lorex Cloud provides remote management via your iOS or Android device and your Windows or macOS computers.
Items Included
- Lorex Fusion Series D863A62B 20-Channel 4K UHD DVR with 2TB HDD
- HDMI Cable
- Ethernet Cable
- DVR Power Adapter
- USB Mouse
- Limited 1-Year Manufacturer Warranty (For DVR)
- Limited 90-Day Manufacturer Warranty (For Accessories)
Additional Resources
User Manual
3.3 MB
Lorex D863A62B Specs
| Number of Channels |
20 |
| Recording Resolution |
4K at 7 fps 5 MP at 12 fps 3 MP, 4 MP at 15 fps 1080p, 720p at 30 fps |
| Audio/Video I/O |

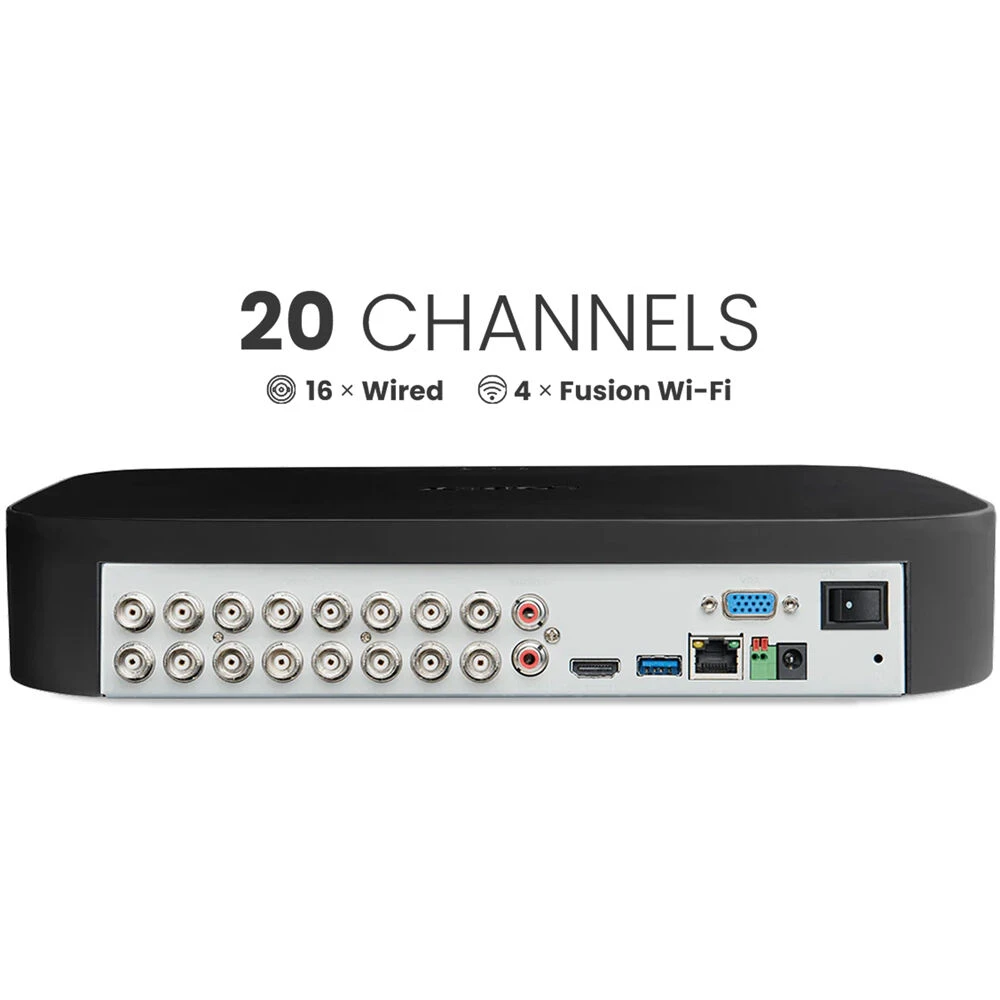

AHD, Analog, CVBS: 16 x BNC 1 x HDMI 1 x VGA 1 x RCA Audio Input 1 x RCA Audio Output |
| Communication I/O |
2x USB-A 2.0 |
| Audio I/O |
1x Input 1x Output |
| Supported Video Codecs |
H.264, H.265 |
| Installed Drive |
2 TB |
| Recording Modes |
Alarm, Analytics, Continuous, Motion, Schedule |
| Power Consumption |
Without HDD: 10 W |
| Signal |
AHD, Analog |
| Number of Channels |
20 |
| Playback Resolution |
HDMI: 4K UHD VGA: 1080p |
| Recording Resolution |
4K at 7 fps 5 MP at 12 fps 3 MP, 4 MP at 15 fps 1080p, 720p at 30 fps |
| PTZ Support |
Yes |
| Playback Speeds |
16x |
| 2-Way Audio |
Yes |
| Audio/Video I/O |
AHD, Analog, CVBS: 16 x BNC 1 x HDMI 1 x VGA 1 x RCA Audio Input 1 x RCA Audio Output |
| Communication I/O |
2x USB-A 2.0 |
| Audio I/O |
1x Input 1x Output |
| System Connection |
1x SATA |
| Wi-Fi |
Yes |
| Network Protocols |
DDNS |
| Supported Video Codecs |
H.264, H.265 |
| Backup Formats |
AVI, DAV, MP4 |
| Backup Method |
External HDD, USB Drive |
| Software Upgrade |
USB, Network |
| Installed Drive |
2 TB |
| Max Capacity Supported |
16 TB (Total) |
| OS Compatibility |
Windows macOS |
| Recording Modes |
Alarm, Analytics, Continuous, Motion, Schedule |
| Search Modes |
Date/Time, Event, Motion, Smart Search |
| Multi-Screen Configuration |
1, 4, 8, 9, 16, 20 (Primary Display) |
| Event Trigger |
Analytics, Snapshot |
| Input Power |
12 VDC at 3 A |
| Power Consumption |
Without HDD: 10 W |
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 90% Humidity |
| Built-In Display |
No |
| Dimensions (W x D x H) |
12.9 x 9.6 x 2.1″ / 328.0 x 245.0 x 53.0 mm |
| Weight |
2.78 lb / 1.26 kg (Without HDD) |
| Package Weight |
5.615 lb |
| Box Dimensions (LxWxH) |
15.4 x 13.4 x 6″ |
