Lilliput TK1850 C Overview
Experience sunlight-readable brightness with the Lilliput TK1850/C Full HD Touchscreen Commercial Monitor. This 18.5″ industrial-grade display provides a high brightness of 1000 nits, clear Full HD resolution, and IP65 dust and water protection for use in commercial and industrial applications.

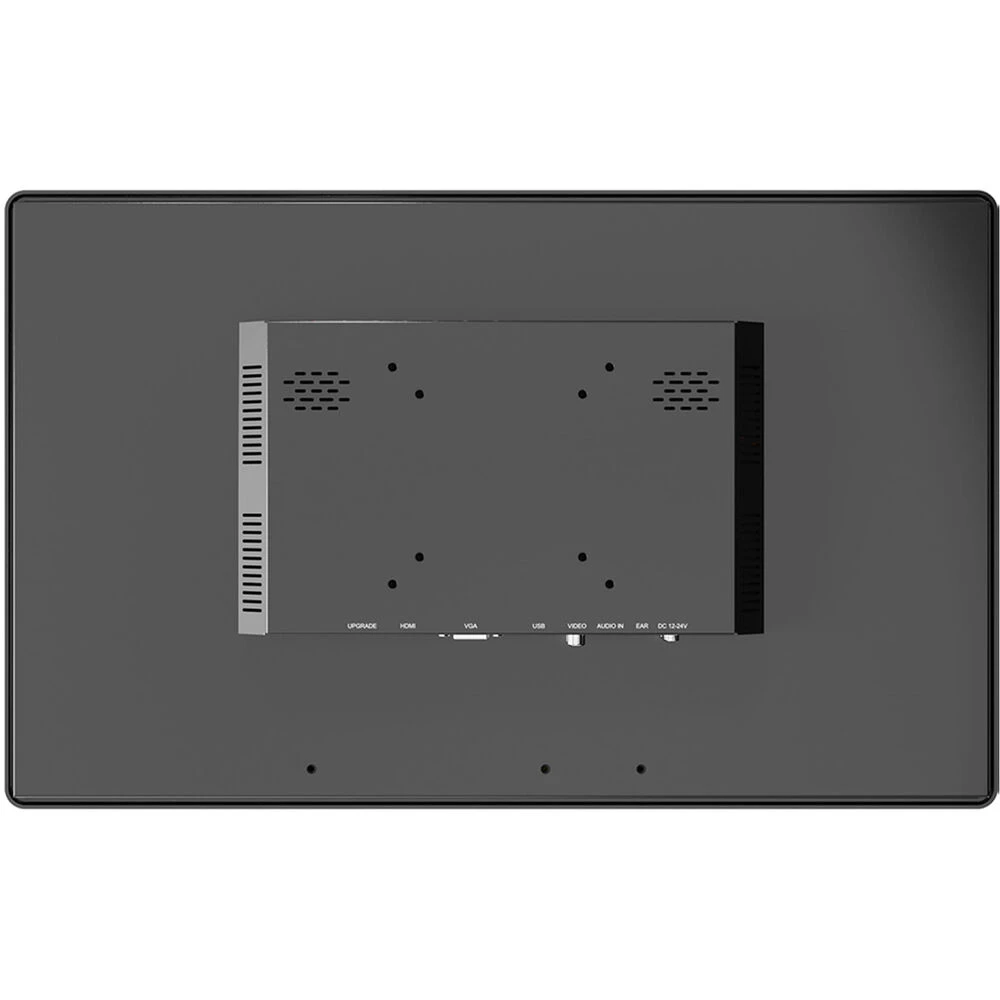

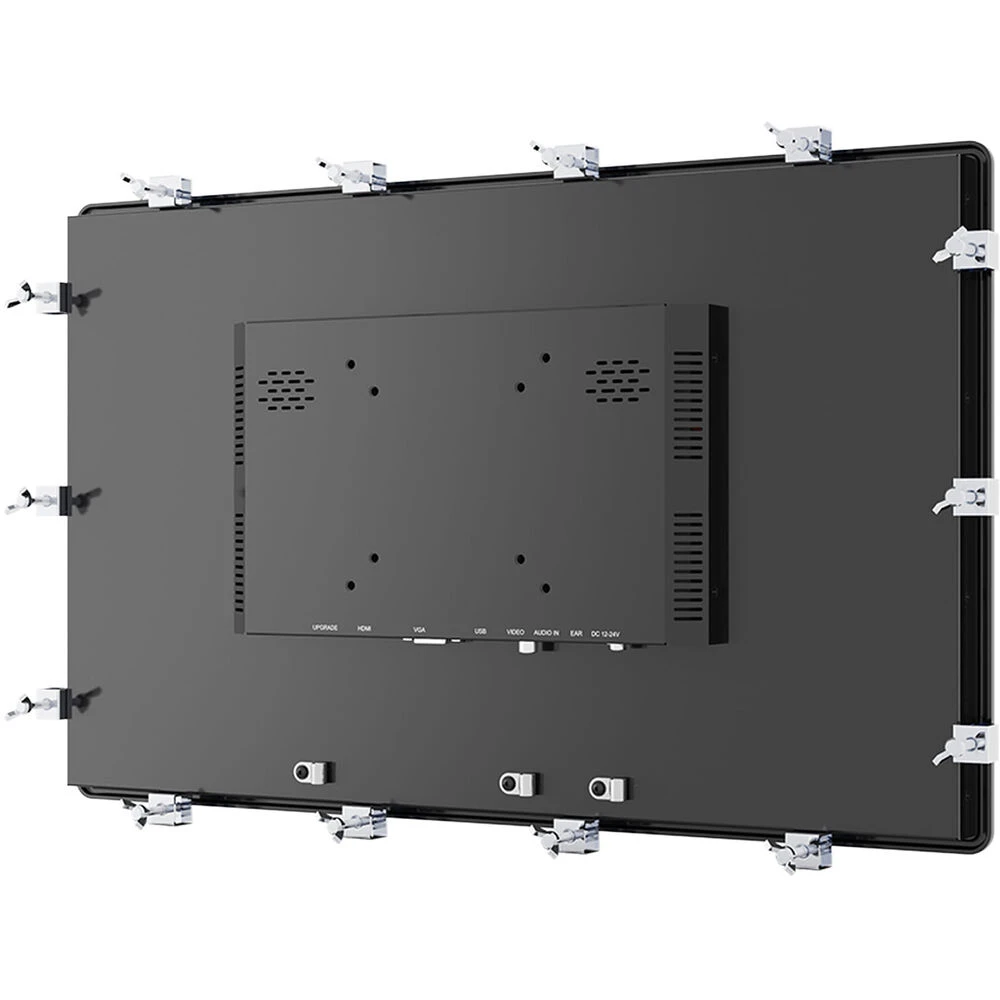

The TK1850/C is VESA mount compatible, and it comes with a screw mounting kit for installing on a panel. Connect standard and high-definition video sources via VGA, RCA, and HDMI inputs. For your convenience, HDMI, and VGA cables are included.
- 7H screen hardness
- Auto Dimming adjusts brightness for ambient light
Items Included
- Lilliput TK1850/C 18.5″ Full HD Commercial Monitor
- 15V 3A Power Adapter
- HDMI Cable
- VGA Cable
- Screw Mounting Kit
- 4 x Cable Clamp
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lilliput TK1850 C Specs
| Display Size |
18.5″ |
| Native Resolution |
1920 x 1080 |
| Maximum Brightness |
1000 nits / cd/m2 |
| Touchscreen |
No |
| Inputs |
1x HDMI 1x DE-15/DB-15 (VGA) 1x RCA (Composite) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
1x 1/8″ / 3.5 mm (Headphone) |
| USB I/O |
1x USB-A (Unspecified Version) (Service) |
| Ethernet I/O |
No |
| Built-In Speakers |
Yes, 2 |
| Display Size |
18.5″ |
| Panel Type |
LCD |
| Aspect Ratio |
16:9 |
| Display Orientation |
Landscape |
| Native Resolution |
1920 x 1080 |
| Maximum Brightness |
1000 nits / cd/m2 |
| HDR Support |
No |
| Contrast Ratio |
1000:1 |
| Refresh Rate |
60 Hz |
| Viewing Angle (H x V) |
170 x 170° |
| Finish |
Anti-Glare / Matte |
| Touchscreen |
No |
| Hardness Rating |
7H |
| TV Tuner |
No |
| Inputs |
1x HDMI 1x DE-15/DB-15 (VGA) 1x RCA (Composite) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
1x 1/8″ / 3.5 mm (Headphone) |
| HDCP Support |
No |
| NFC |
No |
| USB I/O |
1x USB-A (Unspecified Version) (Service) |
| Ethernet I/O |
No |
| Ambient Light Sensor |
Yes |
| Multi-Input Support (PIP/PBP) |
No |
| Built-In Speakers |
Yes, 2 |
| Smart TV |
No |
| Built-In Mic |
No |
| Power Consumption |
Typical: < 32.0 W |
| Input Power |
12 to 24 VDC |
| Power Adapter Type |
External |
| Operating Conditions |
14 to 140°F / -10 to 60°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C |
| VESA Mounting-Hole Pattern |
100 x 100 mm, 75 x 75 mm |
| Environmental Resistance |
Dust/Humidity/Water-Resistant (IP65) |
| Impact Resistance |
Impact-Resistant (IK07) |
| Dimensions |
18.7 x 11.7 x 1.8″ / 475 x 296 x 45.7 mm |
| Weight |
10.1 lb / 4.6 kg |
| Package Weight |
15.905 lb |
| Box Dimensions (LxWxH) |
21.2 x 18.8 x 5.3″ |
